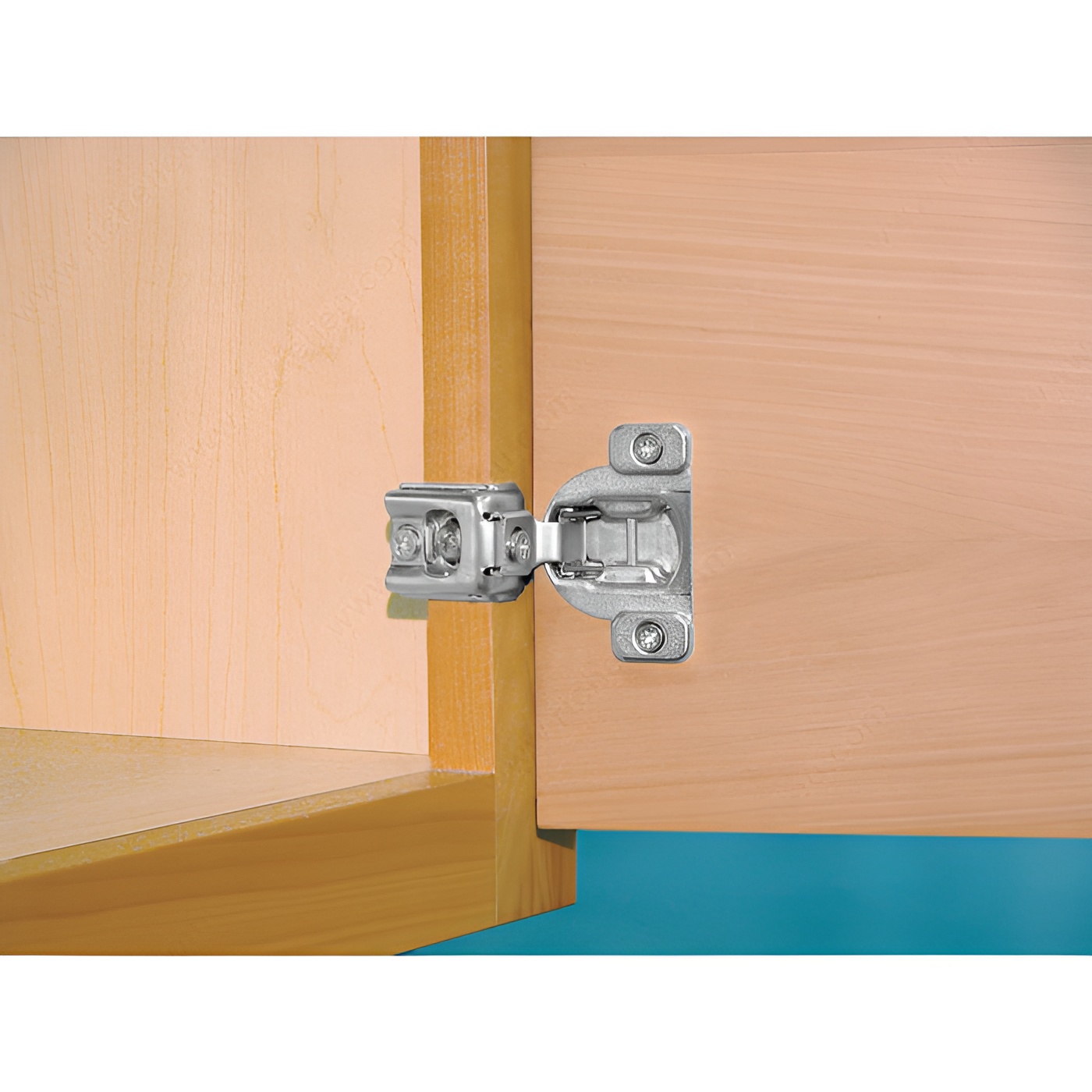

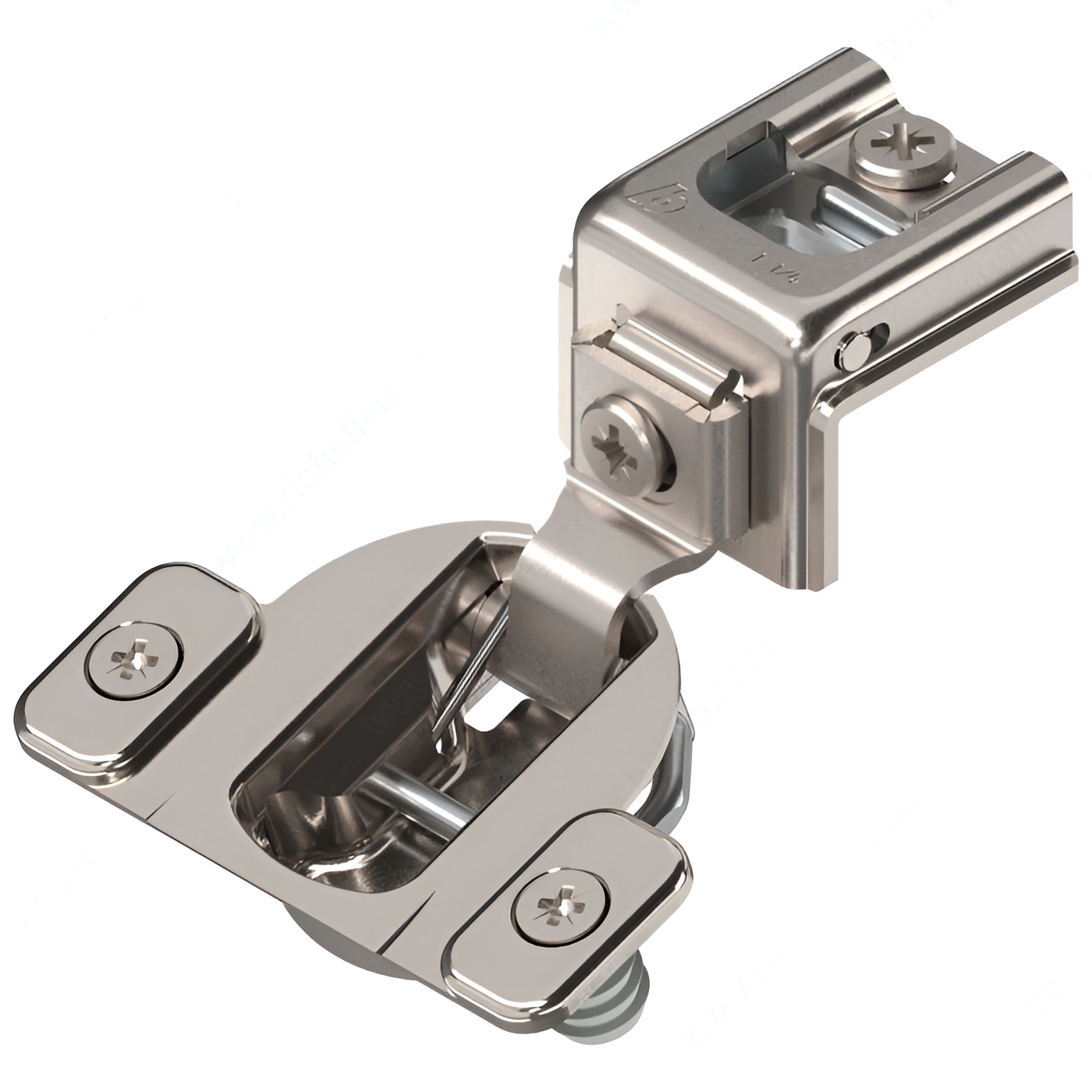

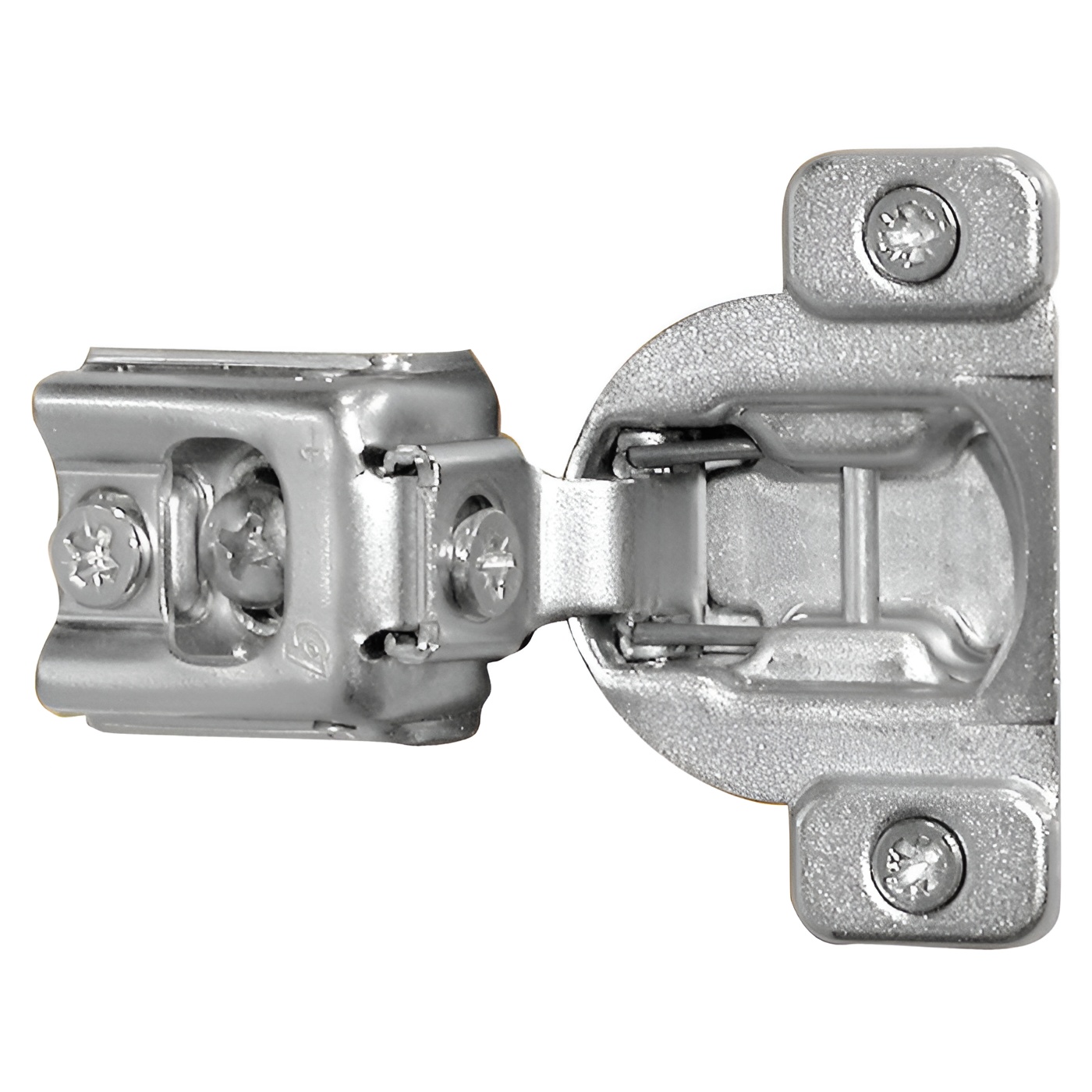

Richelieu 39C3580180 COMPACT 39C Hinge 110 offers a reliable solution for face frame cabinets with its concealed hinge design. Ideal for both small and large overlays, this hinge ensures a seamless appearance while providing exceptional functionality. The COMPACT hinge is adjustable in side, height, and depth dimensions, making installation straightforward and flexible for various applications. Engineered for cabinets with a thickness of up to 3/4 inches, the hinge supports full overlay doors and accommodates door thicknesses up to 3/4 inches as well. With a maximum hinge opening angle of +110°, it allows for easy access to cabinet interiors. The wraparound type mounting and knock-in fixing type streamline the installation process, although screws and nails are not included. Constructed from durable steel and finished in nickel, the hinge combines strength with an attractive aesthetic. The spring closing mechanism enhances usability, ensuring doors close smoothly and securely. Additionally, a milling depth of 1/2 inch and a milling diameter of 1 3/8 inches provide precise fitting requirements. Whether for new installations or upgrades, the Richelieu COMPACT hinge is an excellent choice for professionals seeking quality and performance in cabinetry solutions.
COMPACT 39C Hinge 110
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Max. 3/4 in
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only

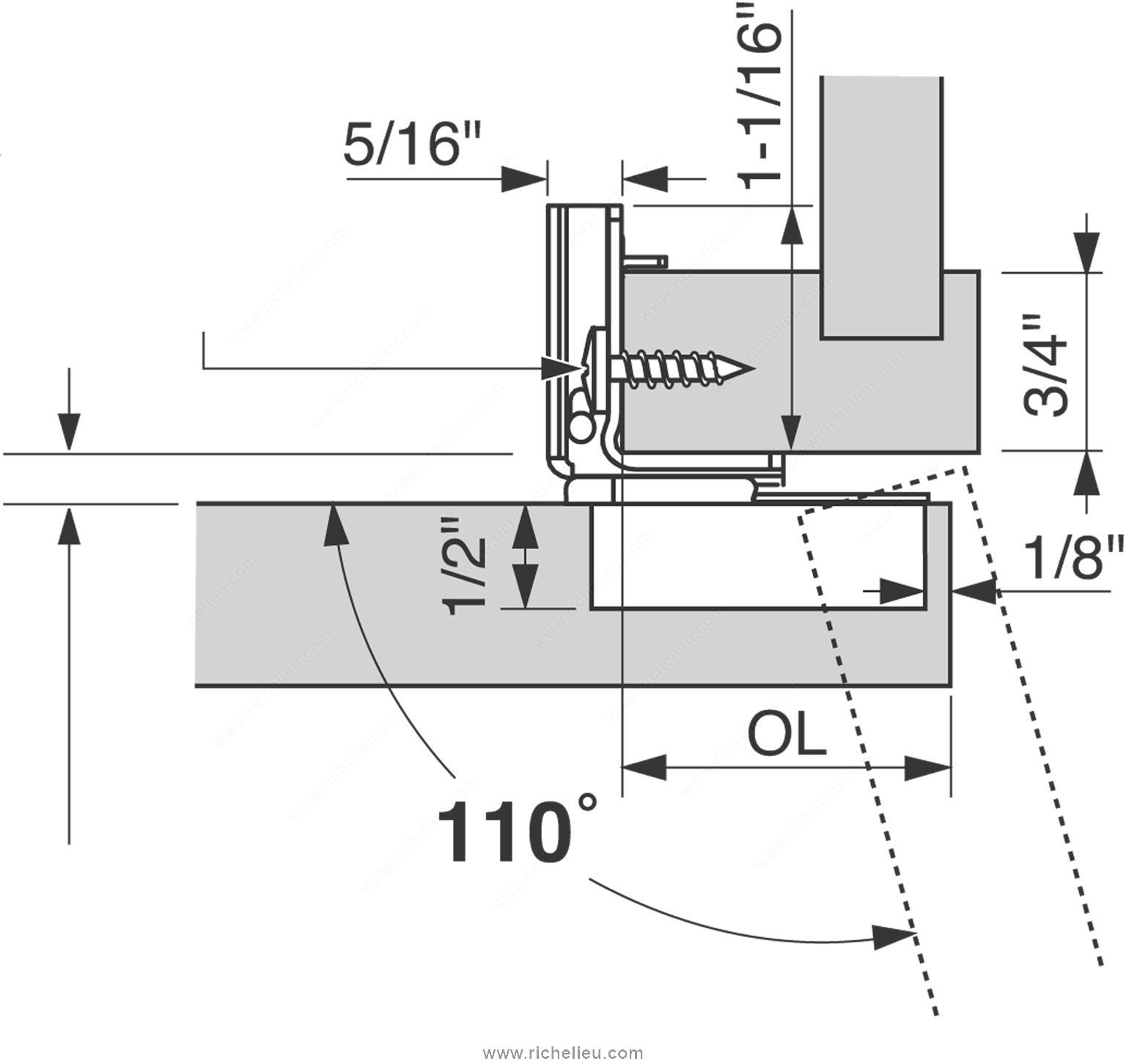

Hinge Opening Angle: +110°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing

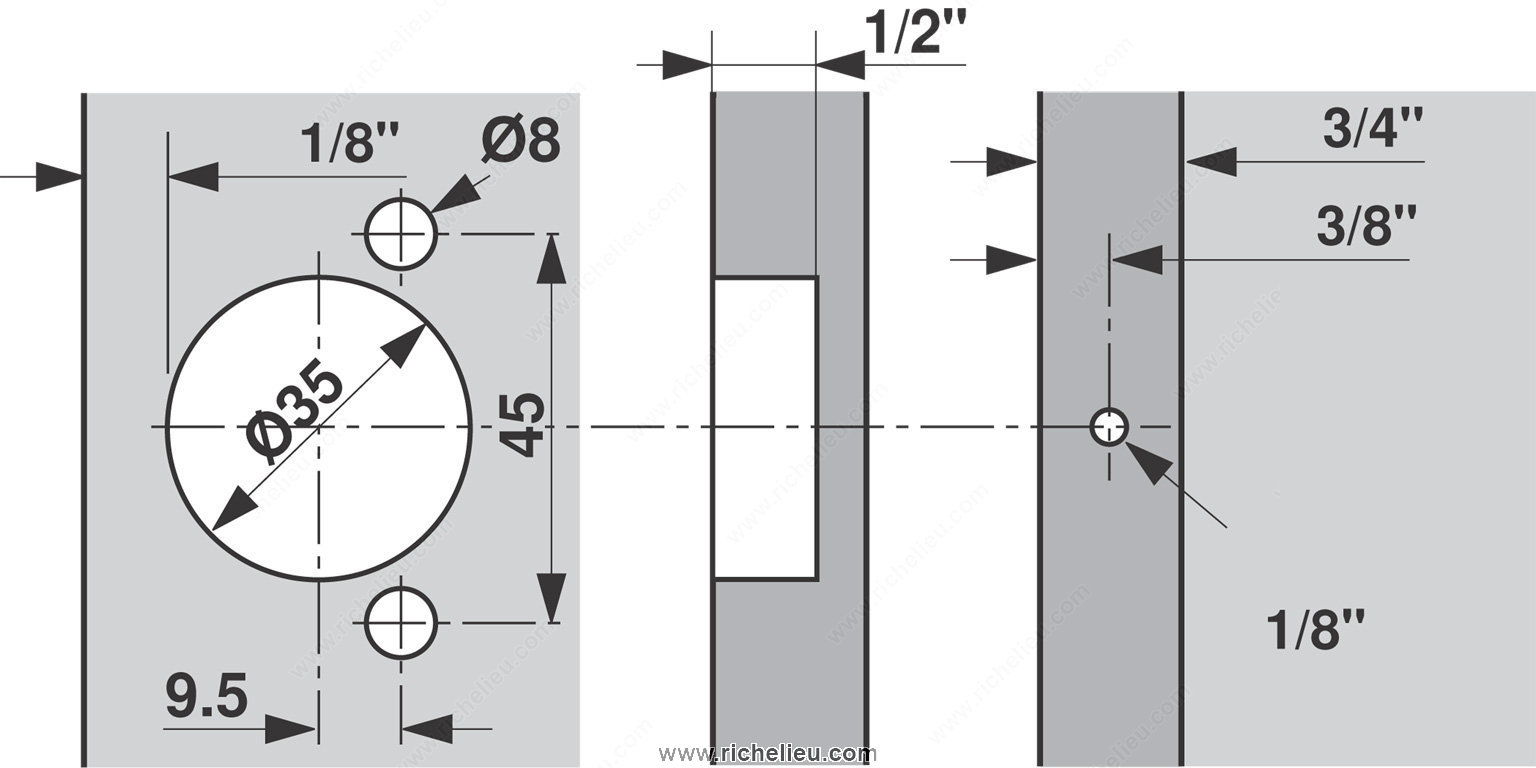

Milling Depth: 1/2 in
Milling Diameter: 35 mm

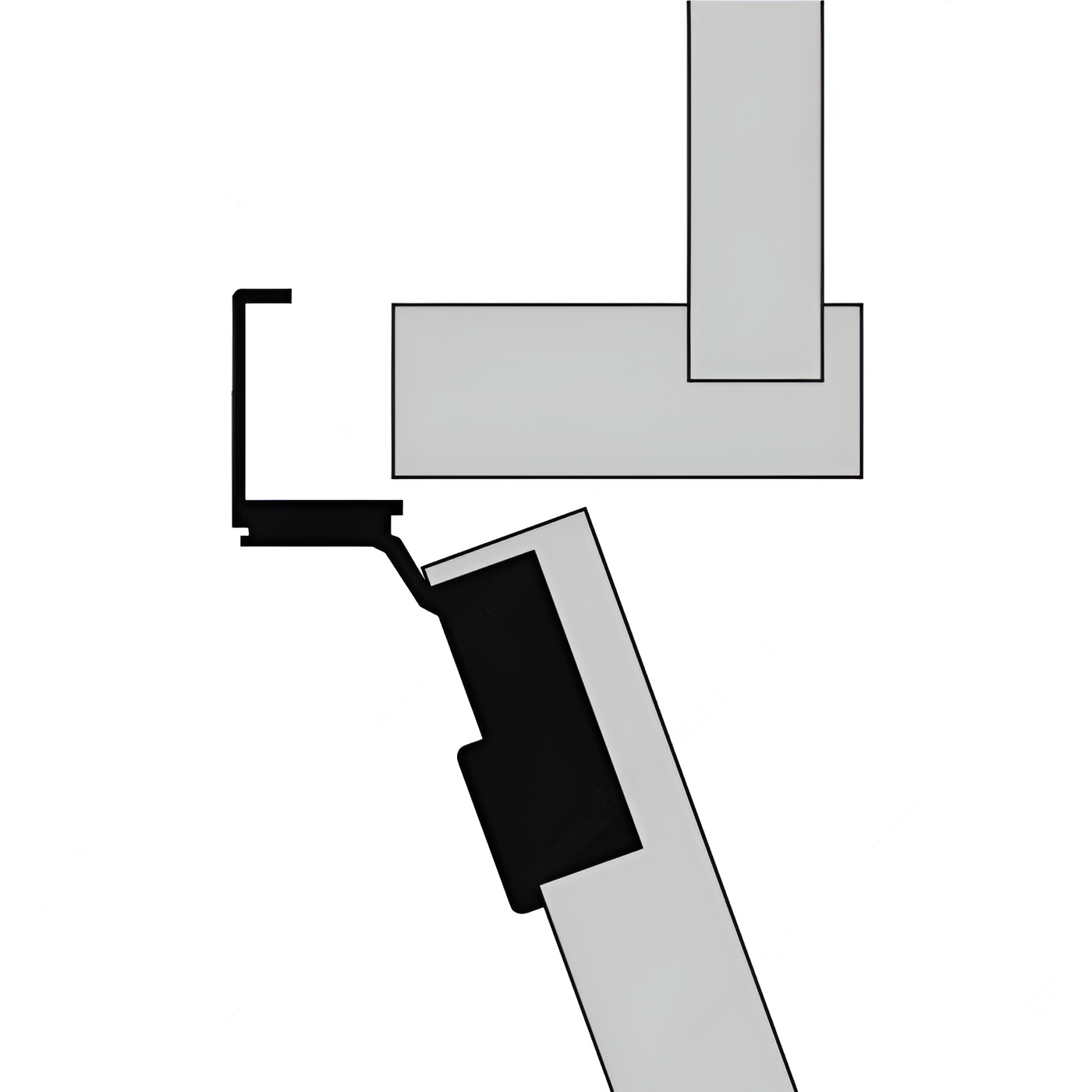

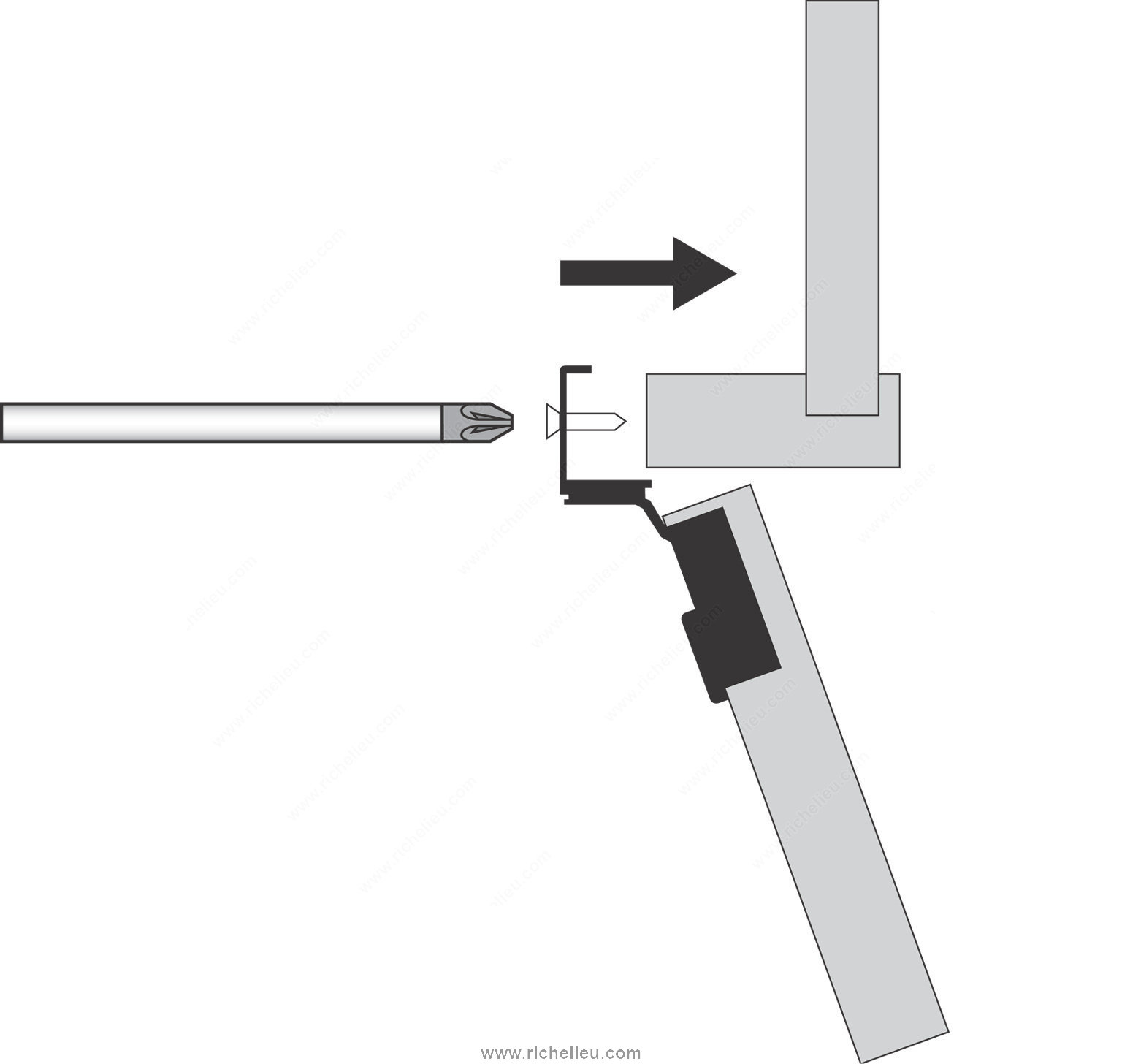

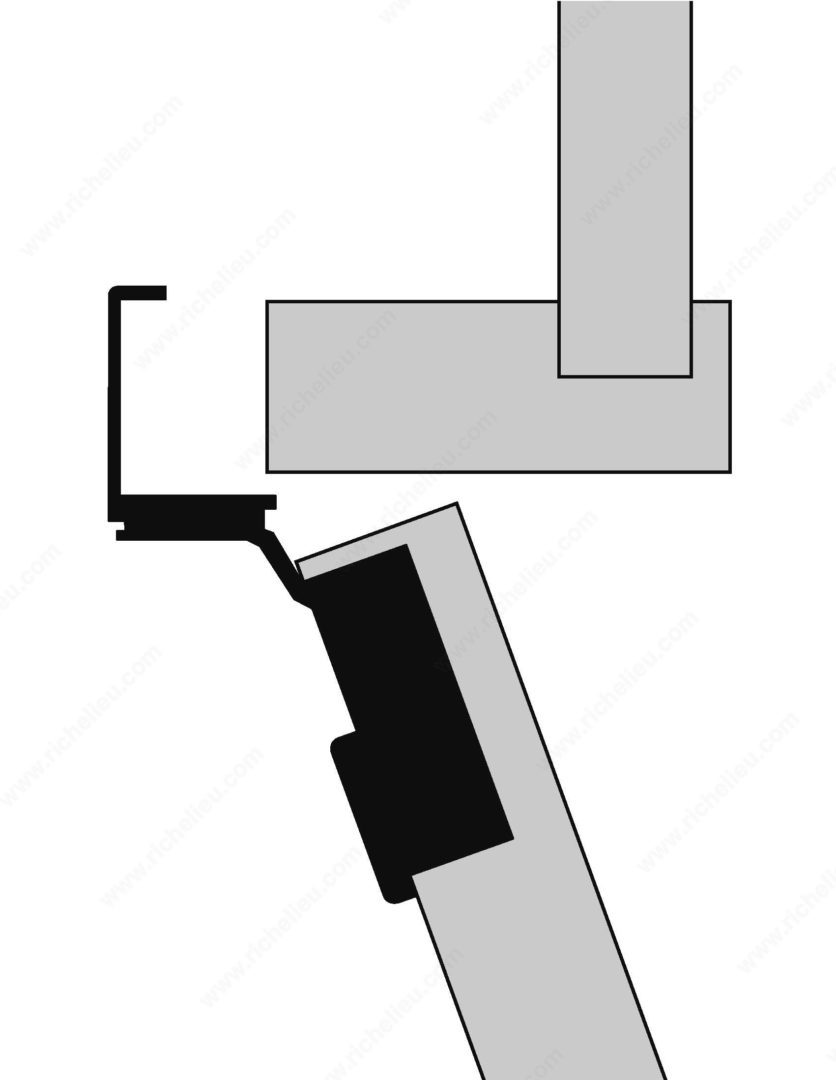

Mounting Type: Wrap-around Mount
Overlay: 1 1/4 in
Packaging format: Per unit
Product #: 39C3580180
Product number: 39C3580180
Required Frame Width: 19 mm
Screw/ Nail: #10 x 3/4" Quadrex Pan Head (Included), #6 x 5/8" Quadrex Flat Head (Included)
Unit 1: case - 300
Use Type: Standard Door
