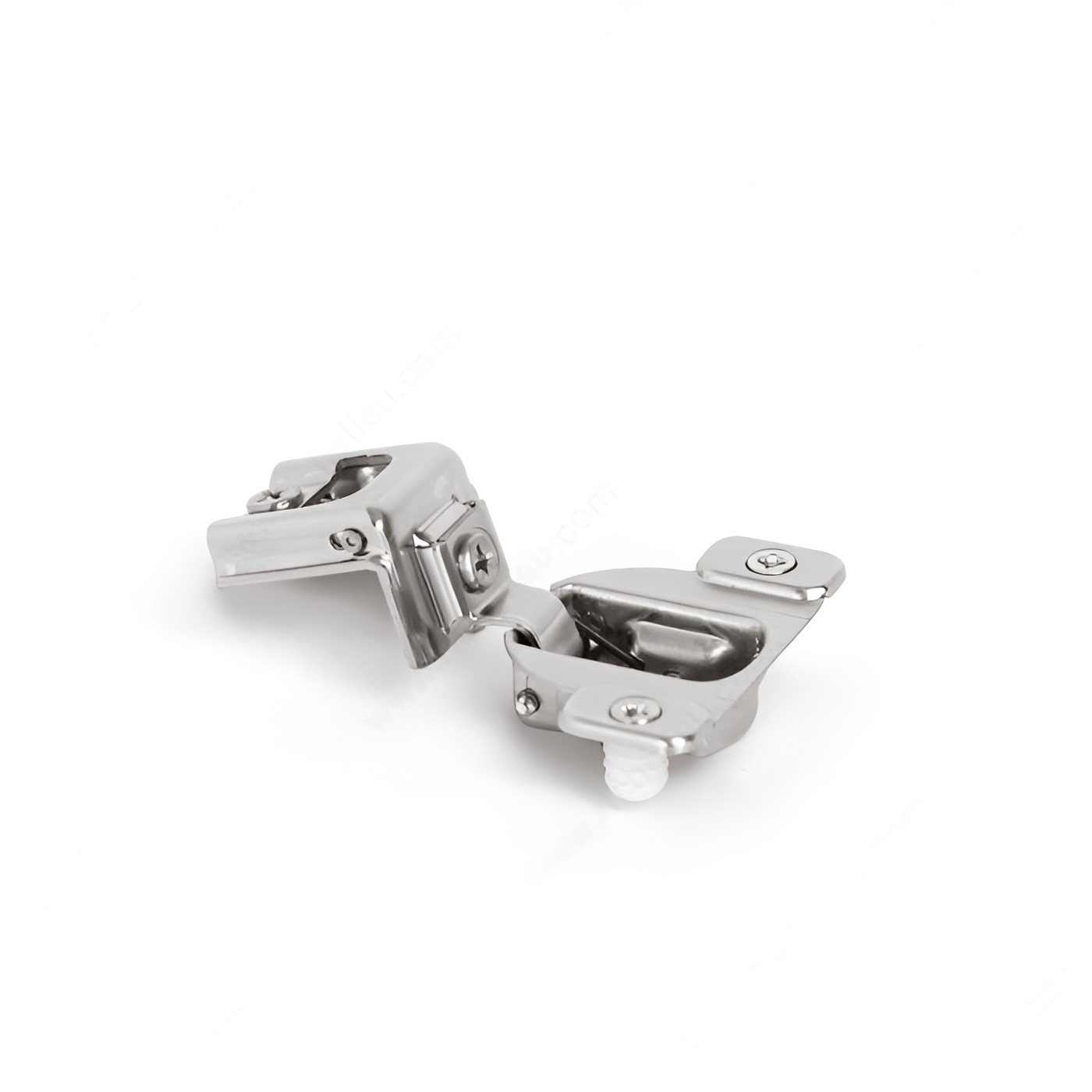

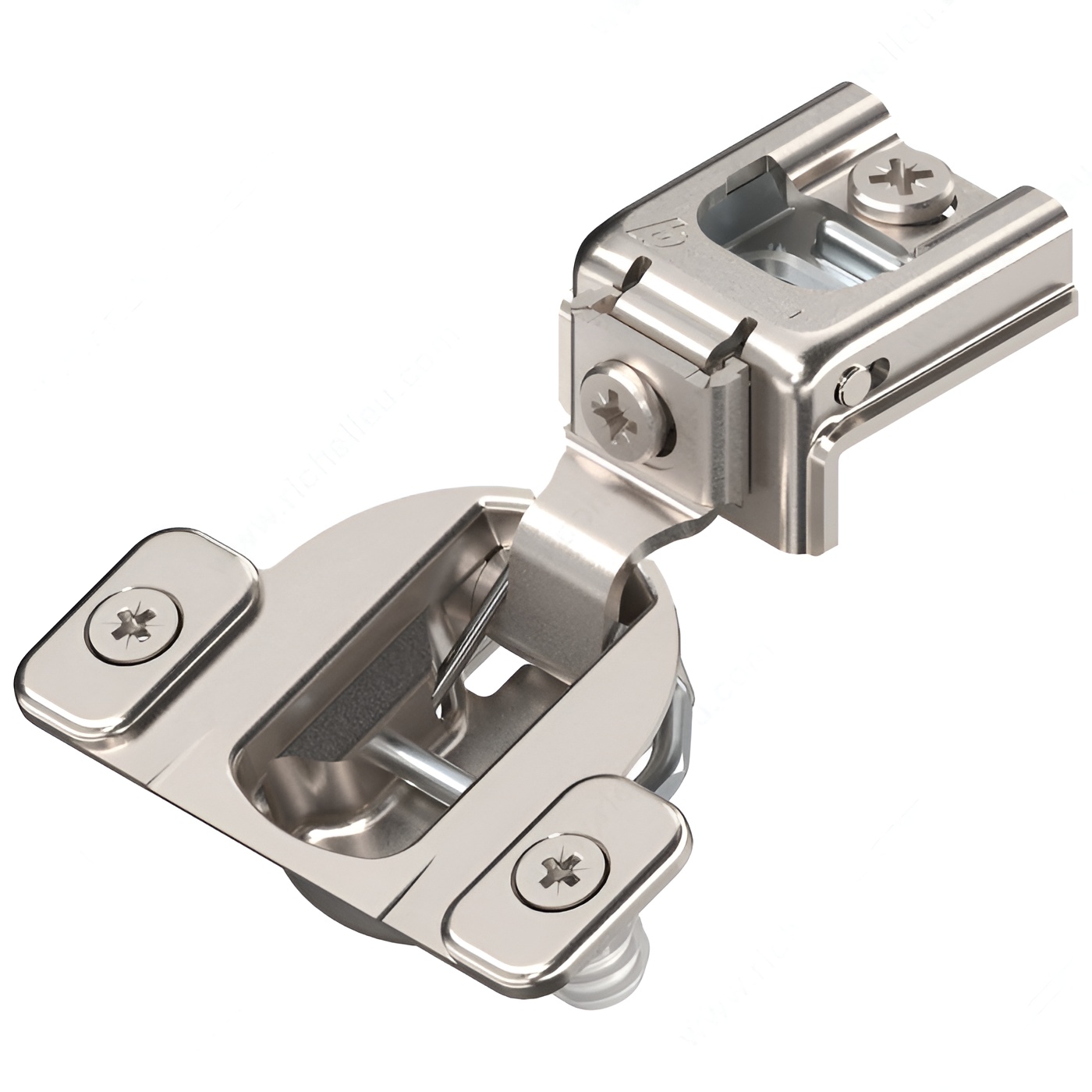

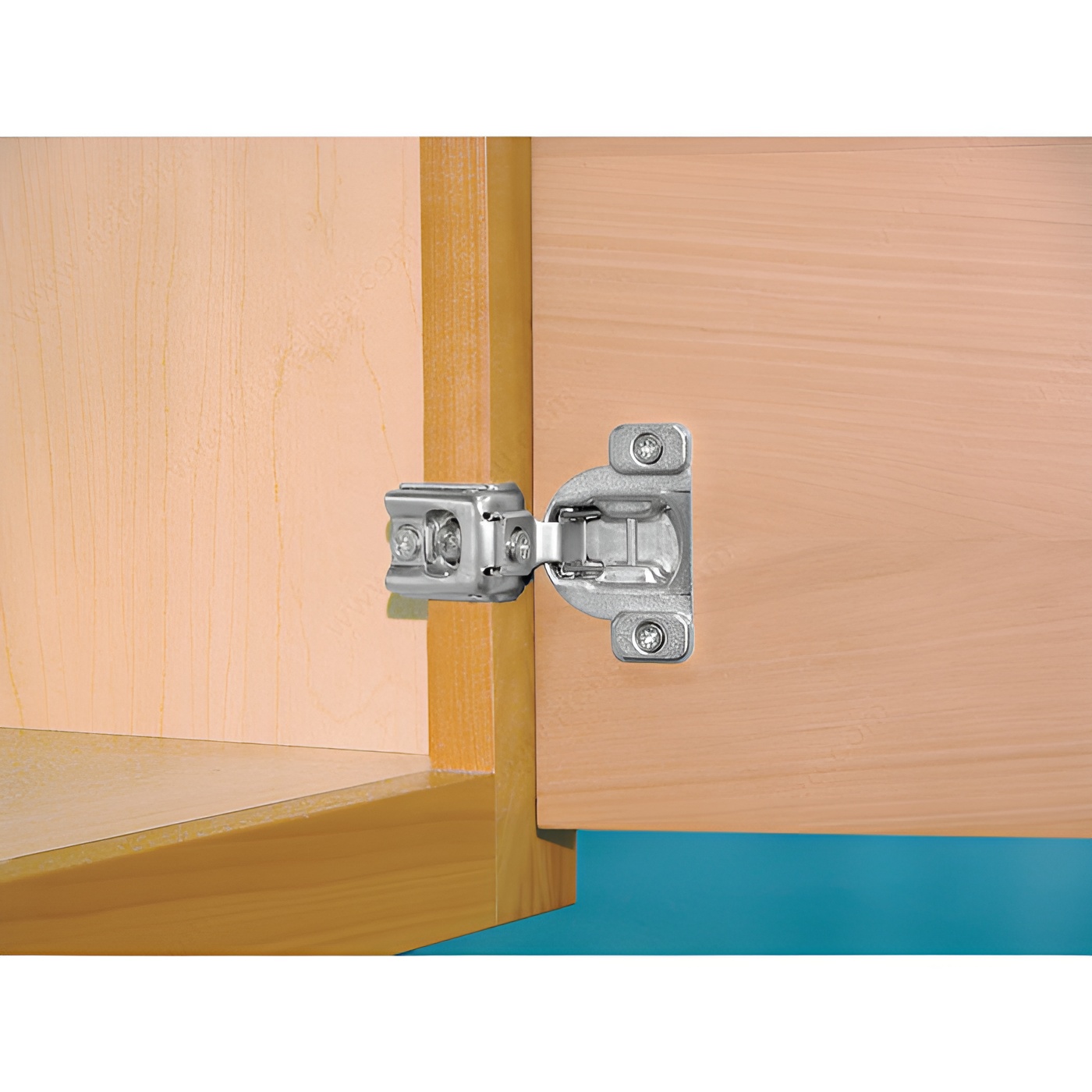

Richelieu 39C35816180 COMPACT 39C Hinge 110 offers a reliable solution for concealed hinge applications within face frame cabinets. Designed for versatility, these COMPACT hinges accommodate both small and large overlays, making them suitable for a variety of cabinet styles. The hinges are adjustable in side, height, and depth dimensions, ensuring a precise fit and optimal performance. Crafted from durable steel with a sleek nickel finish, the hinges are built to last while enhancing the aesthetic of your cabinetry. With a hinge opening angle of +110°, the 39C35816180 allows for easy access to cabinet interiors, promoting convenience and functionality. The maximum cabinet and door thickness is 3/4 inch, and the required frame width is also 3/4 inch, making them a practical choice for standard door applications. These hinges are designed with a spring closing mechanism, ensuring a smooth and reliable closure every time. They feature wraparound type mounting and require a milling depth of 1/2 inch and a milling diameter of 1 3/8 inches. Please note that screws and nails are not included in the packaging. Elevate your cabinetry with the dependable performance of Richelieu's COMPACT 39C hinge.

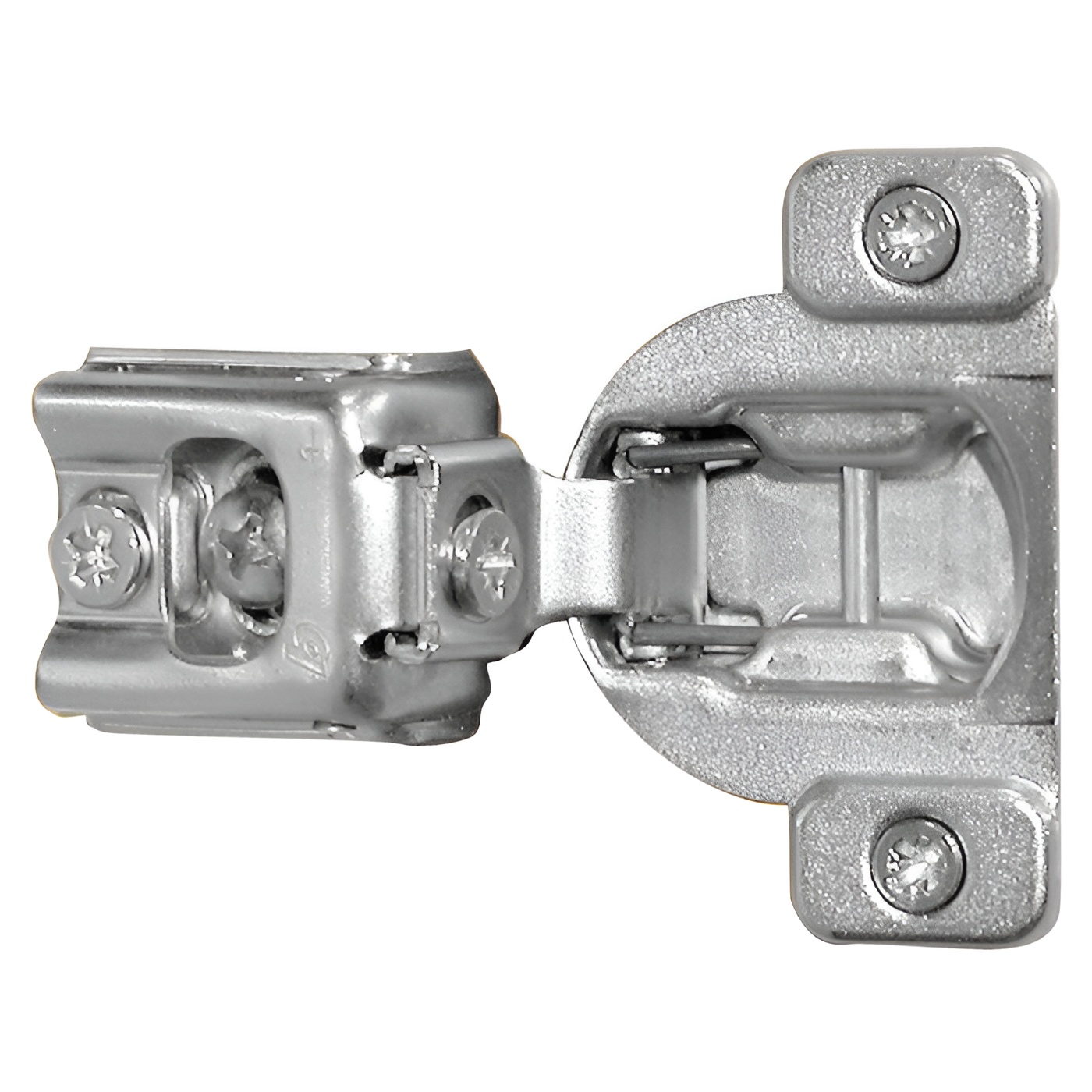

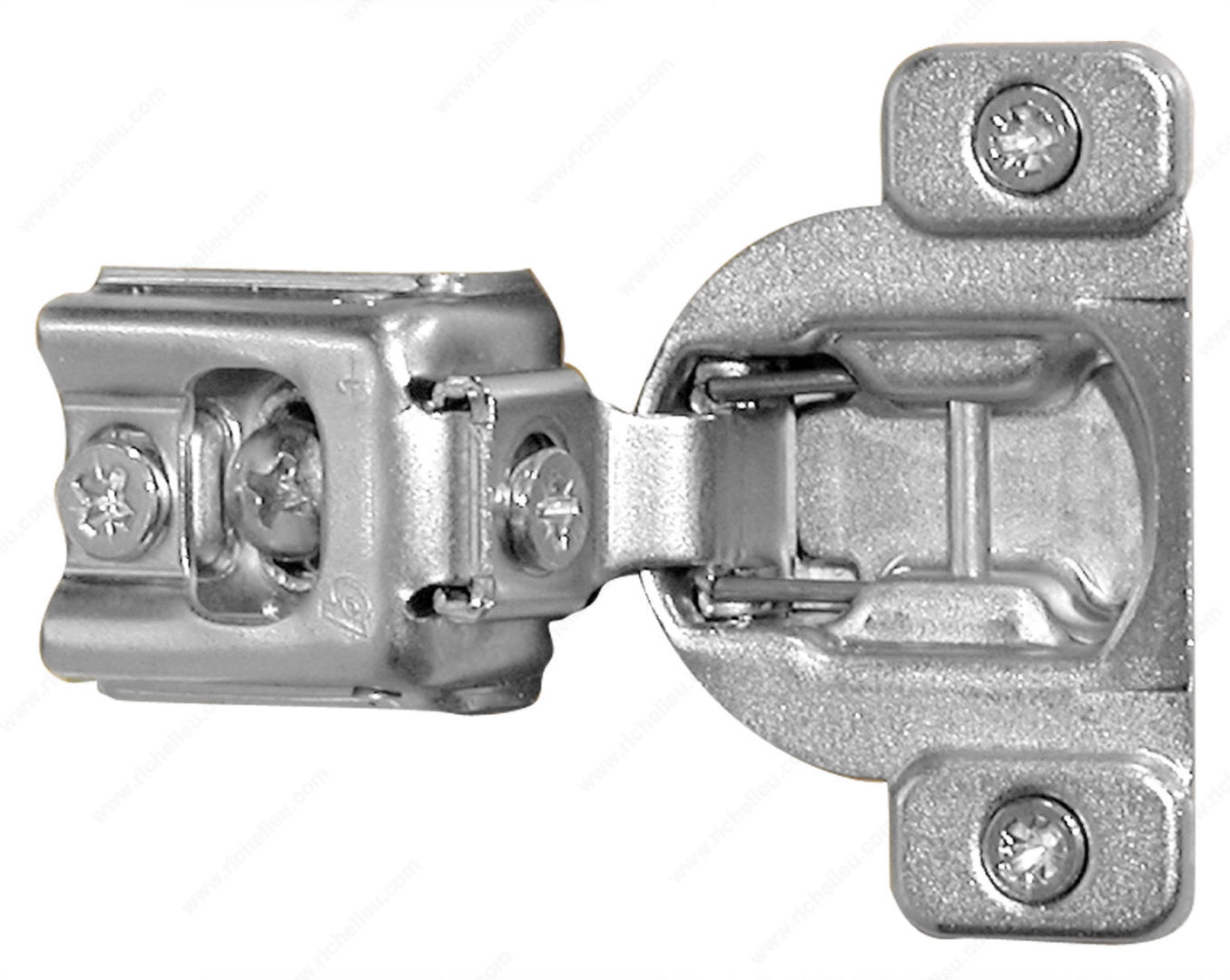

COMPACT 39C Hinge 110
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Max. 3/4 in
Finish: Nickel

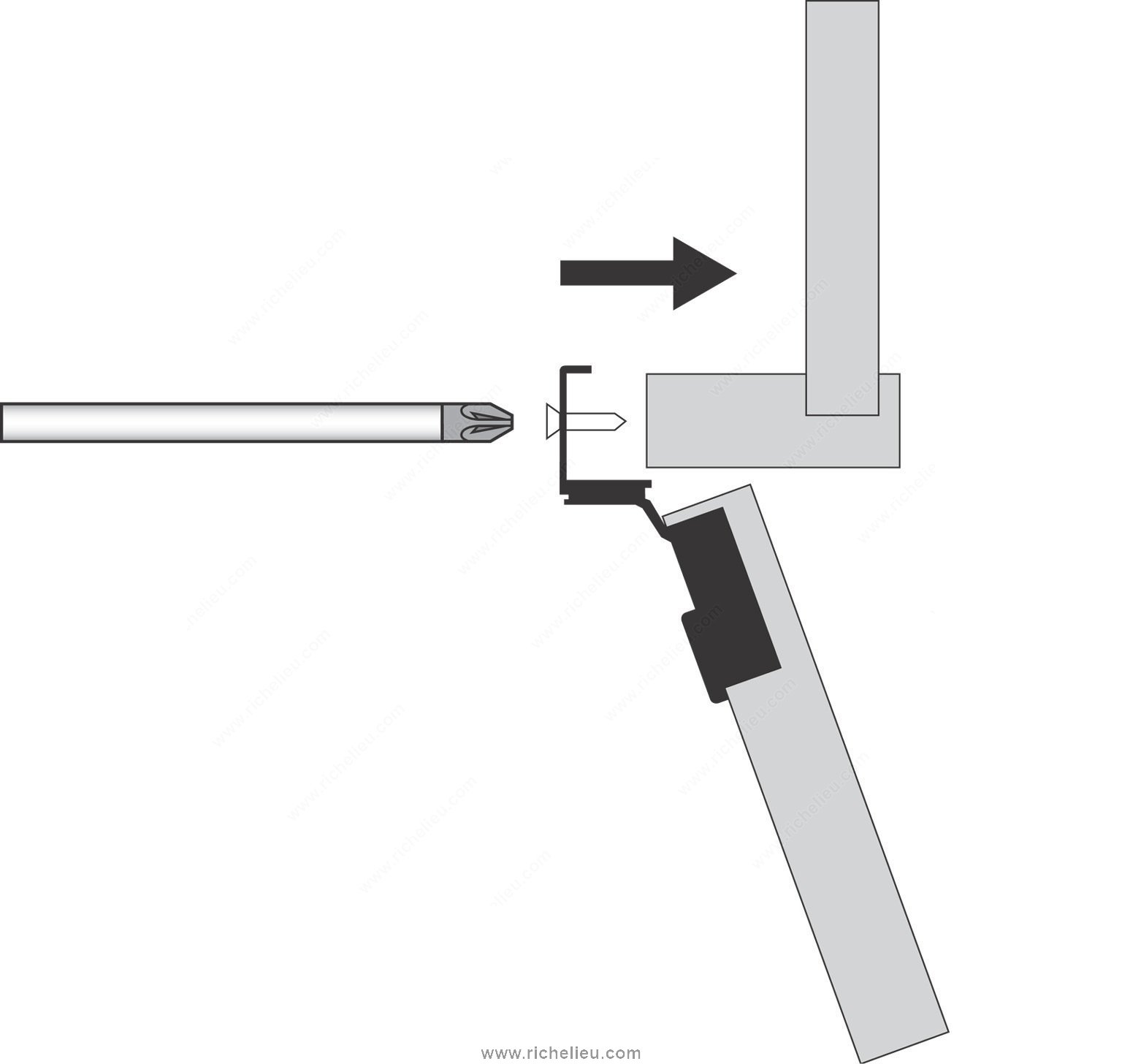

Fixing Type: Knock-In with Insertion Ram Only

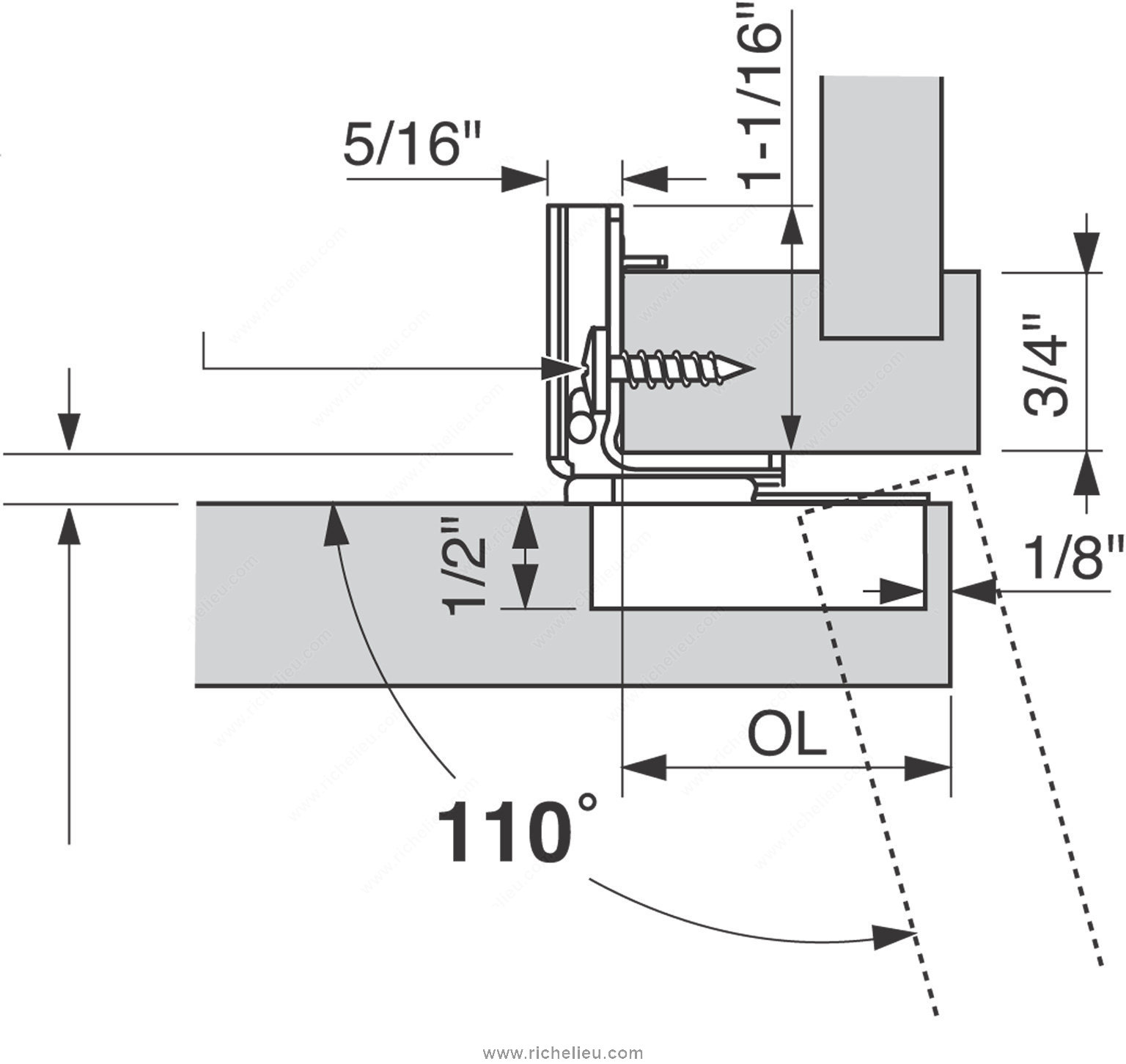

Hinge Opening Angle: +110°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing

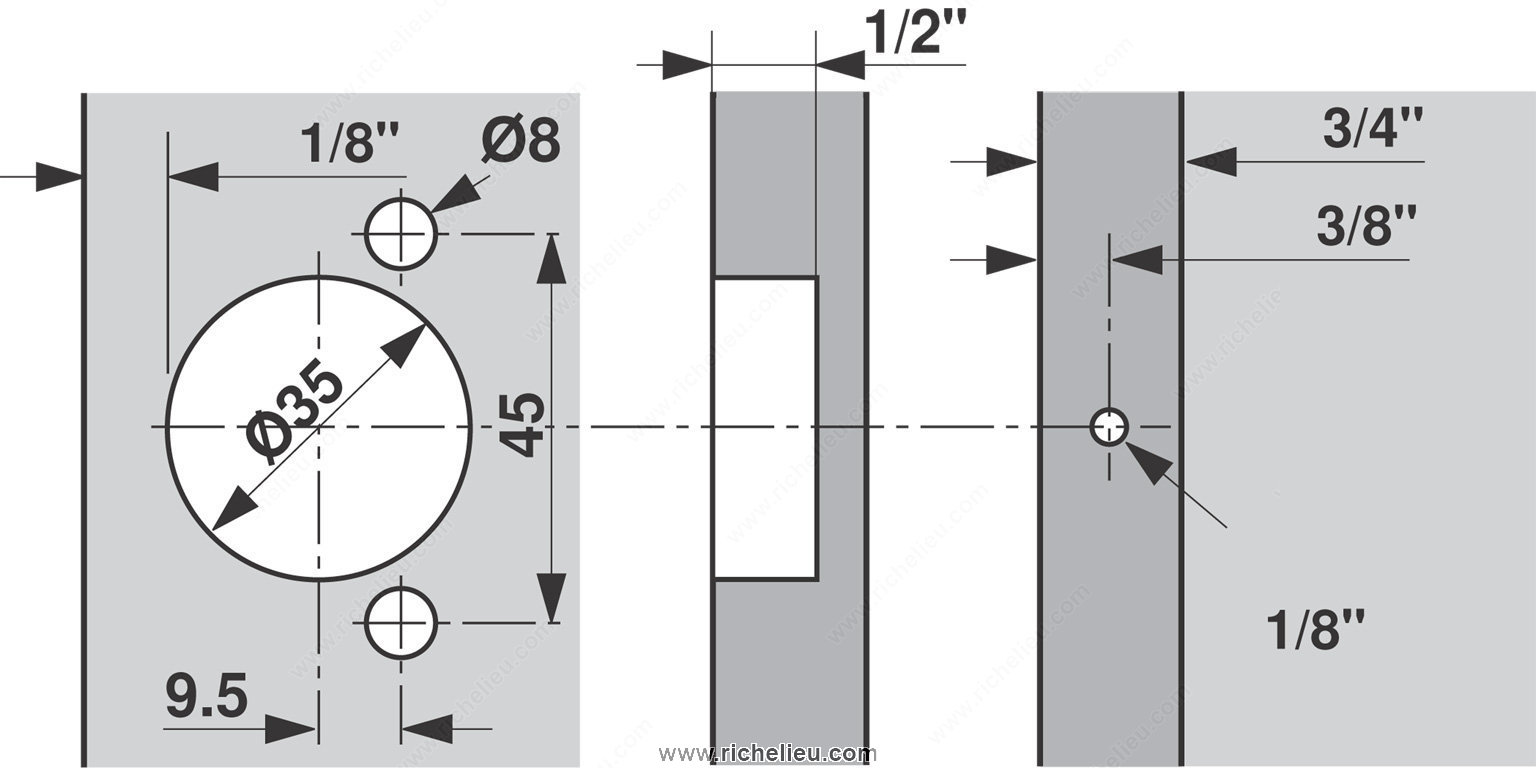

Milling Depth: 1/2 in
Milling Diameter: 35 mm

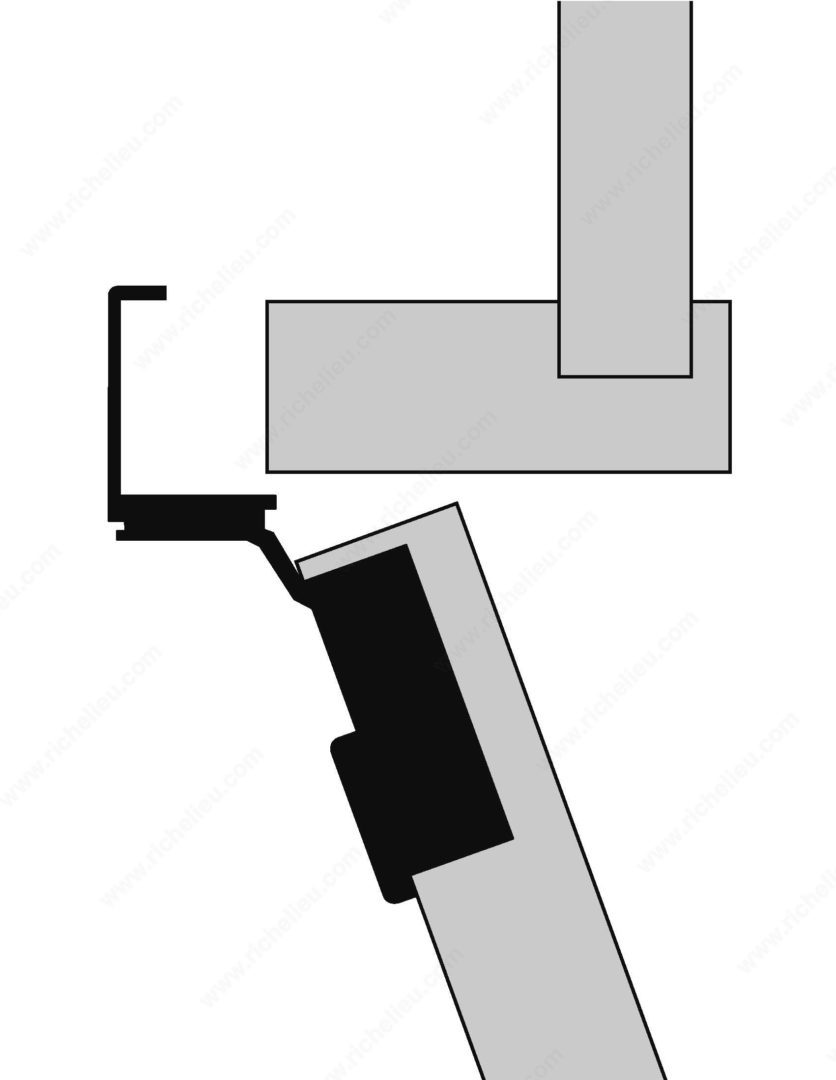

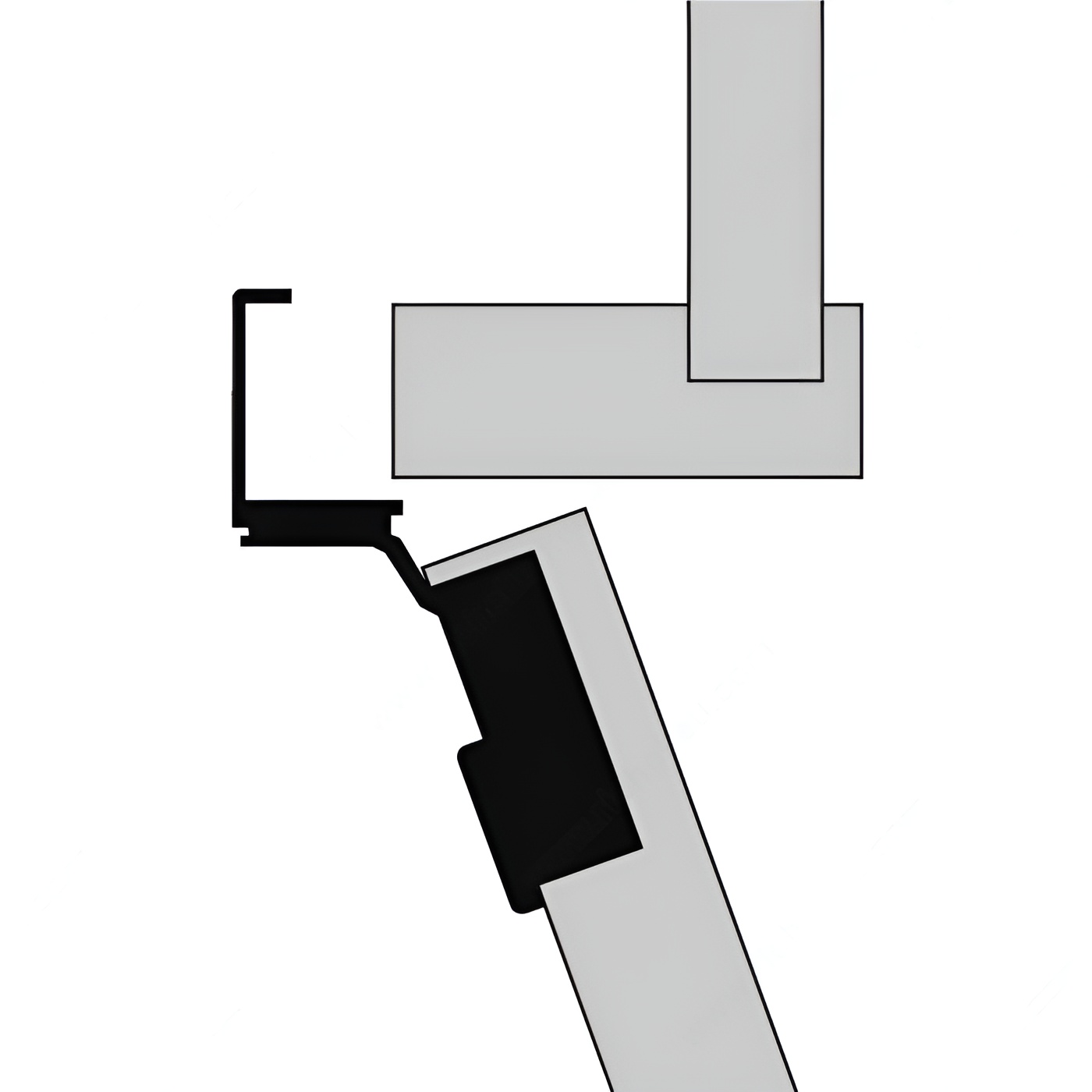

Mounting Type: Wrap-around Mount
Overlay: 1 in
Packaging format: Per unit
Product #: 39C35816180
Product number: 39C35816180
Required Frame Width: 19 mm
Screw/ Nail: #10 x 3/4" Quadrex Pan Head (Included), #6 x 5/8" Quadrex Flat Head (Included)
Unit 1: case - 300
Use Type: Standard Door
