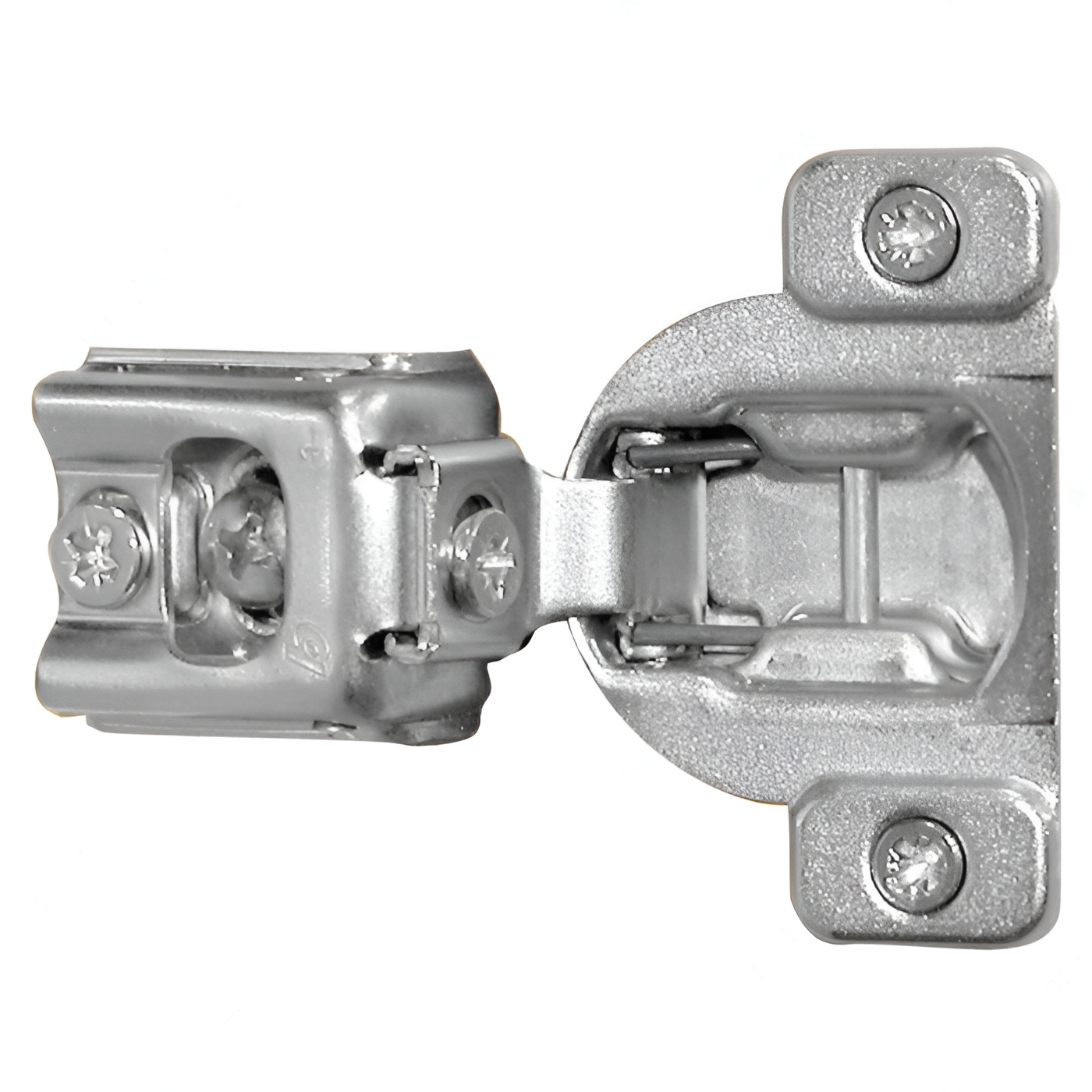

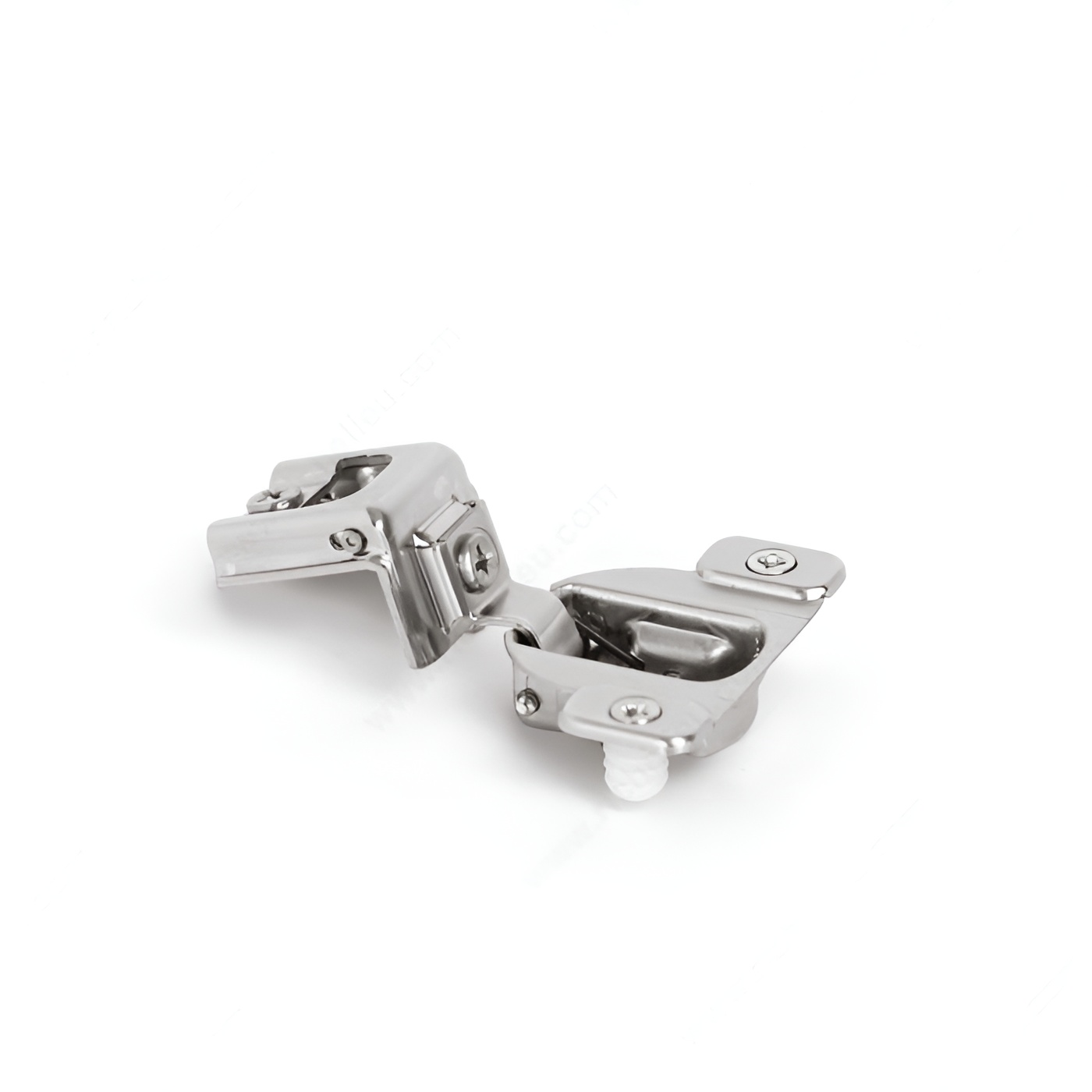

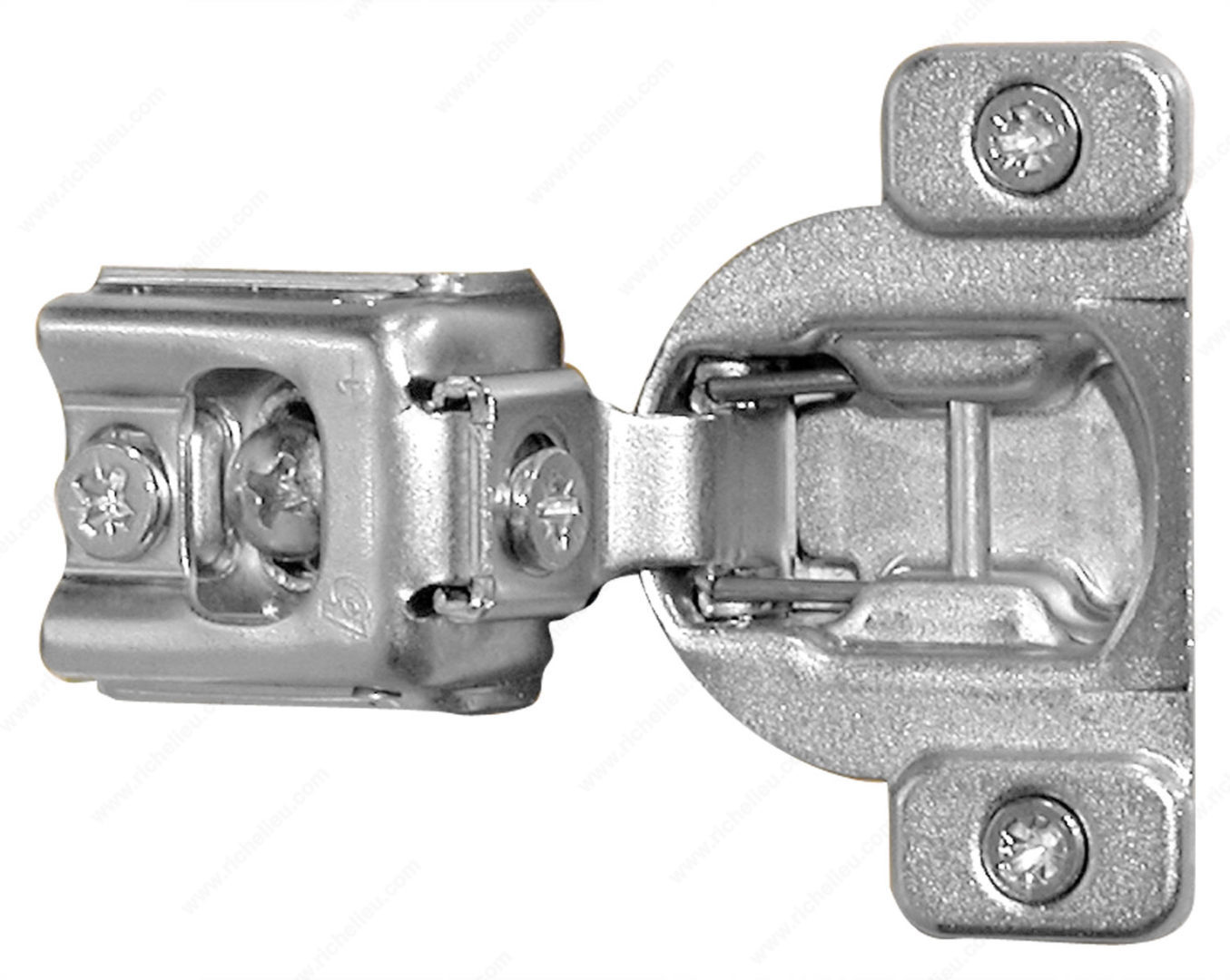

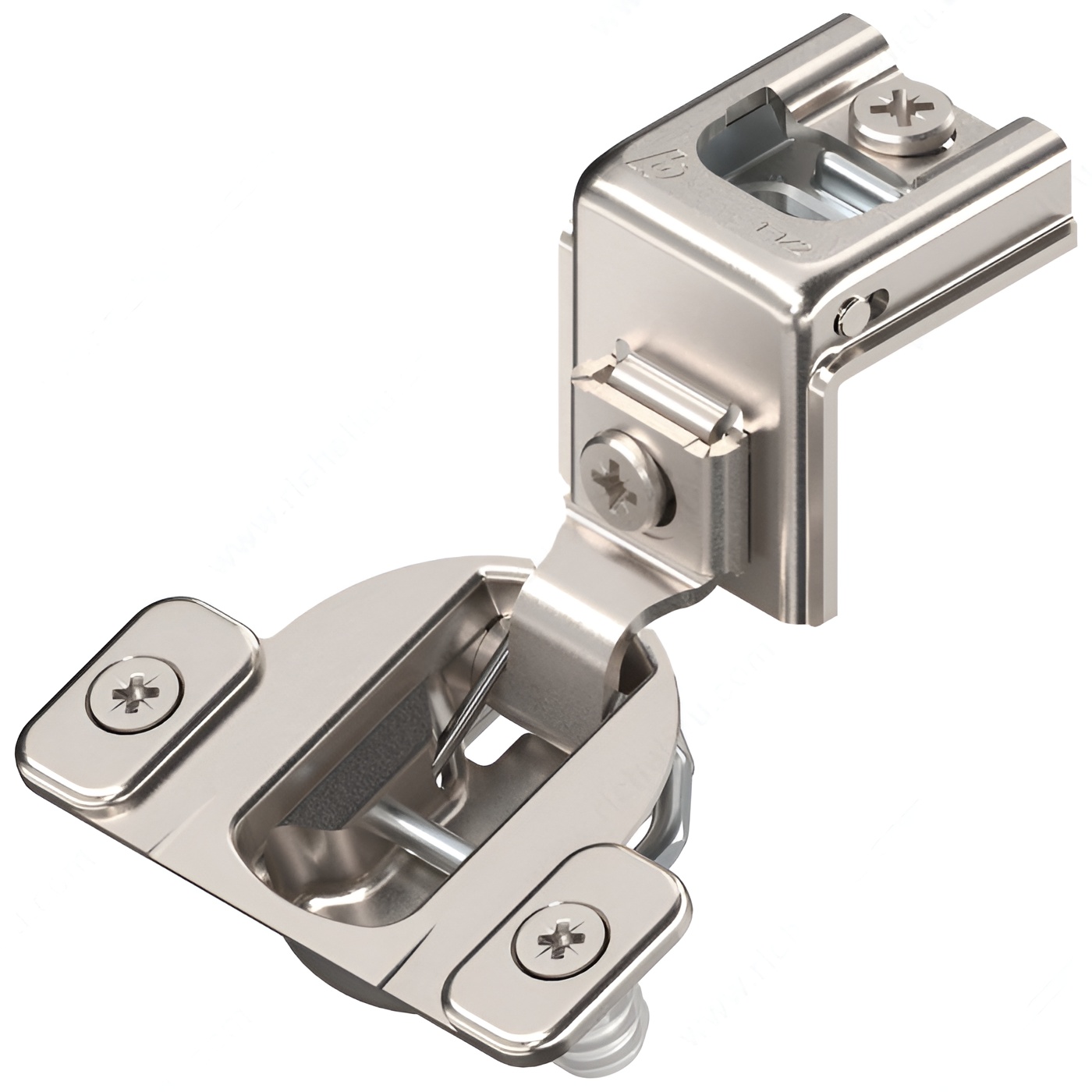

Richelieu 39C35824180 COMPACT 39C Hinge 110 offers a reliable solution for concealed hinge applications in face frame cabinets. Designed for versatility, this hinge accommodates both small and large overlays, making it ideal for a variety of cabinet styles. With an impressive opening angle of +110°, it ensures easy access to cabinet interiors, enhancing user convenience. Constructed from durable steel with a sleek nickel finish, this hinge combines aesthetics with functionality. It is adjustable in side, height, and depth dimensions, allowing for precise alignment and installation in cabinets with a maximum thickness of 3/4 inches for both the cabinet and door. The wraparound type mounting ensures stability, while the spring closing mechanism provides smooth operation. This hinge requires a milling depth of 1/2 inches and a diameter of 1 3/8 inches, ensuring a secure fit within the cabinet frame. Sold individually, the Richelieu COMPACT hinge is perfect for standard door applications and is designed to be fixed using a knock-in method with an insertion ram. Please note that screws or nails are not included. Elevate your cabinetry with the reliability and ease of the Richelieu 39C35824180 COMPACT hinge.
COMPACT 39C Hinge 110
Brand: Blum
Cabinet Thickness: Max. 3/4 in*

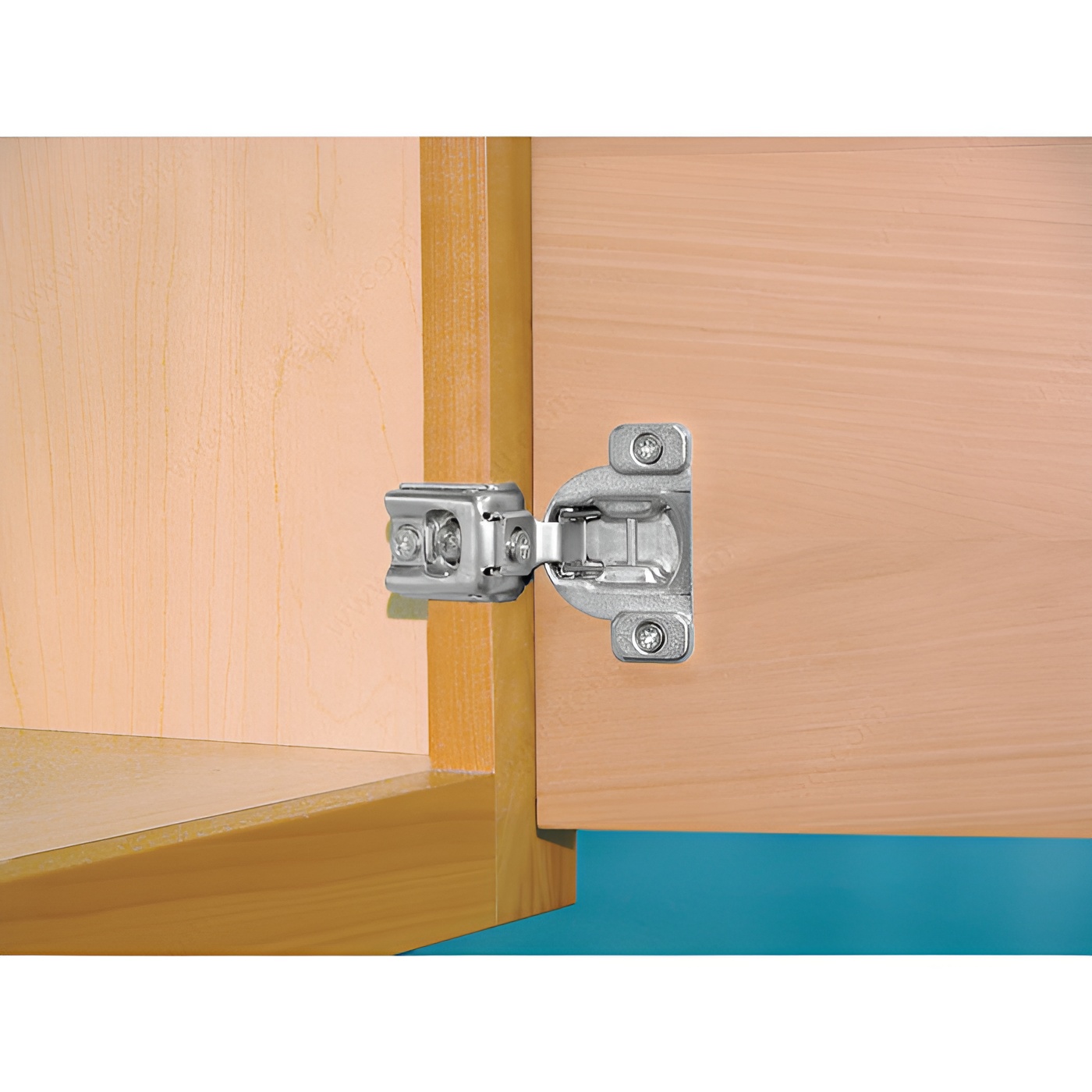

Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Max. 3/4 in
Finish: Nickel

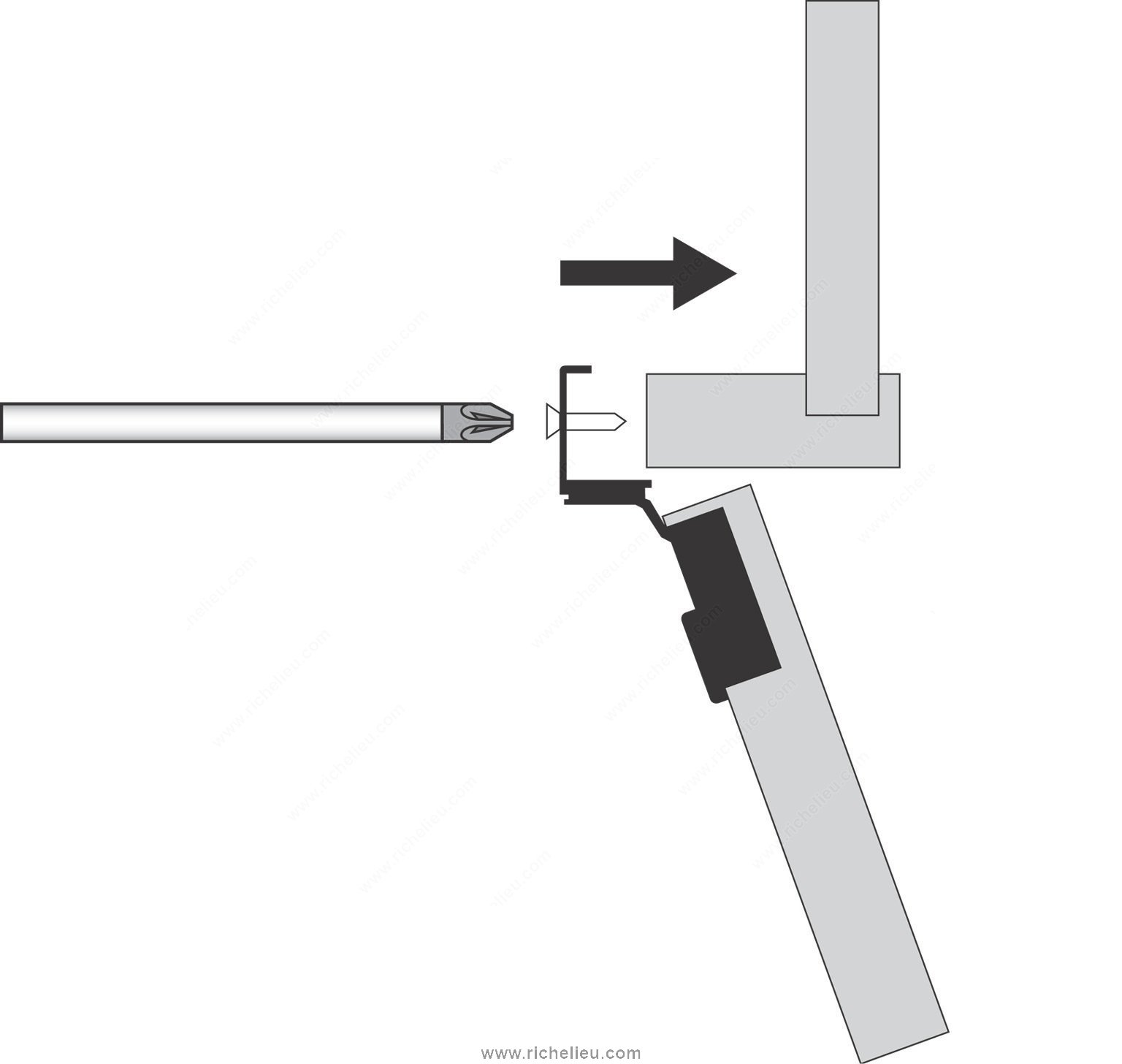

Fixing Type: Knock-In with Insertion Ram Only

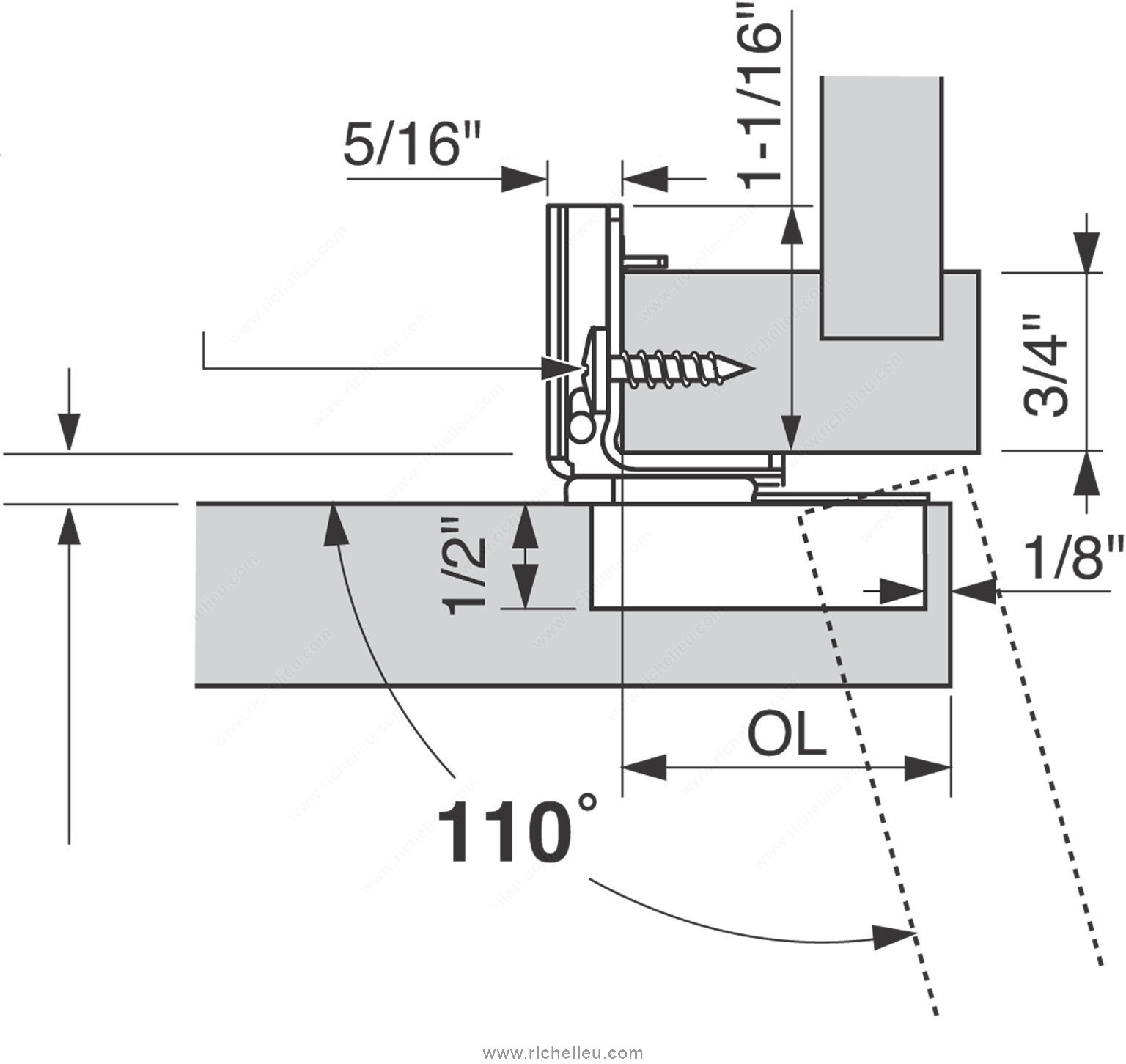

Hinge Opening Angle: +110°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing

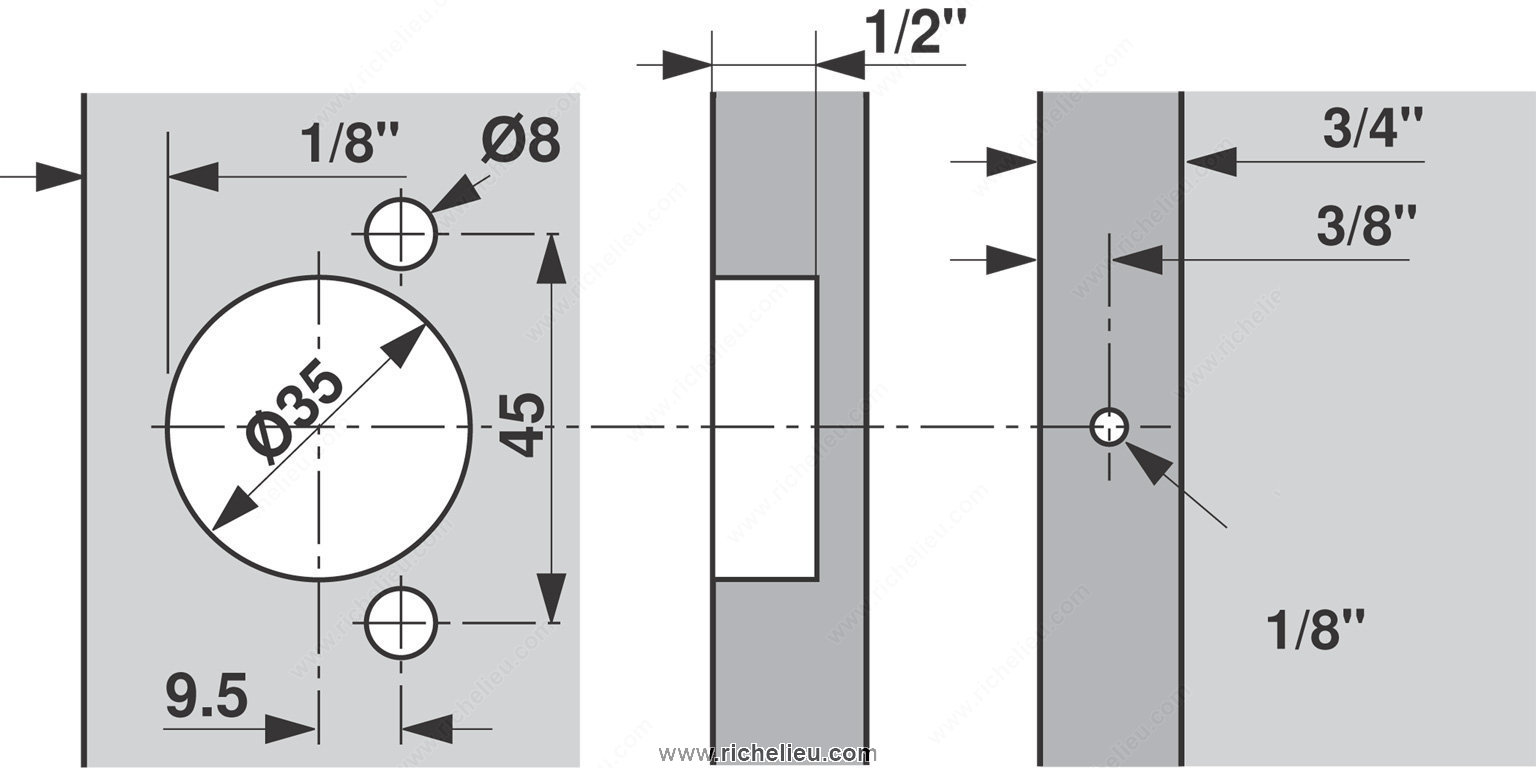

Milling Depth: 1/2 in
Milling Diameter: 35 mm

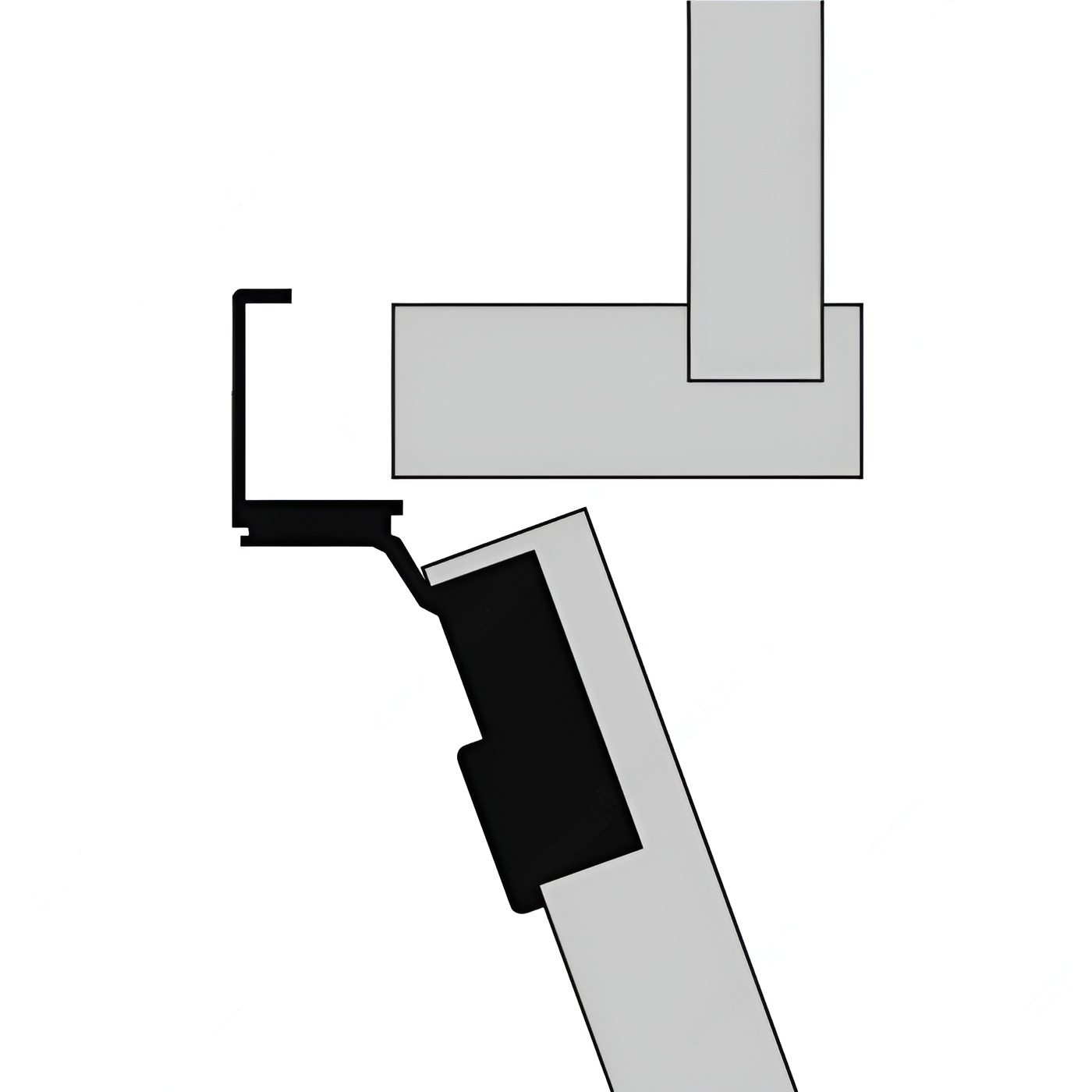

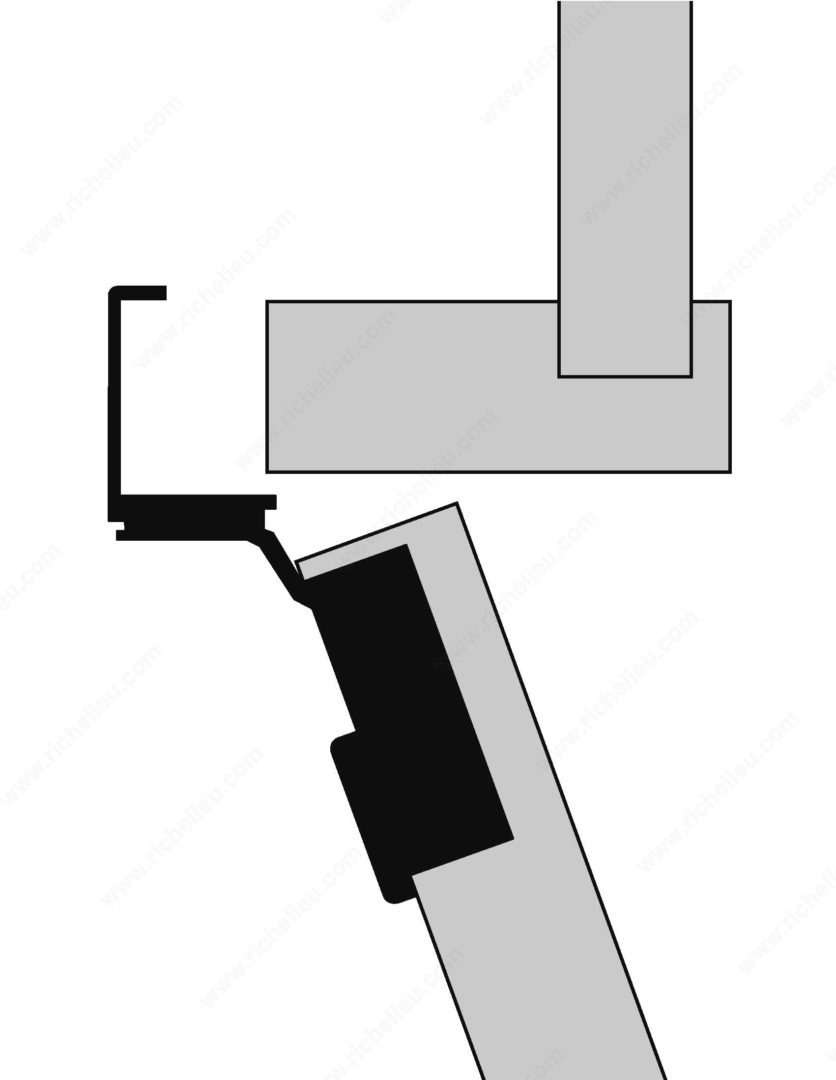

Mounting Type: Wrap-around Mount
Overlay: 1 1/2 in
Packaging format: Per unit
Product #: 39C35824180
Product number: 39C35824180
Required Frame Width: 19 mm
Screw/ Nail: #10 x 3/4" Quadrex Pan Head (Included), #6 x 5/8" Quadrex Flat Head (Included)
Unit 1: case - 300
Use Type: Standard Door
