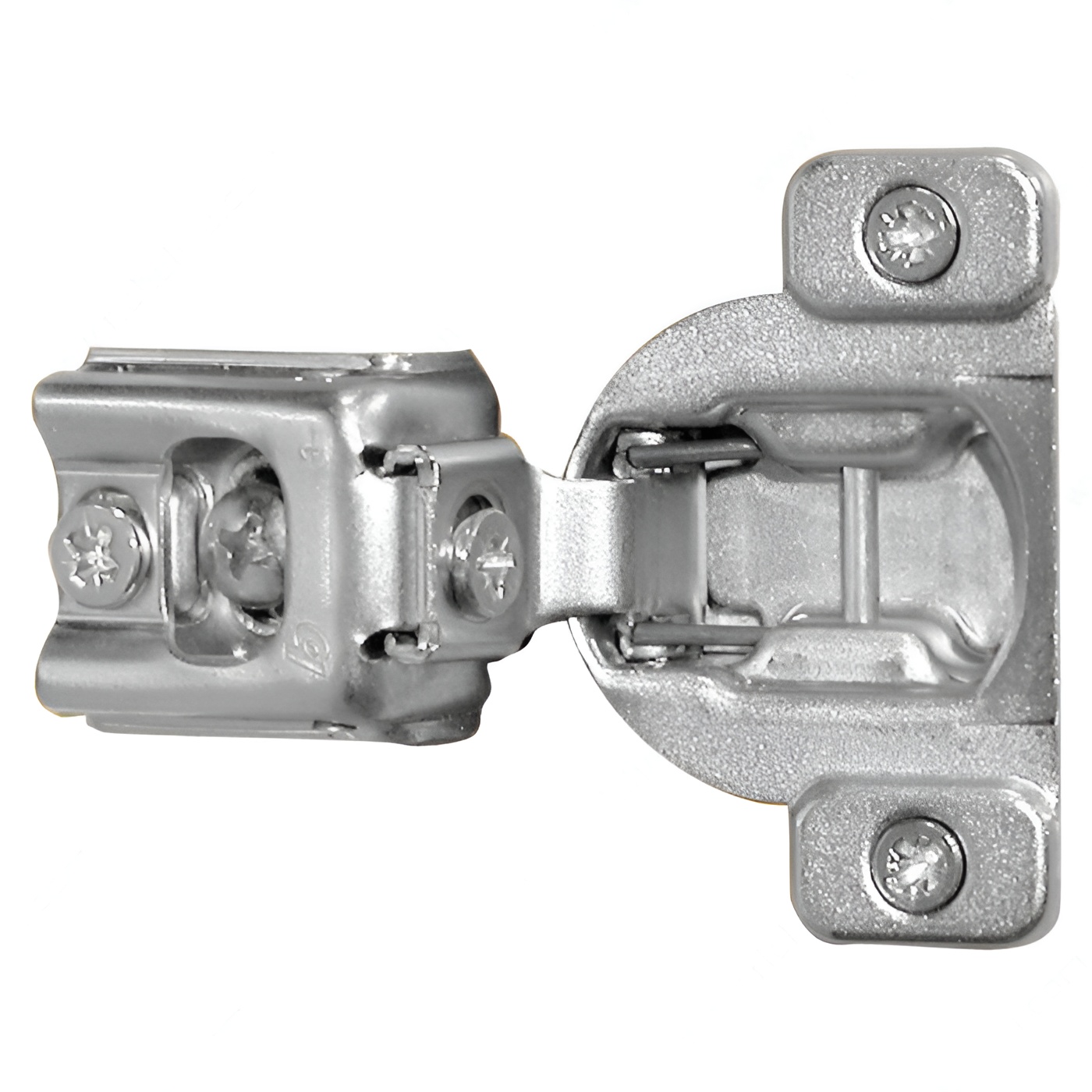

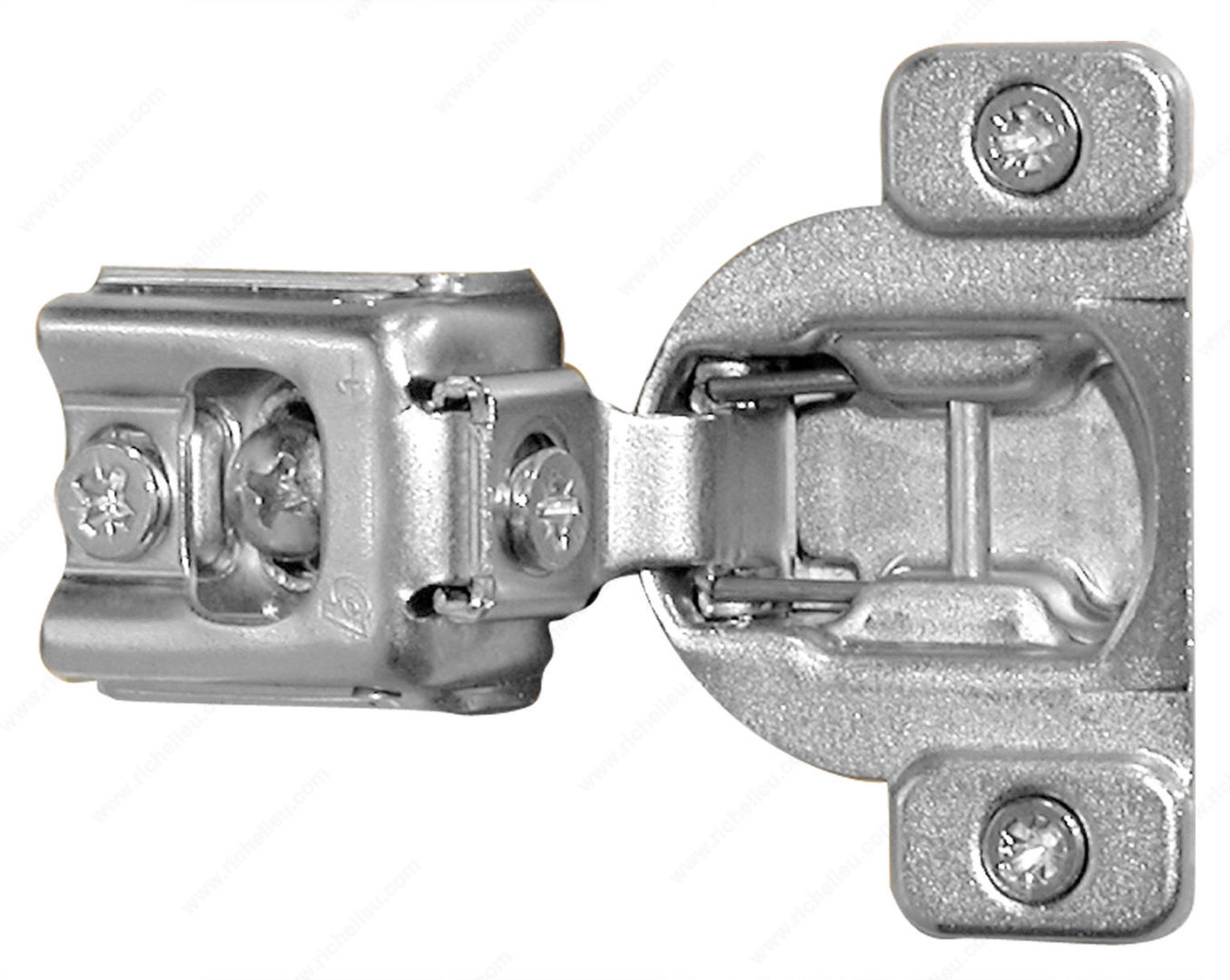

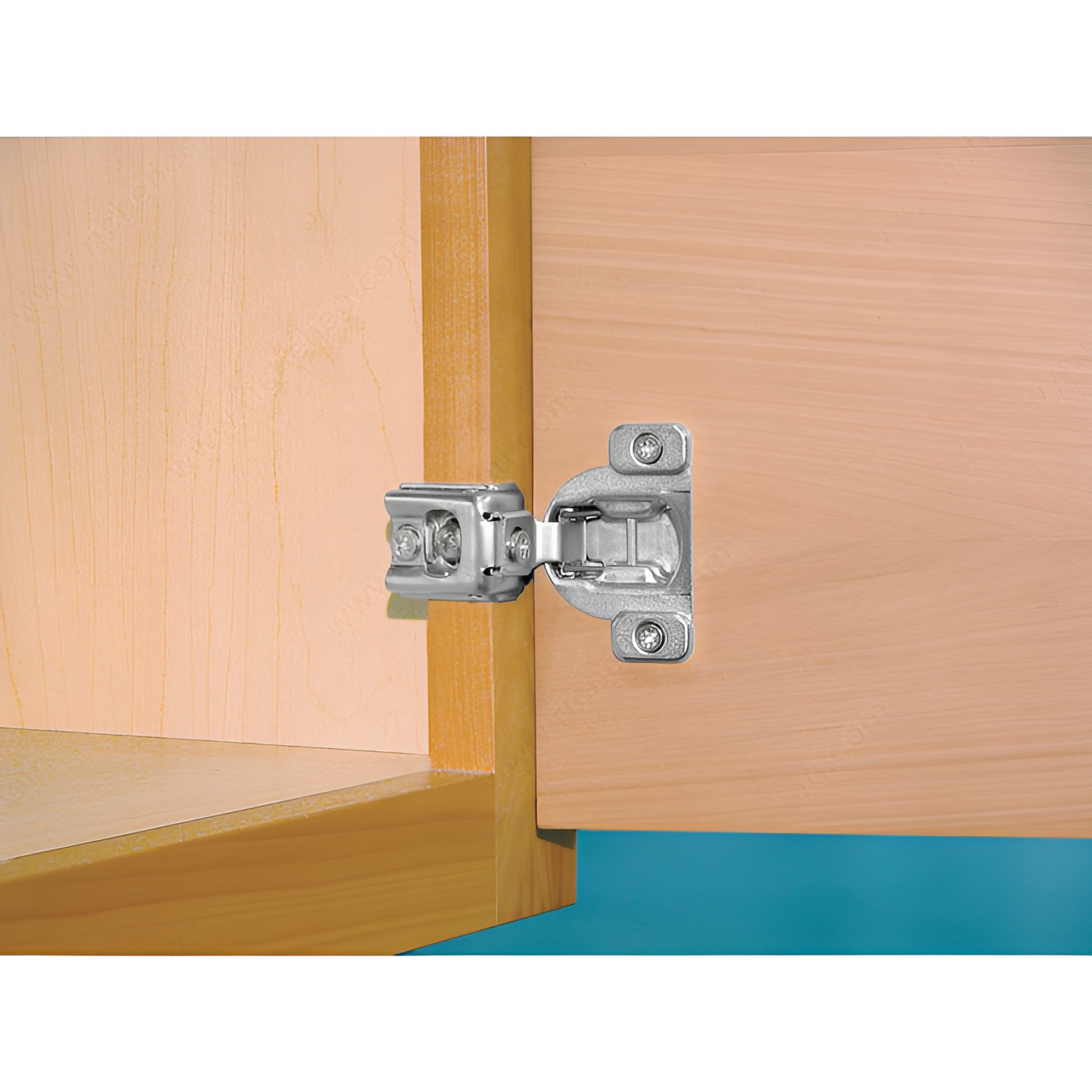

Richelieu 39C35825180 COMPACT 39C Hinge 110 offers a sophisticated solution for face frame cabinets, combining functionality with ease of installation. These concealed hinges are designed for full overlay applications and are adjustable in side, height, and depth dimensions, accommodating both small and large overlays seamlessly. Crafted from durable steel with a sleek nickel finish, the hinge ensures longevity and a polished look for your cabinetry. The COMPACT hinge boasts an impressive opening angle of +110°, allowing for full access to cabinet interiors. It is suitable for door and cabinet thicknesses up to 3/4 inch, making it versatile for a variety of projects. The wraparound type mounting and knock-in fixing type simplify installation, while the spring closing mechanism ensures smooth operation. Designed with a milling depth of 1/2 inch and a milling diameter of 1 3/8 inches, this hinge can be easily integrated into your cabinetry design. Each unit is sold individually, providing flexibility for your specific needs. Ideal for standard door applications, Richelieu’s COMPACT hinge is the perfect choice for professionals and discerning homeowners looking to enhance their cabinetry with reliable and stylish hardware.

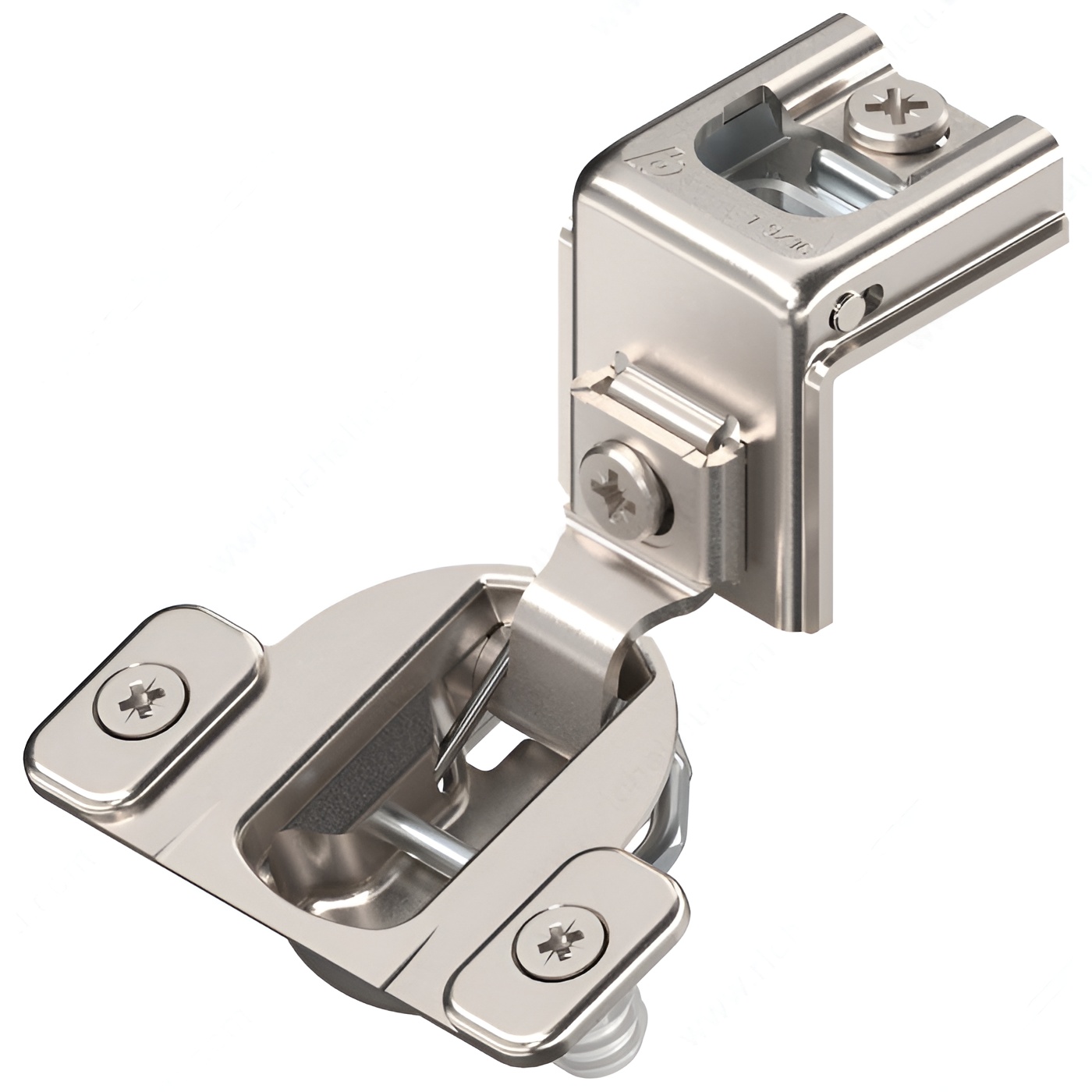

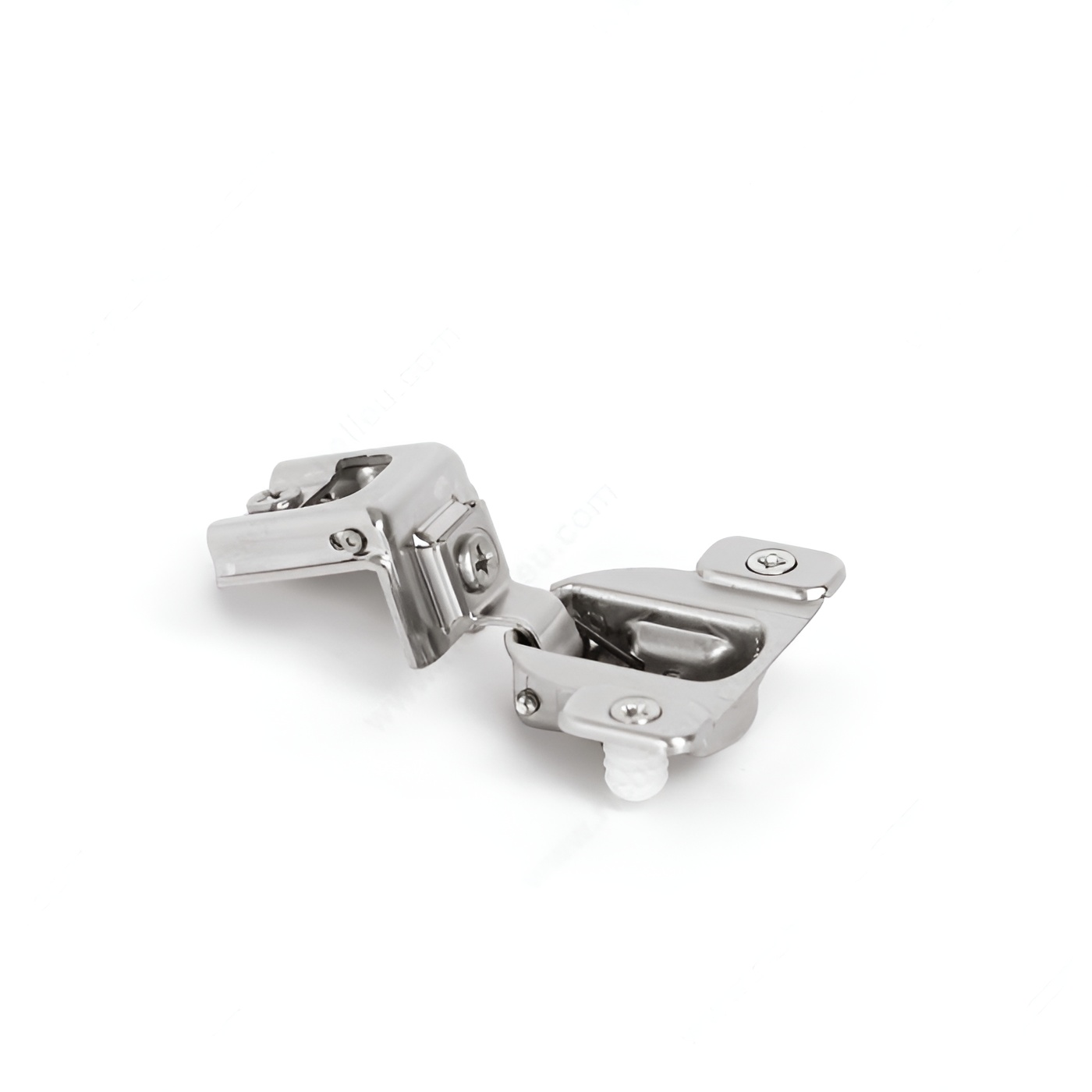

COMPACT 39C Hinge 110
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Max. 3/4 in
Finish: Nickel
Fixing Type: Knock-In with Insertion Ram Only

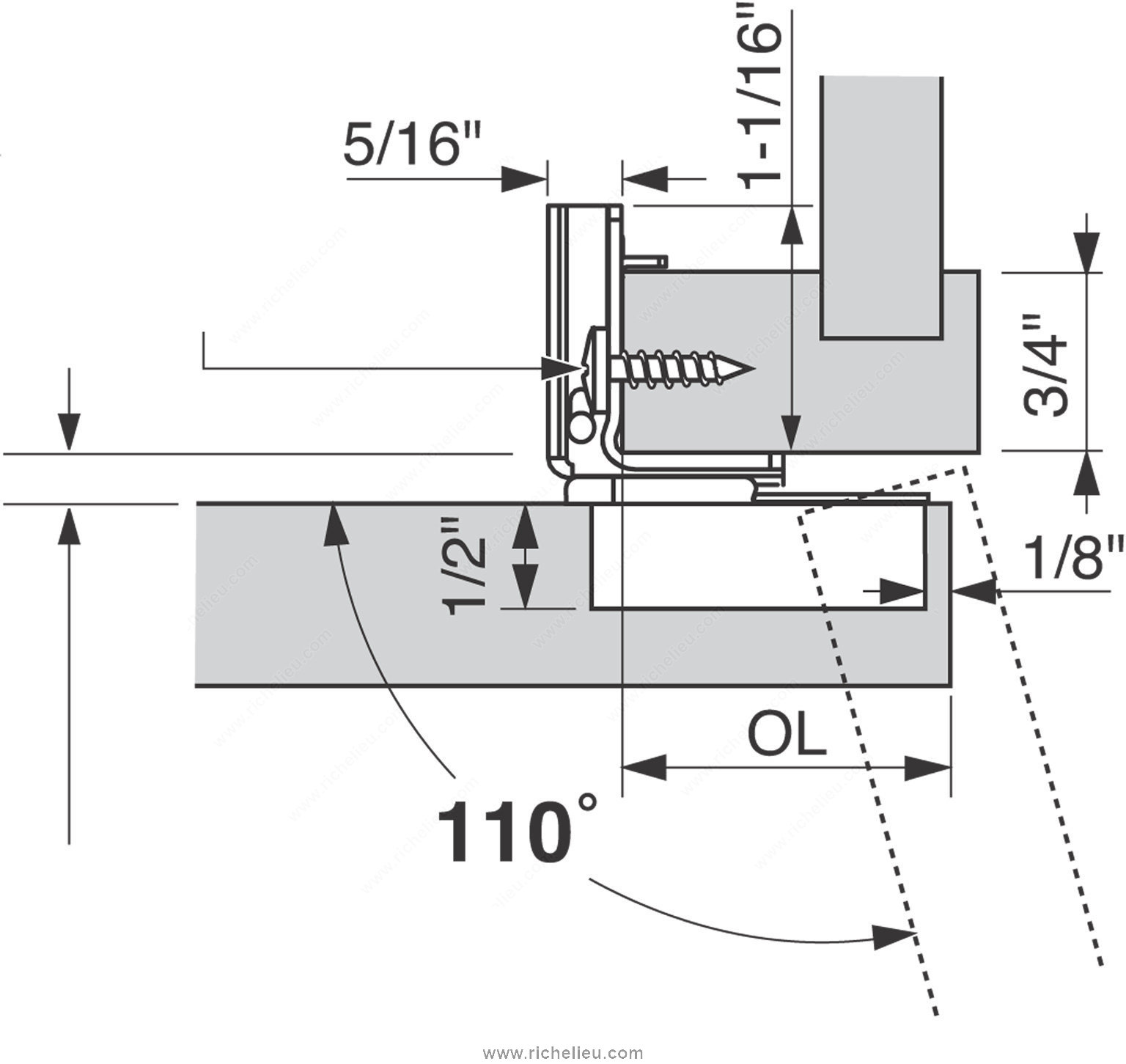

Hinge Opening Angle: +110°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing

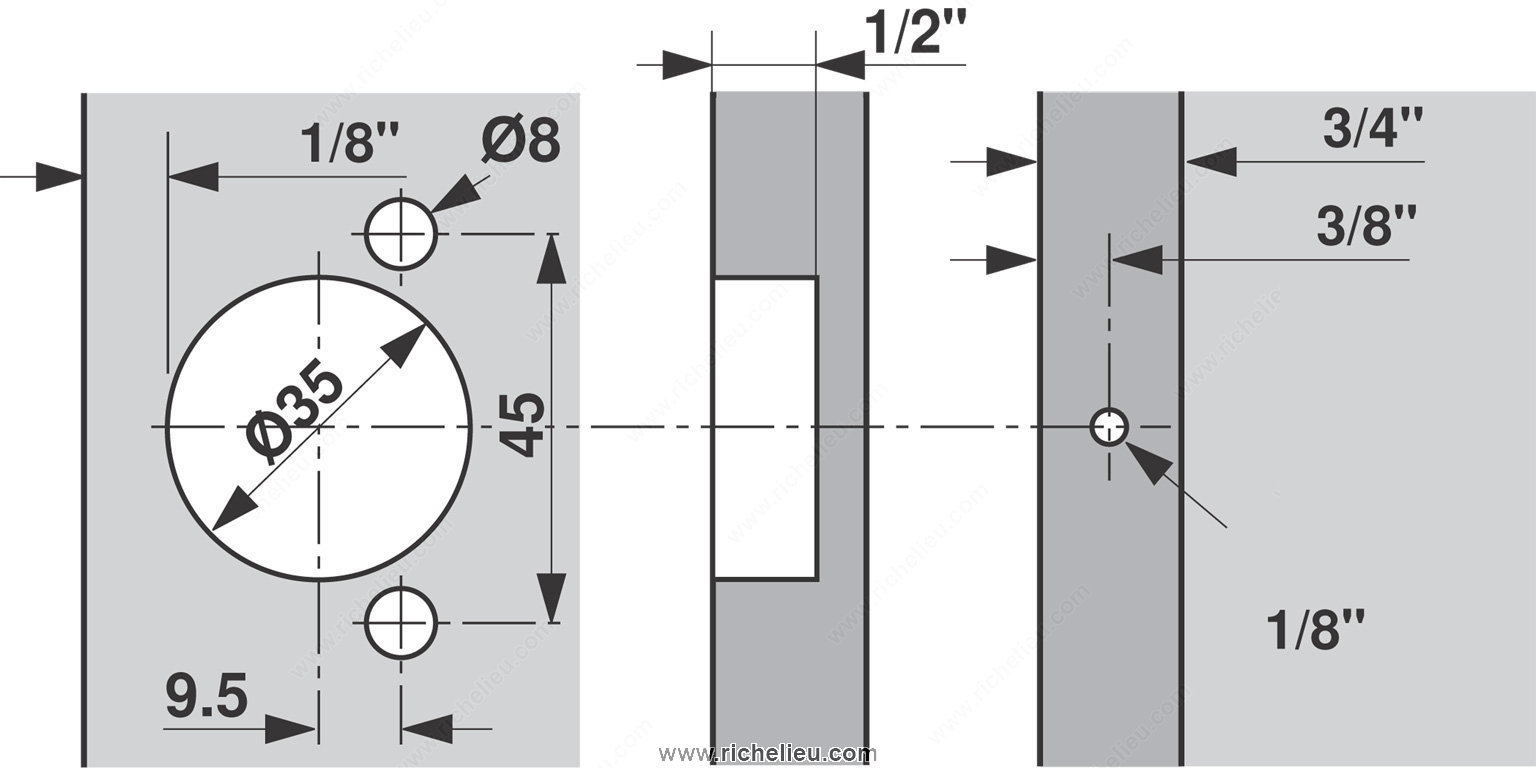

Milling Depth: 1/2 in
Milling Diameter: 35 mm

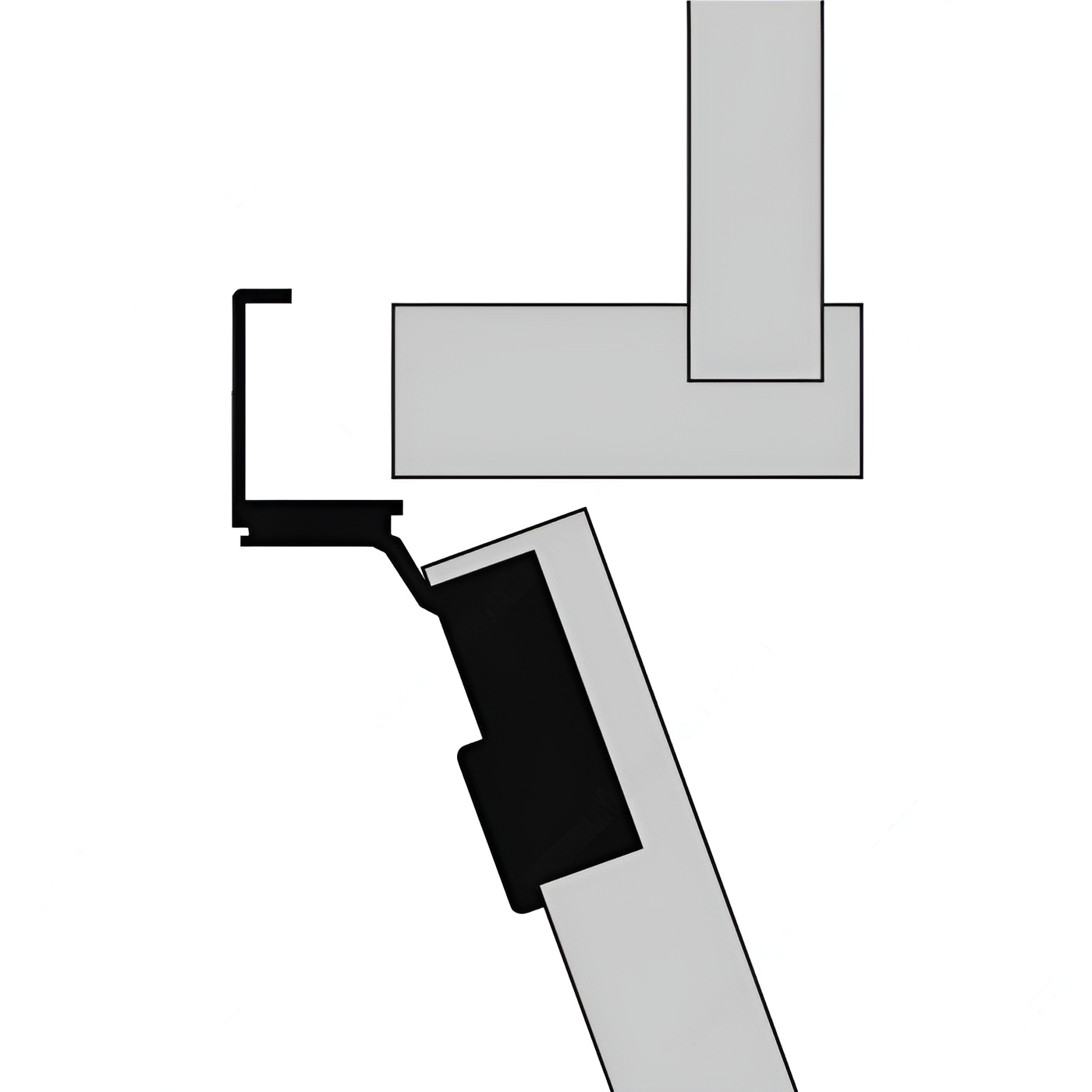

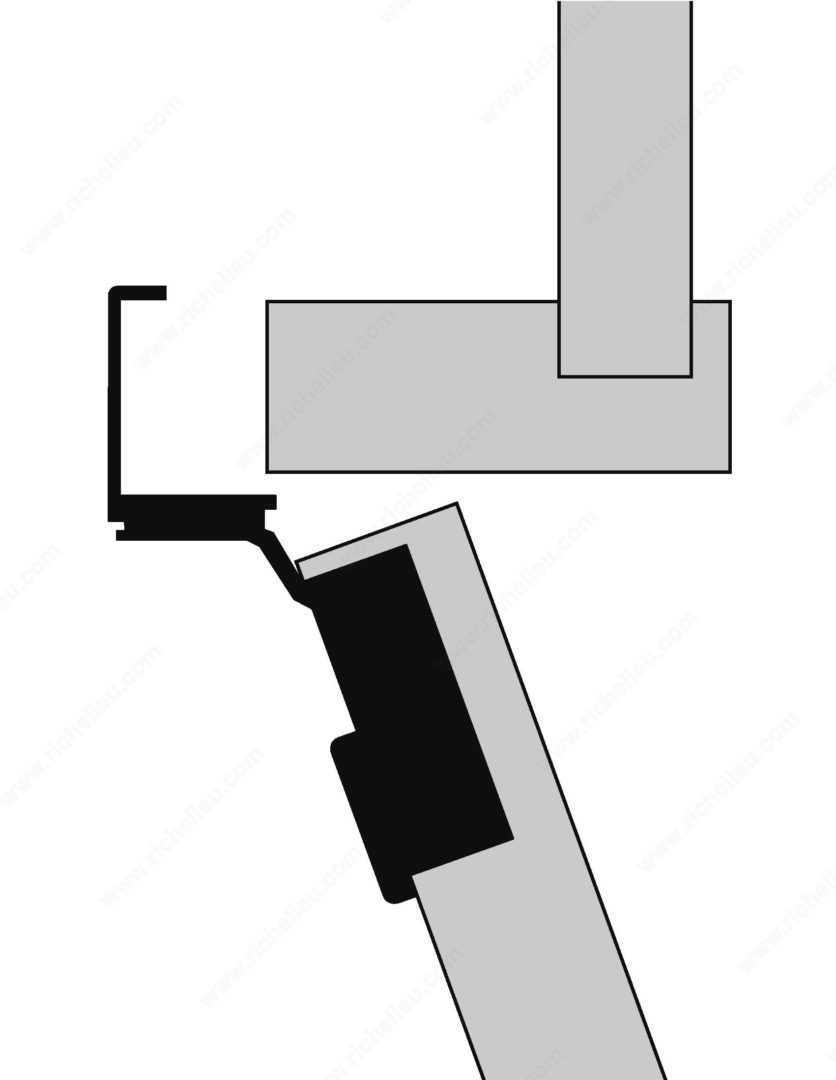

Mounting Type: Wrap-around Mount
Overlay: 1 9/16 in
Packaging format: Per unit
Product #: 39C35825180
Product number: 39C35825180
Required Frame Width: 19 mm

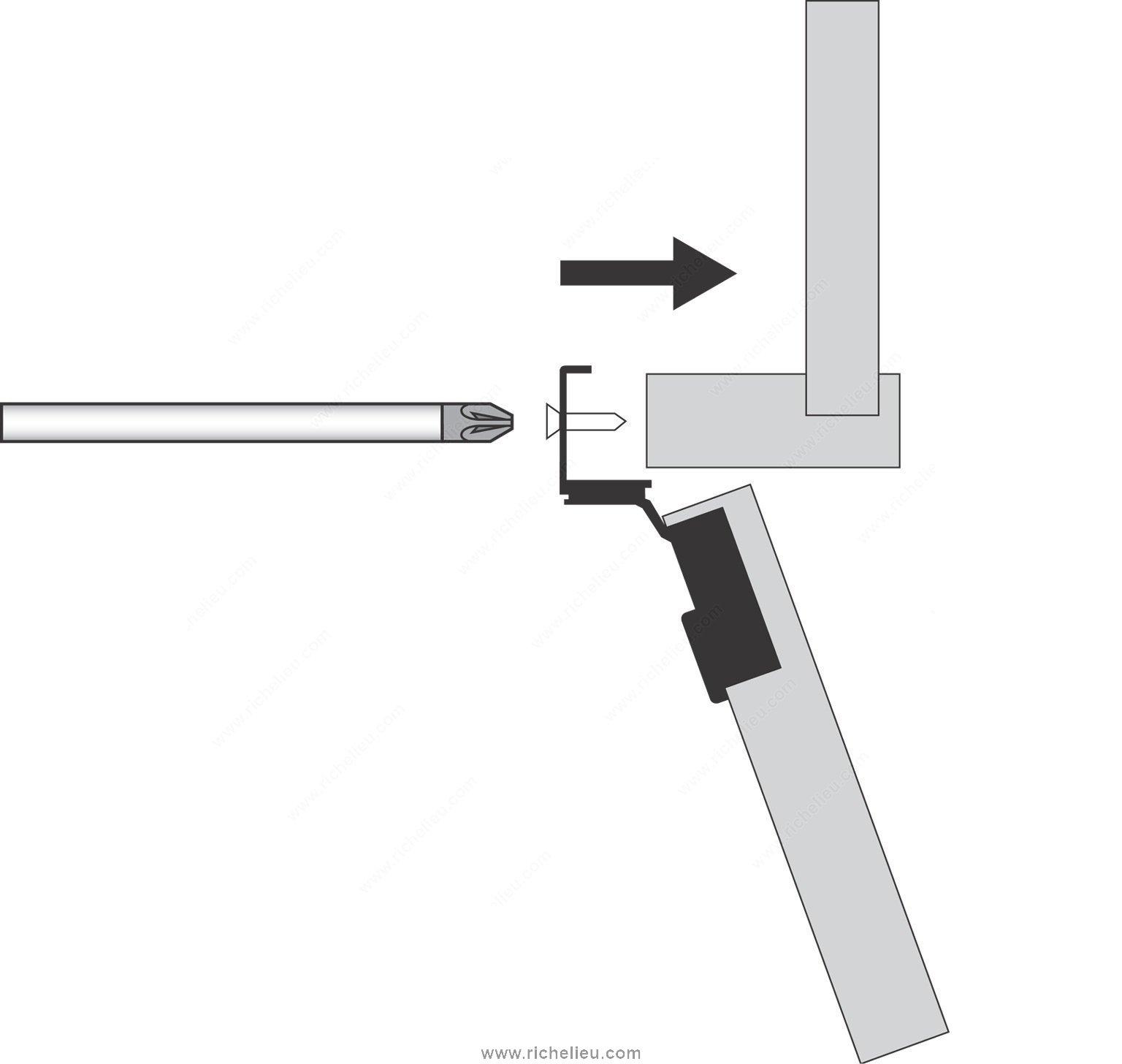

Screw/ Nail: #10 x 3/4" Quadrex Pan Head (Included), #6 x 5/8" Quadrex Flat Head (Included)
Unit 1: case - 300
Use Type: Standard Door
