Richelieu COMPACT BLUMOTION 39C Hinges 110 are expertly designed for framed cabinets, ensuring a seamless blend of functionality and convenience. The integrated soft-closing mechanism allows doors to close quietly and gently, enhancing the overall user experience. For smaller or lighter doors, the BLUMOTION feature can be easily deactivated, allowing for the same high-quality movement without compromising performance. These hinges are suitable for cabinets with a minimum thickness of 5/8 inch and support full overlay door positioning, making them versatile for various design needs. With a hinge opening angle of +110°, they provide ample access while maintaining a sleek appearance. Crafted from durable steel with a nickel finish, the COMPACT BLUMOTION hinges are not only robust but also add a modern touch to your cabinetry. Installation is straightforward, utilizing a knock-in fixing type and wraparound mounting for enhanced stability. The milling requirements include a depth of 1/2 inch and a diameter of 1 3/8 inches, ensuring a perfect fit. Each hinge is sold individually, allowing for tailored quantities based on your project specifications. Elevate your cabinetry with the reliable performance and modern design of Richelieu COMPACT BLUMOTION Hinges.

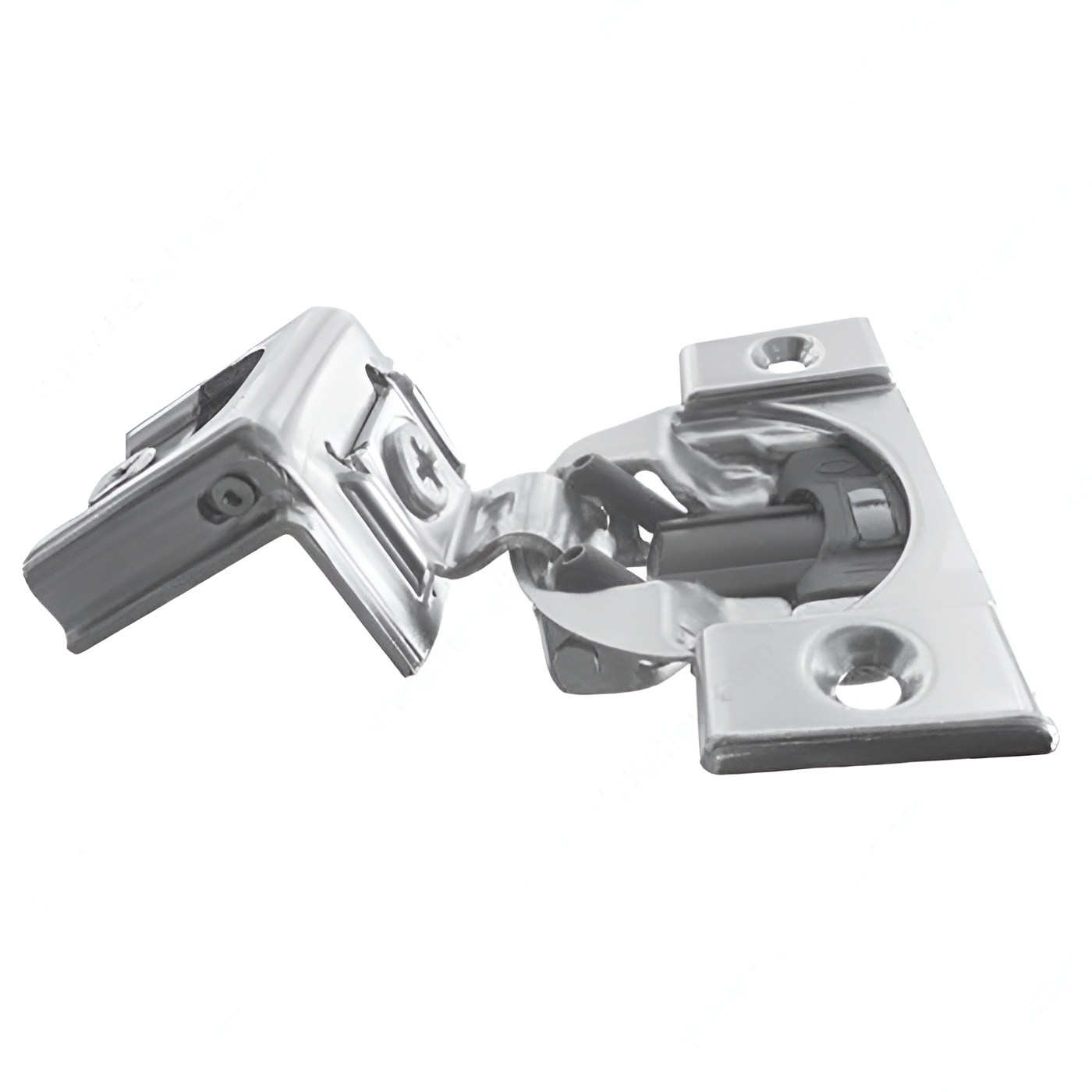

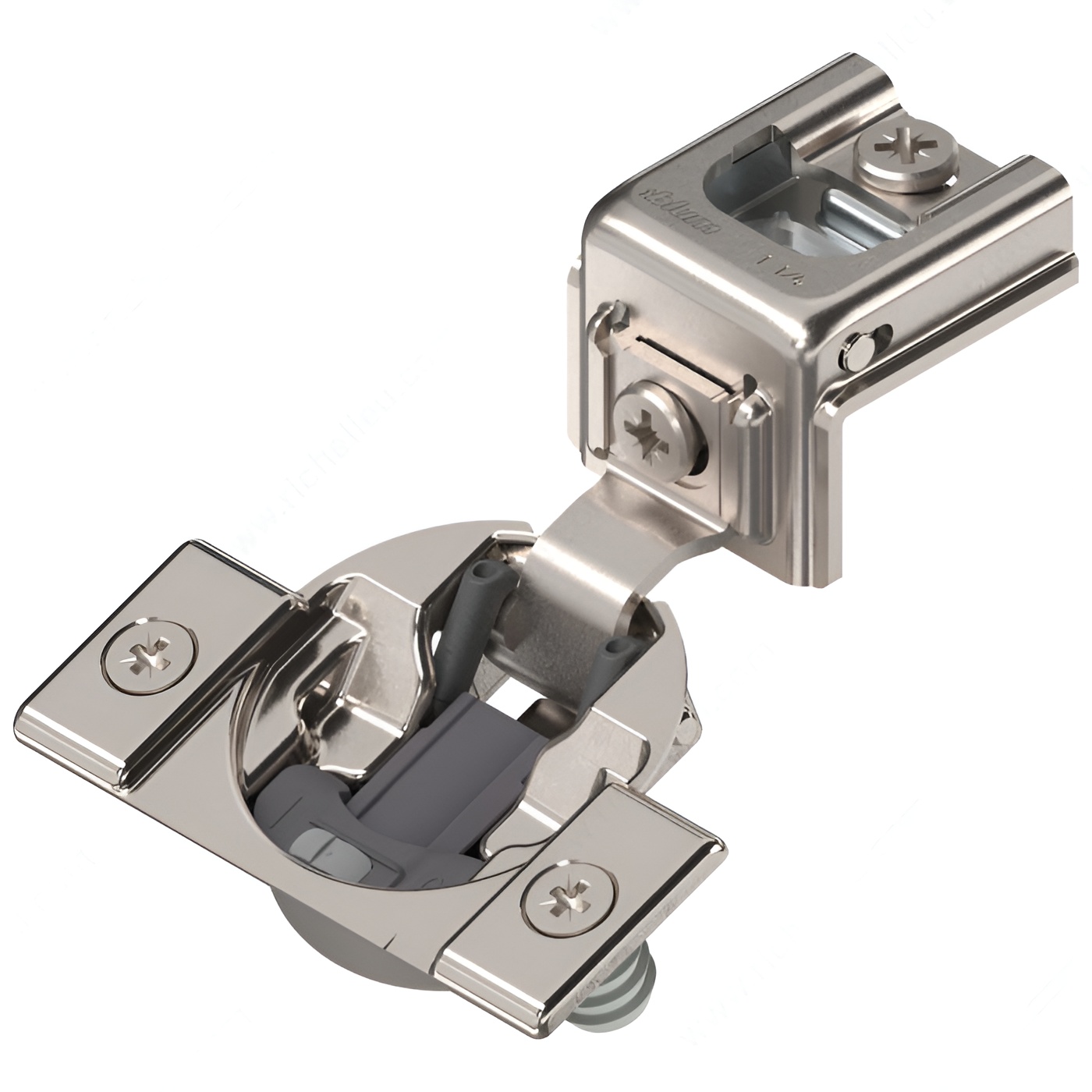

COMPACT BLUMOTION 39C Hinges 110
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

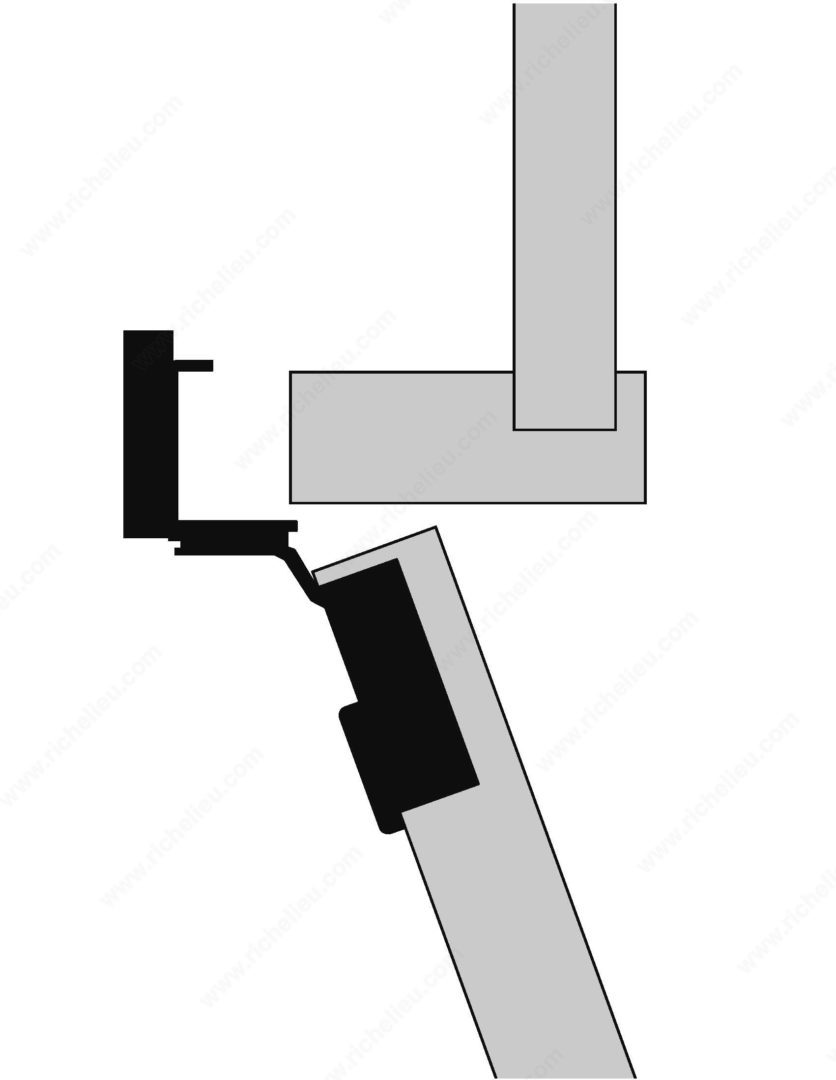

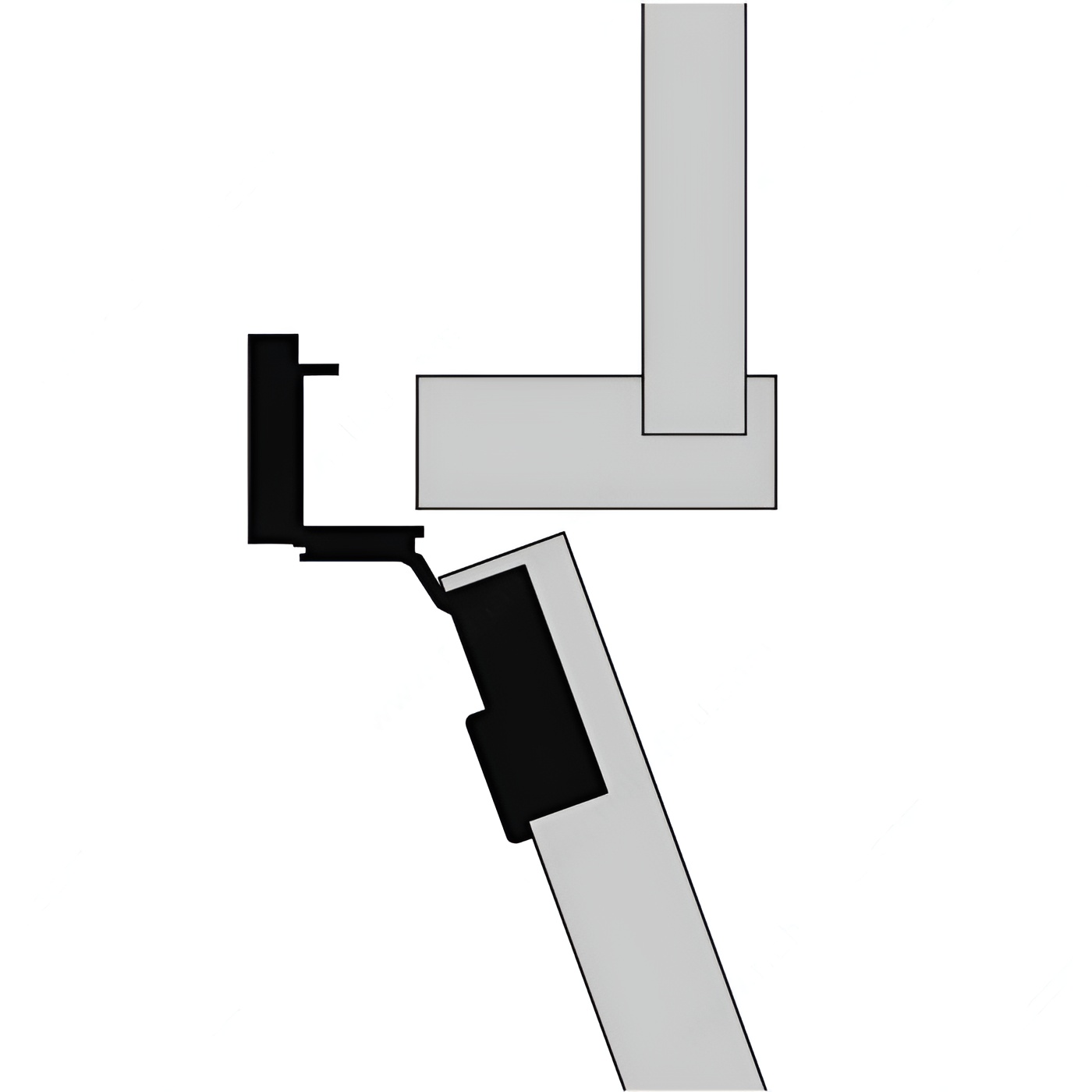

Door Position: Full Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Hinge Type: COMPACT BLUMOTION
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 1/2 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 1 1/4 in
Packaging format: Per unit
Product #: 39C358B20180
Product number: 39C358B20180
Screw/ Nail: Not included
Unit 1: case - 300
Use Type: Standard Door
