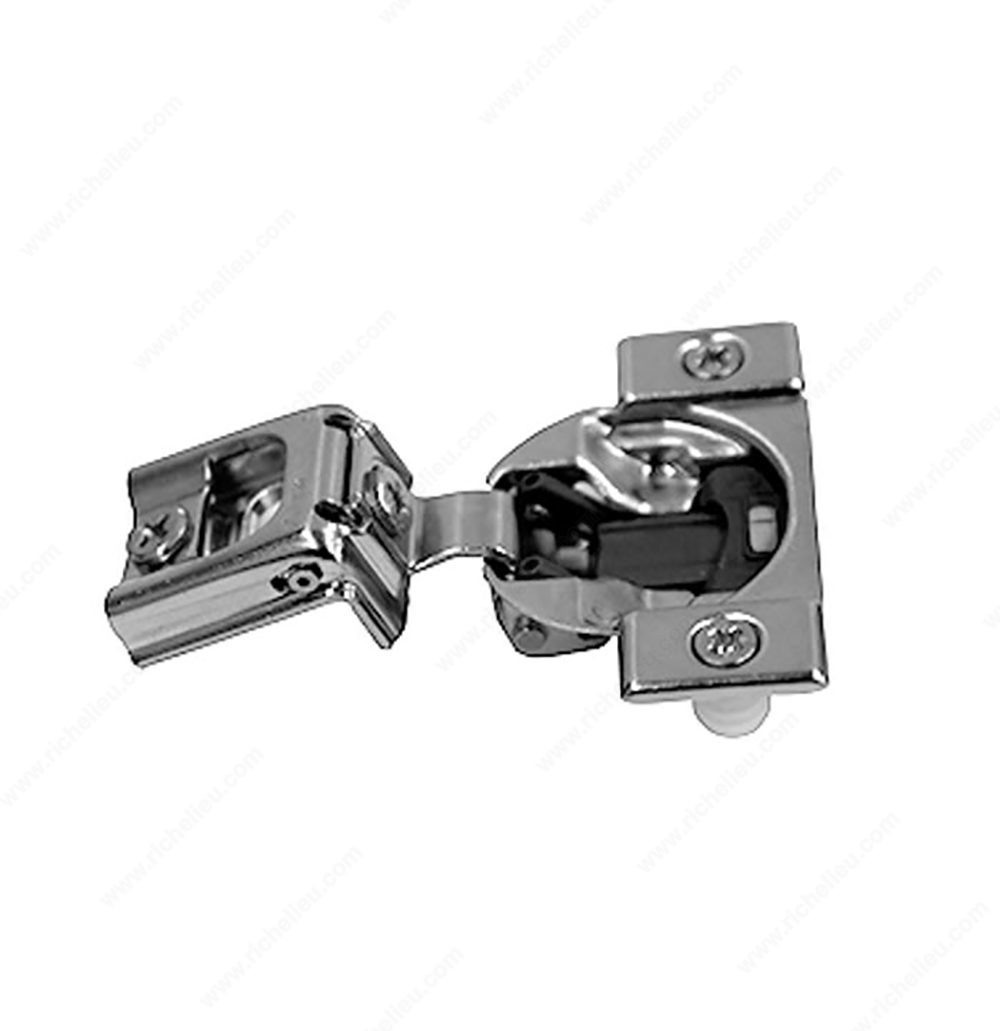

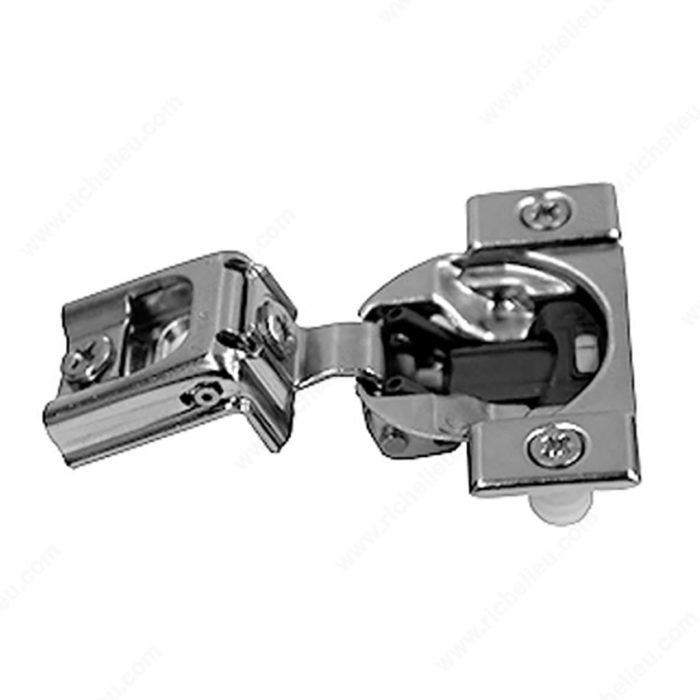

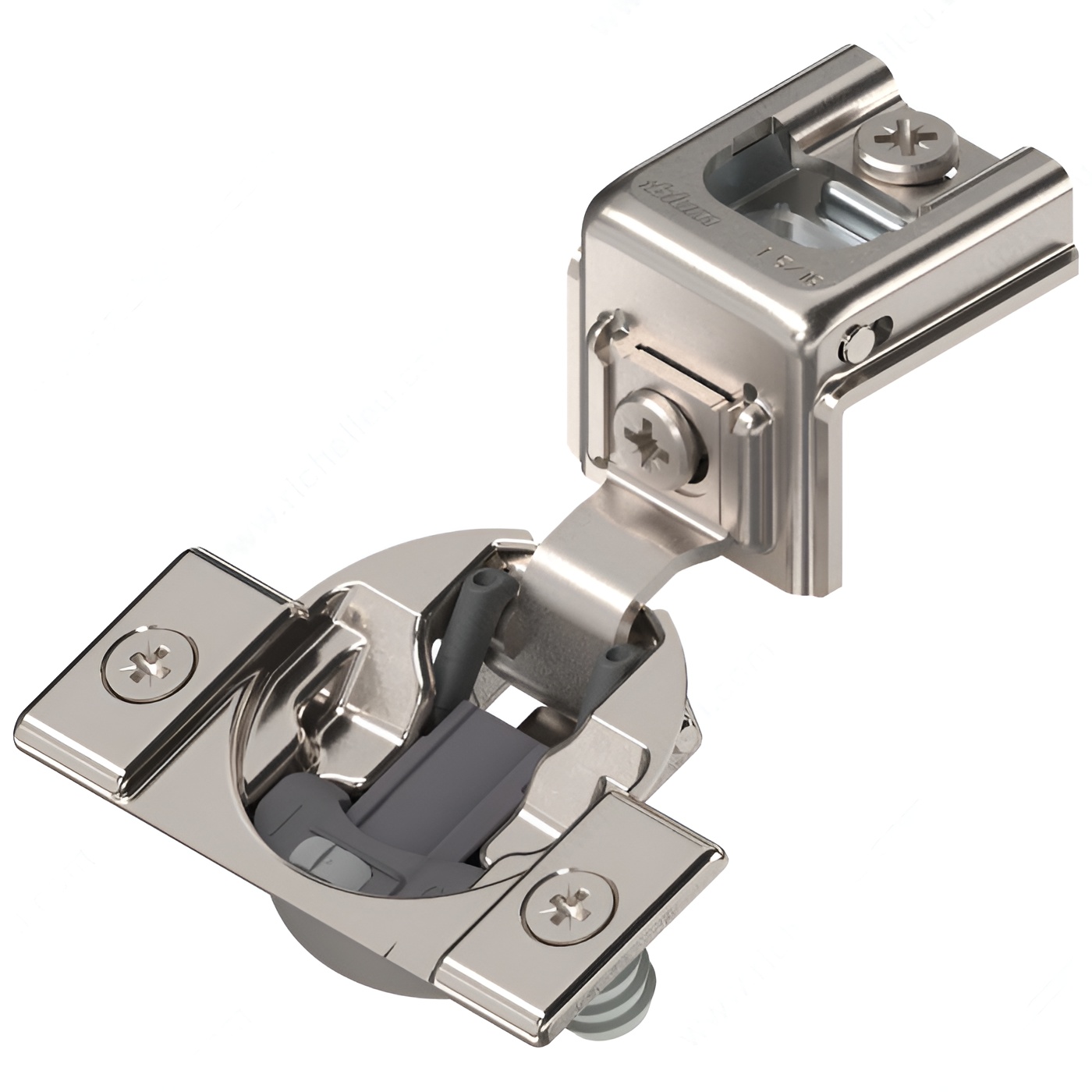

Richelieu 39C358B21180 COMPACT BLUMOTION 39C Hinges 110 are expertly designed for framed cabinets, offering a seamless blend of functionality and style. These hinges feature an integrated soft-closing mechanism that ensures doors close quietly and gently, enhancing the user experience in any kitchen or cabinetry setting. The BLUMOTION function can be easily deactivated, making it ideal for small or light doors, so you can maintain high-quality movement regardless of the door size. Crafted from durable steel with a sleek nickel finish, these hinges are built to last and maintain their aesthetic appeal over time. Suitable for full overlay doors, they accommodate a cabinet thickness of at least 5/8 inches and provide a hinge opening angle of +110°, allowing for easy access and functionality. The wraparound type mounting and knock-in fixing type make installation straightforward, while the milling depth of 1/2 inch and diameter of 1 3/8 inches ensure a secure fit. Sold individually, the Richelieu COMPACT BLUMOTION hinges are an essential addition to any cabinetry project. Elevate your cabinet design with these reliable and user-friendly hinges, perfect for both building professionals and discerning homeowners alike.
COMPACT BLUMOTION 39C Hinges 110
Brand: Blum
Cabinet Thickness: Min. 5/8 in*
Cabinet Type: Face Frame
Closing Mechanism: Soft-Closing

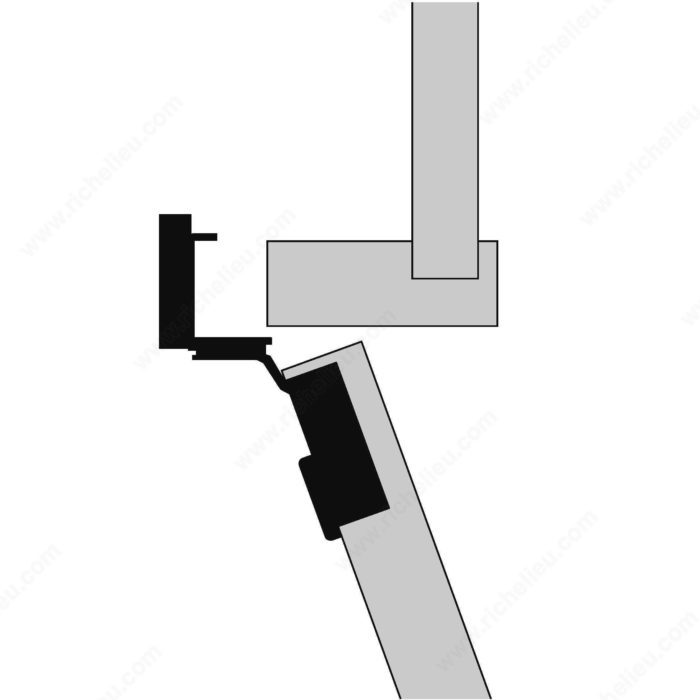

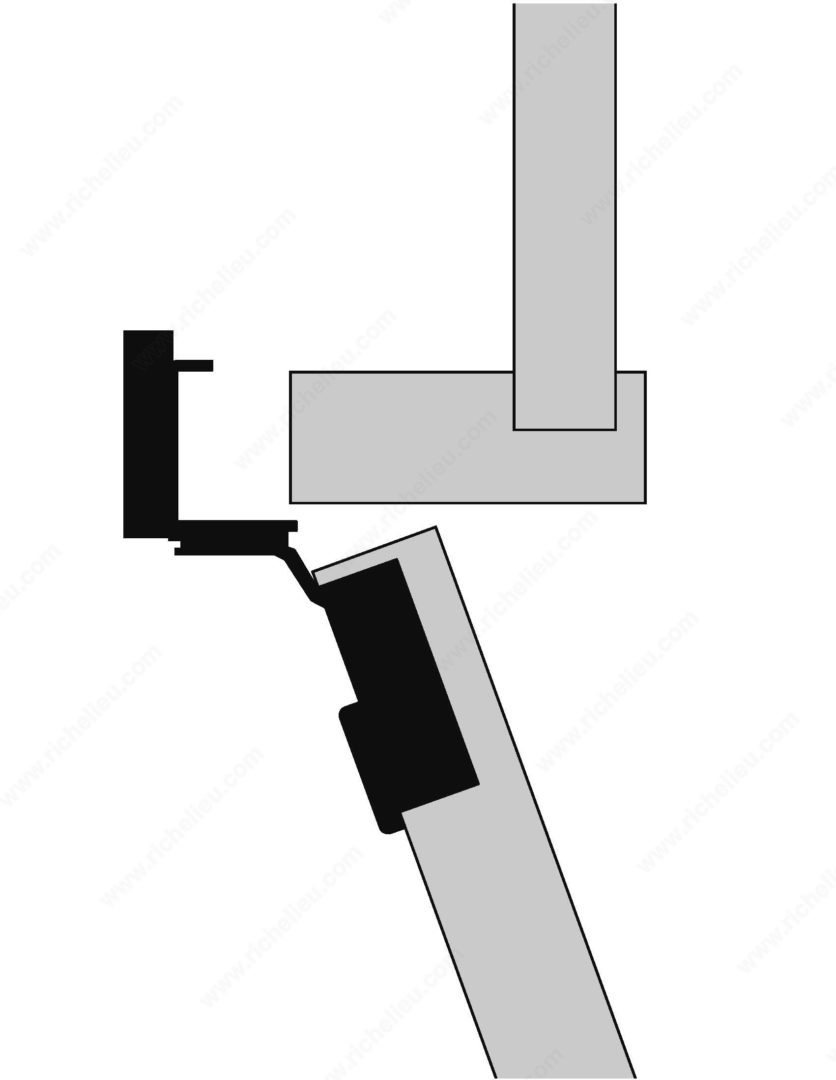

Door Position: Full Overlay
Door Thickness: 5/8 in*
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Hinge Type: COMPACT
Material: Steel
Mechanism: Soft-Closing
Milling Depth: 1/2 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Wrap-around Mount
Overlay: 1 5/16 in
Packaging format: Per unit
Product #: 39C358B21180
Product number: 39C358B21180
Screw/ Nail: Not included
Unit 1: case - 300
Use Type: Standard Door
