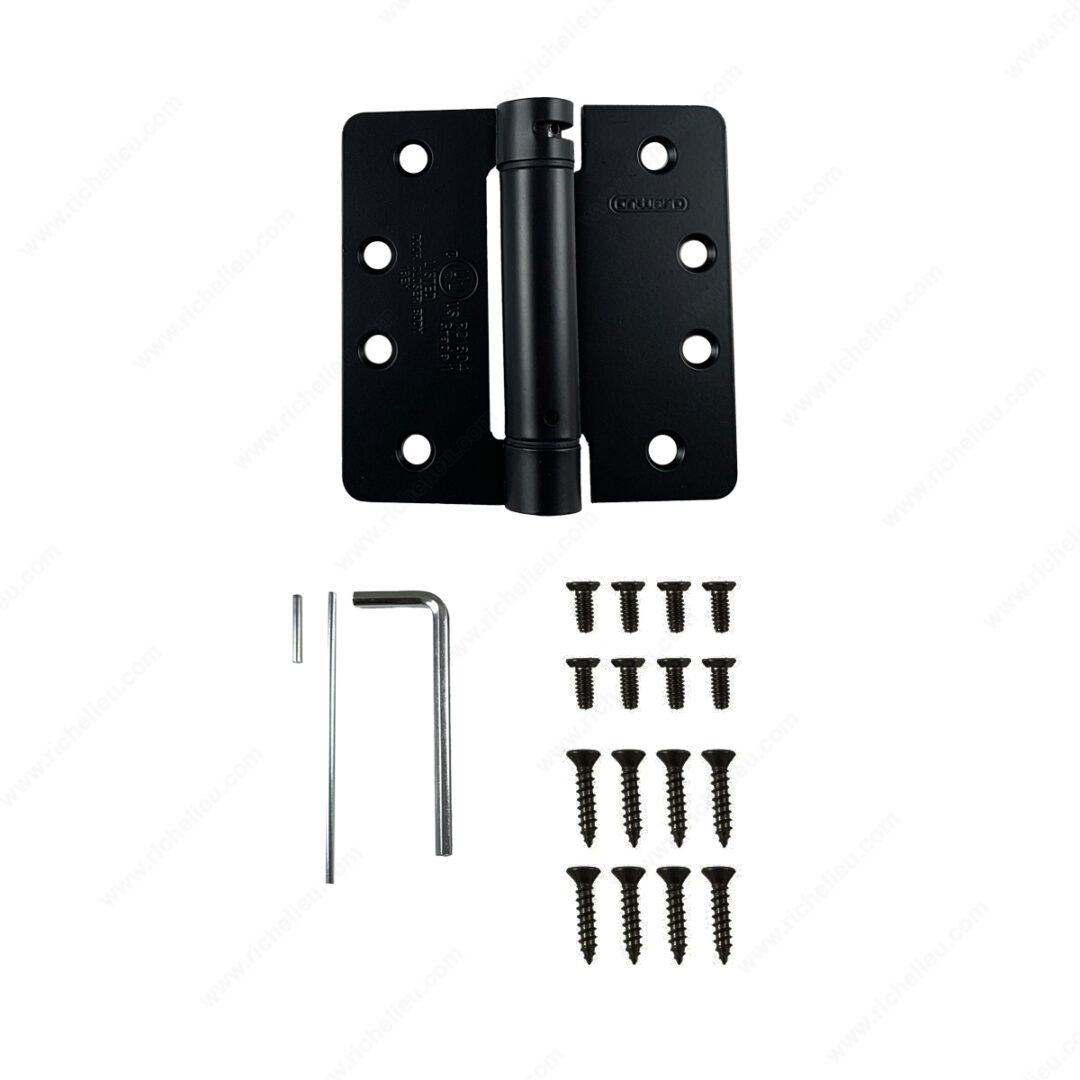

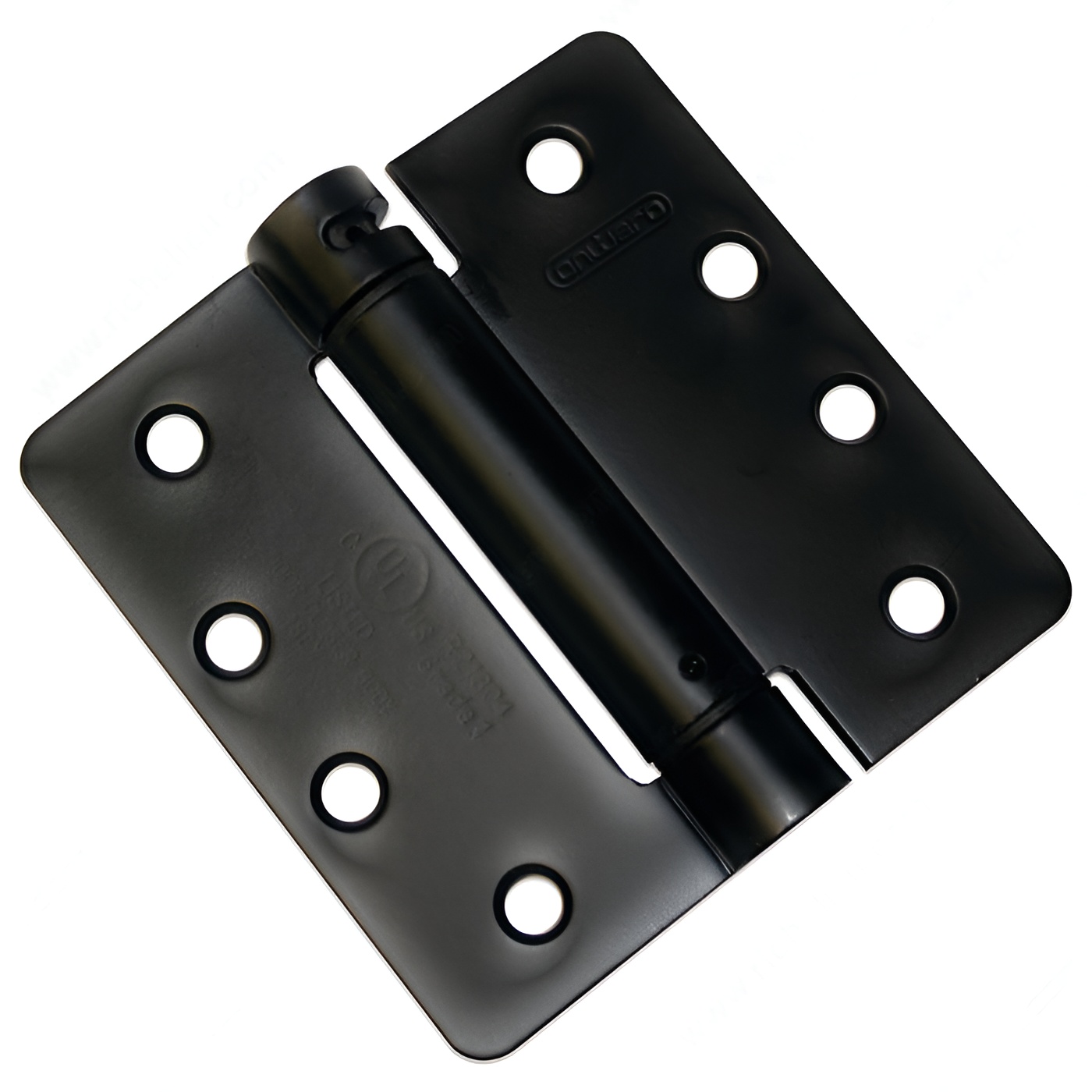

Richelieu 52822FBB1 4" Full Mortise Adjustable Spring Hinge offers a perfect blend of versatility and style, making it an essential addition to any home. Designed for modern aesthetics, this hinge allows you to adjust the spring tension, enabling you to customize it according to your preferences for optimal door operation. Constructed from durable steel with a sleek flat black finish, this hinge not only enhances functionality but also adds a contemporary touch to your interiors. Its robust design supports up to 110 lbs when used with three hinges, ensuring reliability and strength for your doors. The non-removable pin feature adds an extra layer of security, making it suitable for various applications. Included with the hinge are eight #10 x 1" wood screws and eight #10-24 x 1/2" machine screws, facilitating straightforward installation. With a height and width of 4 inches and a thickness of 3/32 inches, this hinge is designed to fit snugly into a 1/4" radius corner. Certified by UL for safety standards, the Richelieu 52822FBB1 is an ideal choice for adjustable spring applications, providing both functionality and a refined look to your spaces.
4" Full Mortise Adjustable Spring Hinge
Included products
Assembly: Assembled
Caliber/ Thickness: 2.7 mm
Color/ Finish: Flat Black
Finish: Flat Black
Grade: 1
Height: 4 in
Load Capacity: 35 lb
Load Capacity (3 Hinges): 35 lb
Material: Steel
Packaging format: Per unit
Pin: Non-Removable Pin
Product #: 52822FBB1
Product number: 52822FBB1
Product №: 52822FBB1
Recommended Usage: Adjustable Spring
Screw/ Nail: Included
Standards and Certifications: UL
Type of Corner: 1/4" Radius
Type of Tip: Flat Tip
Unit 1: case - 50
Width - Overall Dimensions: 4 in
