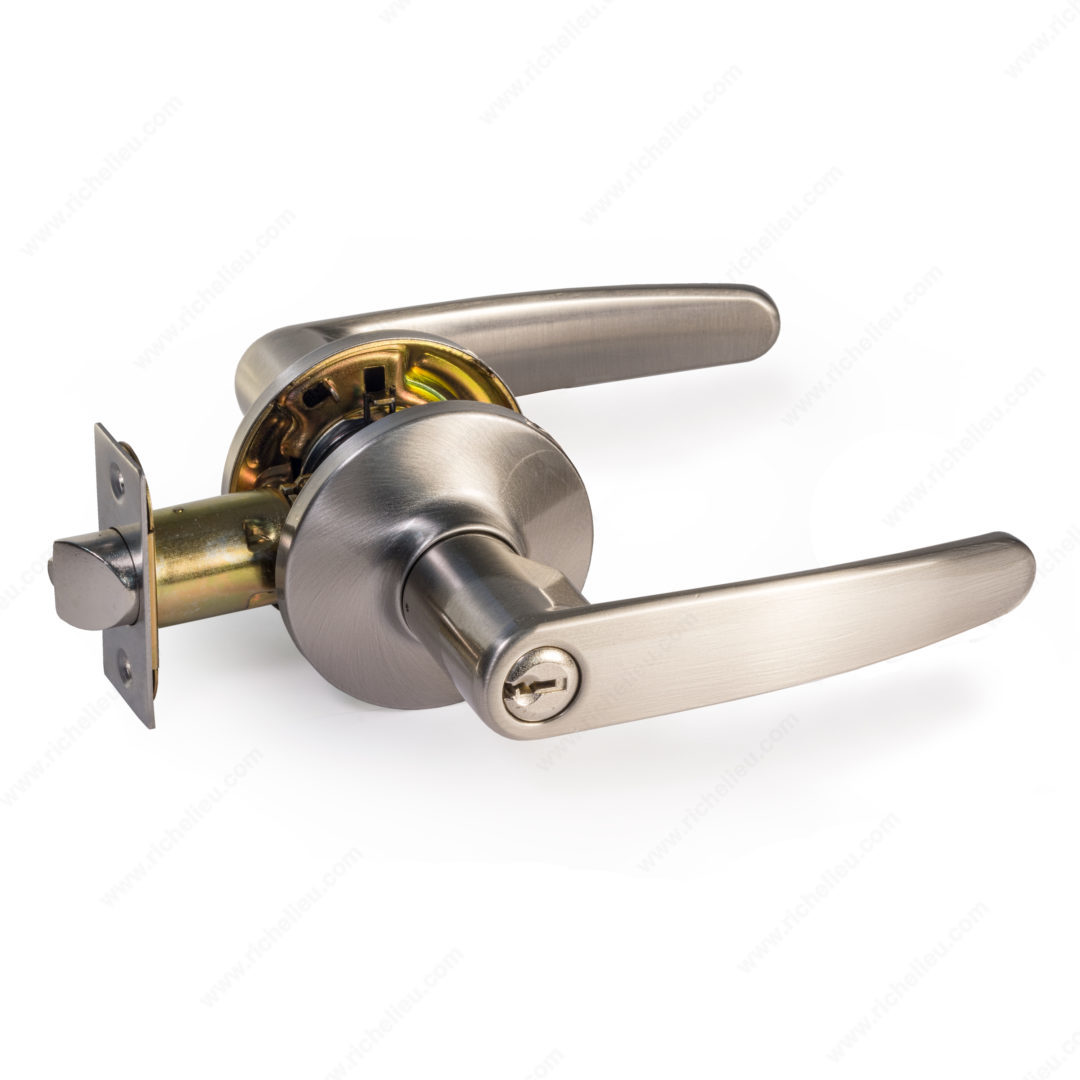

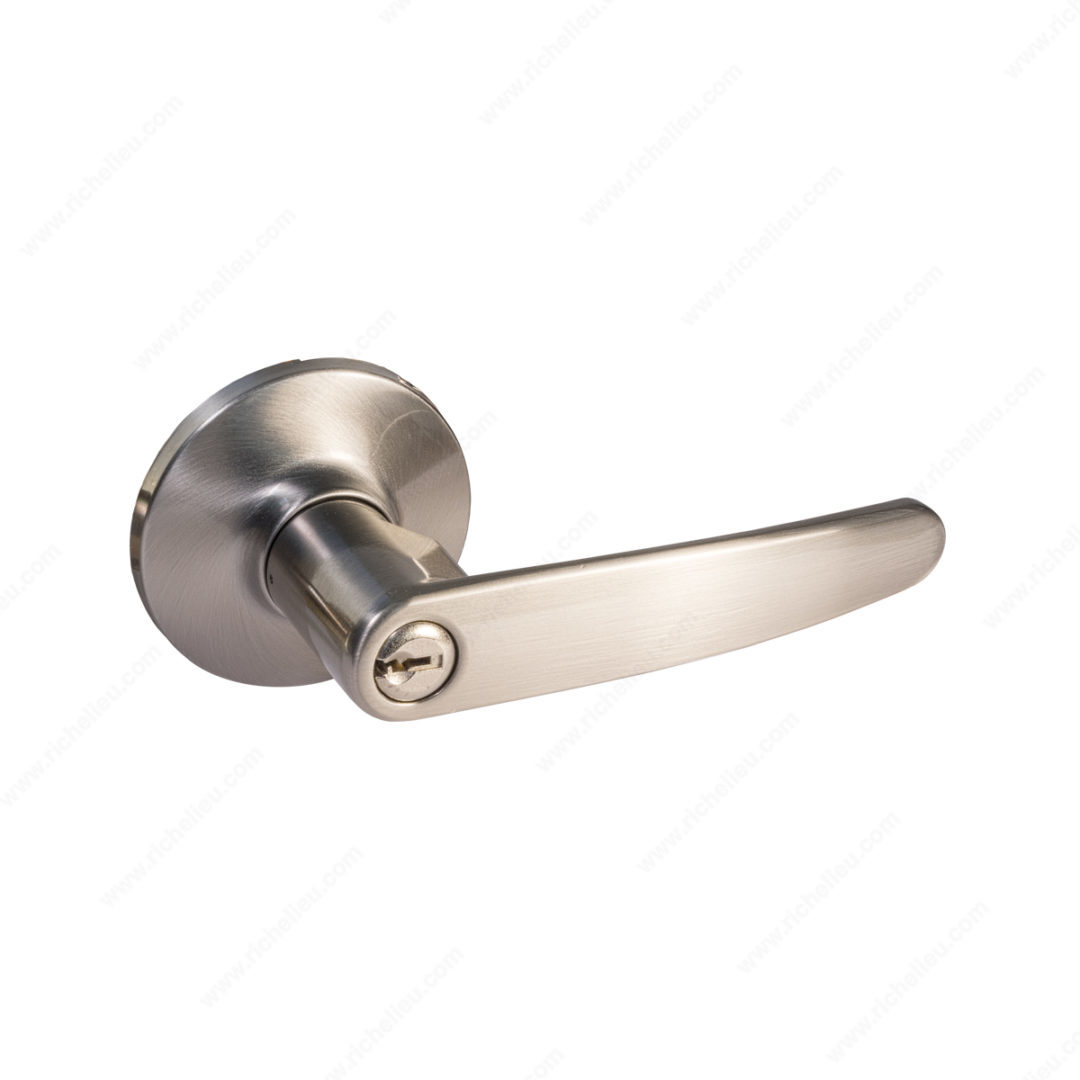

Richelieu 4140TSN51 Straight Levers - Newport Series offer a perfect blend of durability and aesthetic appeal, making them an excellent choice for your entrance doors. Constructed with a galvanized all-steel interior mechanism, these levers are built to withstand the rigors of daily use while maintaining a sleek satin nickel finish that enhances any wood door. Designed for easy installation, the product includes a template to simplify the process, ensuring a hassle-free setup. The levers fit standard 2-1/8" (55 mm) cross bore 161 door prep (ANSI 115.2), accommodating door thicknesses between 1 3/8" to 1 3/4". The reversible handing allows for flexibility in installation, making these levers suitable for both left and right openings. The 4-way removable latch plate adds versatility, while the 4 5/16" handle length provides comfortable grip and operation. With a 5-year limited warranty on finishes and a remarkable 25-year mechanical warranty, you can trust the long-lasting performance of the Newport Series. Complying with ANSI A156.2-2003 and ADA standards, these straight levers not only promise exceptional quality but also ensure safety and accessibility for all users. Upgrade your entrance with the Richelieu 4140TSN51 Straight Levers today.
Straight Levers - Newport Series
Backset: 2 3/8 to 2 3/4 in
Brand: Onward
Color/ Finish: Satin Nickel
Diameter: 2 9/16 in
Door Thickness: 1 3/8 to 1 3/4 in
Door Type: Wood
Fire- Rating: Available upon request Fall 2024
Function: Entrance
Grade: 3
Handing Position / Opening Side: Reversible for Left or Right
Handle Length: 4 5/16 in
Keyed Alike: Compatible
Latch: 4-Way Latch (Removable Latch Plate)
Length: 4 5/16 in
Material: Steel
Product #: 4140TSN51
Projection: 2 7/16 in
Rose Diameter: 2 9/16 in
Screw: Included
Screw/ Nail: Included
Standards and Certifications: ANSI A156.2-2003, ADA
Style: Straight Levers
Usage: Hinge Door
