Richelieu 420203140 Concealed Steel Hinge - Model 203 offers a seamless blend of style and functionality, designed for both wood and metal doors. This hinge stands out with its bright chrome finish, providing a modern aesthetic that complements any setting. Its reversible design ensures versatility, making it suitable for various applications. With a cabinet angle of 180°, this hinge allows for full door clearance, enhancing accessibility and ease of use. Installation is straightforward, thanks to the screw-on fixing type, and it is delivered with included screws for immediate setup. The hinge accommodates a minimum door thickness of 3/4 inch, making it a robust choice for standard installations. The hinge features a mortise mounting type, with a leaf body mortise length of 3/4 inch and a depth of 3/16 inch, ensuring a secure fit. The door/jamb gap measures 7/64 inch when closed, minimizing visible gaps for a clean finish. Additionally, the hinge's dimensions-1 3/4 inches in length and 1/2 inch in width-make it an unobtrusive yet essential component of your cabinetry. Choose the Richelieu 420203140 to elevate your projects with a hinge that combines durability, sleek design, and easy installation.
Concealed Steel Hinge - Model 203
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 1/4 in

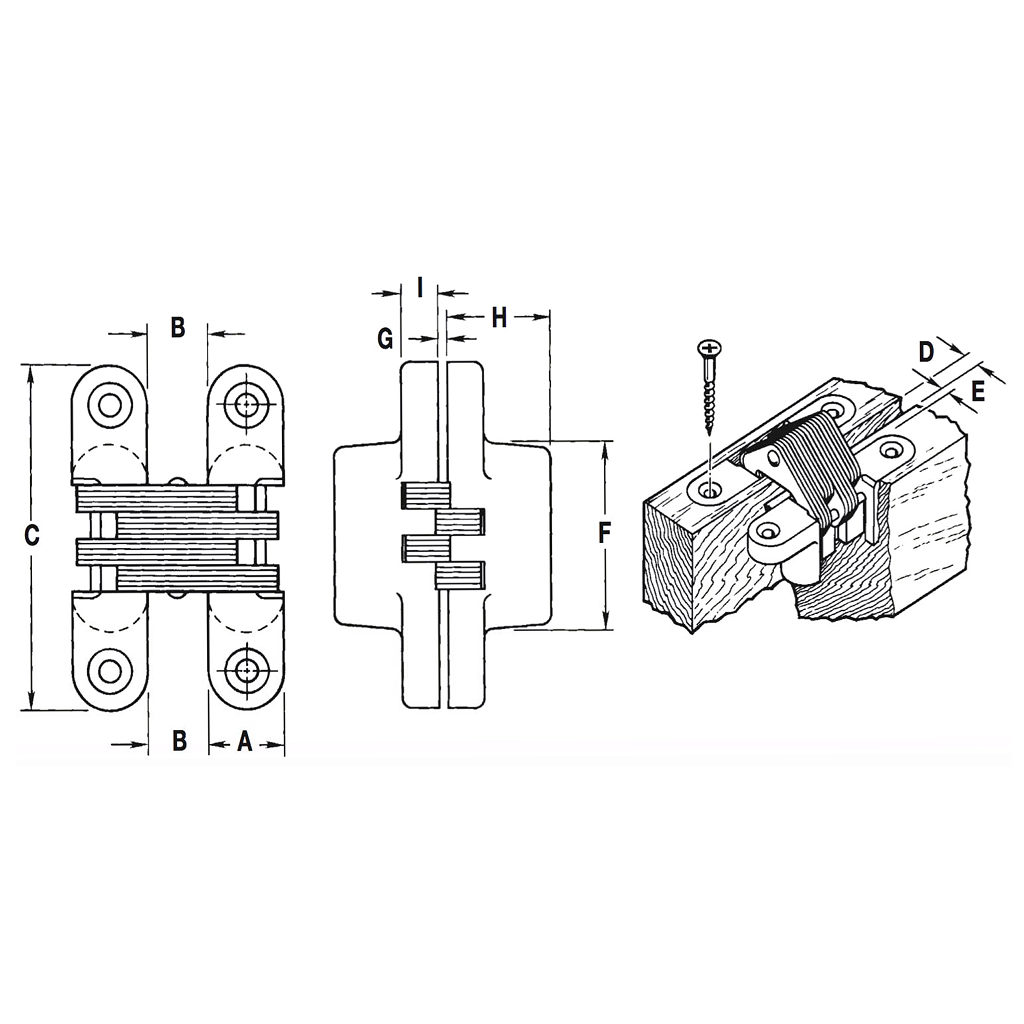

Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 1 3/4 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 3/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 3/16 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Bright Chrome
Fixing Type: Screw-On
For Hinge #: 203
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 3/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 3/16 in
Length: 1 3/4 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420203140
Product number: 420203140
Product №: 420203140
Screw/ Nail: Included
Type of Hinge: Wood or Metal
Unit: Pair
Width: 1/2 in
Wood Screw Sizes: #6 x 1" (3.5 mm x 25 mm)
