Richelieu 420204130 Concealed Steel Hinge - Model 204 offers an elegant solution for both wood and metal door applications, combining superior aesthetics with exceptional durability. Designed for contemporary settings, this hinge features a sleek brass finish that enhances the overall look of any project. With a 180° opening angle, this reversible hinge allows for maximum accessibility and functionality, making it ideal for cabinets and other installations where space efficiency is key. The hinge requires a minimum door thickness of 3/4 inch and is mounted using a mortise type installation, ensuring a secure fit and reliable performance. Measuring 2 3/8 inches in length and 1/2 inch in width, the Richelieu hinge is engineered for precision, with a leaf body mortise length of 1 1/4 inches and a leaf mortise depth of 1/4 inch. The door/jamb gap is optimized at 7/64 inch, ensuring a tight seal when closed, with a slight gap of 1/32 inch in the closed position. Installation is straightforward, as the hinge comes with included screw/nail for convenience. With Richelieu's commitment to quality, this hinge is a dependable choice for professionals seeking both style and functionality in their hardware solutions.

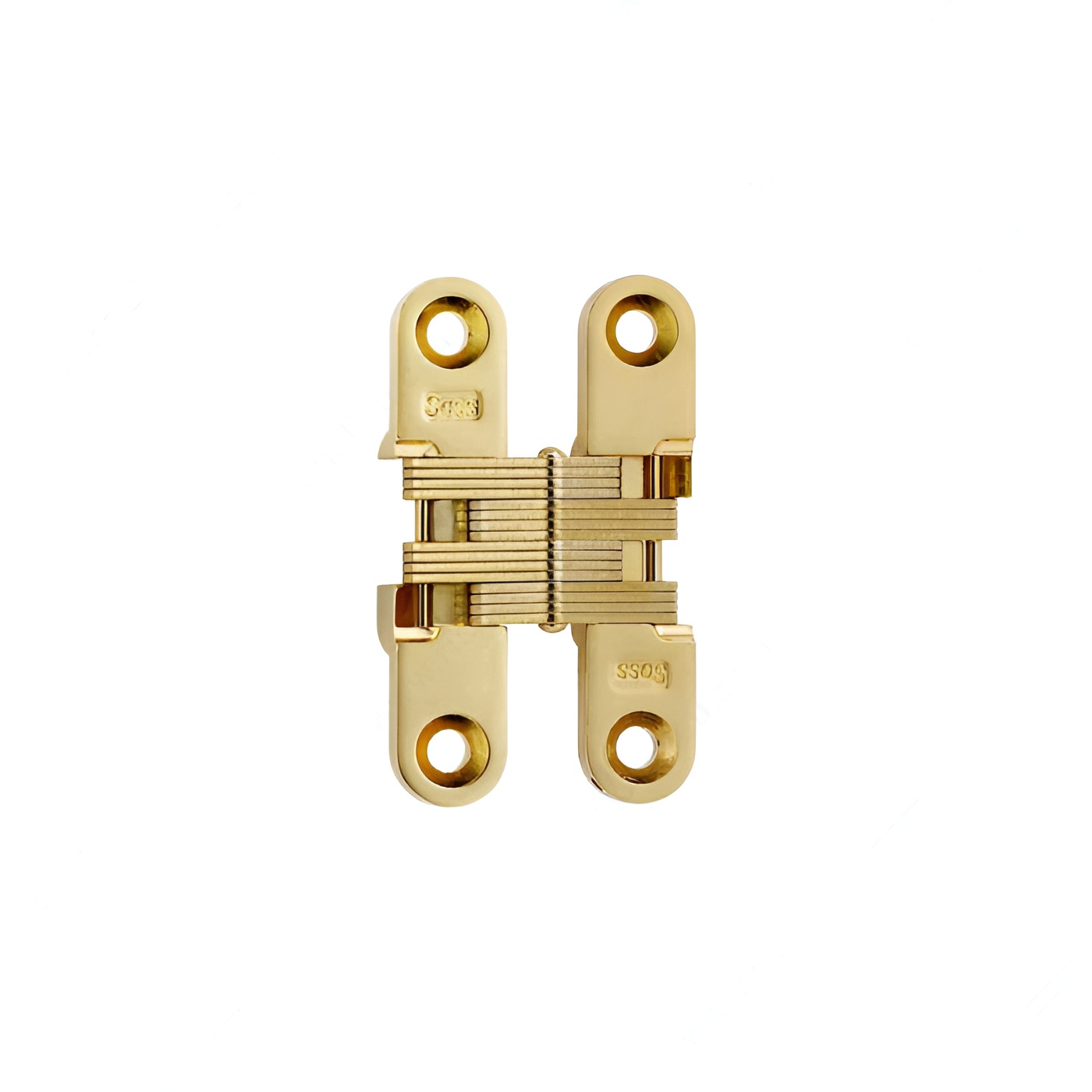

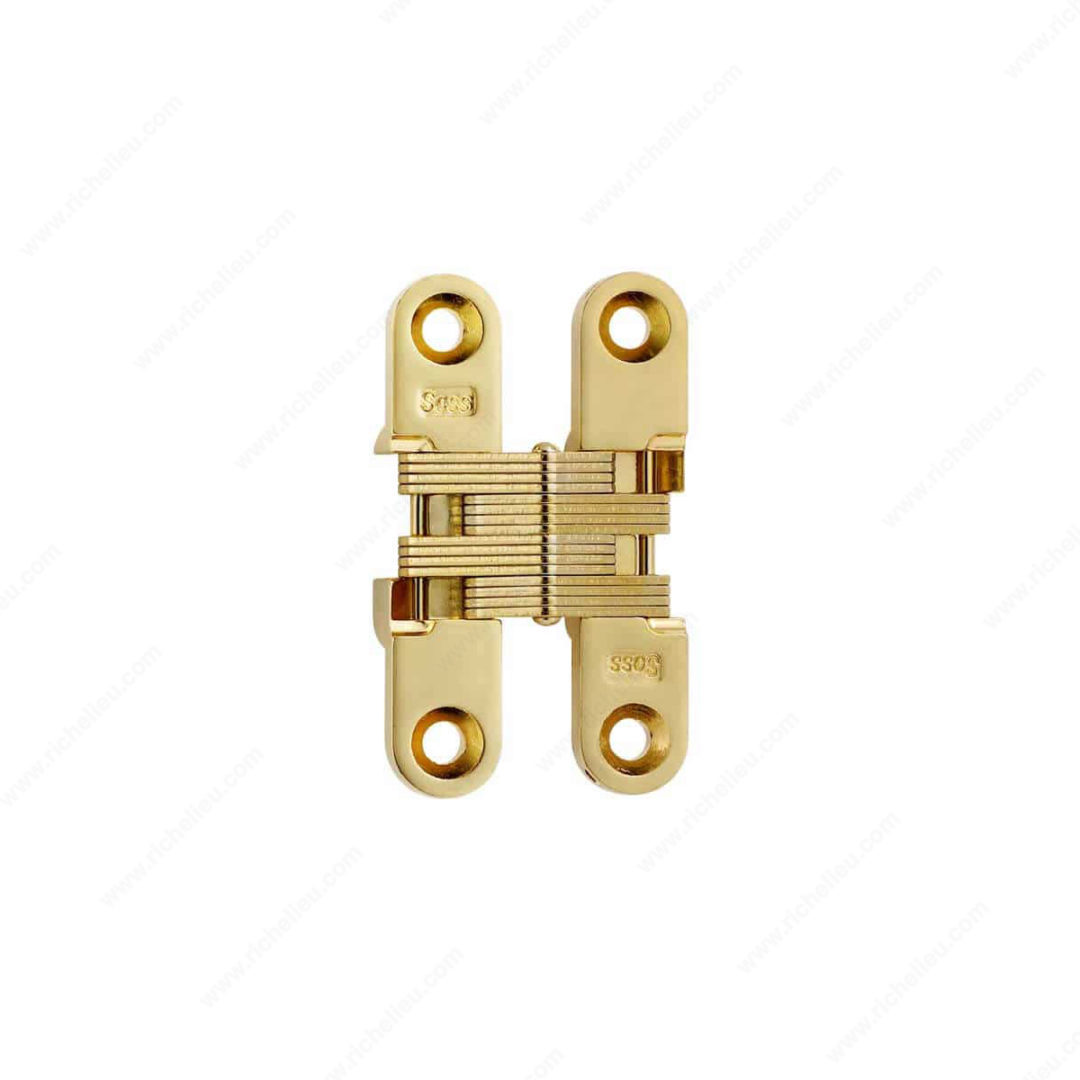

Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Brass
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420204130
Product number: 420204130
Product №: 420204130
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
