Richelieu 420204140 Concealed Steel Hinge - Model 204 delivers a seamless blend of style and functionality, making it an ideal choice for both wood and metal doors. Designed for easy installation, this hinge is perfect for a variety of applications, ensuring that your project meets the highest standards of durability and appearance. Crafted from robust steel and finished in bright chrome, this hinge enhances any door's aesthetic while providing reliable performance. The hinge offers a generous opening angle of +180°, allowing for maximum accessibility. With a minimum door thickness requirement of 3/4 in, it is suitable for a wide range of door designs. The hinge features a mortise mounting type and includes necessary screws for installation, simplifying the setup process. Its reversible design allows for versatile use on either left or right-handed doors. The compact dimensions, measuring 2 3/8 in in length and 1/2 in in width, ensure that it fits discreetly within your door's frame. Additionally, the hinge accommodates a door/jamb gap of 7/64 in in the closed position, maintaining a clean and professional look. With a leaf mortise depth of 1/4 in and a leaf body mortise length of 1 1/4 in, this concealed hinge is engineered for high performance and reliability. Upgrade your doors with the Richelieu 420204140 for an elegant and efficient solution.

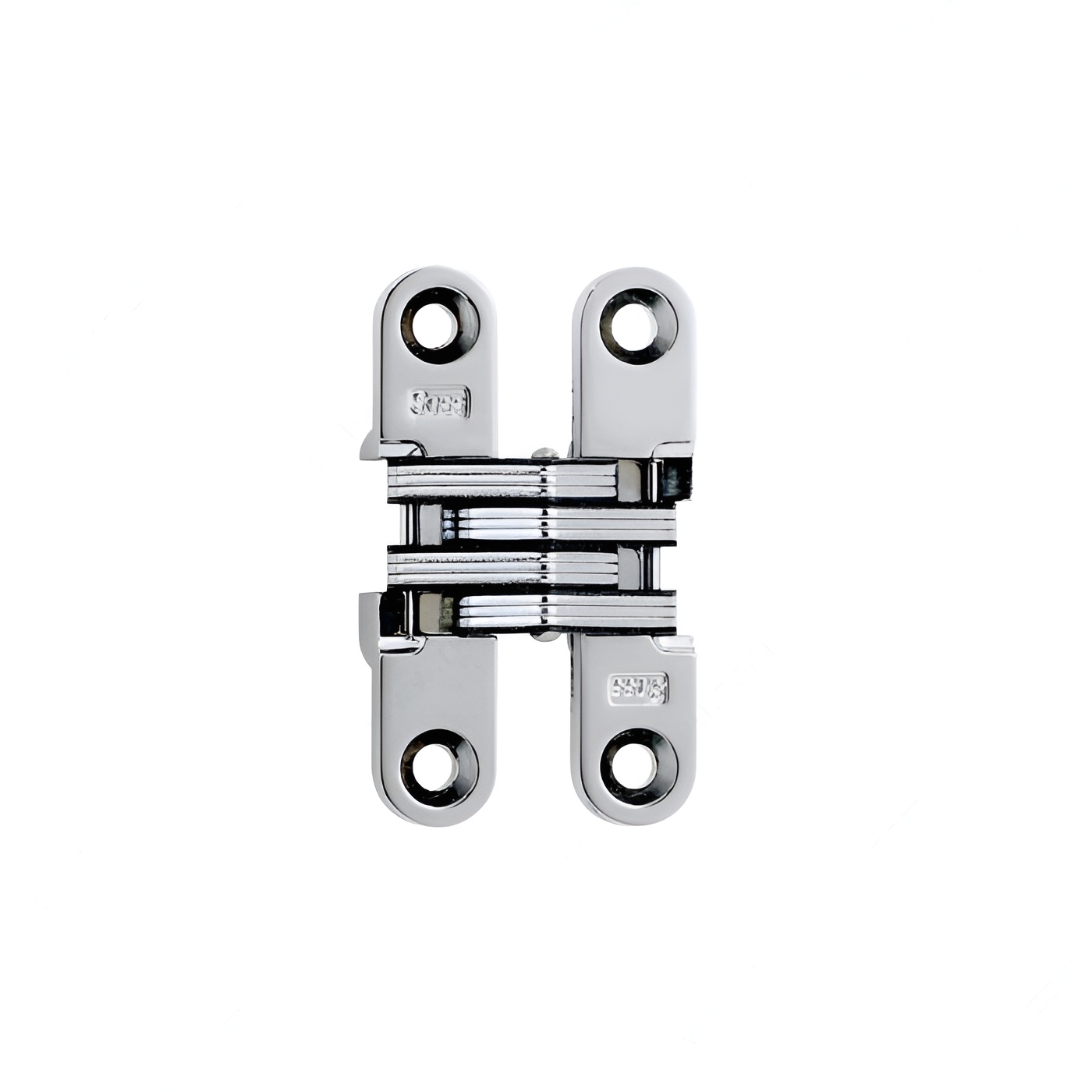

Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Bright Chrome
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420204140
Product number: 420204140
Product №: 420204140
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
