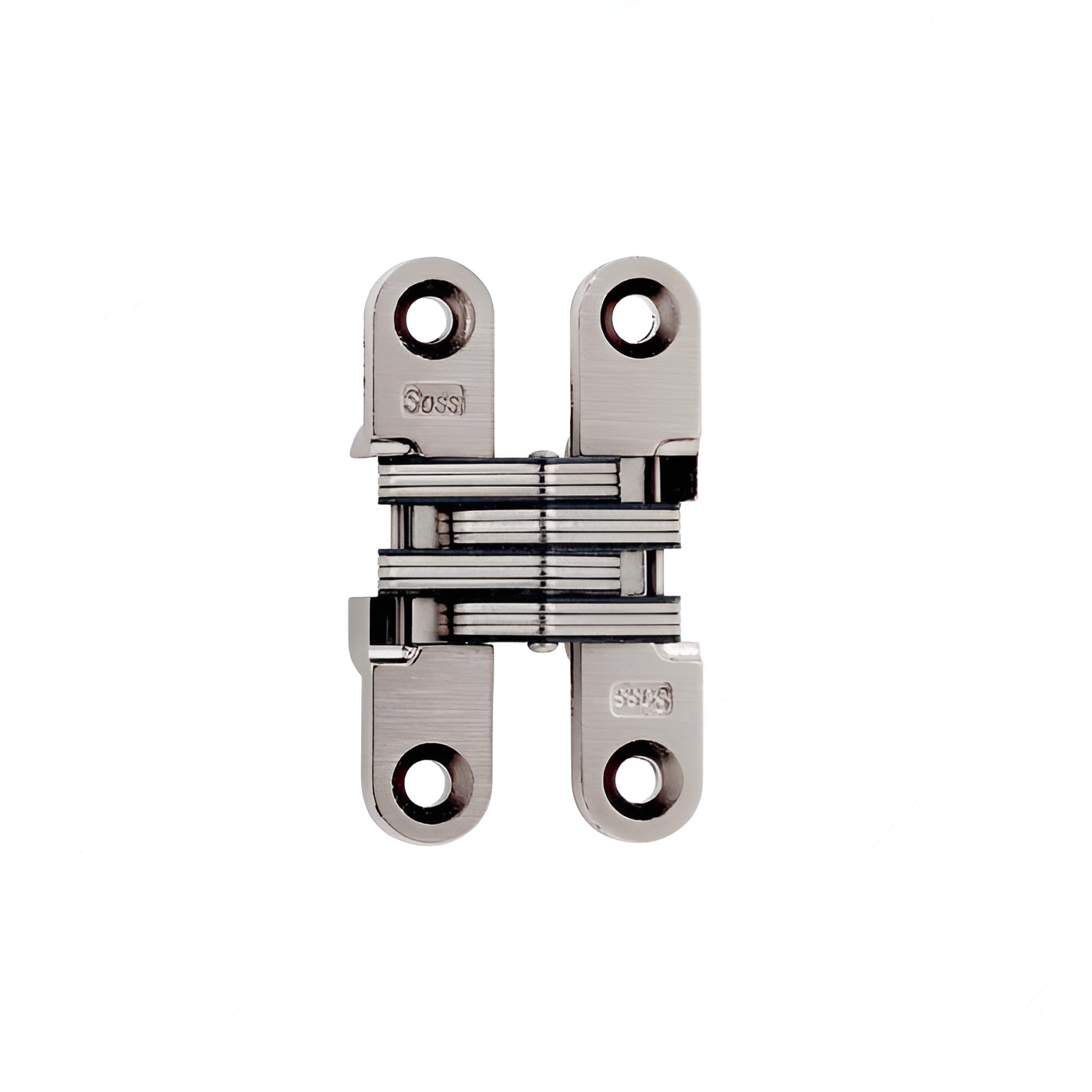

Richelieu 420204185 Concealed Steel Hinge - Model 204 combines superior aesthetics with exceptional durability, making it an ideal choice for both wood and metal doors. This hinge is designed for a seamless installation, allowing for a clean and modern look that enhances any architectural style. With a cabinet angle of 180°, this reversible hinge accommodates various applications and ensures smooth operation. The satin nickel finish not only adds a touch of elegance but also contributes to the hinge's long-lasting performance. The hinge measures 2 3/8 inches in length and has a width of 1/2 inch, with a minimum door thickness requirement of 3/4 inch, making it versatile for different door types. Installation is straightforward due to the screw-on fixing type, with all necessary screws included. The hinge features a mortise mounting style, ensuring a secure fit, and the leaf body mortise length of 1 1/4 inches provides ample support. Additionally, the door/jamb gap of 7/64 inch and a gap in the closed position of 1/32 inch allow for precise alignment. Whether you're a building professional or a discerning homeowner, the Richelieu Concealed Steel Hinge offers a practical and stylish solution for your door hardware needs.
Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Satin Nickel
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420204185
Product number: 420204185
Product №: 420204185
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
