Richelieu 420204AE Concealed Steel Hinge - Model 204 offers a perfect blend of aesthetic appeal and durability for a wide range of applications. Designed for both wood and metal doors, this hinge features a contemporary style that seamlessly integrates into any project. With a hinge opening angle of +180°, it ensures maximum accessibility while maintaining a sleek appearance. Constructed from high-quality steel and finished in antique brass, this hinge not only provides a robust solution but also adds a touch of elegance to your cabinetry. The reversible design makes installation straightforward, accommodating various door configurations. It requires a minimum door thickness of 3/4 inch and has a mortise mounting type, ensuring a secure fit. The hinge's dimensions include a length of 2 3/8 inches, a width of 1/2 inch, and a height of 23/32 inch, with a leaf body mortise length of 1 1/4 inches. The door/jamb gap is 7/64 inch, allowing for precise alignment. Fixing is easy with included screws, making it a practical choice for professional builders and discerning homeowners alike. Elevate your projects with Richelieu's innovative concealed hinge solution that promises both functionality and style.

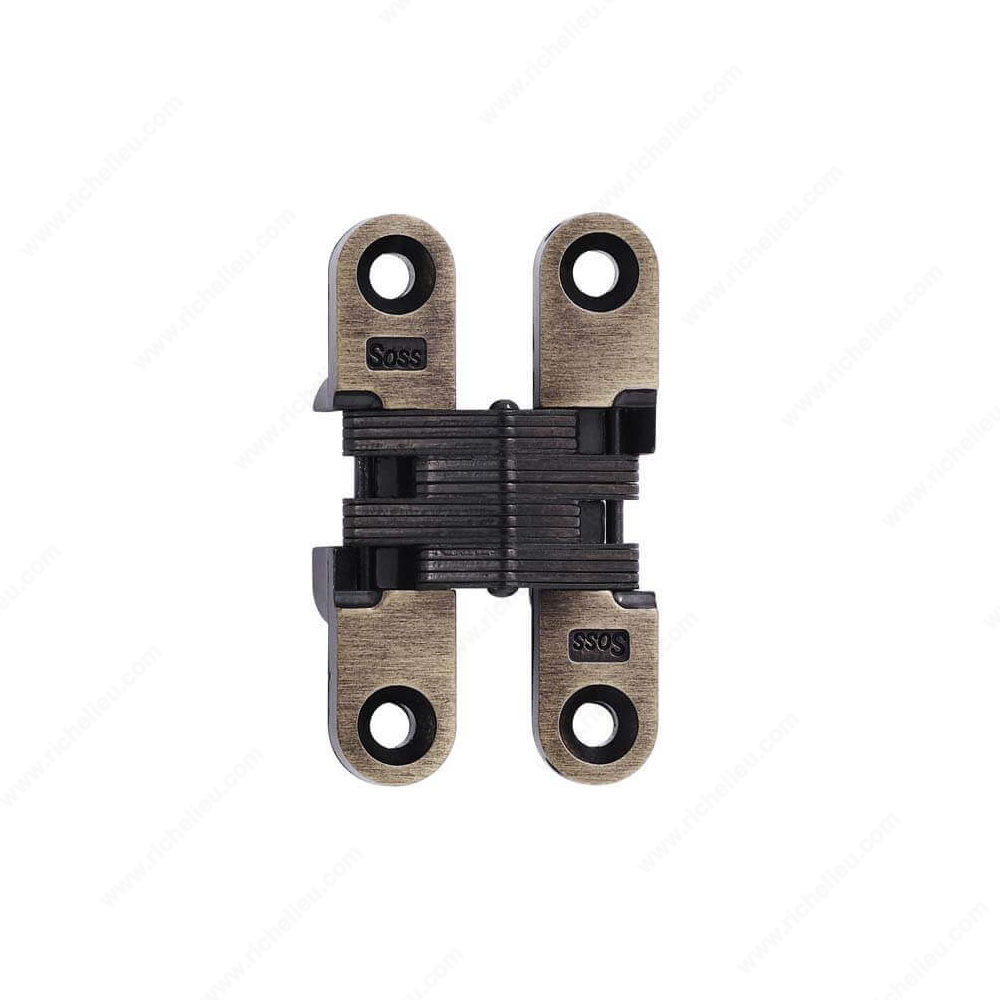

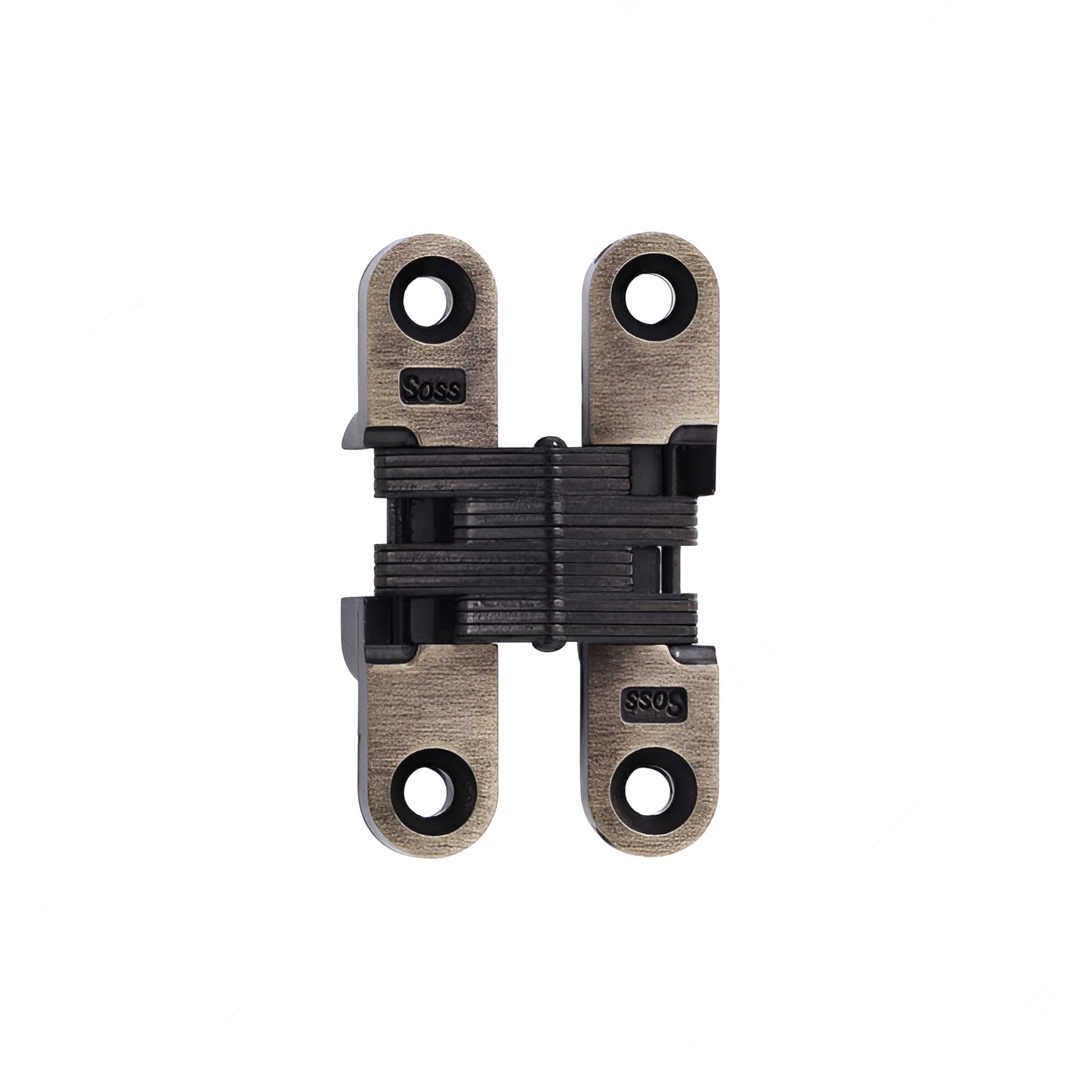

Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Antique Brass
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420204AE
Product number: 420204AE
Product №: 420204AE
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
