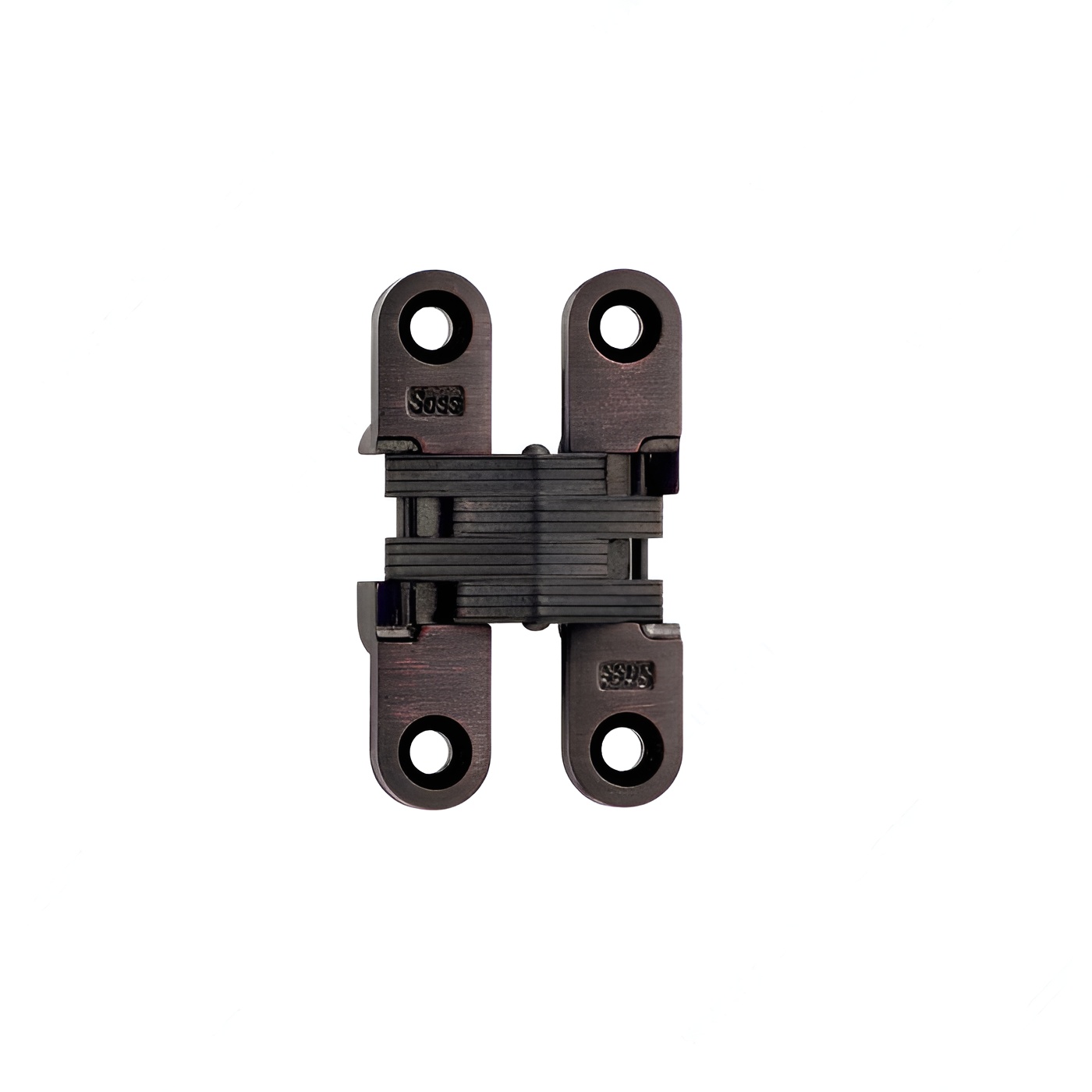

Richelieu 420204ORB Concealed Steel Hinge - Model 204 combines contemporary style with unparalleled durability, making it an ideal choice for both wood and metal doors. This reversible hinge features a sleek oil-rubbed bronze finish that enhances the aesthetic of any space while ensuring a durable performance. Designed for easy installation, the hinge is suitable for various applications, providing a cabinet angle of +180° for optimal functionality. With a minimum door thickness of 3/4 inch and a mortise mounting type, it seamlessly integrates into your design. The hinge measures 2 3/8 inches in length and has a width of 1/2 inch, ensuring a compact profile that doesn’t compromise strength. The hinge boasts a leaf gap of 23/64 inches and a door/jamb gap of 7/64 inches, facilitating smooth door operation. It includes screws for installation, making it convenient to set up right out of the box. With a mortise depth of 1/4 inch and a leaf body mortise length of 1 1/4 inches, this hinge is engineered to meet the rigorous demands of daily use while delivering a polished finish that adds to the overall elegance of your project.
Concealed Steel Hinge - Model 204
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 1 7/8 in
Dimension A: 1/2 in
Dimension B: 23/64 in
Dimension C: 2 3/8 in
Dimension D: 7/64 in
Dimension E: 1/8 in
Dimension F: 1 1/4 in
Dimension G: 1/32 in
Dimension H: 23/32 in
Dimension I: 1/4 in
Door/ Jamb Gap: 7/64 in
Door/ Jamb Gap (mm): 7/64 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 1/8 in
Door/ Jamb Inset (mm): 23/64 in
Finish: Oil-Rubbed Bronze
Fixing Type: Screw-On
For Hinge #: 204
Handedness: Reversible
Height: 23/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 1/4 in
Leaf Gap: 23/64 in
Leaf Mortise Depth: 1/4 in
Length: 2 3/8 in
Material: Steel
Minimum Door Thickness: 3/4 in
Mounting Type: Mortise
Product #: 420204ORB
Product number: 420204ORB
Product №: 420204ORB
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Width: 1/2 in
Wood Screw Sizes: #7 x 1/4" (3.9 mm x 32 mm)
