Richelieu 421218145 Concealed Steel Hinge offers an exceptional blend of style and functionality, making it an ideal choice for both wood and metal doors. Designed with a contemporary aesthetic in mind, this hinge provides a sleek, unobtrusive appearance while ensuring durability and reliability in various applications. With a hinge opening angle of +180°, it allows for wide accessibility, while its reversible design accommodates different installation needs. The satin chrome finish adds a touch of elegance, enhancing the overall look of your cabinetry or door systems. This hinge is suitable for doors with a minimum thickness of 1 ¾ in and is easy to install using a screw-on fixing type, with wood screws included for added convenience. Notably, it meets UL R13638 standards for fire resistance, providing up to 20 minutes of protection. The mortise mounting type ensures a secure fit, and features such as a 7/8 in door/jamb gap and a leaf body mortise length of 2 15/32 in further enhance its versatility. Richelieu's 421218145 hinge is an excellent choice for professionals seeking reliable and stylish hardware solutions for their projects. With its robust construction and thoughtful design, it meets the demands of modern construction while offering a seamless finish.

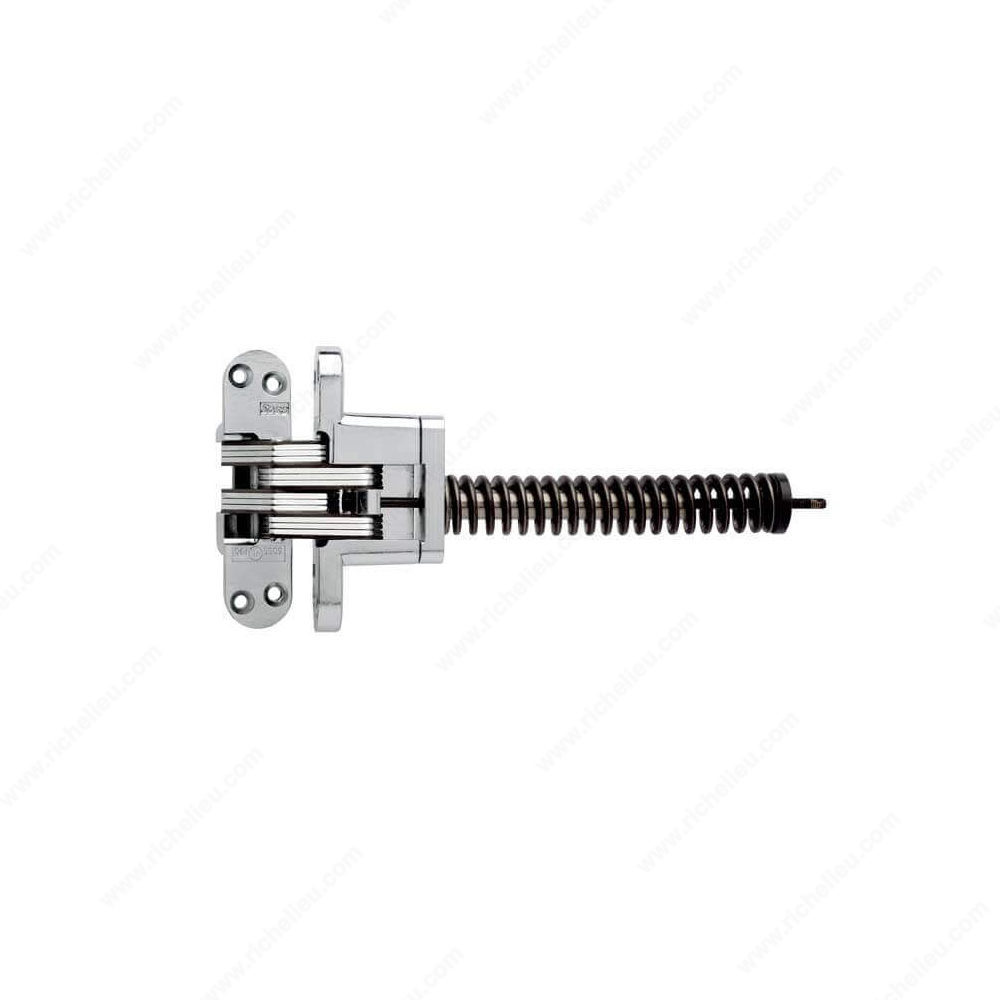

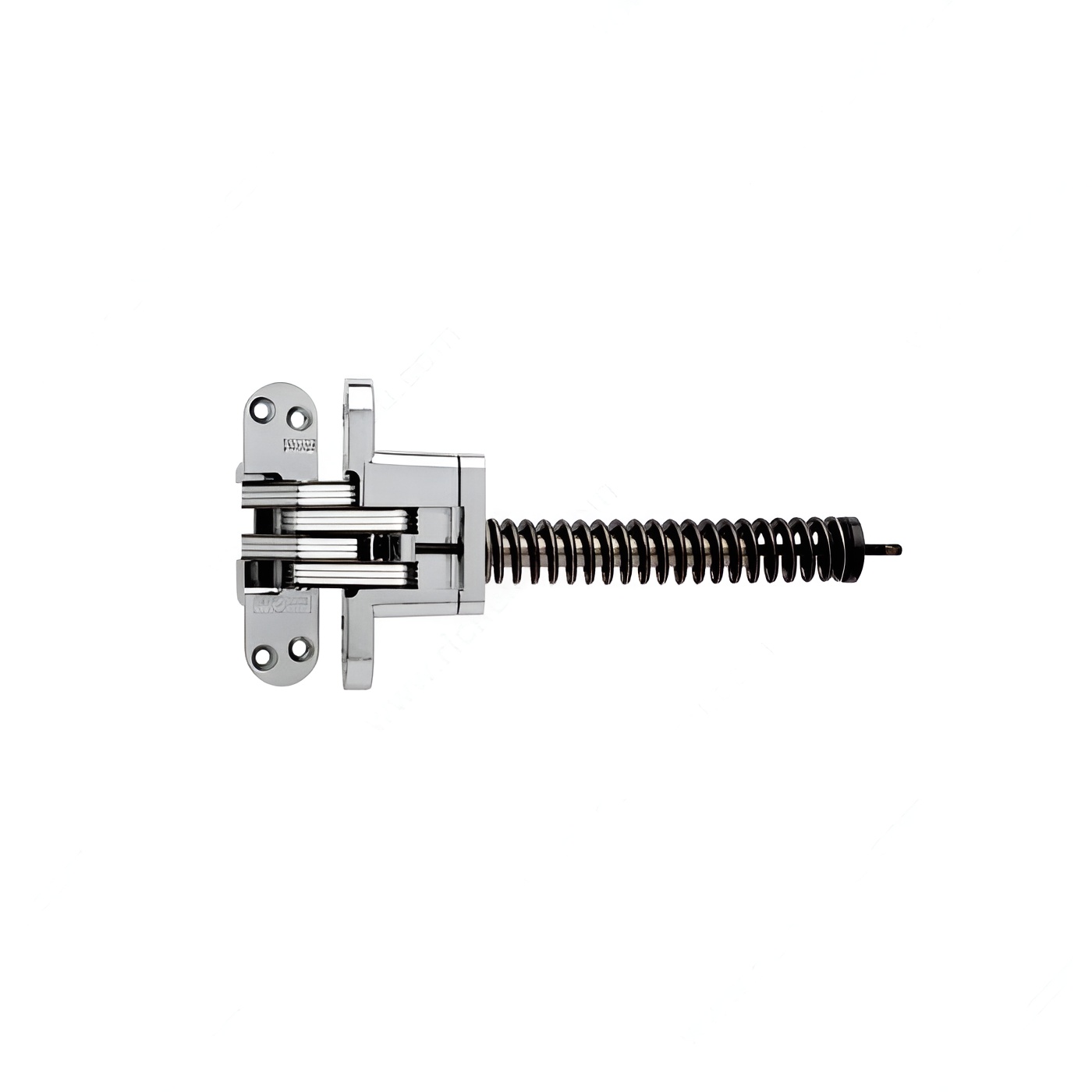

Concealed Steel Hinge
Cabinet Angle: 180°
Center to Center (mm): 7 in
Diameter (mm): 1 41/64 in

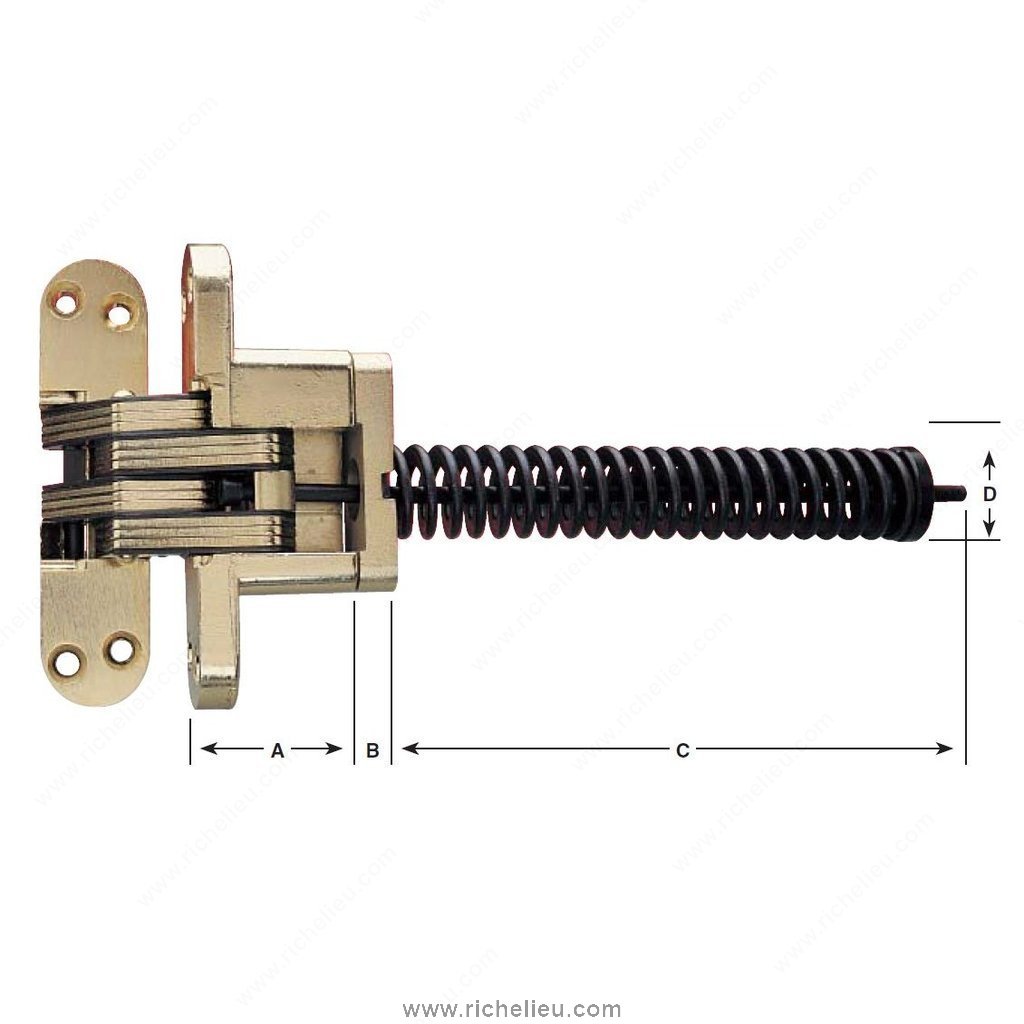

Dimension A (mm): 1 41/64 in
Dimension B (mm): 3/8 in
Dimension C (mm): 7 in
Dimension D (mm): 1 in
Door/ Jamb Gap: 7/8 in
Door/ Jamb Gap (mm): 1 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 3/16 in
Drilling Depth (mm): 3/8 in
Finish: Satin Chrome
Fire Resistant: 20 minutes
Fixing Type: Screw-On
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180°
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 3/8 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Product #: 421218145
Product number: 421218145
Product №: 421218145
Screw/ Nail: Wood Screw (Included), Screw/Nail (Included)
Standards and Certifications: UL R13638
Type of Hinge: Spring Closer
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
