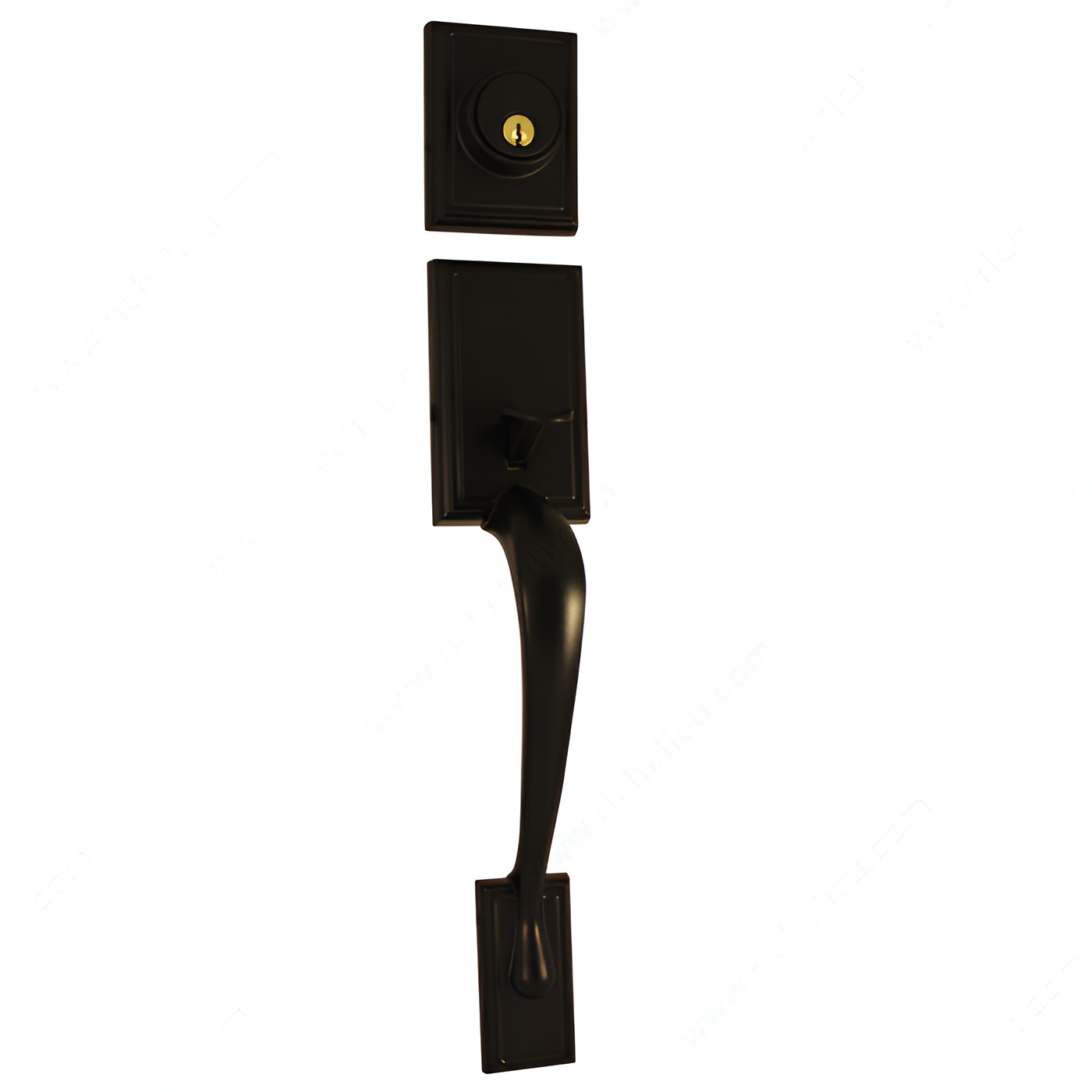

Richelieu 4242TFB51 Gripsets - Estate Series combines durability and style, making it an excellent choice for residential and commercial entrances. This gripset features a galvanized all-steel interior mechanism, ensuring long-lasting performance and dependability. Installation is straightforward, thanks to the included template, allowing for a hassle-free setup that saves time. Designed to fit standard 2-1/8" (55 mm) cross bore 161 door prep in accordance with ANSI 115.2 standards, this gripset accommodates a backset of 2 3/8" to 2 3/4" and is suitable for door thicknesses ranging from 1 3/8" to 1 3/4". The reversible handing allows for flexibility in installation on either left or right-hand openings, ensuring versatility for various door configurations. With a sleek black finish, the Richelieu Estate Series gripset enhances the aesthetic appeal of any entryway. It is equipped with a 4-way removable latch plate, adding functionality and ease of use. Offering a 5-year limited warranty on finishes and a 25-year mechanical warranty, this product provides peace of mind. Compatible with keyed alike systems, it’s an ideal solution for those seeking both security and style in their hardware choices.
Gripsets - Estate Series

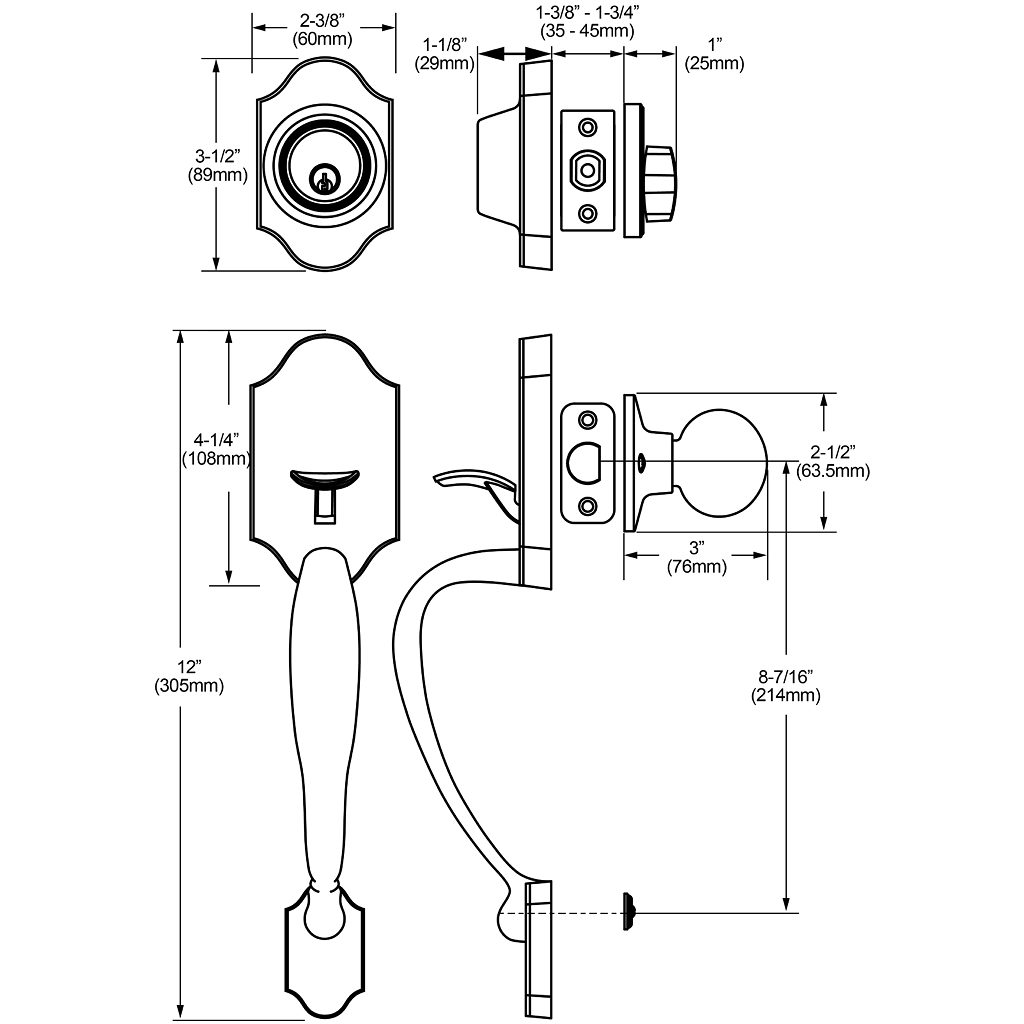

Backset: 2 3/8 to 2 3/4 in
Brand: Onward
Color/ Finish: Black
Door Thickness: 1 3/8 to 1 3/4 in
Door Type: Wood
Fire- Rating: Available upon request Spring 2025
Function: Entrance
Grade: 3
Handing Position / Opening Side: Reversible for Left or Right
Height: 2.5 in
Keyed Alike: Compatible
Latch: 4-Way Latch (Removable Latch Plate)
Length: 11 9/16 in
Manufacturing Material: Steel
Material: Steel
Product #: 4242TFB51
Product number: 4242TFB51
Product №: 4242TFB51
Screw: Included
Screw/ Nail: Included
Standards and Certifications: ANSI/BHMA
Style: Gripsets
Thickness: 15/16 in
Unit 1: case - 6
Usage: Hinge Door
Width: 2 11/16 in
