Richelieu 429208130 Concealed Steel Hinge - Model 208 offers an exceptional blend of style and functionality, making it an ideal choice for both wood and metal doors. Designed for seamless installation, this hinge is perfect for a variety of applications. With a generous 180° opening angle, it provides easy access while maintaining a sleek appearance. Crafted from durable steel and finished in brass, this hinge combines strength and aesthetic appeal. Its reversible handedness allows for versatile installation, ensuring compatibility with your specific requirements. The hinge features a minimum door thickness of 1 inch, and its mortise mounting type ensures a clean, professional finish that enhances your project’s overall look. The leaf body mortise length measures 1 11/32 inches, with a width of 5/8 inch and a depth of 9/32 inch, allowing for precise fitting. The door/jamb gap is effectively managed at 9/64 inch in the open position and 3/64 inch when closed, ensuring optimal functionality. Each package includes screws for easy installation, making it a practical choice for building professionals and knowledgeable homeowners alike. Trust Richelieu's Concealed Steel Hinge to deliver both performance and elegance to your next project.

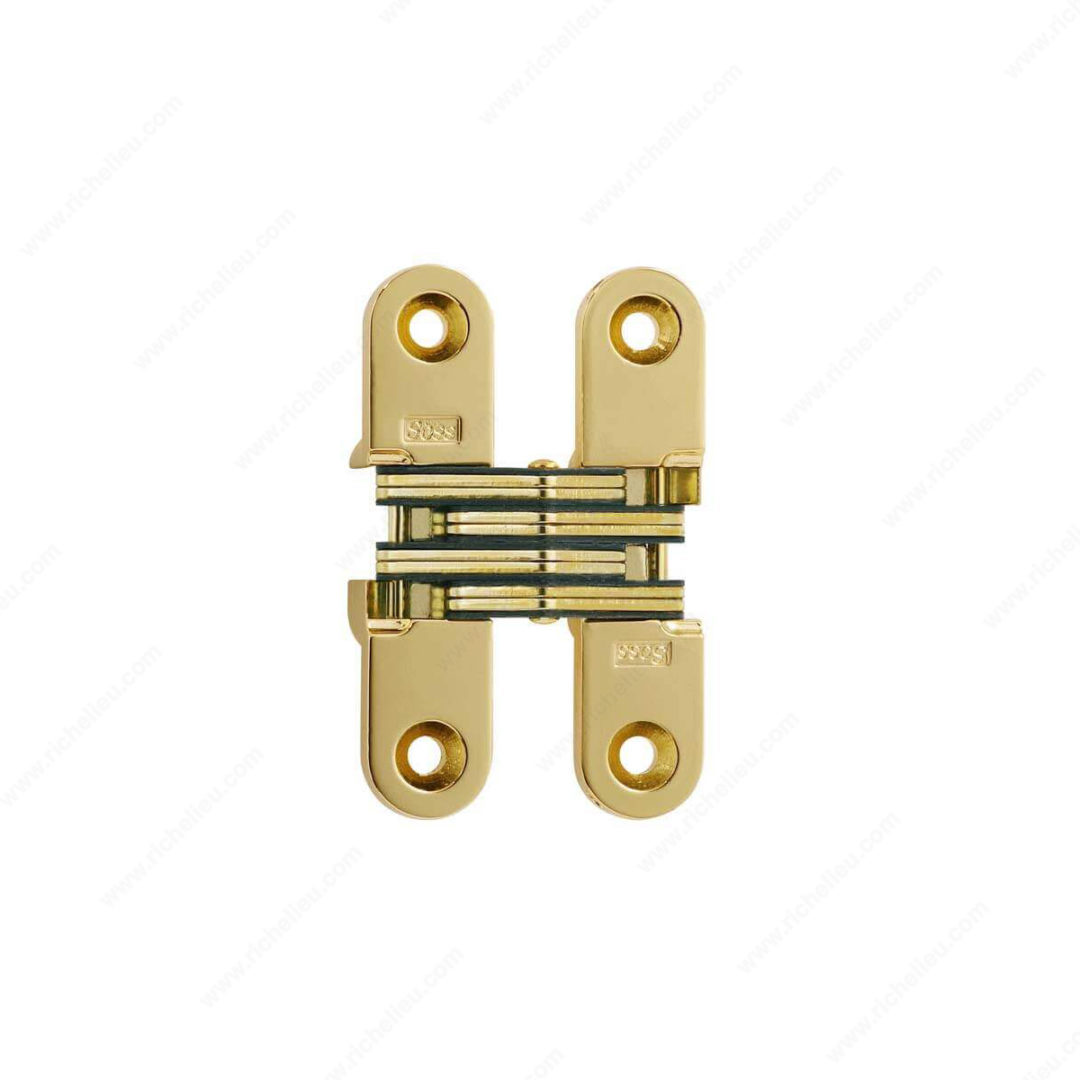

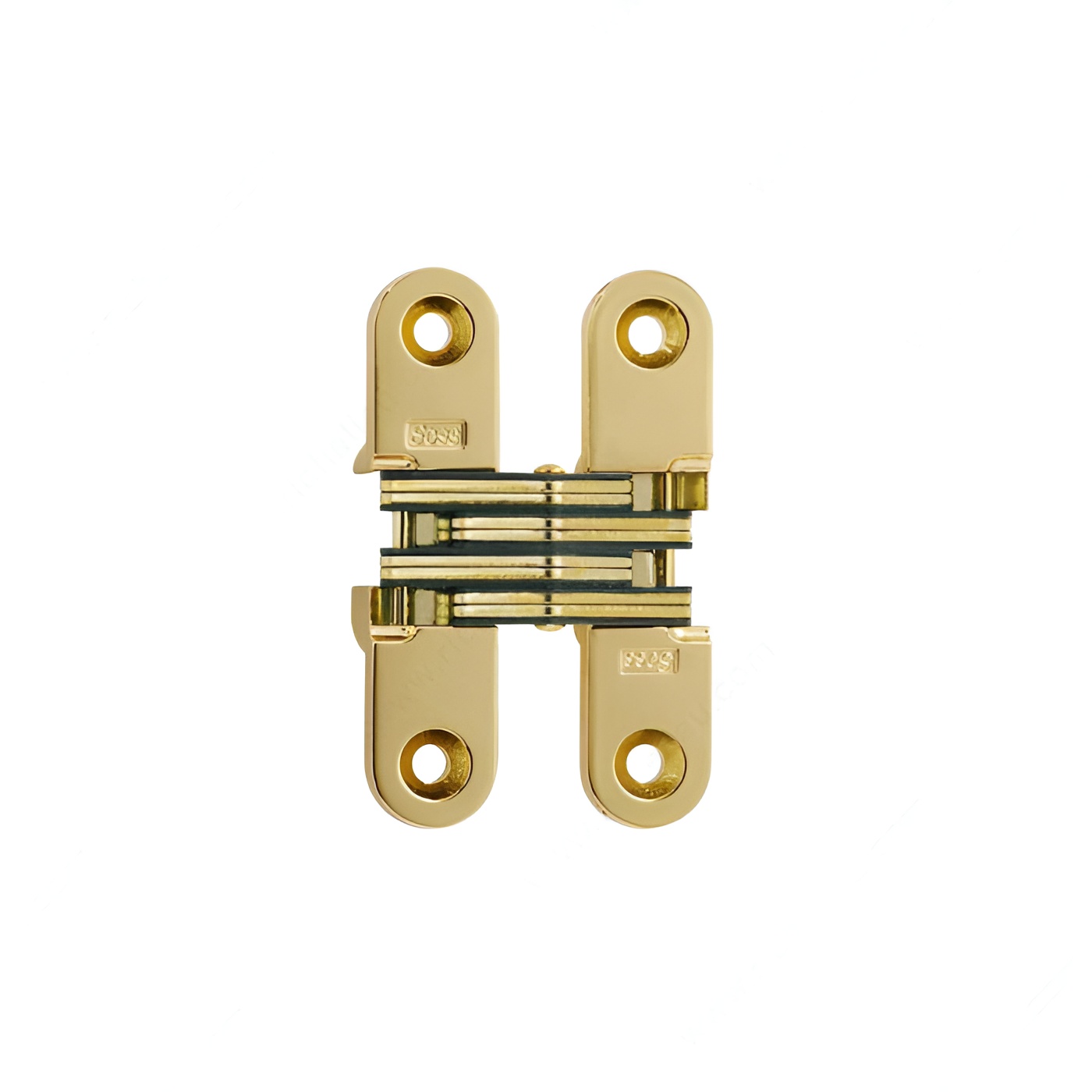

Concealed Steel Hinge - Model 208
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 2 1/8 in
Dimension A: 5/8 in
Dimension B: 29/64 in
Dimension C: 2 3/4 in
Dimension D: 9/64 in
Dimension E: 5/32 in
Dimension F: 1 11/32 in
Dimension G: 3/64 in
Dimension H: 29/32 in
Dimension I: 9/32 in
Door/ Jamb Gap: 9/64 in
Door/ Jamb Gap (mm): 9/64 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 5/32 in
Door/ Jamb Inset (mm): 9/64 in
Finish: Brass
Fixing Type: Screw-On
For Hinge #: 208
Handedness: Reversible
Height: 29/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 11/32 in
Leaf Gap: 29/64 in
Leaf Mortise Depth: 9/32 in
Length: 2 3/4 in
Material: Steel
Minimum Door Thickness: 1 in
Mounting Type: Mortise
Product #: 429208130
Product number: 429208130
Product №: 429208130
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 5/8 in
Wood Screw Sizes: #8 x 1-1/4" (4.2 mm x 32 mm)
