Richelieu 429208140 Concealed Steel Hinge - Model 208 combines superior aesthetic appeal with robust durability, making it an excellent choice for both wood and metal doors. This hinge is designed for versatility, accommodating a cabinet angle of 180°, and is reversible to suit various applications. The bright chrome finish not only enhances the look of your installations but also provides added resistance to corrosion. Installation is straightforward thanks to its screw-on fixing type, and it is compatible with mortise mounting for a seamless appearance. The hinge features a minimum door thickness requirement of 1 inch and comes with wood screws included for easy setup. With a width of 5/8 inch and a height of 29/32 inch, the hinge is compact yet sturdy, ensuring a reliable performance over time. The leaf body mortise length measures 1 11/32 inches, while the leaf gap is 29/64 inches, allowing for precise alignment. Additionally, the hinge's door/jamb gap is set at 9/64 inch in both open and closed positions, providing a snug fit. Richelieu's Model 208 is the ideal solution for professionals seeking a high-quality hinge that combines functionality with a contemporary design.

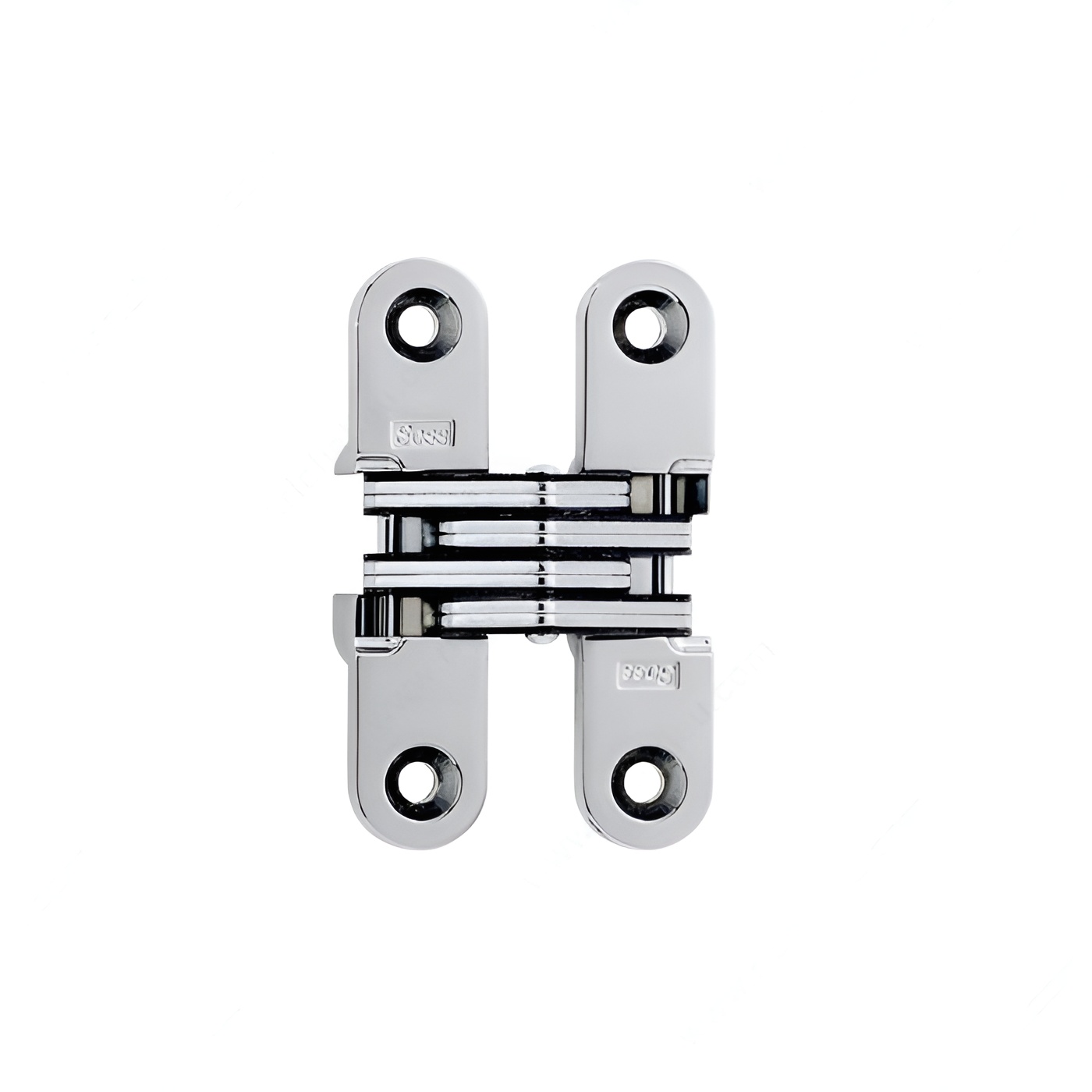

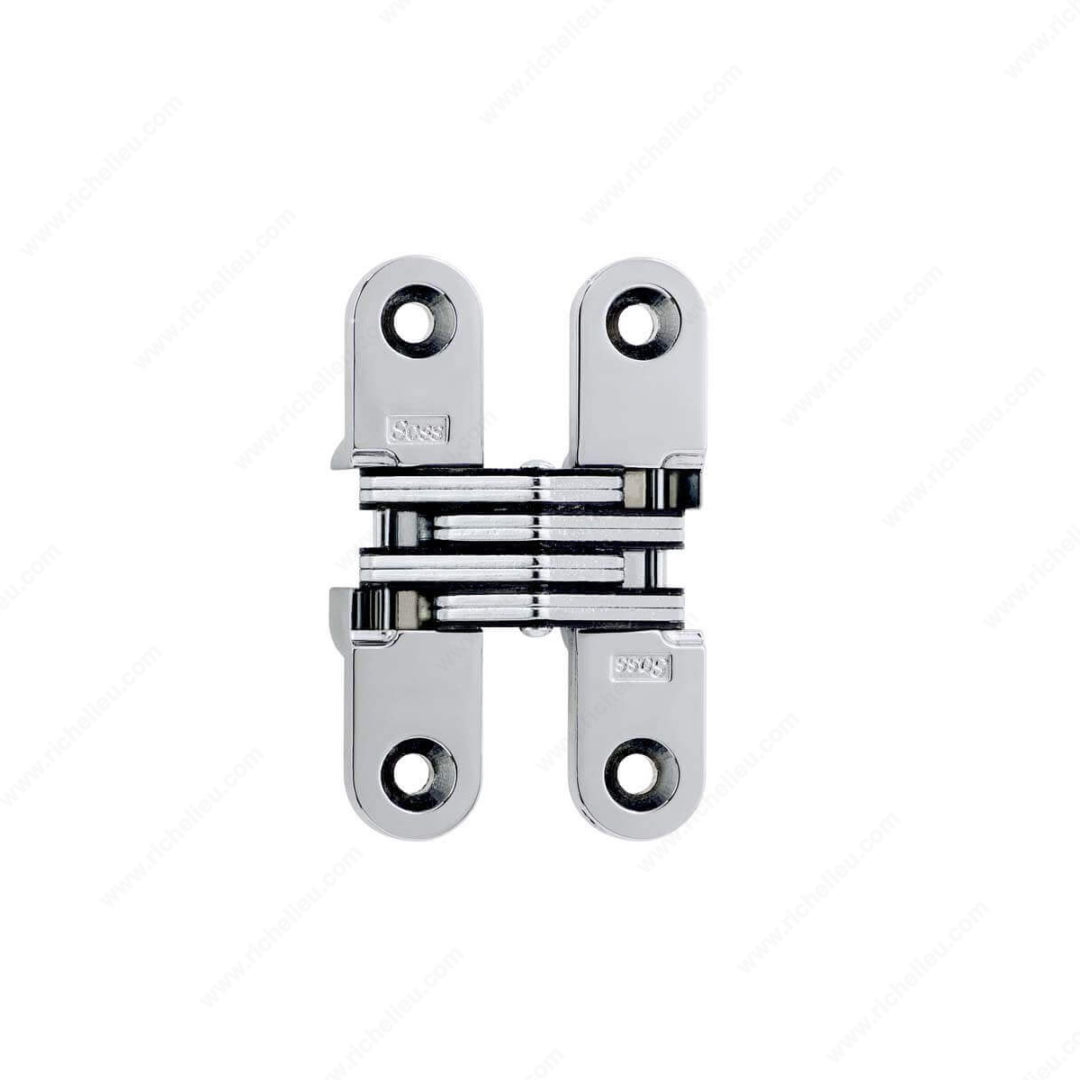

Concealed Steel Hinge - Model 208
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 2 1/8 in
Dimension A: 5/8 in
Dimension B: 29/64 in
Dimension C: 2 3/4 in
Dimension D: 9/64 in
Dimension E: 5/32 in
Dimension F: 1 11/32 in
Dimension G: 3/64 in
Dimension H: 29/32 in
Dimension I: 9/32 in
Door/ Jamb Gap: 9/64 in
Door/ Jamb Gap (mm): 9/64 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 5/32 in
Door/ Jamb Inset (mm): 9/64 in
Finish: Bright Chrome
Fixing Type: Screw-On
For Hinge #: 208
Handedness: Reversible
Height: 29/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 11/32 in
Leaf Gap: 29/64 in
Leaf Mortise Depth: 9/32 in
Length: 2 3/4 in
Material: Steel
Minimum Door Thickness: 1 in
Mounting Type: Mortise
Product #: 429208140
Product number: 429208140
Product №: 429208140
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 5/8 in
Wood Screw Sizes: #8 x 1-1/4" (4.2 mm x 32 mm)
