Richelieu 429208180 Concealed Steel Hinge - Model 208 offers a seamless blend of functionality and contemporary design, making it an ideal choice for both wood and metal doors. Engineered for versatility, this reversible hinge supports a generous opening angle of +180°, allowing easy access while maintaining a sleek appearance. Designed for mortise installation, the hinge features a durable nickel finish that not only enhances its aesthetic appeal but also ensures long-lasting performance. With a minimum door thickness of 1 inch, it is well-suited for a variety of applications, meeting the demands of both residential and commercial environments. The hinge's dimensions are meticulously crafted, with a height of 29/32 inches and a width of 5/8 inches. It boasts a leaf body mortise length of 1 11/32 inches and a leaf gap of 29/64 inches, ensuring precise alignment and operation. The included screws facilitate straightforward installation, while its screw-on fixing type provides added security. Designed to accommodate a door/jamb gap of 9/64 inches and an inset of 5/32 inches, the Richelieu Concealed Steel Hinge delivers exceptional performance without compromising on style. Upgrade your door hardware with this reliable and elegant solution that embodies quality craftsmanship.

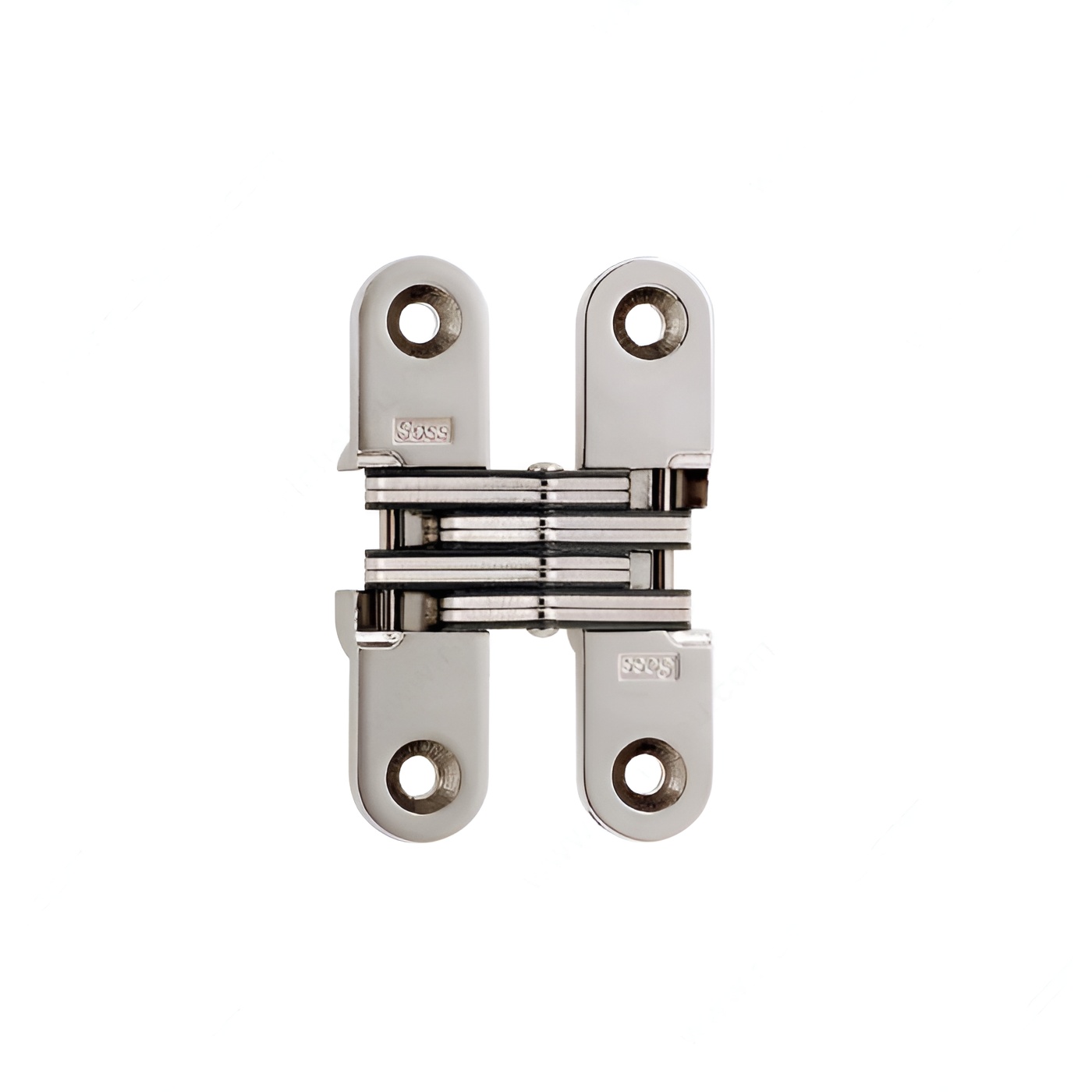

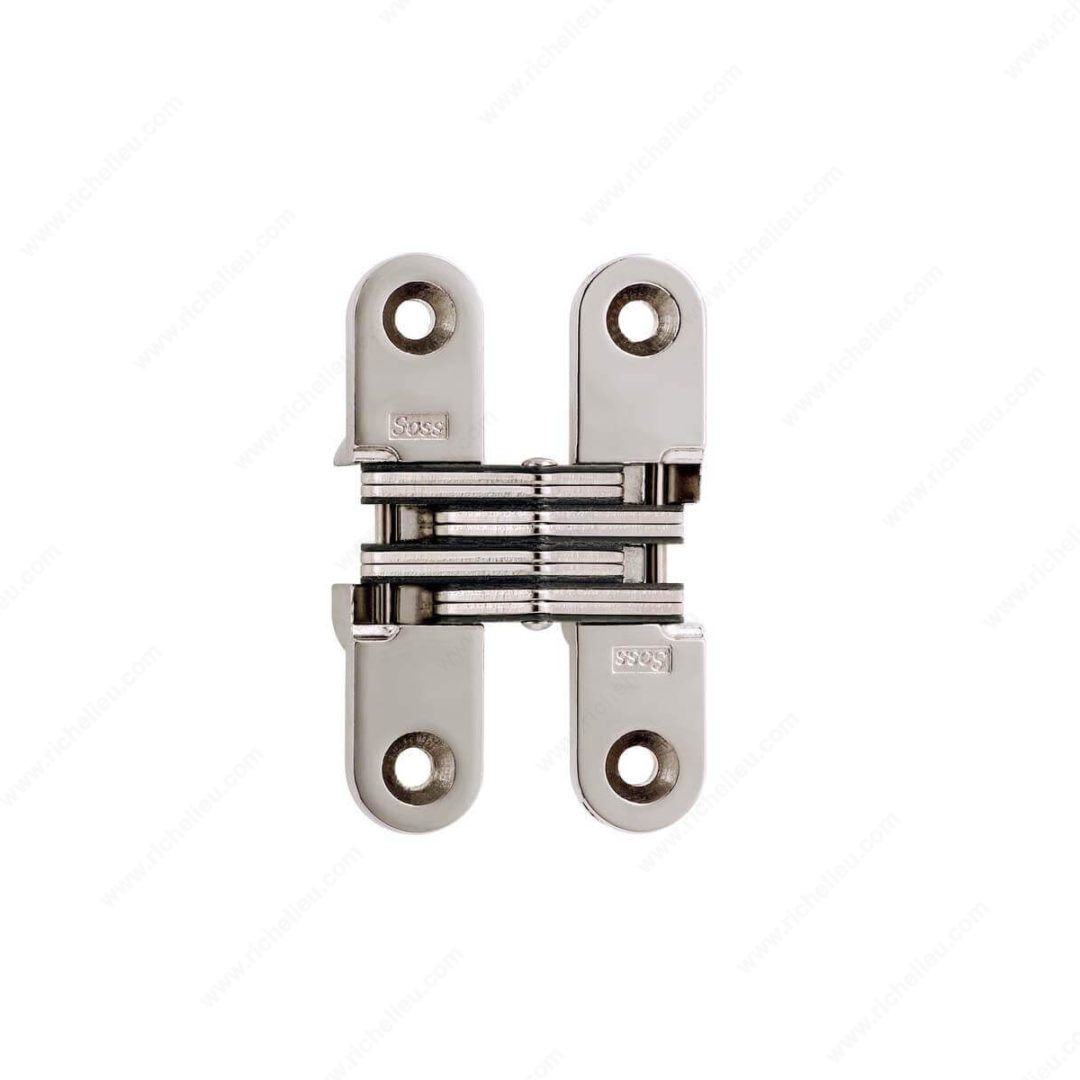

Concealed Steel Hinge - Model 208
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 2 1/8 in
Dimension A: 5/8 in
Dimension B: 29/64 in
Dimension C: 2 3/4 in
Dimension D: 9/64 in
Dimension E: 5/32 in
Dimension F: 1 11/32 in
Dimension G: 3/64 in
Dimension H: 29/32 in
Dimension I: 9/32 in
Door/ Jamb Gap: 9/64 in
Door/ Jamb Gap (mm): 9/64 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 5/32 in
Door/ Jamb Inset (mm): 9/64 in
Finish: Nickel
Fixing Type: Screw-On
For Hinge #: 208
Handedness: Reversible
Height: 29/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 11/32 in
Leaf Gap: 29/64 in
Leaf Mortise Depth: 9/32 in
Length: 2 3/4 in
Material: Steel
Minimum Door Thickness: 1 in
Mounting Type: Mortise
Product #: 429208180
Product number: 429208180
Product №: 429208180
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 5/8 in
Wood Screw Sizes: #8 x 1-1/4" (4.2 mm x 32 mm)
