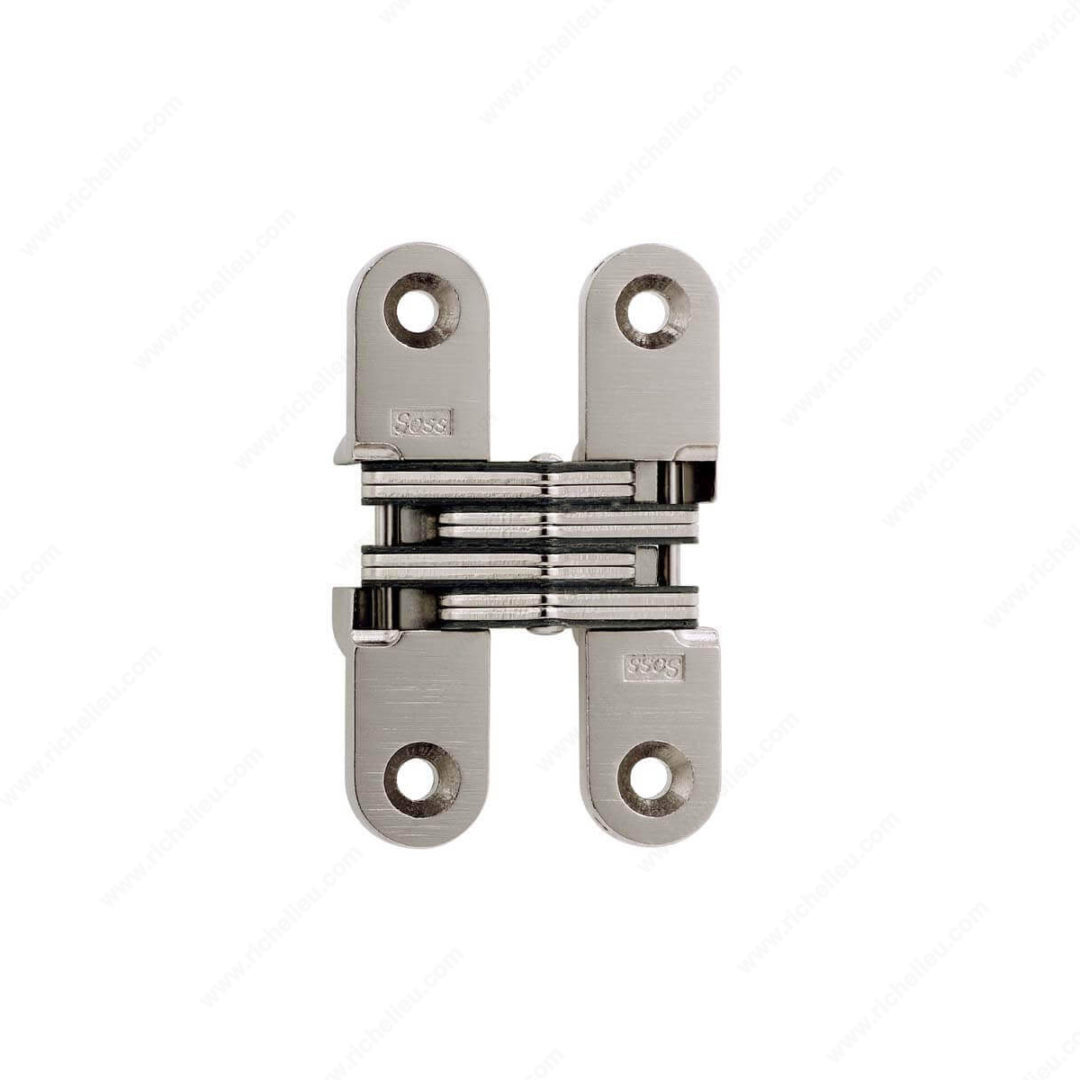

Richelieu 429208185 Concealed Steel Hinge - Model 208 offers an exceptional blend of aesthetic appeal and durability, making it an ideal choice for both wood and metal doors. Designed with a contemporary style, this hinge is perfect for various applications, ensuring a seamless installation process that meets your specific needs. This hinge features a +180° opening angle, providing maximum accessibility without compromising functionality. The satin nickel finish not only enhances its visual appeal but also ensures longevity in performance. With a minimum door thickness requirement of 1 inch, it can accommodate a range of door styles. The reversible handing allows for flexible installation options, making it versatile for different projects. With dimensions of 2 3/4 inches in length and 5/8 inch in width, the hinge is compact yet robust. The mortise mounting type ensures a clean and professional finish, while the included screws make installation straightforward. The hinge gap in the closed position measures 3/64 inch, and the door/jamb gap is 9/64 inch, maintaining precision in alignment. Richelieu's concealed hinge model is a perfect choice for building professionals and knowledgeable homeowners seeking reliable, stylish hardware solutions.
Concealed Steel Hinge - Model 208
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 2 1/8 in
Dimension A: 5/8 in
Dimension B: 29/64 in
Dimension C: 2 3/4 in
Dimension D: 9/64 in
Dimension E: 5/32 in
Dimension F: 1 11/32 in
Dimension G: 3/64 in
Dimension H: 29/32 in
Dimension I: 9/32 in
Door/ Jamb Gap: 9/64 in
Door/ Jamb Gap (mm): 9/64 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 5/32 in
Door/ Jamb Inset (mm): 9/64 in
Finish: Satin Nickel
Fixing Type: Screw-On
For Hinge #: 208
Handedness: Reversible
Height: 29/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 11/32 in
Leaf Gap: 29/64 in
Leaf Mortise Depth: 9/32 in
Length: 2 3/4 in
Material: Steel
Minimum Door Thickness: 1 in
Mounting Type: Mortise
Product #: 429208185
Product number: 429208185
Product №: 429208185
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 5/8 in
Wood Screw Sizes: #8 x 1-1/4" (4.2 mm x 32 mm)
