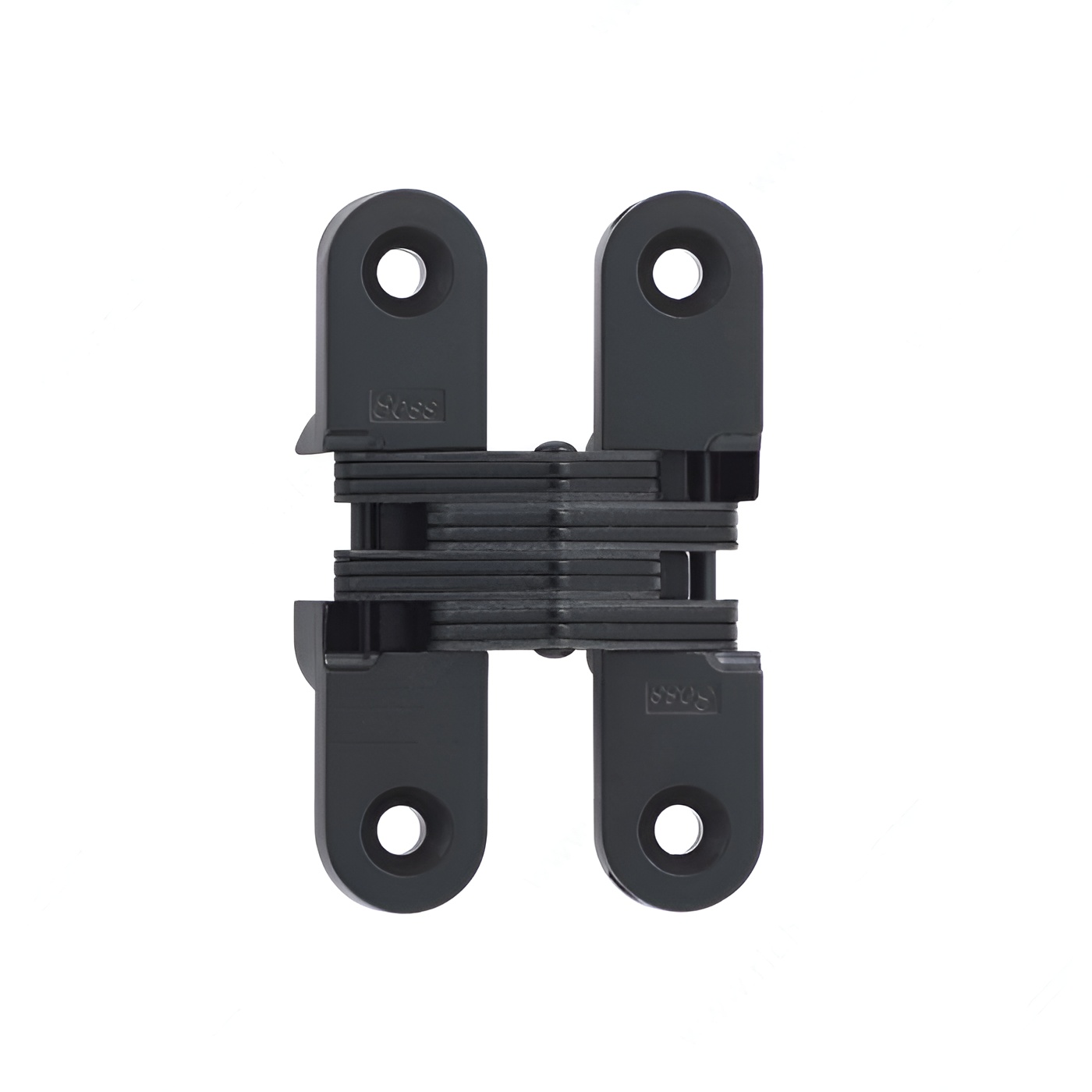

Richelieu 42920890 Concealed Steel Hinge - Model 208 offers a seamless blend of durability and contemporary design, making it an excellent choice for various door applications. Engineered to accommodate both wood and metal doors, this reversible hinge ensures versatility while maintaining a sleek appearance. With a hinge opening angle of +180°, the Model 208 allows for maximum accessibility, while its sophisticated black finish adds a modern touch to any interior. The hinge is designed for mortise mounting and features a minimum door thickness of 1 inch, making it suitable for heavy-duty use. Its precise dimensions include a length of 2 3/4 inches and a width of 5/8 inch, ensuring a perfect fit for your projects. Installation is straightforward, thanks to the included #8 x 1-1/4" wood screws, allowing for a secure and reliable fit. The hinge accommodates a door/jamb gap of 9/64 inches in both open and closed positions, with a leaf body mortise length of 1 11/32 inches and a mortise depth of 9/32 inches. Richelieu's commitment to quality and functionality shines through in this concealed hinge, making it a vital addition to your hardware collection.
Concealed Steel Hinge - Model 208
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 2 1/8 in
Dimension A: 5/8 in
Dimension B: 29/64 in
Dimension C: 2 3/4 in
Dimension D: 9/64 in
Dimension E: 5/32 in
Dimension F: 1 11/32 in
Dimension G: 3/64 in
Dimension H: 29/32 in
Dimension I: 9/32 in
Door/ Jamb Gap: 9/64 in
Door/ Jamb Gap (mm): 9/64 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 5/32 in
Door/ Jamb Inset (mm): 9/64 in
Finish: Black
Fixing Type: Screw-On
For Hinge #: 208
Handedness: Reversible
Height: 29/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 11/32 in
Leaf Gap: 29/64 in
Leaf Mortise Depth: 9/32 in
Length: 2 3/4 in
Material: Steel
Minimum Door Thickness: 1 in
Mounting Type: Mortise
Product #: 42920890
Product number: 42920890
Product №: 42920890
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 5/8 in
Wood Screw Sizes: #8 x 1-1/4" (4.2 mm x 32 mm)
