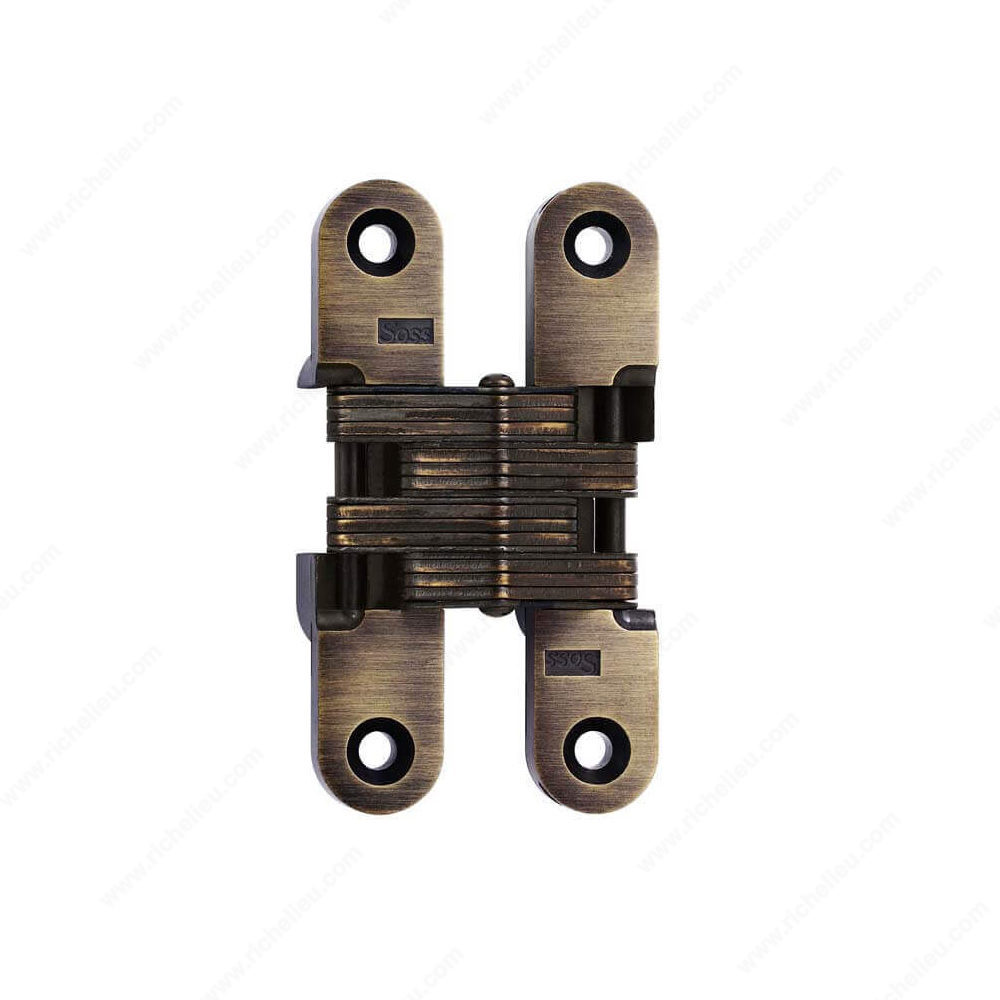

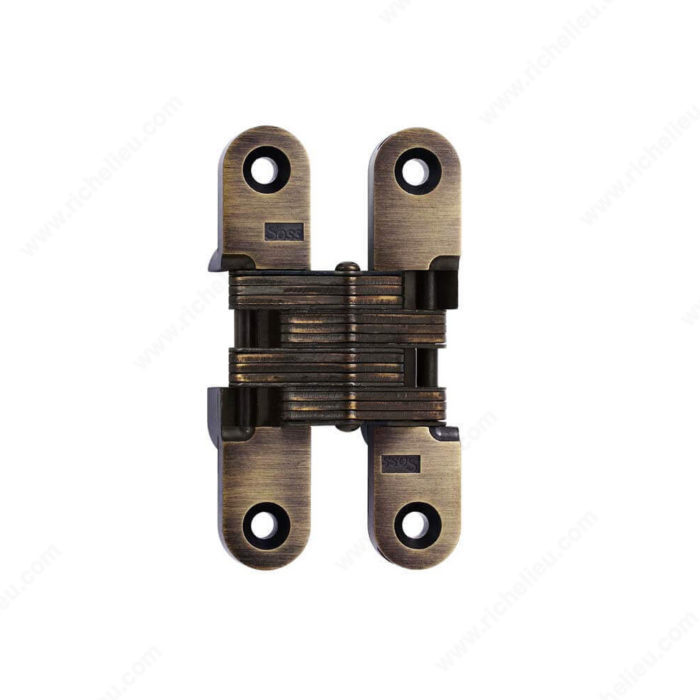

Richelieu 429212AE Concealed Steel Hinge - Model 212 seamlessly combines style and functionality, making it an ideal choice for both wood and metal doors. Crafted from durable steel and finished in an elegant antique brass, this hinge offers a contemporary aesthetic that enhances any interior space. With a reversible design, it accommodates various door configurations, ensuring versatility in installation. This hinge features a remarkable 180° opening angle, allowing for maximum accessibility. Its mortise mounting type ensures a clean, concealed look, while the fixed screw-on installation simplifies the setup process. Designed for doors with a minimum thickness of 1 1/8 inches, the hinge has a leaf mortise depth of 3/8 inches and a length of 3 3/4 inches, making it robust enough to handle everyday use. Key specifications include a door/jamb gap of 11/64 inches, a door/jamb inset of 3/16 inches, and a leaf gap of 35/64 inches, ensuring precise alignment. With included screws, this hinge is ready for installation right out of the box. Elevate your projects with the Richelieu 429212AE Concealed Steel Hinge, where durability meets design excellence.
Concealed Steel Hinge - Model 212
Cabinet Angle: 180°
Center to Center (mm): 3 in
Dimension A: 3/4 in
Dimension B: 35/64 in
Dimension C: 3 3/4 in
Dimension D: 11/64 in
Dimension E: 3/16 in
Dimension F: 2 1/16 in
Dimension G: 3/64 in
Dimension H: 1 5/64 in
Dimension I: 3/8 in
Door/ Jamb Gap: 11/64 in
Door/ Jamb Gap (mm): 5/32 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 3/16 in
Door/ Jamb Inset (mm): 17/32 in
Finish: Antique Brass
Fixing Type: Screw-On
For Hinge #: 212
Handedness: Reversible
Height: 1 5/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 1/16 in
Leaf Gap: 35/64 in
Leaf Mortise Depth: 3/8 in
Length: 3 3/4 in
Material: Steel
Minimum Door Thickness: 1 1/8 in
Mounting Type: Mortise
Product #: 429212AE
Product number: 429212AE
Product №: 429212AE
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 3/4 in
Wood Screw Sizes: #10 x 1-1/4" (4.8 mm x 32 mm)
