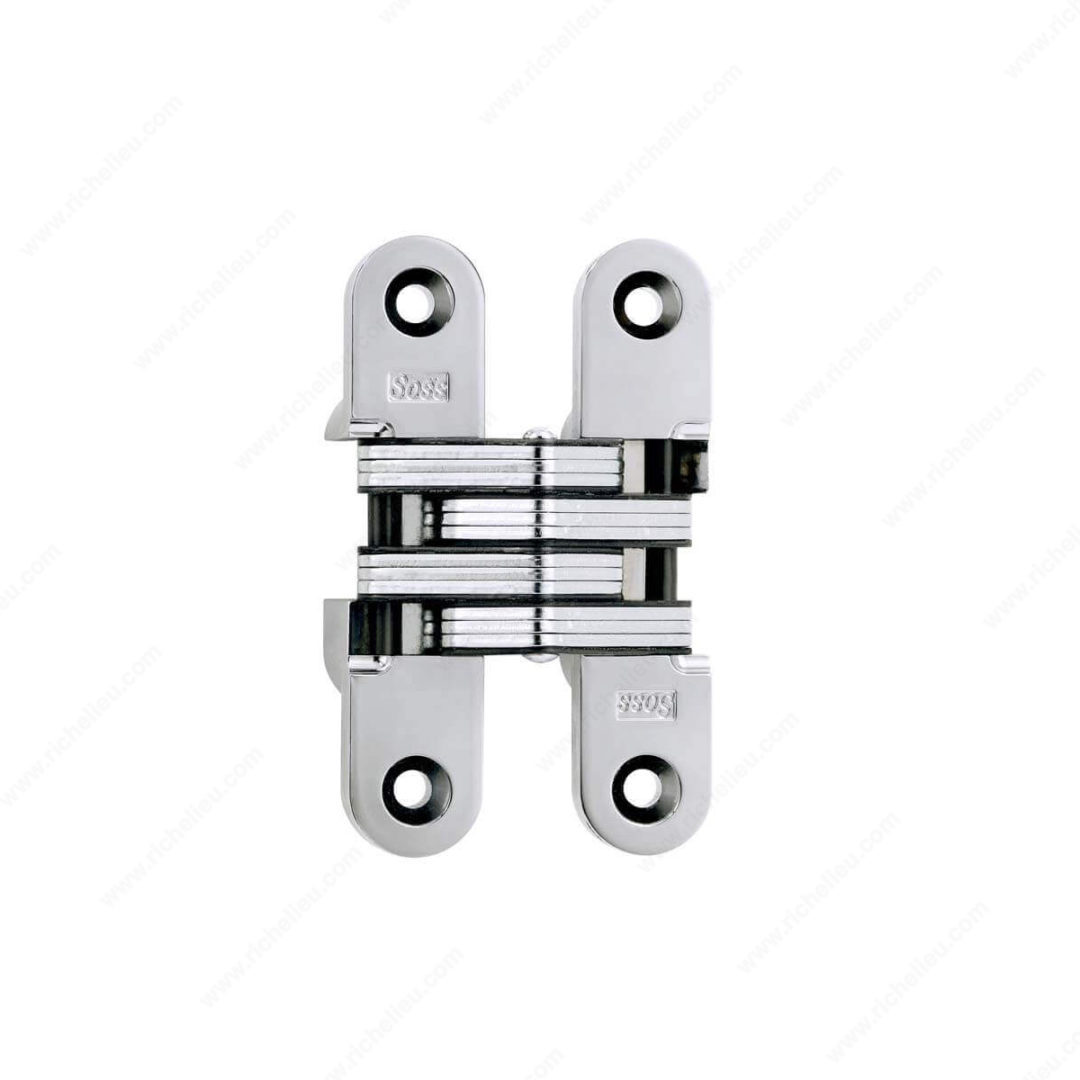

Richelieu 429216140 Concealed Steel Hinge for Hinge 216 combines modern aesthetics with robust functionality. Designed for both wood and metal doors, this hinge boasts a sleek, bright chrome finish that enhances the overall look of any cabinetry or door application. With a hinge opening angle of +180°, it provides maximum accessibility, making it ideal for environments where space is at a premium. Installation is straightforward thanks to its screw-on fixing type, and the hinge is reversible, accommodating various door configurations. The dimensions are tailored for efficiency, with a minimum door thickness of 1 3/8 inches and a leaf mortise depth of 15/32 inches. Its design includes a door/jamb gap of 15/64 inches in the open position, ensuring a snug fit that reduces drafts and enhances aesthetic appeal. With a fire resistance rating of 20 minutes, the Richelieu concealed hinge meets safety standards (UL R13634), making it a reliable choice for both residential and commercial applications. Additional features include a mortise mounting type and included screws for a hassle-free installation. For building professionals and discerning homeowners alike, the Richelieu 429216140 hinge delivers superior performance, durability, and style.
Concealed Steel Hinge - For Hinge 216
Cabinet Angle: 180°
Center to Center (mm): 3 5/8 in
Dimension A: 1 in
Dimension B: 47/64 in
Dimension C: 4 5/8 in
Dimension D: 15/64 in
Dimension E: 1/4 in
Dimension F: 2 19/32 in
Dimension G: 1/16 in
Dimension H: 1 15/32 in
Dimension I: 15/32 in
Door/ Jamb Gap: 15/64 in
Door/ Jamb Gap (mm): 7/32 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 23/32 in
Finish: Bright Chrome
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 216
Handedness: Reversible
Height: 1 15/32 in
Hinge Opening Angle: +180°
Leaf Body Mortise Length: 2 19/32 in
Leaf Gap: 47/64 in
Leaf Mortise Depth: 15/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/8 in
Mounting Type: Mortise
Product #: 429216140
Product number: 429216140
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 in
Wood Screw Sizes: #14 x 1-1/2" (6.3 mm x 38 mm)
