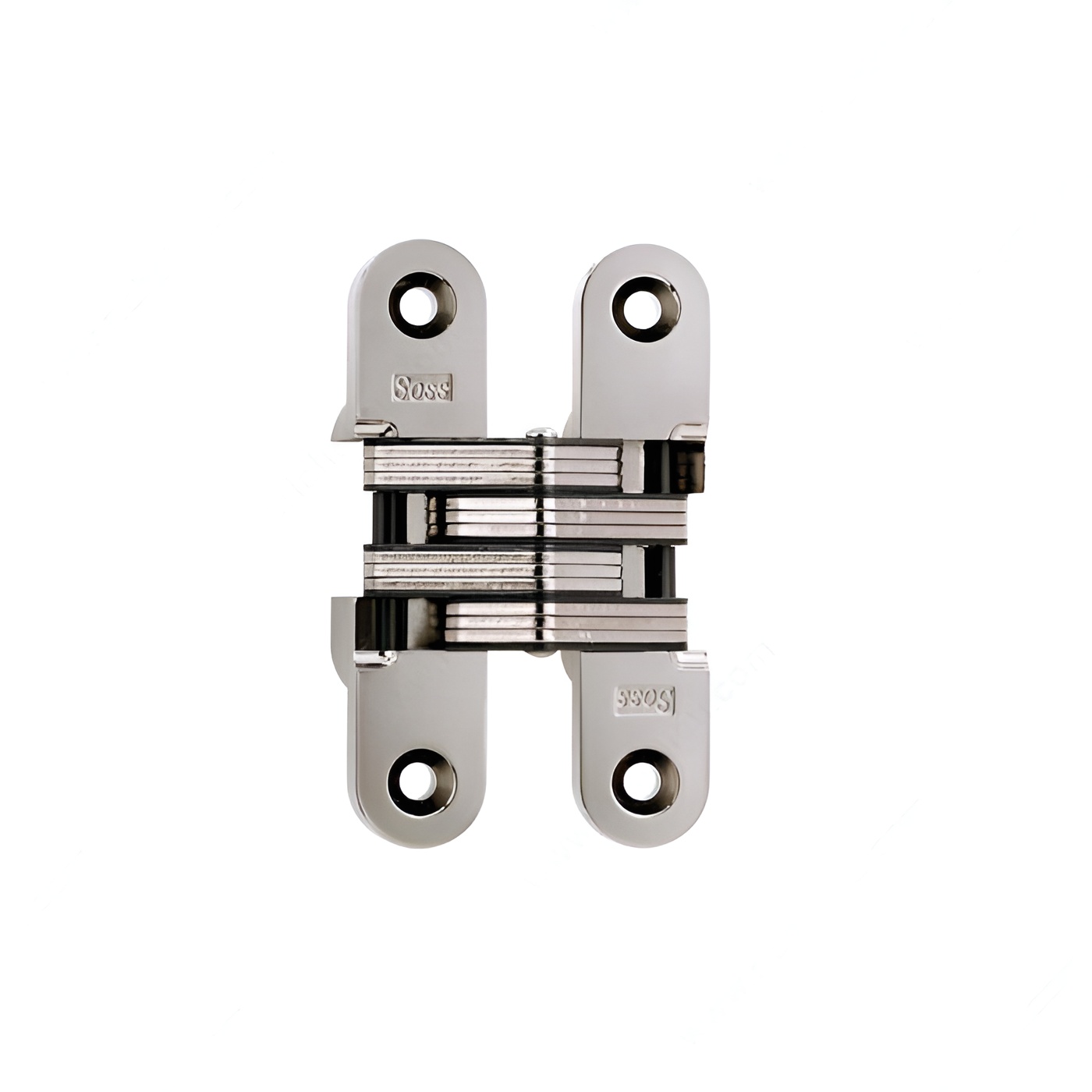

Richelieu 429216180 Concealed Steel Hinge - For Hinge 216 offers a seamless blend of contemporary design and exceptional durability for various applications. Crafted from high-quality steel, this hinge is not only strong but also features a sleek nickel finish that enhances the aesthetic of any wood or metal door. With a hinge opening angle of +180°, it provides maximum access while maintaining a clean, concealed appearance. The reversible design makes installation straightforward, accommodating various handedness requirements. It has a minimum door thickness of 1 3/8 inches and is suitable for mortise mounting, ensuring a secure fit. The hinge boasts a fire resistance rating of 20 minutes, making it an ideal choice for environments where safety is paramount. With a door/jamb gap of 15/64 inches and an inset of 1/4 inch, it ensures optimal functionality without compromising on style. The product also meets UL R13634 standards, reinforcing its reliability for professional applications. Included with the hinge are screws for easy installation, and it can ship via UPS for convenient delivery. Upgrade your projects with the Richelieu 429216180 Concealed Steel Hinge, where superior performance meets elegant design.
Concealed Steel Hinge - For Hinge 216
Cabinet Angle: 180°
Center to Center (mm): 3 5/8 in
Dimension A: 1 in
Dimension B: 47/64 in
Dimension C: 4 5/8 in
Dimension D: 15/64 in
Dimension E: 1/4 in
Dimension F: 2 19/32 in
Dimension G: 1/16 in
Dimension H: 1 15/32 in
Dimension I: 15/32 in
Door/ Jamb Gap: 15/64 in
Door/ Jamb Gap (mm): 7/32 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 23/32 in
Finish: Nickel
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 216
Handedness: Reversible
Height: 1 15/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 19/32 in
Leaf Gap: 47/64 in
Leaf Mortise Depth: 15/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/8 in
Mounting Type: Mortise
Product #: 429216180
Product number: 429216180
Product №: 429216180
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 in
Wood Screw Sizes: #14 x 1-1/2" (6.3 mm x 38 mm)
