Richelieu 429216185 Concealed Steel Hinge - For Hinge 216 offers an exceptional blend of durability and contemporary design, making it an ideal choice for both wood and metal doors. Its reversible feature ensures versatile installation, adapting seamlessly to your project requirements. This hinge boasts a generous opening angle of +180°, facilitating easy access while maintaining a sleek profile. Designed for mortise mounting, the hinge measures 4 5/8 inches in length and 1 inch in width, with a minimum door thickness of 1 3/8 inches. The satin nickel finish not only enhances its aesthetic appeal but also provides resistance to wear and tear. With a fire-resistant rating of 20 minutes, it adds an extra layer of safety for your spaces. The hinge is engineered with precision, featuring a 15/64 inch door/jamb gap and a 1/4 inch inset, ensuring a snug fit. Installation is straightforward, with screw/nail options included for hassle-free setup. Compliant with UL R13634 standards, this hinge meets safety and quality benchmarks. Whether for residential or commercial applications, the Richelieu 429216185 concealed hinge is a reliable choice that combines functionality with a modern look, perfect for your architectural needs.

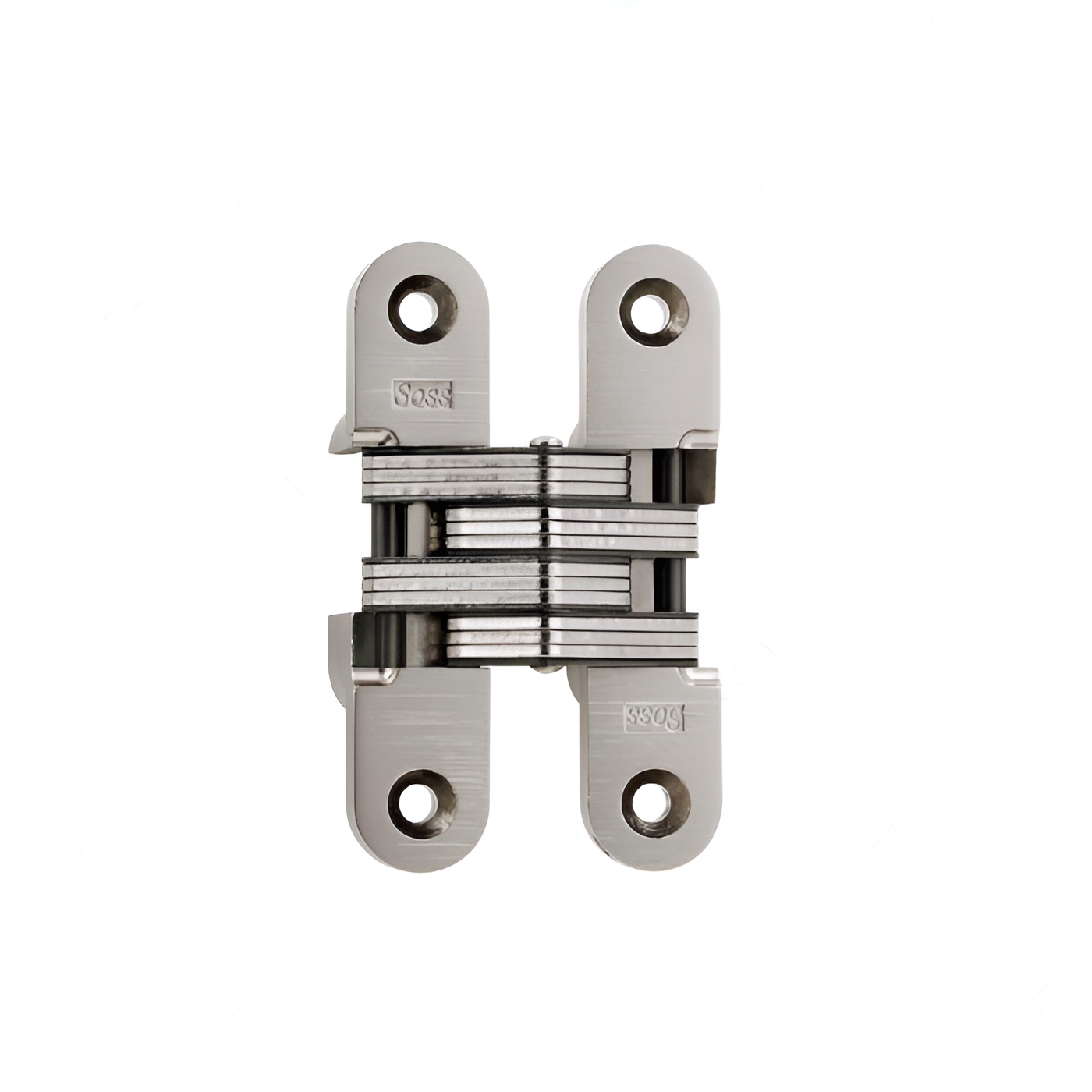

Concealed Steel Hinge - For Hinge 216
Cabinet Angle: 180°
Center to Center (mm): 3 5/8 in
Dimension A: 1 in
Dimension B: 47/64 in
Dimension C: 4 5/8 in
Dimension D: 15/64 in
Dimension E: 1/4 in
Dimension F: 2 19/32 in
Dimension G: 1/16 in
Dimension H: 1 15/32 in
Dimension I: 15/32 in
Door/ Jamb Gap: 15/64 in
Door/ Jamb Gap (mm): 7/32 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 23/32 in
Finish: Satin Nickel
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 216
Handedness: Reversible
Height: 1 15/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 19/32 in
Leaf Gap: 47/64 in
Leaf Mortise Depth: 15/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/8 in
Mounting Type: Mortise
Product #: 429216185
Product number: 429216185
Product №: 429216185
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 in
Wood Screw Sizes: #14 x 1-1/2" (6.3 mm x 38 mm)
