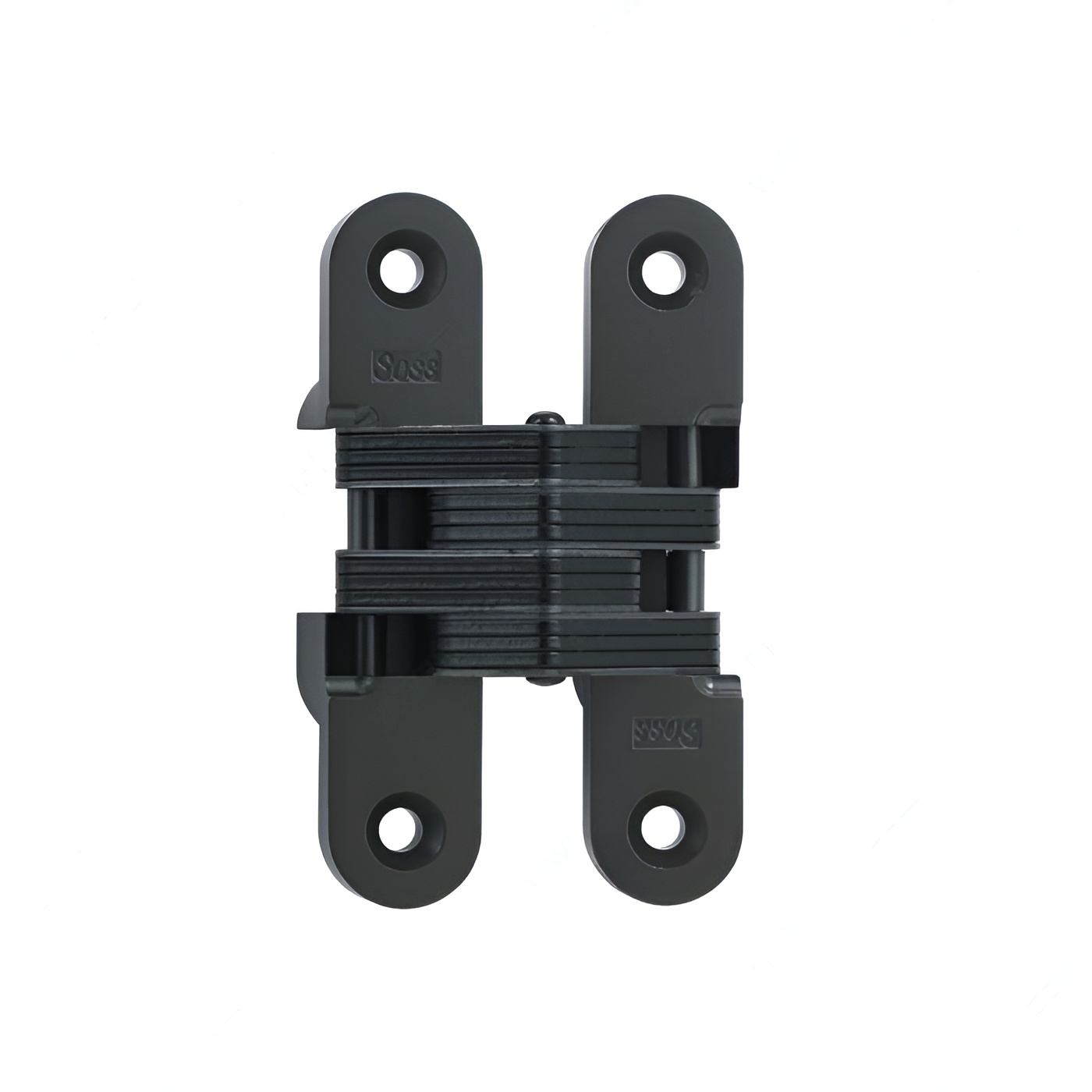

Richelieu 42921690 Concealed Steel Hinge - For Hinge 216 delivers an exceptional blend of contemporary style and robust functionality. Designed for both wood and metal doors, this hinge is perfect for various applications, ensuring a seamless and aesthetically pleasing installation. Its reversible handedness allows for versatile use, accommodating different door configurations with ease. With a generous hinge opening angle of +180°, this hinge enhances accessibility while maintaining a clean appearance. The black finish adds a sleek touch, making it suitable for modern interiors. Crafted from durable steel, the hinge is built to withstand the test of time and features a fire resistance rating of 20 minutes, ensuring safety without compromising on style. Installation is straightforward, thanks to its mortise mounting type and included screw/nail fixing type. The hinge is designed to fit doors with a minimum thickness of 1 3/8 inches. Key dimensions include a height of 1 15/32 inches, width of 1 inch, and a length of 4 5/8 inches, providing an ideal fit for your projects. Richelieu's commitment to quality is underscored by the UL R13634 certification, affirming that this concealed hinge meets high industry standards. Upgrade your door hardware with the Richelieu 42921690 hinge for a sophisticated and reliable solution.
Concealed Steel Hinge - For Hinge 216
Cabinet Angle: 180°
Center to Center (mm): 3 5/8 in
Dimension A: 1 in
Dimension B: 47/64 in
Dimension C: 4 5/8 in
Dimension D: 15/64 in
Dimension E: 1/4 in
Dimension F: 2 19/32 in
Dimension G: 1/16 in
Dimension H: 1 15/32 in
Dimension I: 15/32 in
Door/ Jamb Gap: 15/64 in
Door/ Jamb Gap (mm): 7/32 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 23/32 in
Finish: Black
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 216
Handedness: Reversible
Height: 1 15/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 19/32 in
Leaf Gap: 47/64 in
Leaf Mortise Depth: 15/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/8 in
Mounting Type: Mortise
Product #: 42921690
Product number: 42921690
Product №: 42921690
Screw/ Nail: Screw/Nail (Included)
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 in
Wood Screw Sizes: #14 x 1-1/2" (6.3 mm x 38 mm)
