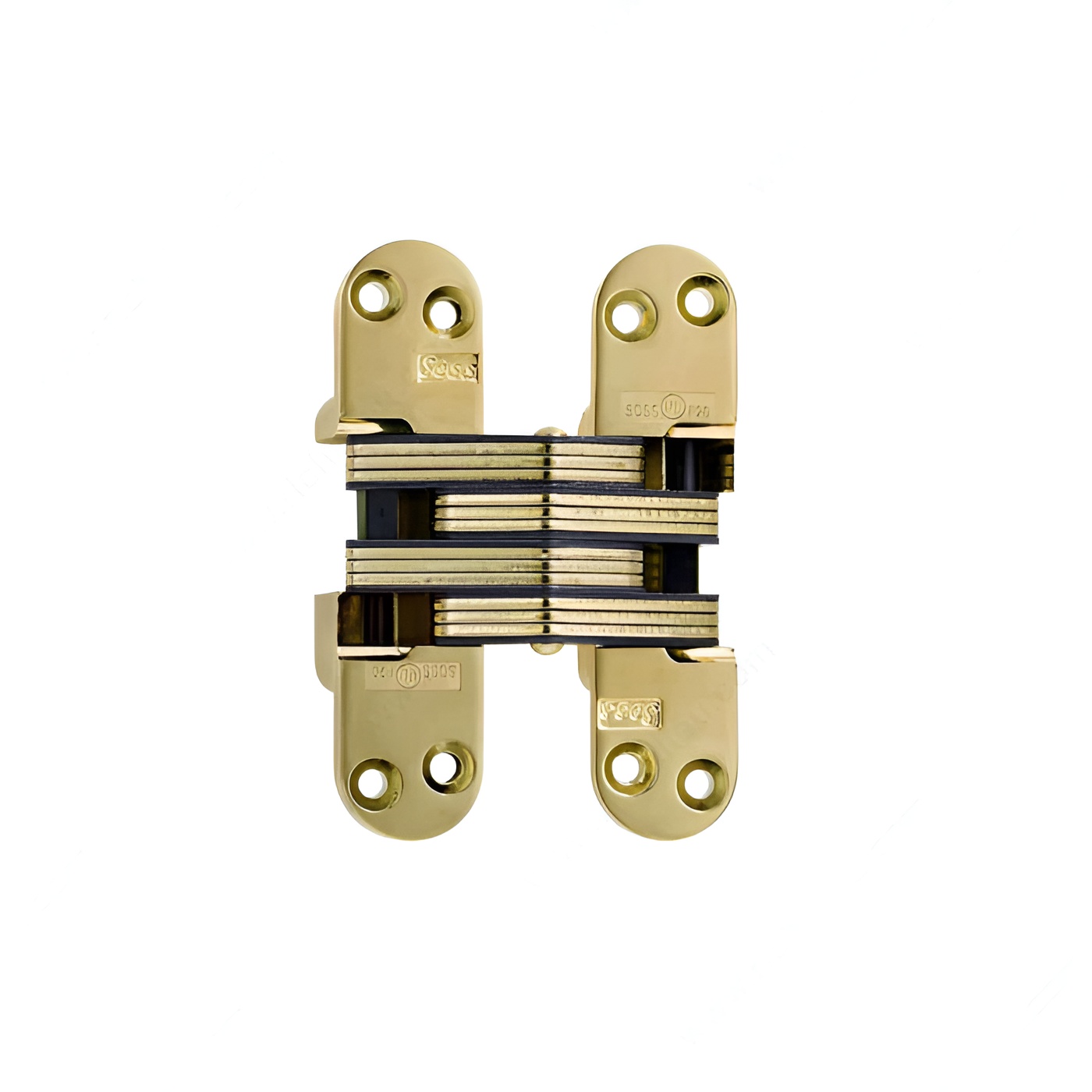

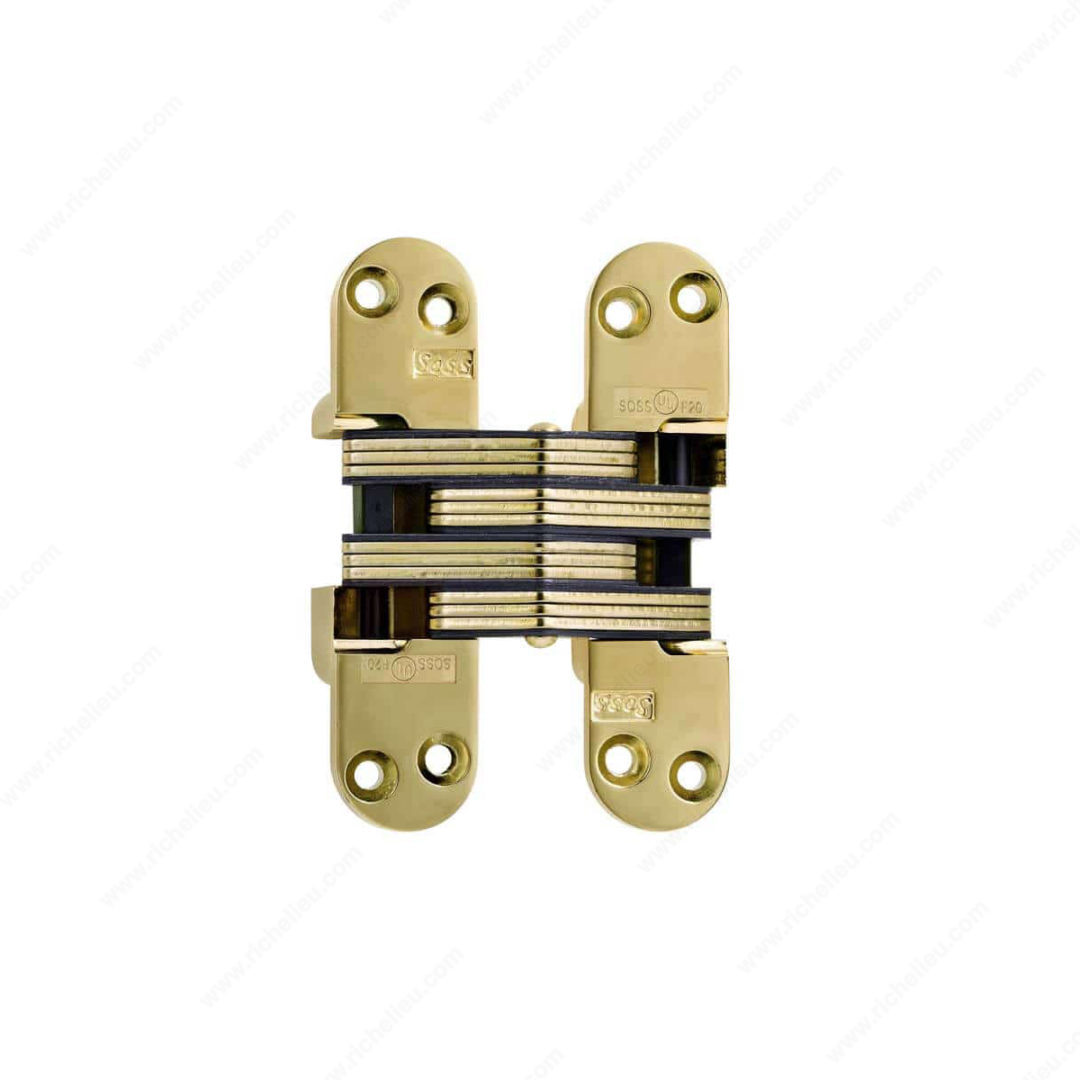

Richelieu 429218130 Concealed Steel Hinge - Model 218 showcases a blend of superior appearance and robust durability, making it an ideal choice for both wood and metal doors. This innovative hinge is designed for easy installation, perfect for a variety of applications, ensuring functionality without compromising on style. Featuring a cabinet angle of 180°, this hinge supports a minimum door thickness of 1 3/4 inches, and is reversible for added flexibility in deployment. The hinge’s mortise mounting type contributes to a clean, streamlined aesthetic, while a brass finish further enhances its visual appeal. With a door/jamb gap of 3/8 inches and a closed position gap of 1/16 inches, it guarantees seamless operation and alignment. Constructed from high-quality steel, the hinge meets rigorous standards, including UL R13634 certification, and is fire resistant for up to 20 minutes, providing peace of mind in safety-conscious environments. It includes a screw for secure installation and boasts dimensions of 4 5/8 inches in length and 1 1/8 inches in width. Richelieu's Model 218 is the perfect solution for professionals seeking reliable performance and elegant design in their hardware choices.
Concealed Steel Hinge - Model 218
Cabinet Angle: 180°
Center to Center (mm): 3 1/2 in
Dimension A: 1 1/8 in
Dimension B: 7/8 in
Dimension C: 4 5/8 in
Dimension D: 3/8 in
Dimension E: 1/4 in
Dimension F: 2 15/32 in
Dimension G: 1/16 in
Dimension H: 1 41/64 in
Dimension I: 13/32 in
Door/ Jamb Gap: 3/8 in
Door/ Jamb Gap (mm): 3/8 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 7/8 in
Finish: Brass
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 218
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 7/8 in
Leaf Mortise Depth: 13/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Packaging format: Per unit
Product #: 429218130
Product number: 429218130
Product №: 429218130
Screw/ Nail: Screw included
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
