Richelieu 429218180 Concealed Steel Hinge - Model 218 delivers a perfect blend of modern aesthetics and robust functionality. Designed for both wood and metal doors, this hinge features a sleek nickel finish that enhances any interior while ensuring durability. With a remarkable opening angle of 180°, it allows for wide access, making it ideal for various applications. This hinge is easy to install, thanks to its screw-on fixing type, and is reversible for added versatility. It has a minimum door thickness requirement of 1 3/4 inches, accommodating a wide range of door styles. The hinge's mortise design ensures a flush fit, with a leaf body mortise length of 2 15/32 inches and a leaf gap of 7/8 inch, providing a seamless appearance. Fire safety is a priority, as this model is rated for 20 minutes of fire resistance, certified under UL R13634 standards. The hinge is packaged per unit and includes screws for installation, making it a convenient choice for both professionals and knowledgeable homeowners. With a height of 1 41/64 inches and a width of 1 1/8 inches, the Richelieu 429218180 is an exceptional choice for those seeking reliability and style in their hardware solutions.

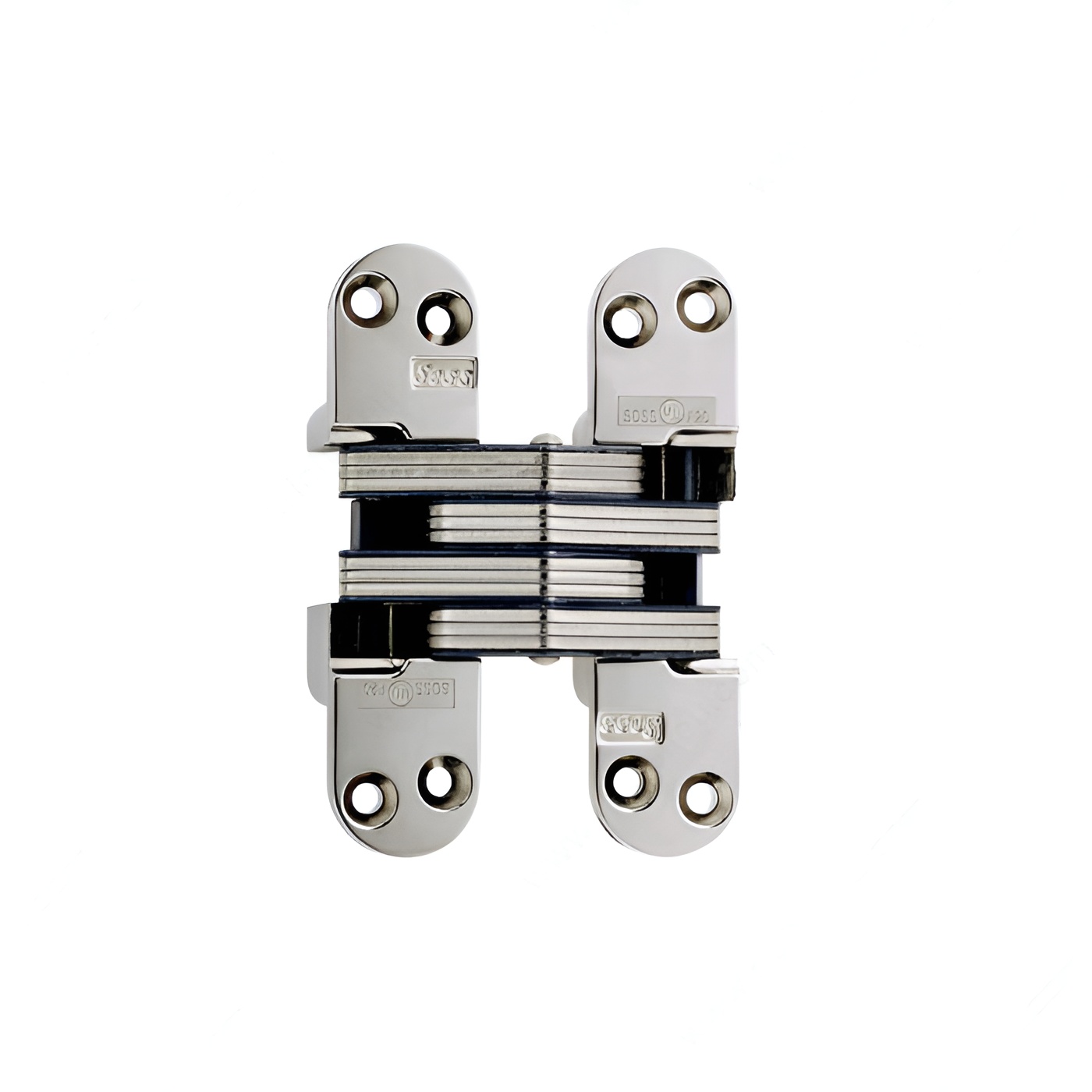

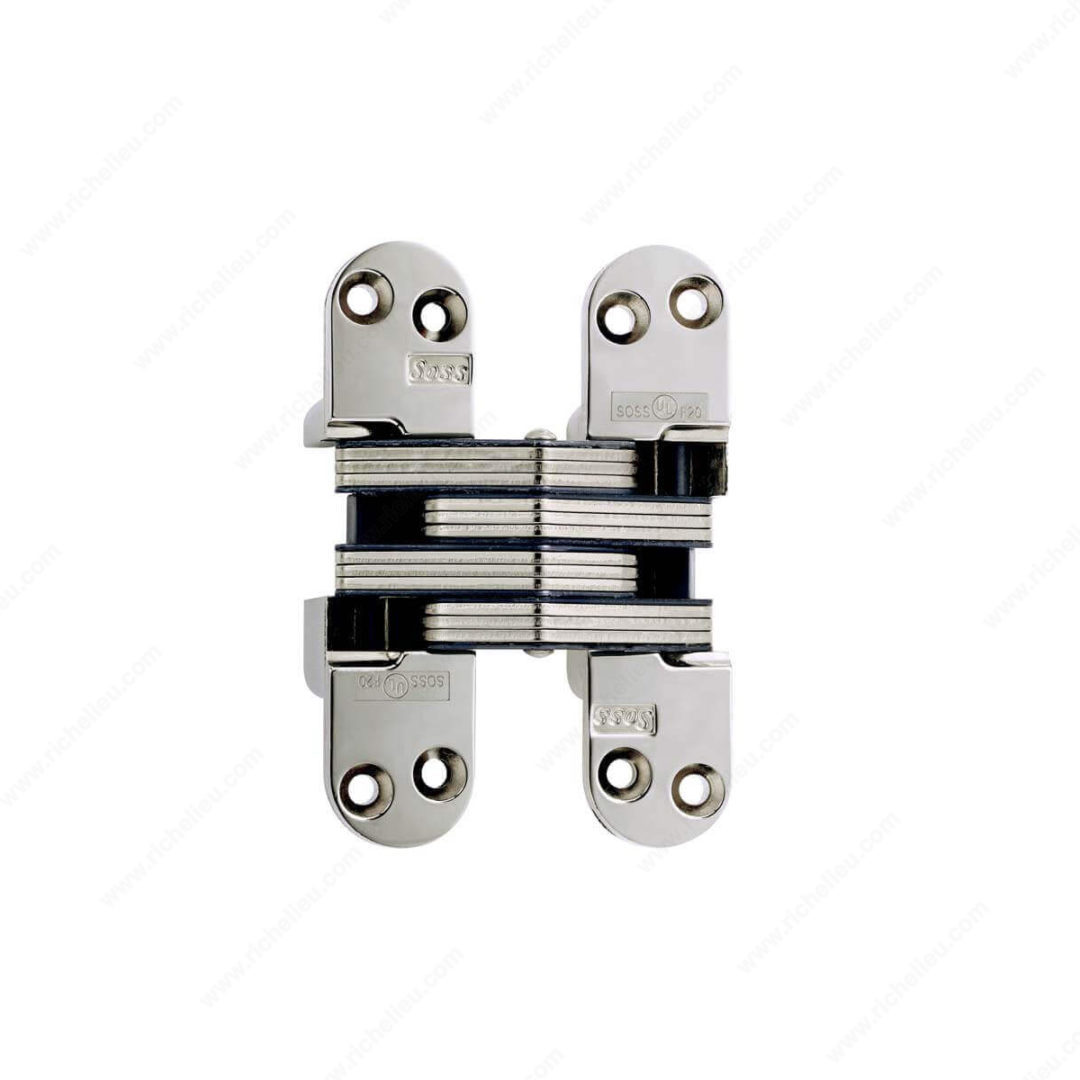

Concealed Steel Hinge - Model 218
Cabinet Angle: 180°
Center to Center (mm): 3 1/2 in
Dimension A: 1 1/8 in
Dimension B: 7/8 in
Dimension C: 4 5/8 in
Dimension D: 3/8 in
Dimension E: 1/4 in
Dimension F: 2 15/32 in
Dimension G: 1/16 in
Dimension H: 1 41/64 in
Dimension I: 13/32 in
Door/ Jamb Gap: 3/8 in
Door/ Jamb Gap (mm): 3/8 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 7/8 in
Finish: Nickel
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 218
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 7/8 in
Leaf Mortise Depth: 13/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Packaging format: Per unit
Product #: 429218180
Product number: 429218180
Product №: 429218180
Screw/ Nail: Screw included
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
