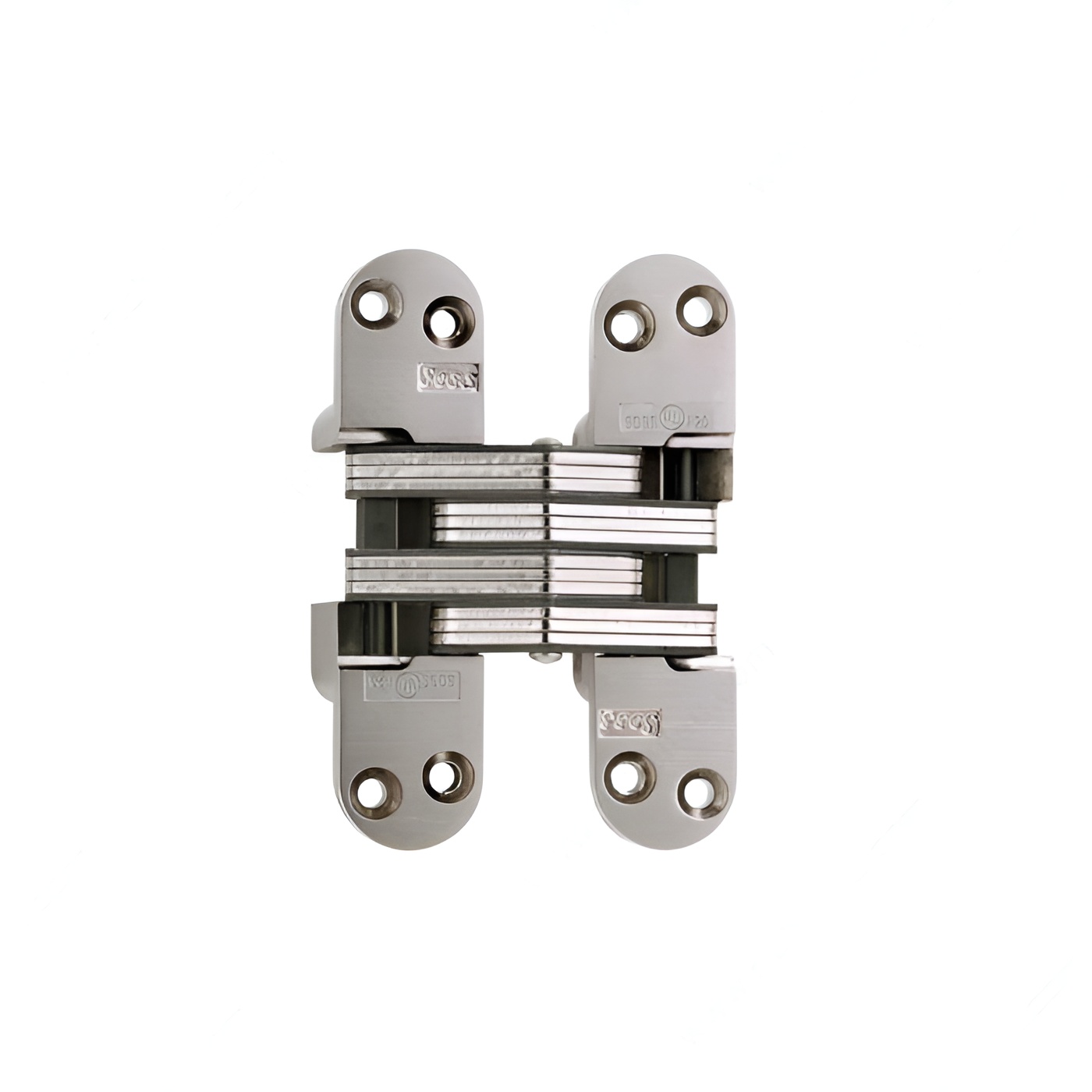

Richelieu 429218185 Concealed Steel Hinge - Model 218 offers a seamless blend of style and functionality, making it an ideal choice for both wood and metal doors. Crafted from durable steel with a sleek satin nickel finish, this hinge not only enhances the aesthetic appeal of your cabinetry but also ensures long-lasting performance. Designed for versatility, the hinge features a generous 180° opening angle, allowing for maximum accessibility. With a minimum door thickness requirement of 1 3/4 inches, it is suitable for various applications, accommodating a door/jamb gap of 3/8 inches and an inset of 1/4 inches. The reversible design adds flexibility to your installation, while the mortise mounting type guarantees a secure fit. This hinge is UL certified for fire resistance for up to 20 minutes, providing peace of mind in case of emergencies. The package includes screws for easy installation, making it convenient for builders and DIY enthusiasts alike. With dimensions of 4 5/8 inches in length and 1 1/8 inches in width, the Richelieu Concealed Steel Hinge is engineered to meet the demands of modern construction while maintaining a polished look. Transform your spaces with this reliable and stylish hinge solution.
Concealed Steel Hinge - Model 218
Cabinet Angle: 180°
Center to Center (mm): 3 1/2 in
Dimension A: 1 1/8 in
Dimension B: 7/8 in
Dimension C: 4 5/8 in
Dimension D: 3/8 in
Dimension E: 1/4 in
Dimension F: 2 15/32 in
Dimension G: 1/16 in
Dimension H: 1 41/64 in
Dimension I: 13/32 in
Door/ Jamb Gap: 3/8 in
Door/ Jamb Gap (mm): 3/8 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 7/8 in
Finish: Satin Nickel
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 218
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 7/8 in
Leaf Mortise Depth: 13/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Packaging format: Box
Product #: 429218185
Product number: 429218185
Product №: 429218185
Screw/ Nail: Screw included
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
