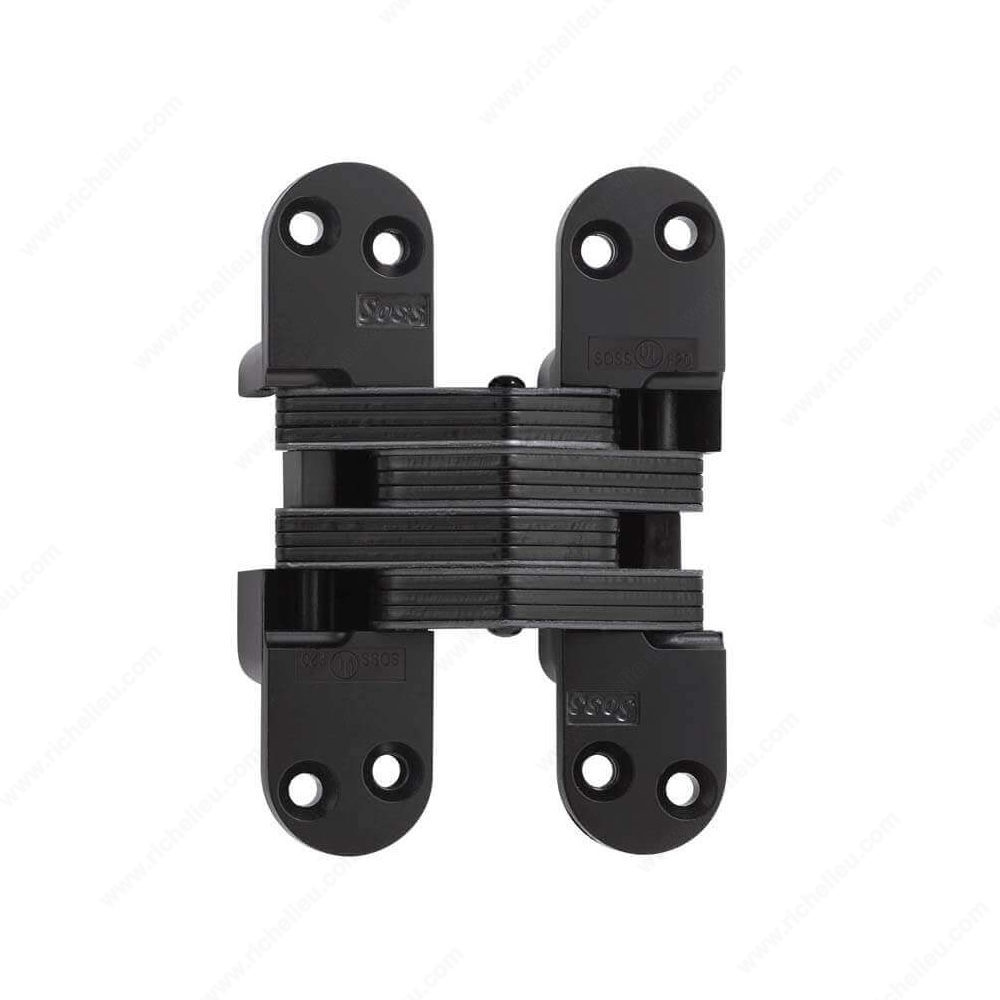

Richelieu 42921890 Concealed Steel Hinge - Model 218 offers an exceptional blend of style and functionality, making it an ideal choice for both wood and metal doors. Crafted from durable steel with a sleek black finish, this hinge not only enhances the aesthetic appeal of your projects but also ensures long-lasting performance. Designed for easy installation, this reversible hinge features a mortise mounting type, accommodating a minimum door thickness of 1 3/4 inches. With an impressive hinge opening angle of +180°, it allows for maximum accessibility and convenience. The model includes a 1/4 inch door/jamb inset and maintains a gap of 3/8 inch when closed, ensuring a seamless fit. Certified with a fire resistance rating of 20 minutes, the Richelieu concealed hinge meets safety standards while providing peace of mind. The product includes screws for straightforward installation, with a leaf mortise depth of 13/32 inches and a length of 4 5/8 inches, making it suitable for a range of applications. Whether you're working on residential or commercial projects, the Richelieu 42921890 Concealed Steel Hinge is a reliable choice that combines modern design with robust functionality, ensuring that your doors operate smoothly and securely.
Concealed Steel Hinge - Model 218
Cabinet Angle: 180°
Center to Center (mm): 3 1/2 in
Dimension A: 1 1/8 in
Dimension B: 7/8 in
Dimension C: 4 5/8 in
Dimension D: 3/8 in
Dimension E: 1/4 in
Dimension F: 2 15/32 in
Dimension G: 1/16 in
Dimension H: 1 41/64 in
Dimension I: 13/32 in
Door/ Jamb Gap: 3/8 in
Door/ Jamb Gap (mm): 3/8 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 7/8 in
Finish: Black
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 218
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 7/8 in
Leaf Mortise Depth: 13/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Packaging format: Per unit
Product #: 42921890
Product number: 42921890
Product №: 42921890
Screw/ Nail: Screw included
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
