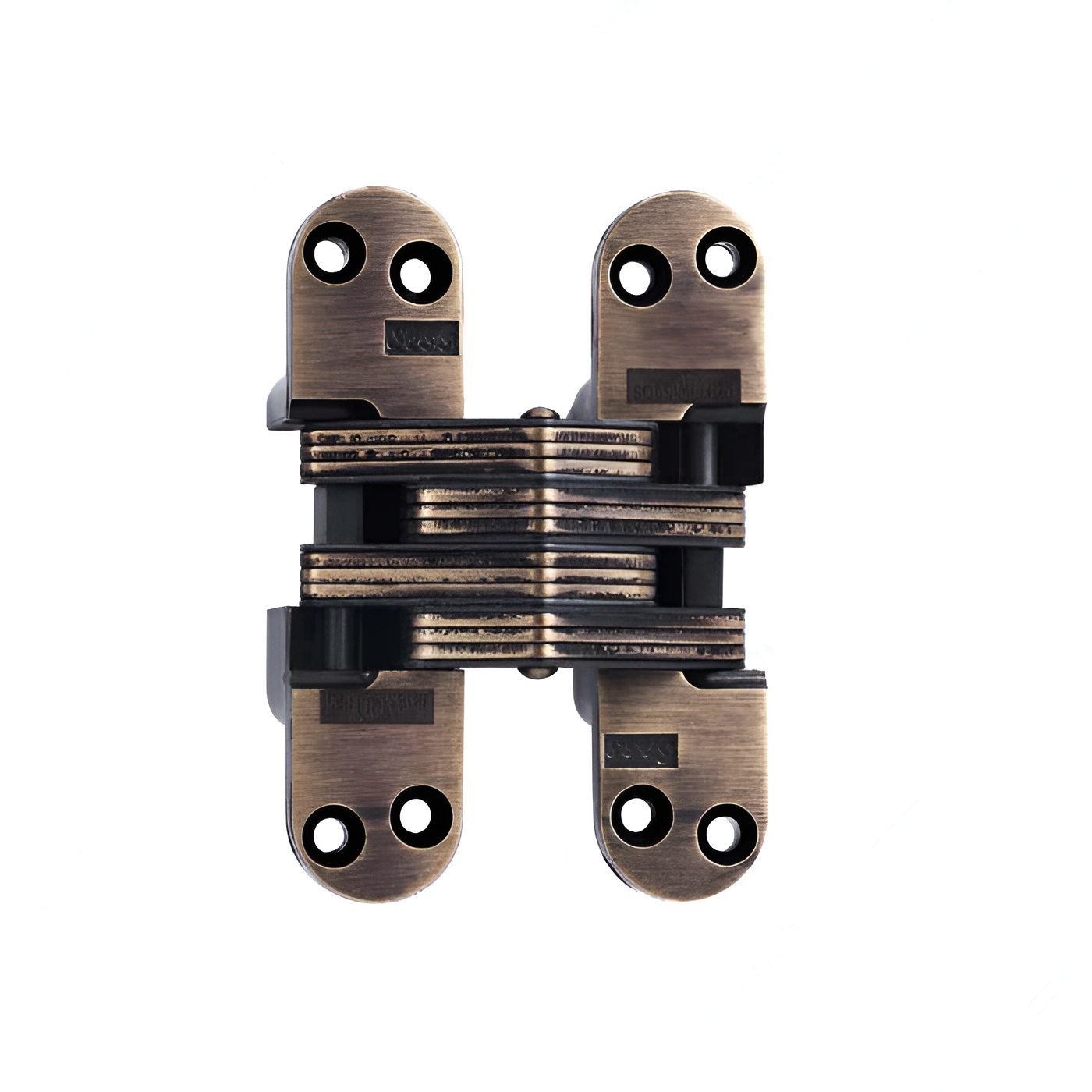

Richelieu 429218AE Concealed Steel Hinge - Model 218 offers an elegant solution for applications requiring both functionality and a refined aesthetic. Designed for use on wood or metal doors, this hinge seamlessly integrates into your project while providing a clean and contemporary look. With a hinge opening angle of +180°, it allows for maximum accessibility, making it ideal for high-traffic areas. Crafted from durable steel and finished in antique brass, the hinge not only enhances the overall design but also ensures long-lasting performance. Its reversible handedness accommodates various installation preferences, while the minimum door thickness of 1 3/4 inches guarantees compatibility with a wide range of door styles. The Richelieu hinge features a mortise mounting type and comes with screws included for easy installation. It maintains a door/jamb gap of 3/8 inches, ensuring a snug fit when closed, with a gap of just 1/16 inches in the closed position. Rated for 20 minutes of fire resistance, this hinge meets essential safety standards (UL R13634), adding peace of mind to your building projects. Elevate your architectural designs with the Richelieu Concealed Steel Hinge, a perfect blend of style and structural integrity.
Concealed Steel Hinge - Model 218
Cabinet Angle: 180°
Center to Center (mm): 3 1/2 in
Dimension A: 1 1/8 in
Dimension B: 7/8 in
Dimension C: 4 5/8 in
Dimension D: 3/8 in
Dimension E: 1/4 in
Dimension F: 2 15/32 in
Dimension G: 1/16 in
Dimension H: 1 41/64 in
Dimension I: 13/32 in
Door/ Jamb Gap: 3/8 in
Door/ Jamb Gap (mm): 3/8 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 7/8 in
Finish: Antique Brass
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 218
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 7/8 in
Leaf Mortise Depth: 13/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Packaging format: Per unit
Product #: 429218AE
Product number: 429218AE
Product №: 429218AE
Screw/ Nail: Screw included
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
