Richelieu 4370890

Richelieu 4370890 Adjustable Leveler Set

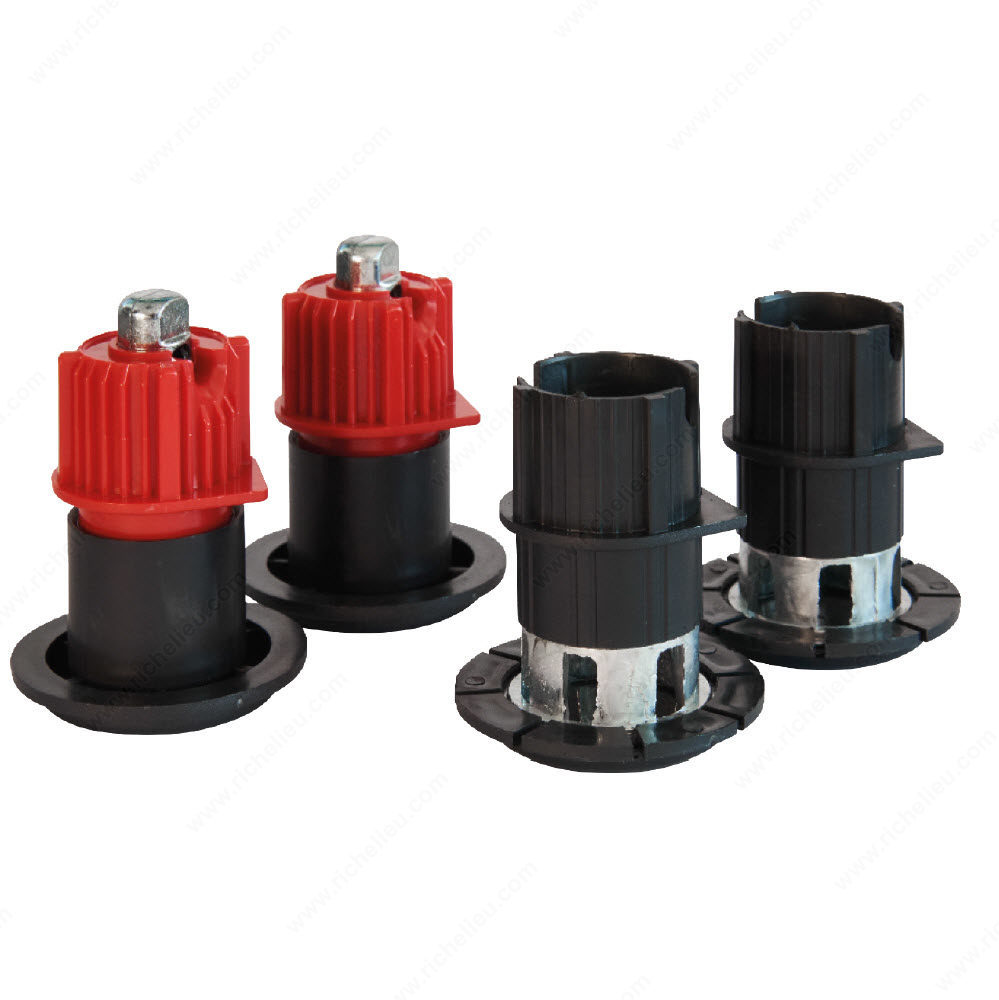

For small toe kicks The kit is composed of 4 legs:
- 2 front legs (black)
- 2 back legs (red)

The front legs regulation is made at the base of the leg with a standard screwdriver.

Due to the lack of height, the regulation of the back legs is made with specific screwdriver #4370180. The adjustment is made by inserting the screwdriver from the front head. Slide it up to the back head then regulate the leg.

Use dedicated head #4370090 for the 4 legs.

Attributes

Adjustment Capacity: +20 mm, -5 mm

Base Diameter: 48 mm

Finish: Black

Height - Overall Dimensions: 80 mm

Load Rating: 150 kg

Material: ABS, Zamak

Product number: 4370890

Unit: Bag

Unit 2: case - 50

Resources

• Instructions

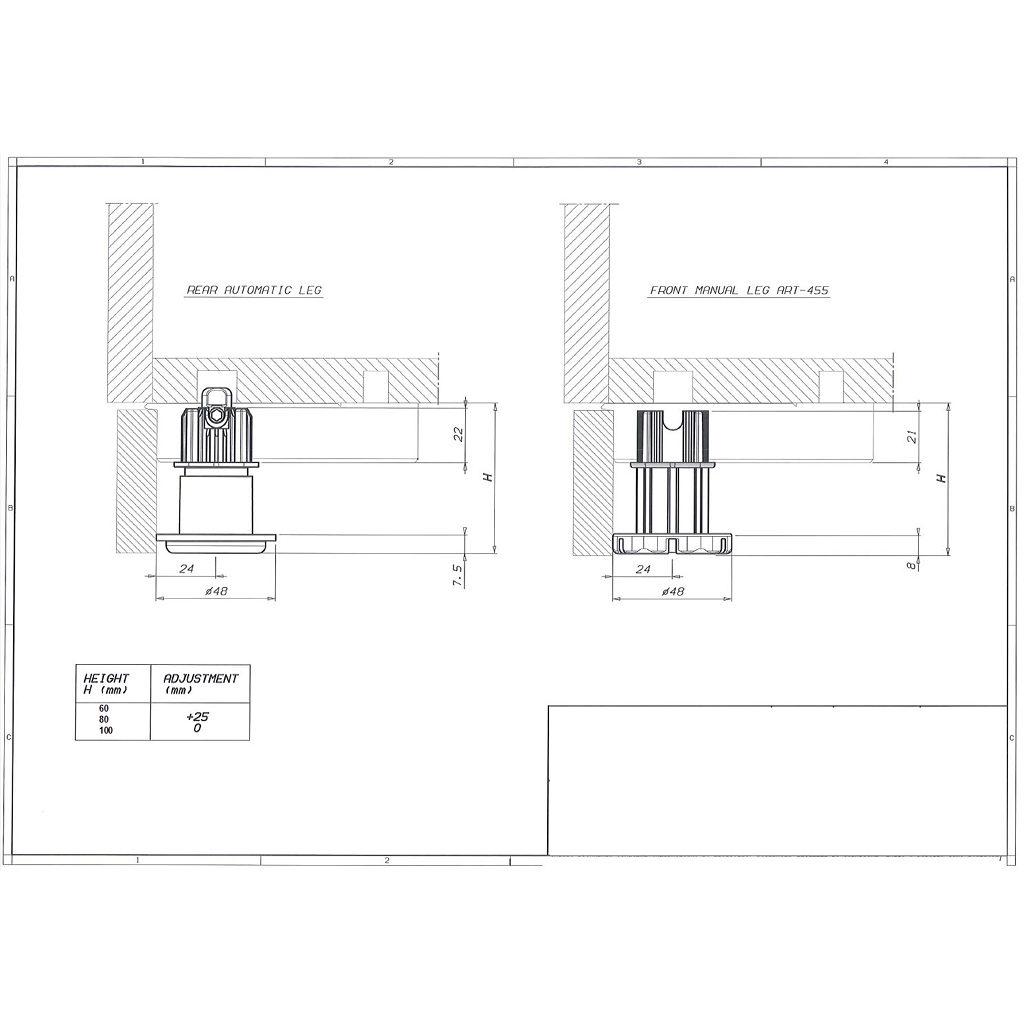

• Line art
