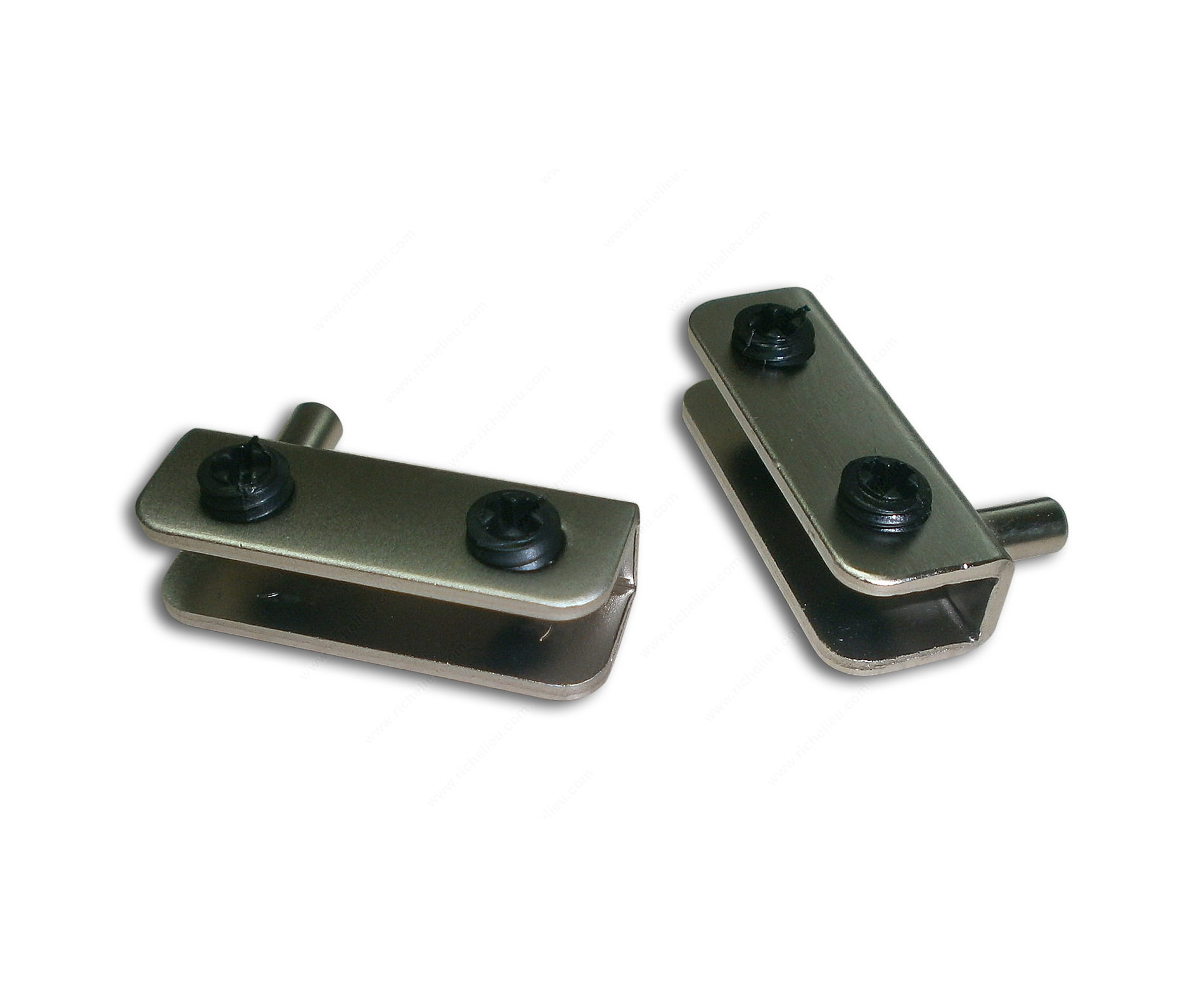

Richelieu 480612145 Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet combines functionality with a sleek design, making it an ideal choice for modern cabinetry. Crafted from durable steel and finished in a stylish satin chrome, this pivot hinge is engineered to support glass doors weighing up to 5.51 lb, ensuring stability and reliability in your installations. This hinge is tailored for glass thicknesses ranging from 5/32 to 3/16 inches, accommodating a variety of glass door applications. The compact dimensions of 19/32 inches in height and 7/16 inches in width, along with its length of 1 5/8 inches, allow for seamless integration into your furniture or cabinet designs. It’s important to note that when measuring for installation, you'll need to subtract 3/8 inch from the height and 3/32 inch from the width. Each package includes a pair of hinges, along with screws for easy installation. Designed for doors with a maximum height of 31 1/2 inches and a width of up to 19 5/8 inches, this hinge offers versatility and is a practical solution for both building professionals and discerning homeowners. Enhance your cabinetry with the sleek, reliable Richelieu pivot hinge.
Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet
Important information
Brand: Onward

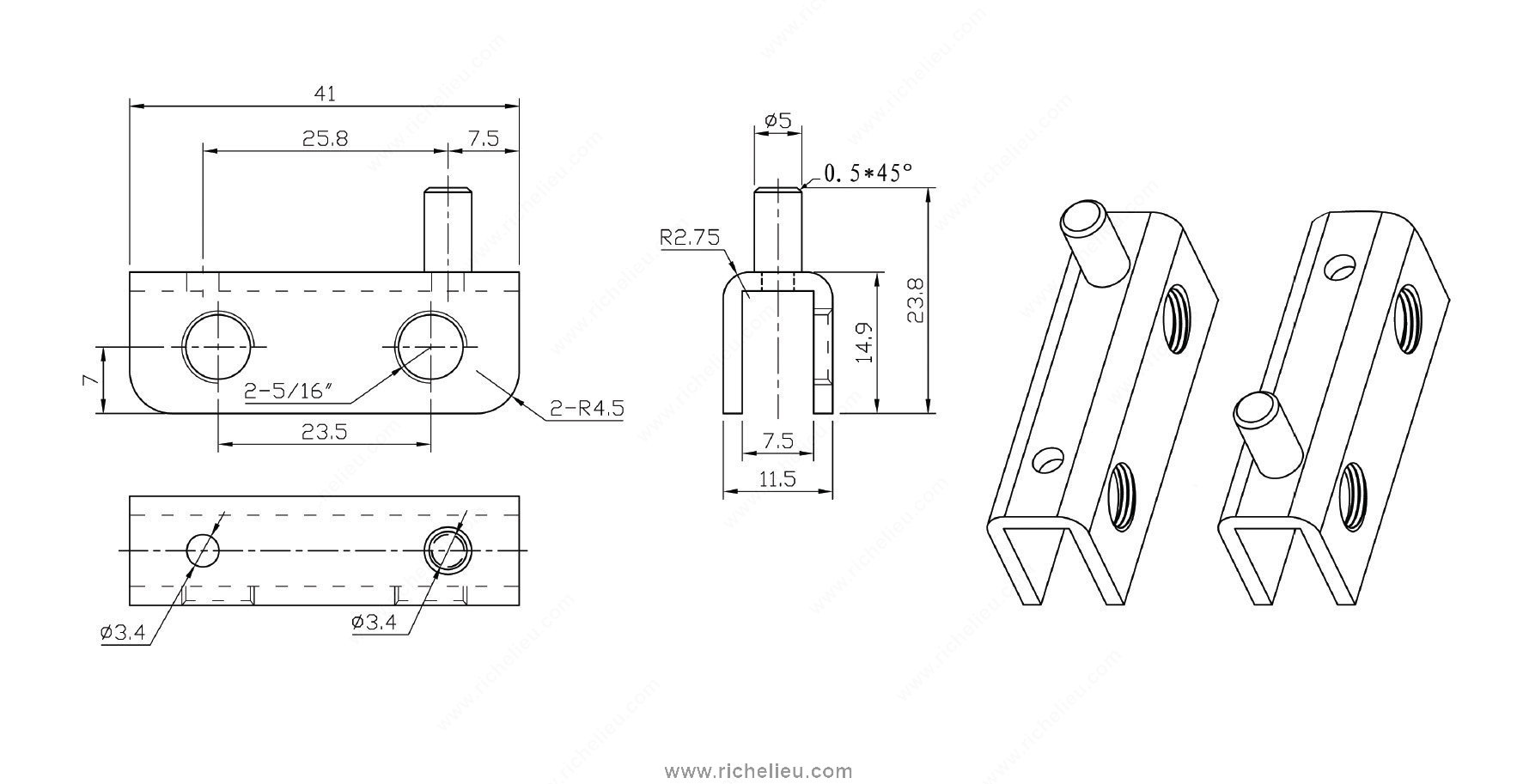

Dimensions to subtract from the height: 3/8 in
Dimensions to subtract from the width: 3/32 in
Finish: Satin Chrome
Height: 14.9 mm
Height of Door to Respect: Max. 800 mm
Length: 41 mm
Load Capacity: Max. 2.5 kg
Material: Steel
Packaging format: Pair
Product #: 480612145
Product number: 480612145
Product №: 480612145
Screw/ Nail: Included
Thickness of Glass: 5 to 6 mm
Thumb Screws: Plastic
Unit: Pair
Unit 1: case - 250
Unit 2: case - 250
Width: 11.5 mm
Width of Door to Respect: Max. 500 mm
