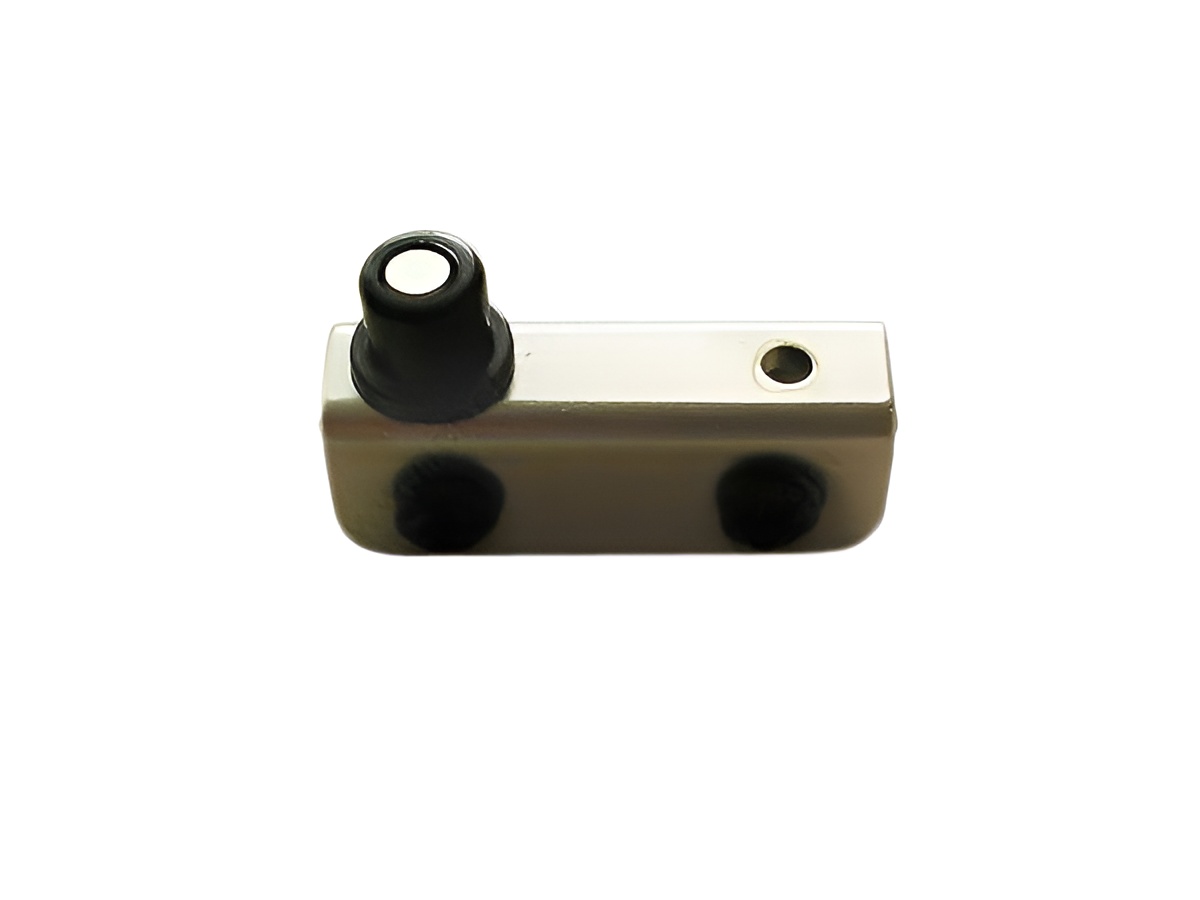

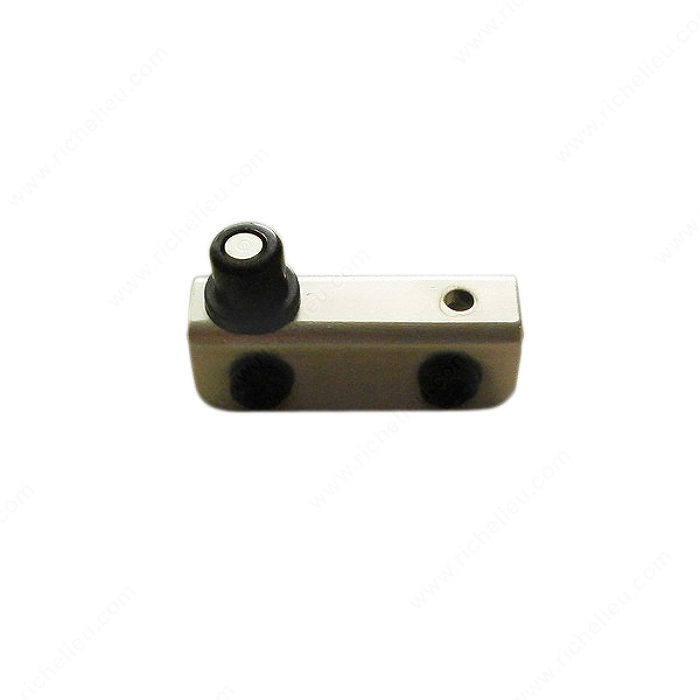

Richelieu 480612185 Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet offers a seamless solution for those seeking functionality and elegance in their cabinetry. Designed to fit glass doors with a thickness of 5/32 to 3/16 inches, this hinge allows for a smooth pivot motion, making it an ideal choice for modern furniture applications. Constructed from durable steel and finished in a sophisticated Satin Nickel, the hinge not only ensures lasting performance but also adds a touch of style to your interior design. With a load capacity of up to 5.51 pounds, it is perfect for lightweight glass doors, while its compact dimensions-height at 19/32 inches and width at 7/16 inches-allow for easy installation in tight spaces. When installing, note that 3/8 inches should be subtracted from the door height and 3/32 inches from the width for optimal fit. Each package includes a pair of hinges and screws for a hassle-free setup. The Richelieu 480612185 Pivot Hinge is an excellent addition for both building professionals and discerning homeowners looking to elevate their cabinetry projects.
Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet
Important information
Brand: Onward
Dimensions to subtract from the height: 3/8 in
Dimensions to subtract from the width: 3/32 in
Finish: Satin Nickel

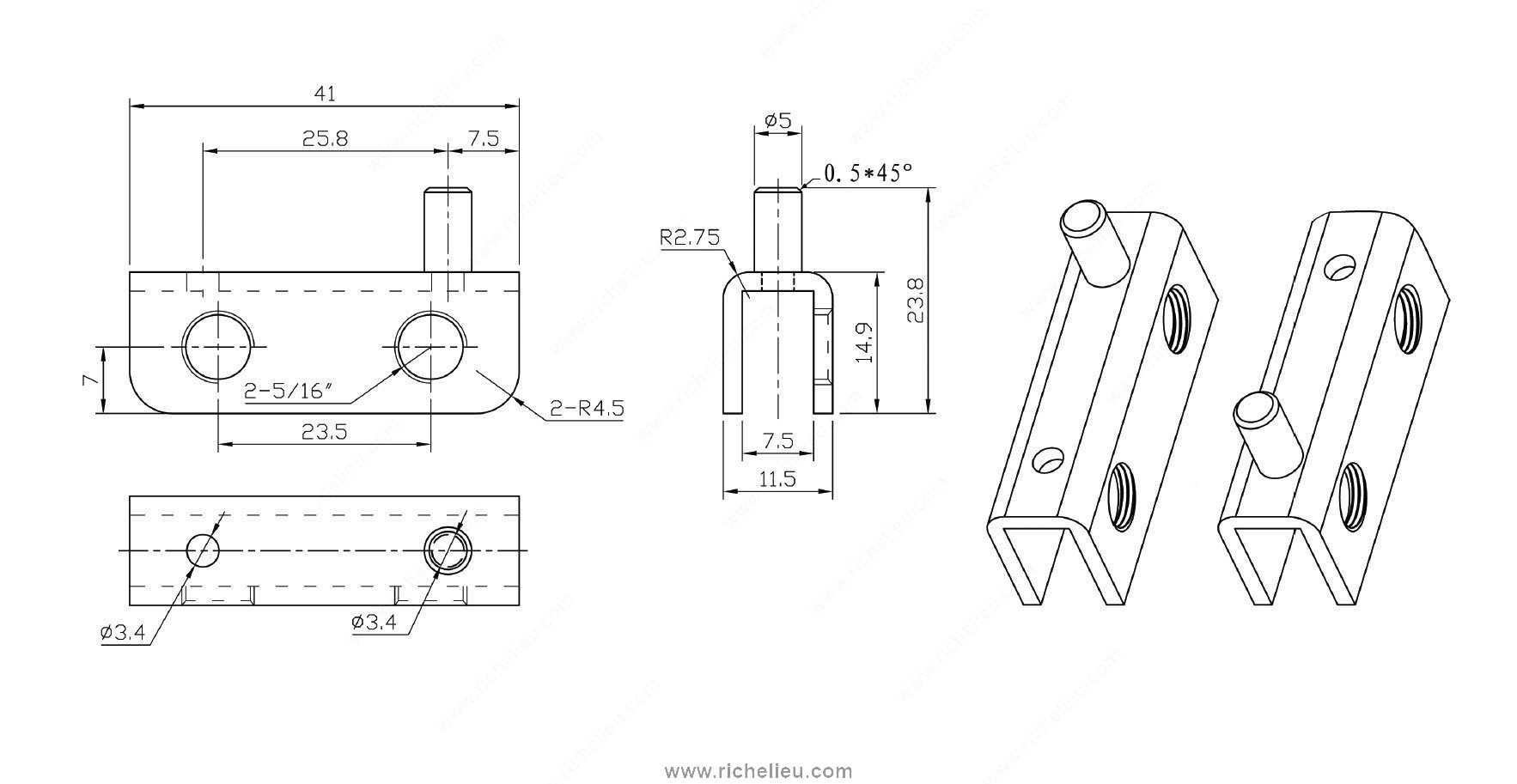

Height: 14.9 mm
Height of Door to Respect: Max. 800 mm
Length: 41 mm
Load Capacity: Max. 2.5 kg
Material: Steel
Packaging format: Pair
Product #: 480612185
Product number: 480612185
Product №: 480612185
Screw/ Nail: Included
Thickness of Glass: 5 to 6 mm
Thumb Screws: Plastic
Unit: Pair
Unit 1: case - 250
Unit 2: case - 250
Width: 11.5 mm
Width of Door to Respect: Max. 500 mm
