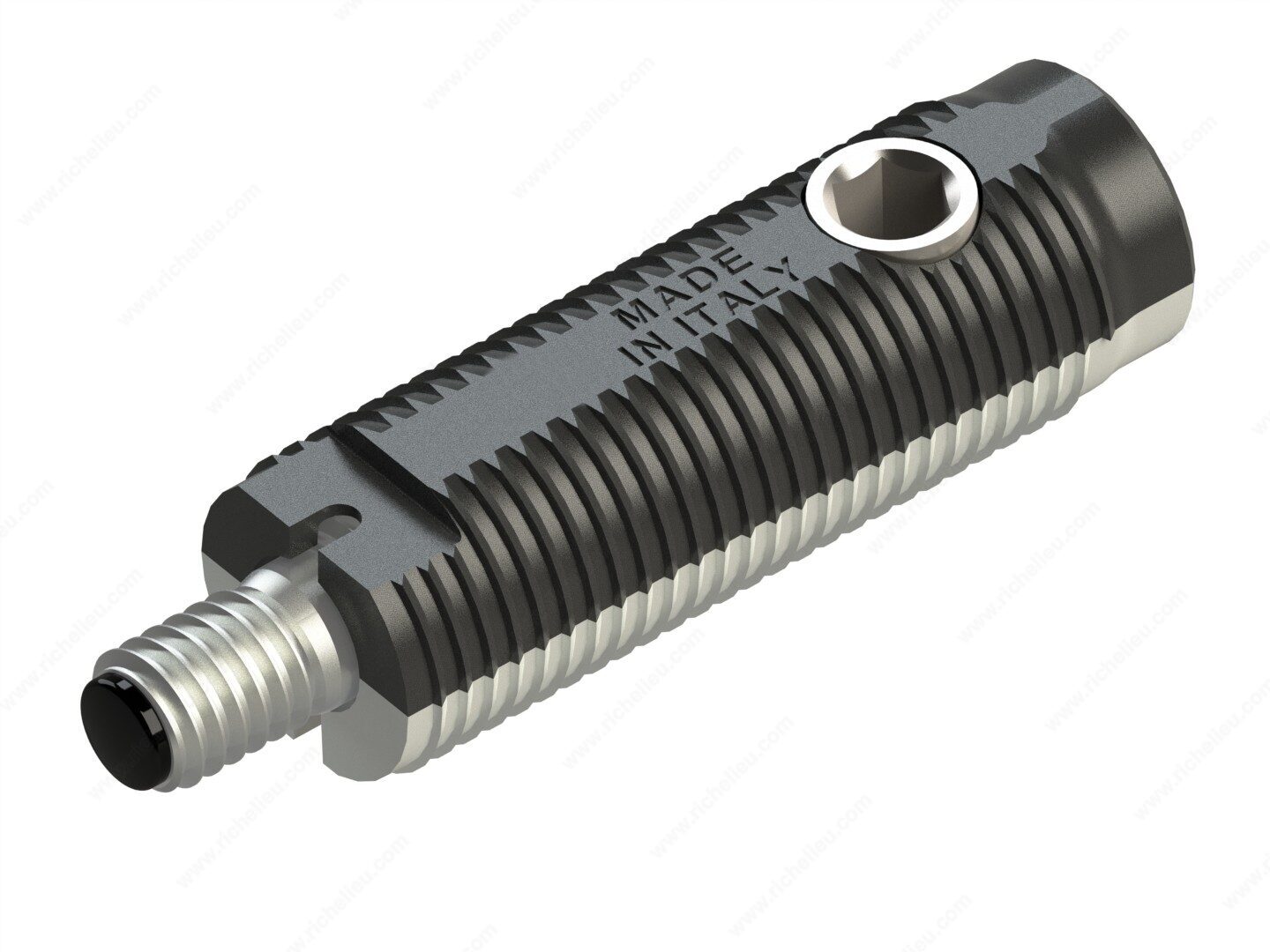

Richelieu 512900174 Invisi-Link ConnectorRichelieu 512900174 Invisi-Link is an innovative structural connector designed to provide a nearly invisible joining system, perfect for clean and architectural niche installations where aesthetics are paramount. This connector features a spring-loaded self-engaging locking system, ensuring a secure fit with minimal visibility. Upon installation, the stud retracts automatically on contact and re-engages inside the insert, enabling fast and fully concealed assembly, even in pre-existing niches or cabinets. The Invisi-Link is engineered for reliability, boasting a load capacity of 331 lb (150 kg), making it suitable for robust applications. It requires a minimum panel thickness of 16 mm for solid wood or solid materials, and 18 mm for chipboard or soft materials, ensuring compatibility with various construction types. Crafted from durable Zamac, steel, and plastic, the 512900174 model is built to withstand the demands of daily use while maintaining a sleek appearance. The M6 thread adds to its versatility, allowing for seamless integration into your projects. Packaged per unit, the Invisi-Link is an essential tool for building professionals and knowledgeable homeowners seeking functional elegance in their designs. Elevate your installations with Richelieu's Invisi-Link, where minimal visibility meets maximum reliability.
Invisi-Link
The Invisi-Link structural connector features a near-invisible joining system, designed for clean, architectural niche installations where aesthetics matter.
Minimal Visibility. Maximum Reliability.

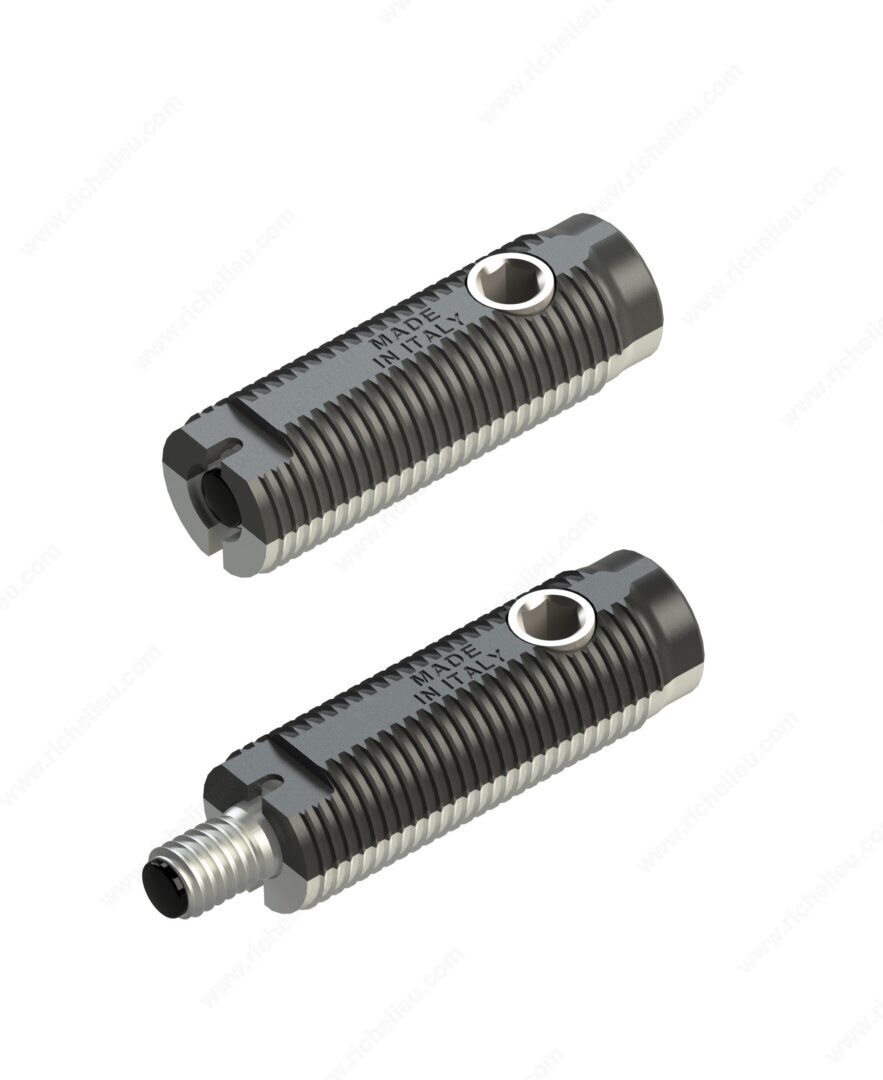

The Invisi-lock structural connector features a spring-loaded self-engaging locking system. When installed, the stud retracts automatically on contact and then re-engages inside the insert to secure the shelf with precision. Ideal for fast, fully concealed assembly, even in already installed niches or cabinets.
Important information
Milling (mm):
508900174: Ø8 mm x 38 mm, key hole Ø 44 mm
512900174: Ø 12 mm x 38 mm, key hole Ø 5 mm
Minimum panel thickness:
508900174: 12 mm solid wood or solid material and 14 mm chipboard or soft material
512900174: 16 mm solid wood or solid material and 18 mm chipboard or soft material
Pull out force:
508900174: 132 lb (60 kg)
512900174: 200 lb (100 kg)
Load capacity:
508900174: 132 lb (60 kg)
512900174: 331 lb (150 kg)
Attributes
Material: Zamac, Steel / Plastic
Packaging format: Per unit
Product #: 512900174
Thread: M6
