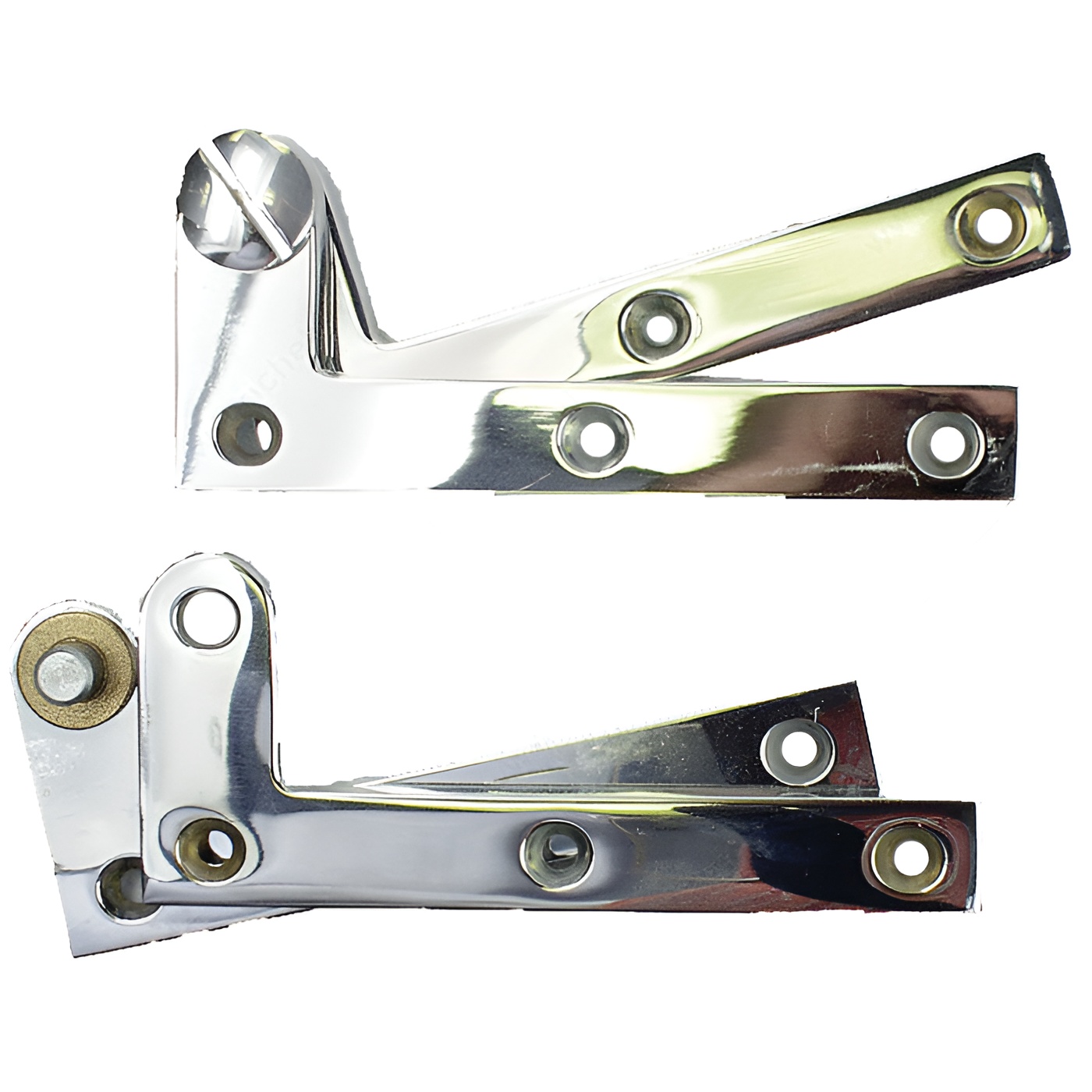

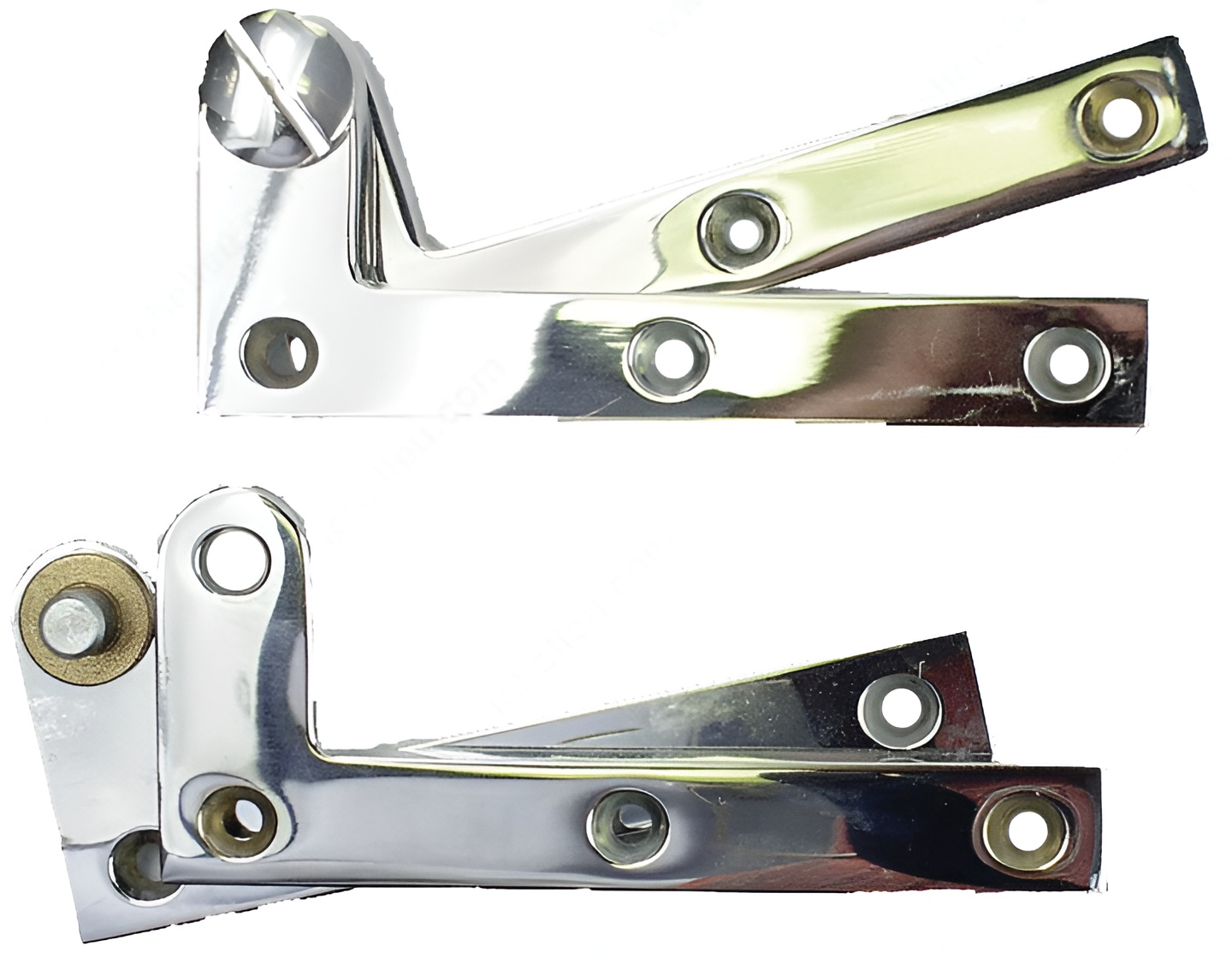

Richelieu 515050175 Knife Pivot Hinge - Heavy Duty offers a sleek and efficient solution for flush doors, ensuring that only the pivot is visible when the door is closed. Crafted from durable brass and finished in satin chrome, this hinge combines strength and elegance, making it ideal for both residential and commercial applications. Designed to accommodate door thicknesses ranging from 1 1/8 to 1 3/8 inches, the hinge features a knuckle dimension of 1 7/8 inches and an overall length of 4 3/8 inches. With a robust load capacity of 70 pounds, it is perfectly suited for heavy-duty door use. The loose (removable) pin type allows for easy maintenance and door removal when necessary, providing flexibility for users. The 3/8-inch center line ensures precise alignment, making installation straightforward. This knife pivot hinge is a reliable choice for builders and designers seeking a functional yet aesthetically pleasing solution for door hardware. Plus, it ships conveniently via UPS, making logistics hassle-free. Elevate your door installations with the Richelieu 515050175 Knife Pivot Hinge, where quality meets design.
Knife Pivot Hinge - Heavy Duty
Center Line: 3/8 in
Color/ Finish: Satin Chrome
Door Thickness: 1 1/8 to 1 3/8 in
Door Type: Flush
Finish: Satin Chrome

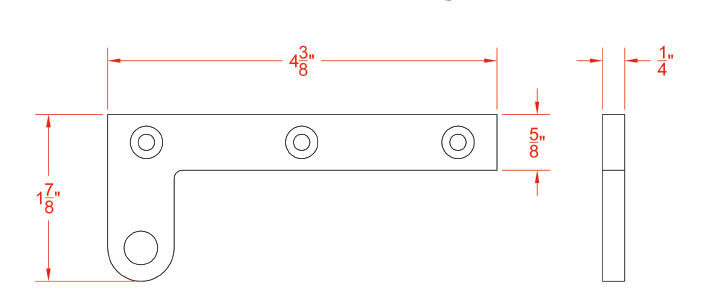

Knuckle: 1 7/8 in
Length - Overall Dimensions: 4 1/2 in
Load Capacity: 70 lb
Material: Brass
Product #: 515050175
Product number: 515050175
Product №: 515050175
Thickness: 1/4 in
Type: Loose (removable) Pins
Unit: Pair
Unit 1: carton - 2
Unit 2: carton - 2
