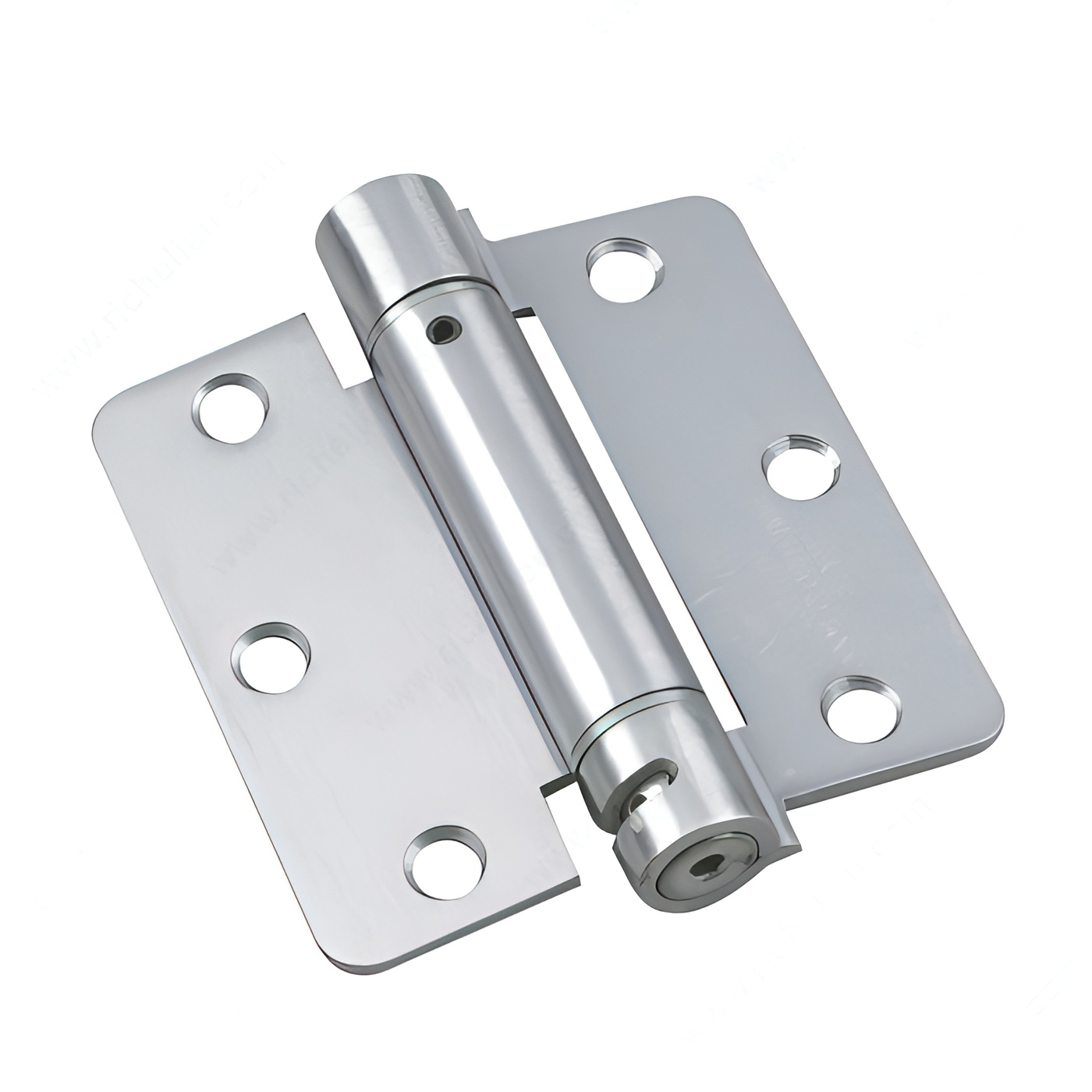

Richelieu 52821BCR 3 1/2" Full Mortise Adjustable Spring Hinge is the perfect choice for adding functionality and style to your projects. Designed for standard doors, this hinge features a brushed chrome finish, providing a sleek and modern look that complements various design aesthetics. Constructed from durable steel, it ensures long-lasting performance, while the non-removable pin adds an extra layer of security. One of the standout features of this hinge is its adjustable spring tension, allowing you to customize the closing speed of your door easily. With the included pin, you can achieve the desired tension, providing both convenience and versatility for your applications. The hinge has a load capacity of 88 lbs when using three hinges, making it suitable for a range of door sizes. Mounting is straightforward, as this full mortise hinge comes assembled and includes six wood screws (#10 x 1") and six machine screws (#10-24 x 1/2"). It adheres to UL standards, ensuring safety and reliability. With an overall height and width of 3 1/2", and a 1/4" radius corner, the Richelieu 52821BCR is an excellent choice for those looking to enhance their door hardware with both function and style.
3 1/2" Full Mortise Adjustable Spring Hinge
Included products
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 2.7 mm
Color/ Finish: Brushed Chrome
Finish: Brushed Chrome
Grade: 1
Height: 3 1/2 in
Load Capacity: 30 lb
Load Capacity (3 Hinges): 30 lb
Material: Steel
Mounting Type: Mortise
Packaging format: Blister
Pin: Non-Removable Pin
Product #: 52821BCR
Product number: 52821BCR
Product №: 52821BCR
Recommended Usage: Adjustable Spring
Screw/ Nail: Included
Standards and Certifications: UL
Type of Corner: 1/4" Radius
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Blister
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 25
Use Type: Standard Door
Width - Overall Dimensions: 3 1/2 in
