Richelieu 563F2290B TANDEM plus 563F Full Extension Concealed Undermount Slide with BLUMOTION for Framed Cabinet offers an exceptional combination of functionality and ease of use. Designed for both wood and melamine drawers, this undermount slide ensures a seamless fit with a maximum drawer thickness of 3/4 inch (19 mm). One of the standout features of this product is its innovative four-dimensional adjustment system. You can easily modify the side-to-side positioning by 1.5 mm, adjust height by 3 mm, tilt by 5 mm, and depth with an optional locking device up to 2.5 mm. Additionally, with elongated holes, depth adjustment can be finely tuned by plus or minus 4.5 mm, allowing for precise installation in various cabinet configurations. The TANDEM plus slide is equipped with BLUMOTION technology, providing a soft-close motion that enhances user experience and prolongs the life of your cabinetry. With a robust load capacity of 100 lbs, this slide is engineered for durability and performance. Measuring at 9 1/32 inches in length, it guarantees full extension for easy access to your drawers. Ideal for building professionals and discerning homeowners alike, this slide represents a sophisticated solution for modern cabinetry needs.

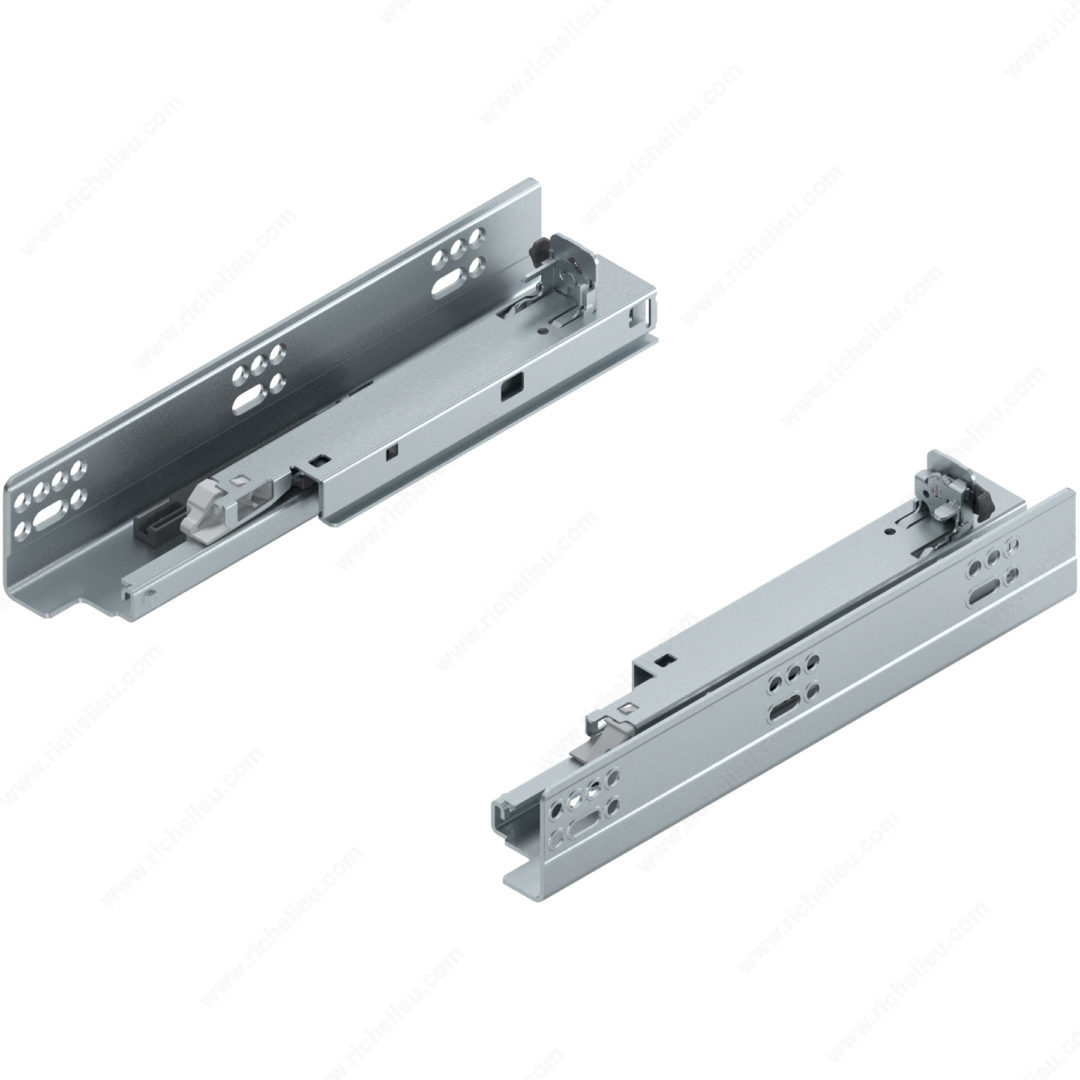

TANDEM plus 563F Full Extension Concealed Undermount Slide with BLUMOTION for Framed Cabinet
BLUM Technology: Blumotion
Brand: Blum
Drawer Type: Wood and Melamine
Length: 229 mm
Load Capacity: 100 lb
Motion Technology: Soft-Close
Product #: 563F2290B
Product Line: TANDEM Plus
Product number: 563F2290B
Slide Extension: Full Extension
Slide Mounted: Bottom-Mounted
Unit: Pair
Unit 2: case - 6
