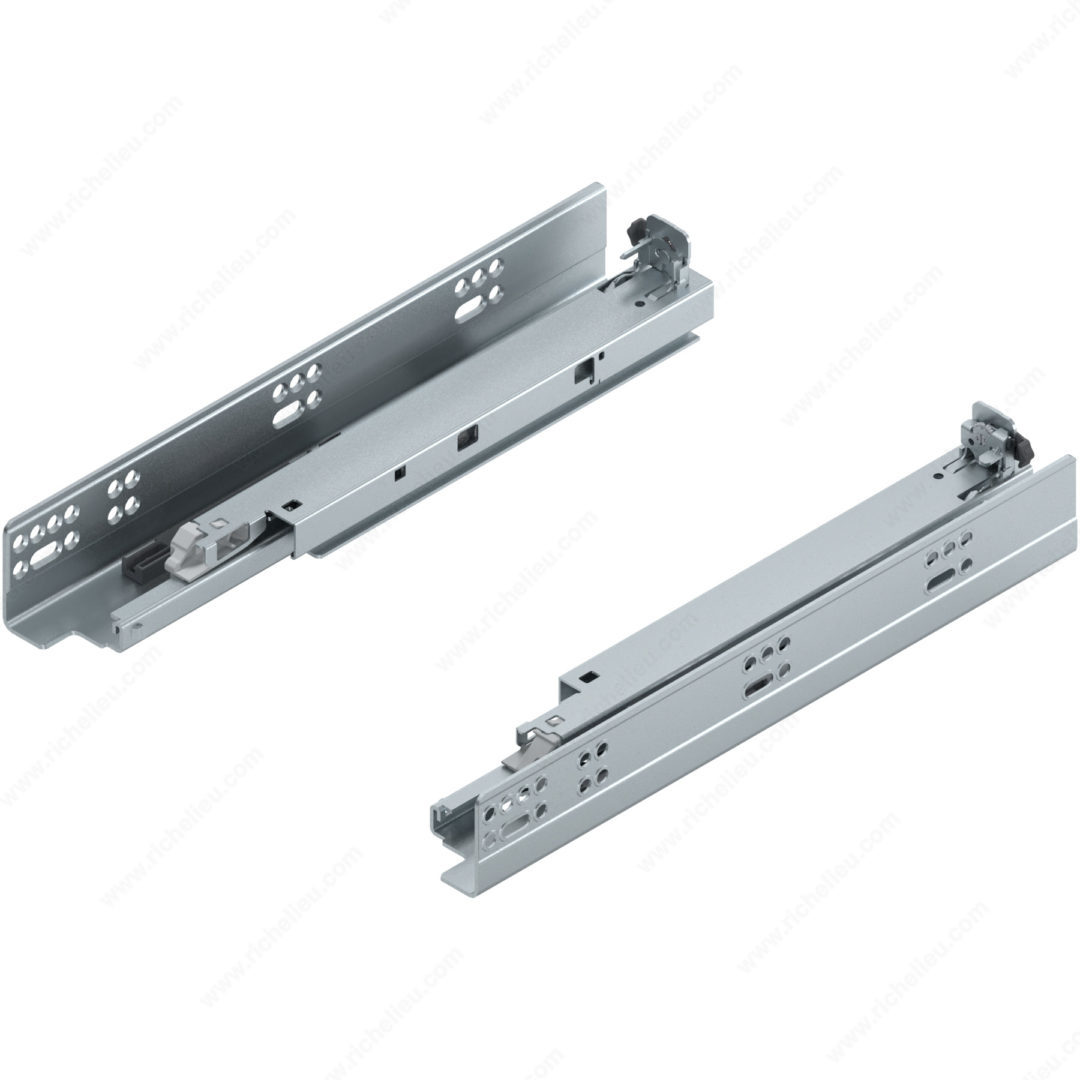

Richelieu 563F3050B TANDEM plus 563F Full Extension Concealed Undermount Slide with BLUMOTION for Framed Cabinet offers an exceptional combination of functionality and convenience. Designed for wood and melamine drawers, this undermounted slide ensures a seamless, soft-close motion, thanks to the advanced BLUMOTION technology. With a generous load capacity of 100 lb, it accommodates a variety of storage needs while maintaining stability and reliability. One of the standout features of this slide is its four-dimensional adjustment capability. You can easily adjust side-to-side movement by 1.5 mm and height by 3 mm, ensuring precise alignment. Additionally, it allows for a tilt adjustment of 5 mm, depth adjustments with an optional locking device of 2.5 mm, and elongated holes that provide a depth range of plus or minus 4.5 mm. This versatility makes installation straightforward and adaptable to various cabinet configurations. With a maximum drawer thickness of 3/4 in (19 mm) and a full extension design, the TANDEM plus slide enhances accessibility and usability of cabinet interiors. Experience the superior craftsmanship and innovative design of Richelieu products with the 563F3050B, a reliable choice for any cabinetry project.
TANDEM plus 563F Full Extension Concealed Undermount Slide with BLUMOTION for Framed Cabinet
BLUM Technology: Blumotion
Brand: Blum
Drawer Type: Wood and Melamine
Length: 305 mm
Load Capacity: 100 lb
Motion Technology: Soft-Close
Product #: 563F3050B
Product Line: TANDEM Plus
Product number: 563F3050B
Slide Extension: Full Extension
Slide Mounted: Bottom-Mounted
Unit: Pair
Unit 2: case - 6
