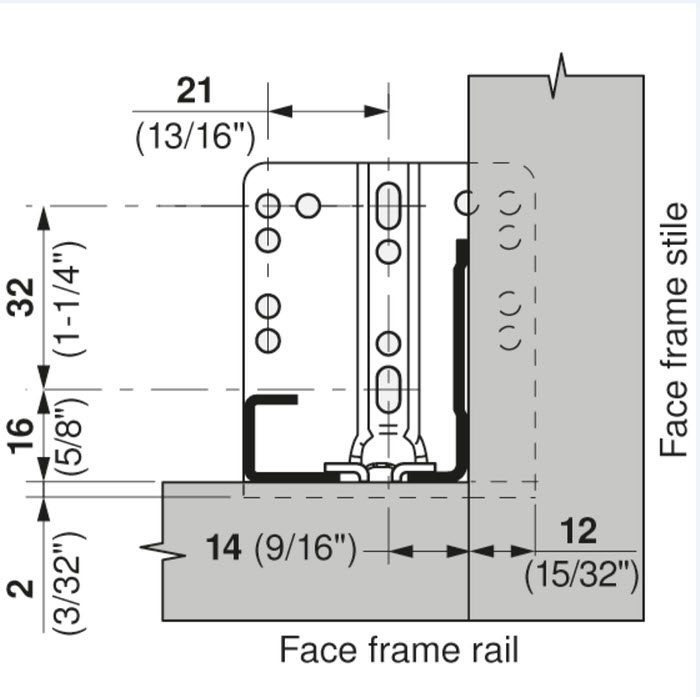

Richelieu 563H3050B TANDEM plus 563H Full Extension Concealed Undermount Slide with Blumotion for Face Frame Cabinet offers unparalleled functionality and precision in cabinetry. Designed for wood and melamine drawers, this innovative slide features Blumotion technology, ensuring a soft-close action that enhances user experience while preserving the integrity of your cabinetry. This model provides remarkable four-dimensional adjustment capabilities, allowing for side-to-side and front-to-rear adjustments of up to 1.5 mm, height adjustments of 3 mm, and tilt adjustments of 5 mm. For depth, an optional locking device allows for a precise adjustment of 3/32 in (2.5 mm), while elongated holes provide an additional range of plus or minus 11/16 in (4.5 mm). These features enable easy installation and perfect alignment, making it suitable for various applications. With a full extension design, the 563H3050B supports a maximum drawer thickness of 5/8 in (16 mm) and can handle a robust load capacity of 100 lb, ensuring durability and reliability. Whether you're a building professional or a knowledgeable homeowner, this undermount slide is a top choice for enhancing your cabinetry's functionality and aesthetics.

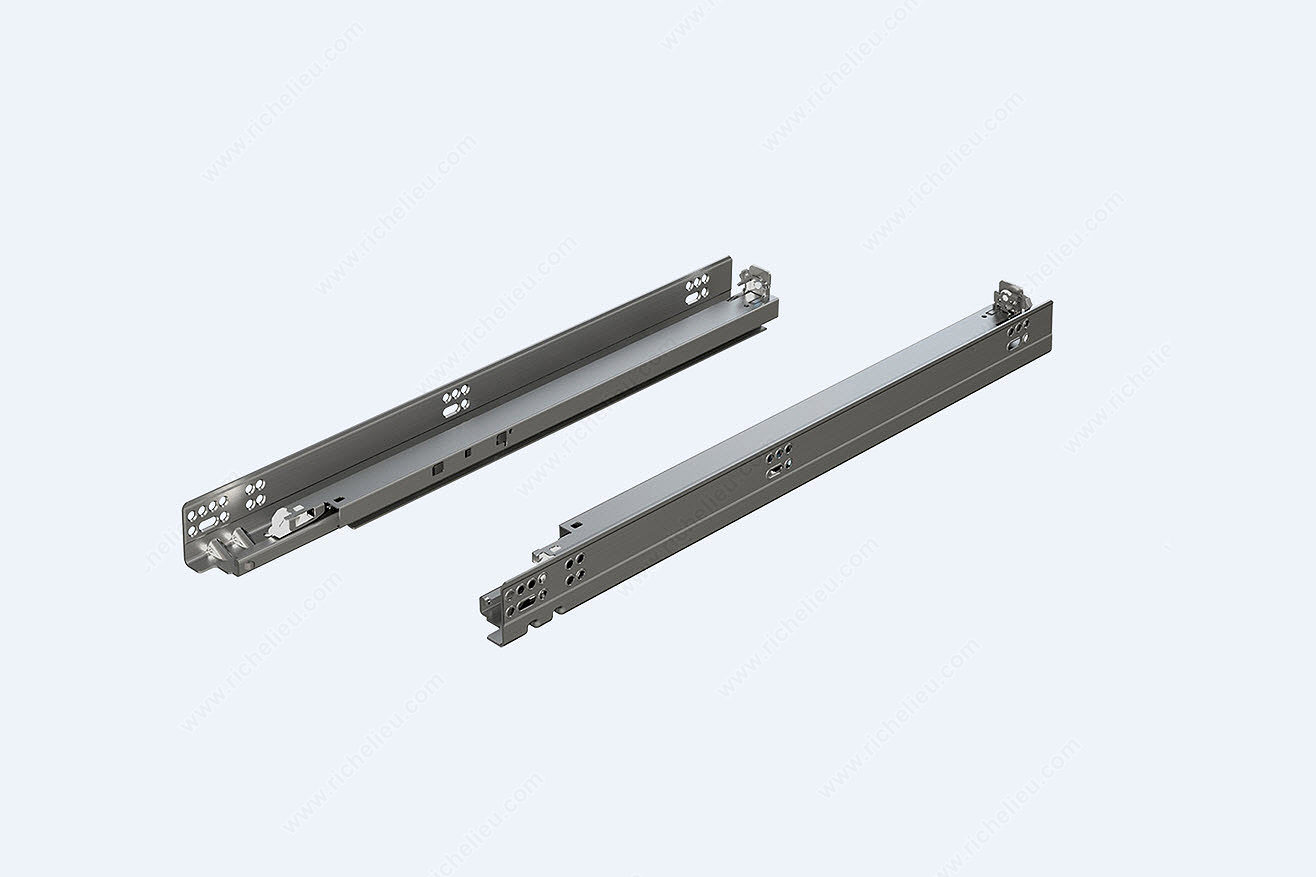

TANDEM plus 563H Full Extension Concealed Undermount Slide with Blumotion for Face Frame Cabinet
BLUM Technology: Blumotion
Brand: Blum
Drawer Type: Wood and Melamine
Length: 305 mm
Load Capacity: 100 lb
Motion Technology: Soft-Close
Product #: 563H3050B
Product Line: TANDEM Plus
Product number: 563H3050B
Slide Extension: Full Extension
Slide Mounted: Bottom-Mounted
Unit: Pair
Unit 2: case - 6
