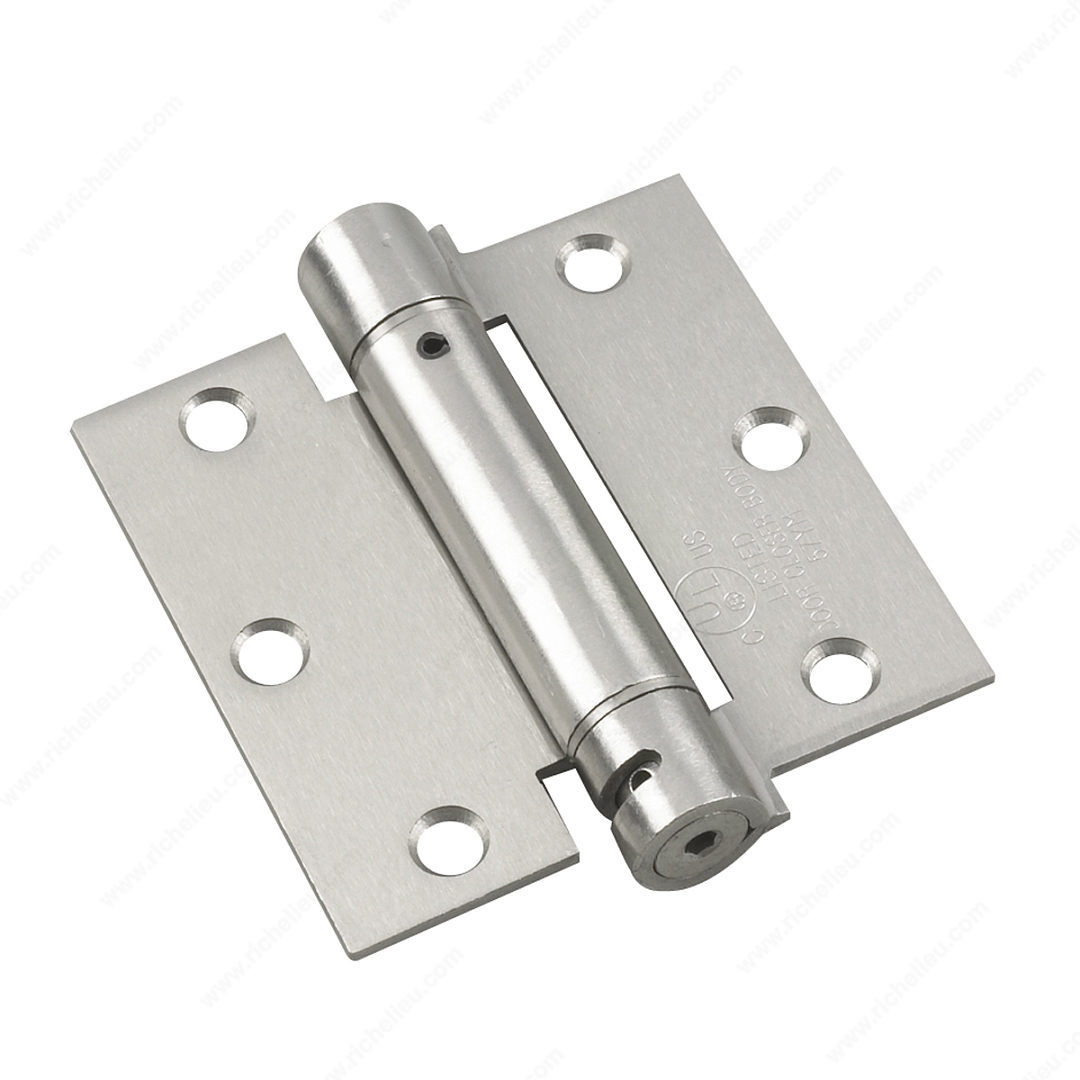

Richelieu 5821NBB1 3 1/2" Full Mortise Adjustable Spring Hinge offers a sophisticated blend of functionality and style, making it an ideal choice for both building professionals and discerning homeowners. Crafted from durable steel and finished in brushed nickel, this hinge is designed to elevate any standard door while ensuring smooth operation. With a height and width of 3 1/2 inches, the hinge can support a load capacity of up to 88 lbs when three hinges are used, making it robust enough for various applications. Its adjustable spring feature allows for easy customization of spring tension using the included pin, enabling precise control over door movement. Installation is straightforward, as it comes fully assembled and includes six wood screws (#10 x 1") and six machine screws (#10-24 x 1/2") for your convenience. Designed for mortise mounting, this hinge features a non-removable pin for added security and a square corner configuration. Richelieu’s commitment to quality is evident, as this hinge meets UL standards, ensuring reliability in both residential and commercial settings. Enhance your project today with the Richelieu 5821NBB1, where durability meets modern design.
3 1/2" Full Mortise Adjustable Spring Hinge
Included products
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 3/32 in*
Color/ Finish: Brushed Nickel
Finish: Brushed Nickel
Grade: 1
Height: 3 1/2 in
Load Capacity (3 Hinges): 88 lb
Material: Steel
Mounting Type: Mortise
Packaging format: Per unit
Pin: Non-Removable Pin
Product #: 5821NBB1
Recommended Usage: Adjustable Spring
Screw/ Nail: Included
Standards and Certifications: UL
Type of Corner: Square
Type of Tip: Flat Tip
UPC Code: Yes
Use Type: Standard Door
Width - Overall Dimensions: 3 1/2 in
