Richelieu 706SP0562205170 Mini Post with Dual Stand-off Fittings Level Adjustment ScrewsRichelieu 706SP0562205170 Mini Post with Two Stand-off Fitting and Level Adjustment Screws is expertly designed to serve as a minipost for handrails, providing robust support for glass panels in both residential and commercial settings. Constructed from marine grade Duplex 2205 stainless steel, this system ensures exceptional corrosion resistance, making it ideal for a variety of outdoor applications, including terraces and pool areas. This versatile post is perfect for installations around balconies, offering an elegant solution for perimeter railings and wind screens. With a height of 11 3/8 inches and a load capacity of up to 159 pounds for two brackets, it provides stability and safety for glass panels up to 47 1/4 inches high and 78 3/4 inches wide. The design eliminates the need for glass drilling, simplifying installation. Reversible mounting options enhance flexibility, while level adjustment screws ensure a perfect fit. The product is suitable for both interior and exterior use, including coastal environments, ensuring longevity and durability. Whether enhancing a modern terrace or enclosing a pool, the Richelieu Mini Post combines functionality with sleek aesthetics, making it an excellent choice for discerning builders and homeowners alike.

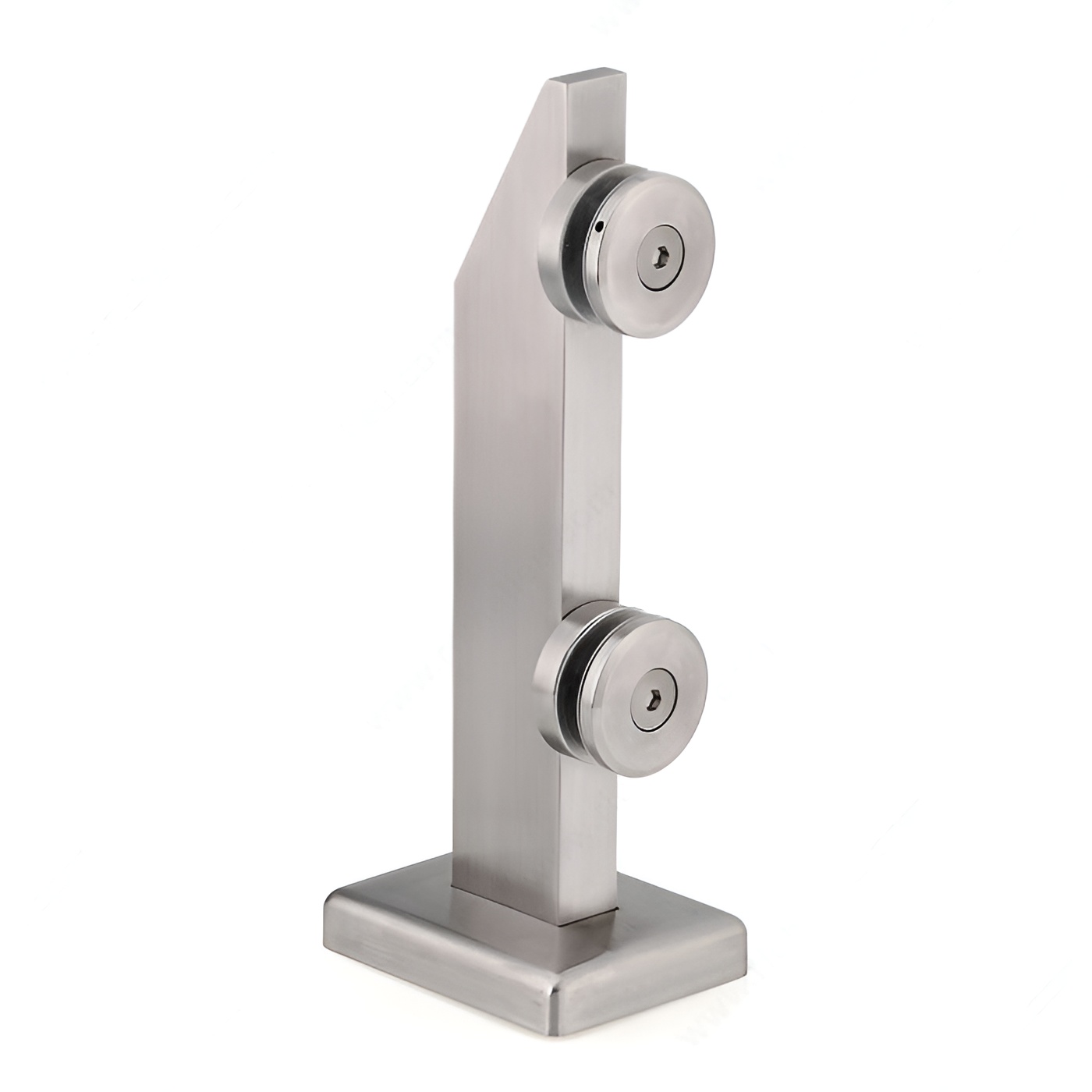

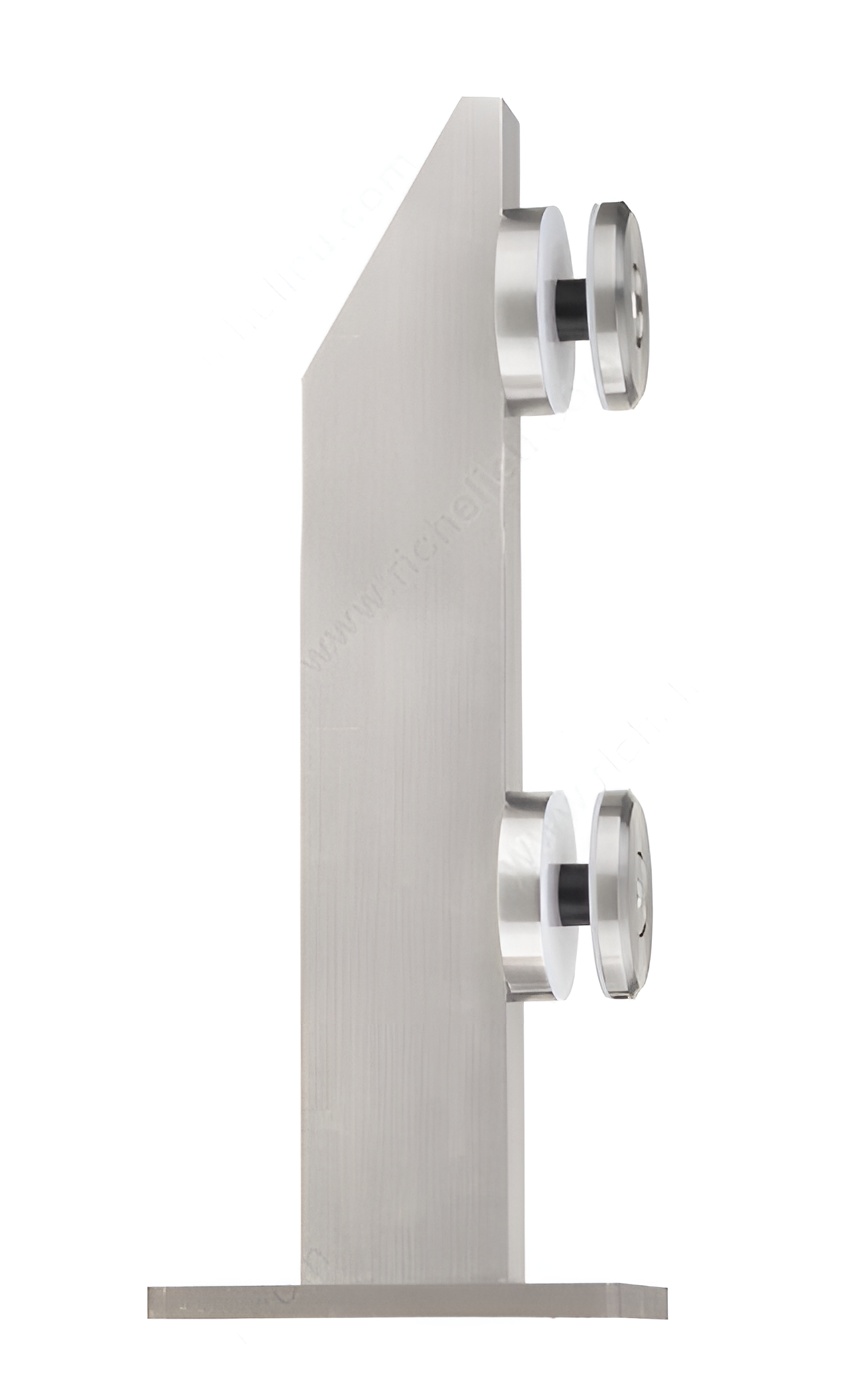

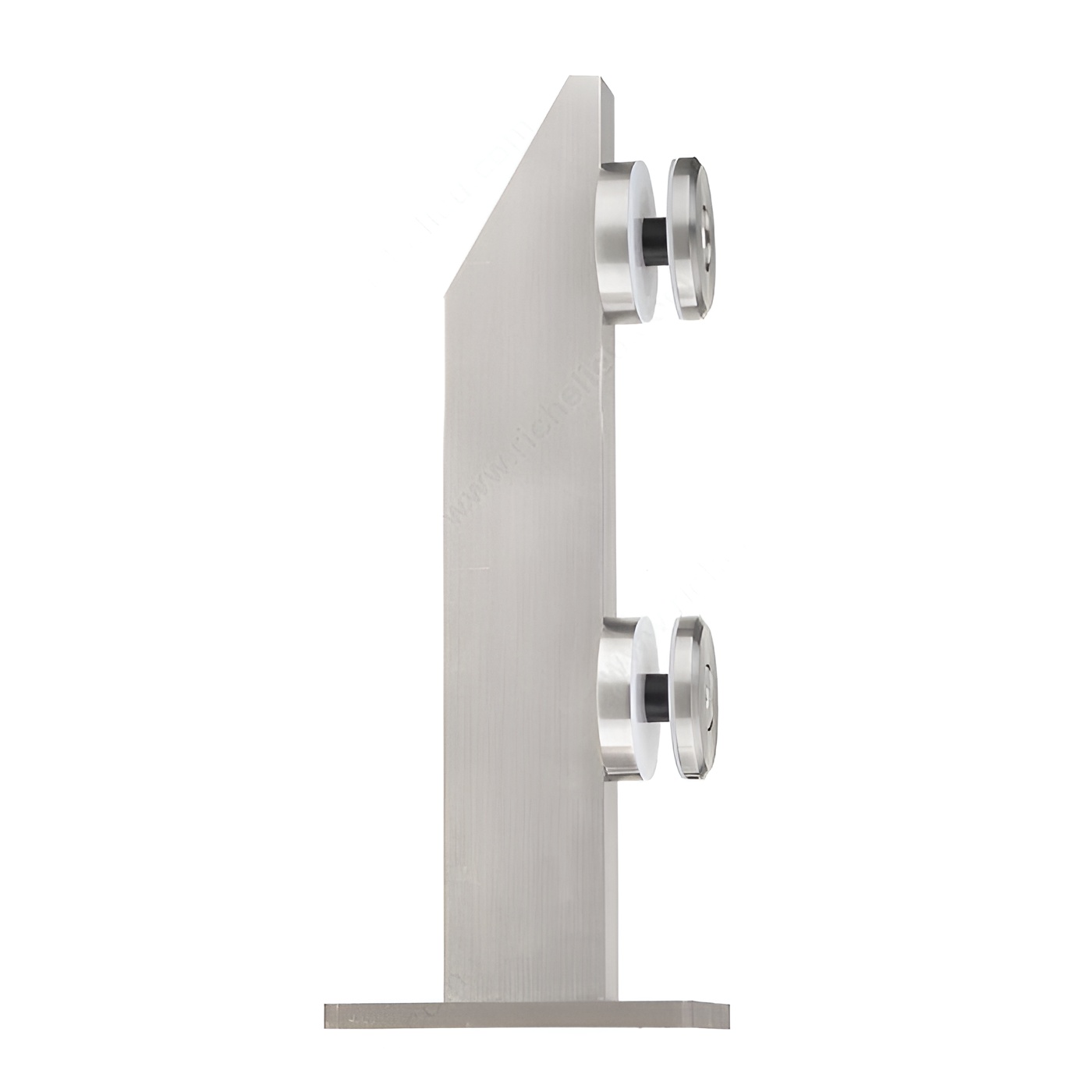

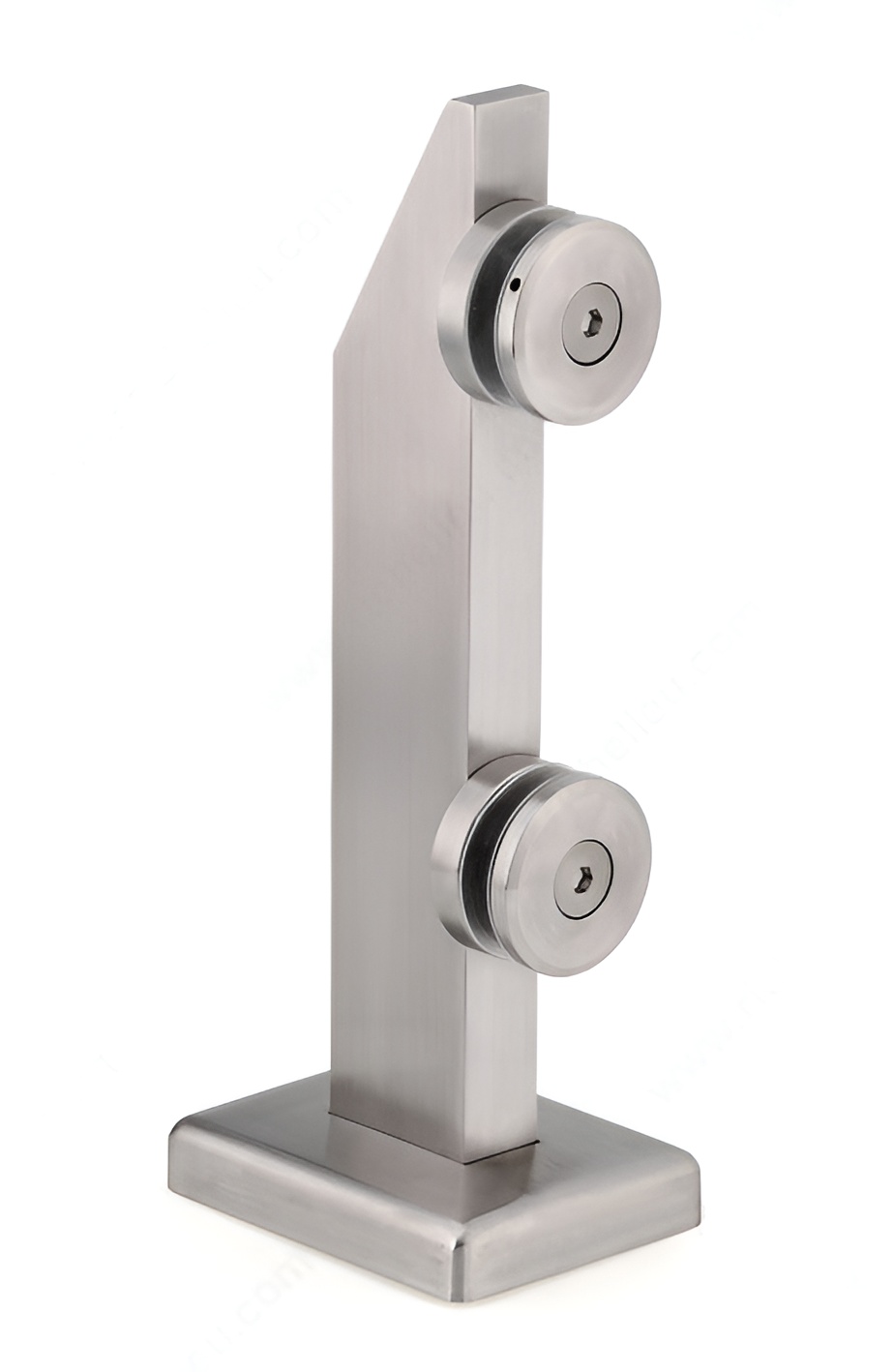

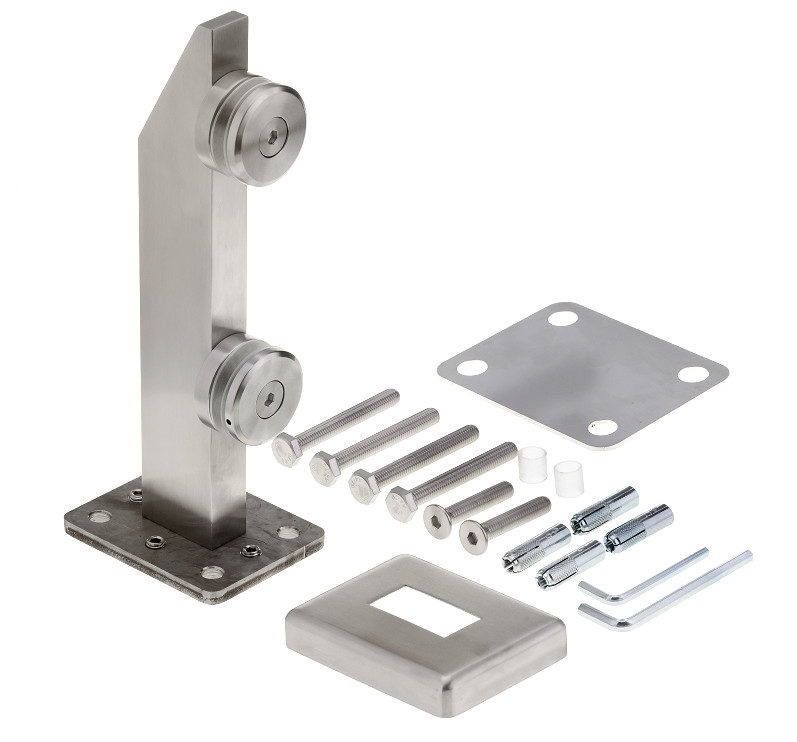

Mini Post with Two Stand-off Fitting and Level Adjustment Screws
Designed to be used as a minipost for a handrail, this system supports glass panels.
Made with marine grade 2205 stainless steel, it offers the best corrosion resistance for use in a variety of outdoor projects.
These clamps are designed for surface installation of glass panels inside and outside around terraces and pools
Application
This system is used in several applications such as the perimeter of a terrace, balcony railing, as well as the wind screen around a swimming pool.
Attributes
Color/ Finish: Stainless Steel
Finish: Stainless Steel
Glass Drilling: Not Required
Handrail Type: Not applicable
Height: 290 mm
Length: 85 mm
Load Capacity for Two Brackets: Max. 72 kg
Manufacturing Material: Stainless Steel: Duplex 2205
Material: Stainless Steel: Duplex 2205
Milling C/C: 140 mm
Milling Diameter: 11 mm
Mounting Side: Reversible
Panel Height: Max. 1 200 mm
Panel Width: Max. 2 000 mm
Product #: 706SP0562205170
Product number: 706SP0562205170
Product №: 706SP0562205170
Recommended Location Usage: Interior, Exterior, Coastal
Safety Glass Thickness: 12 mm
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Thickness: 50 mm
Type of Mounting: Floor Mount
Unit 1: case - 4
Width: 110 mm
