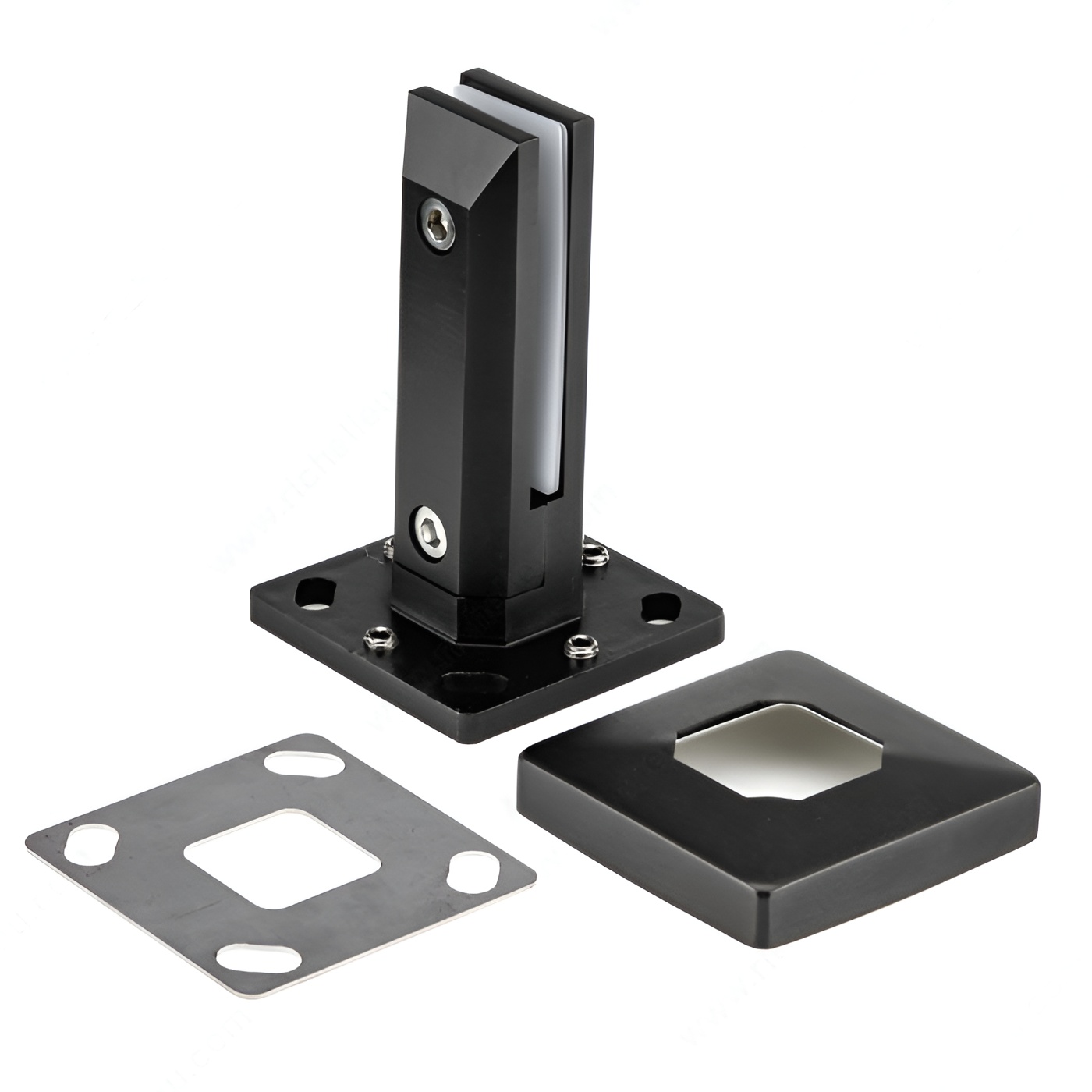

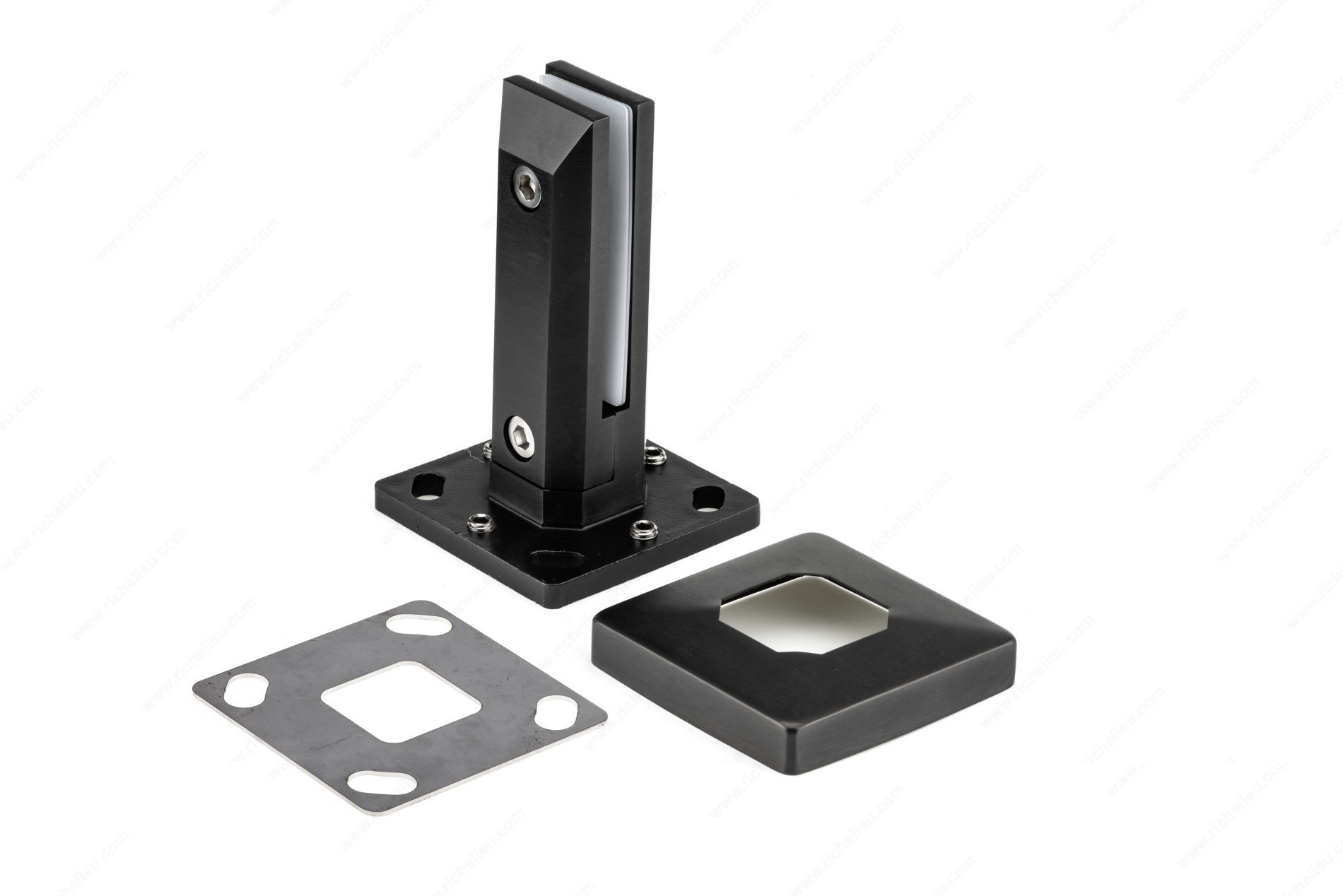

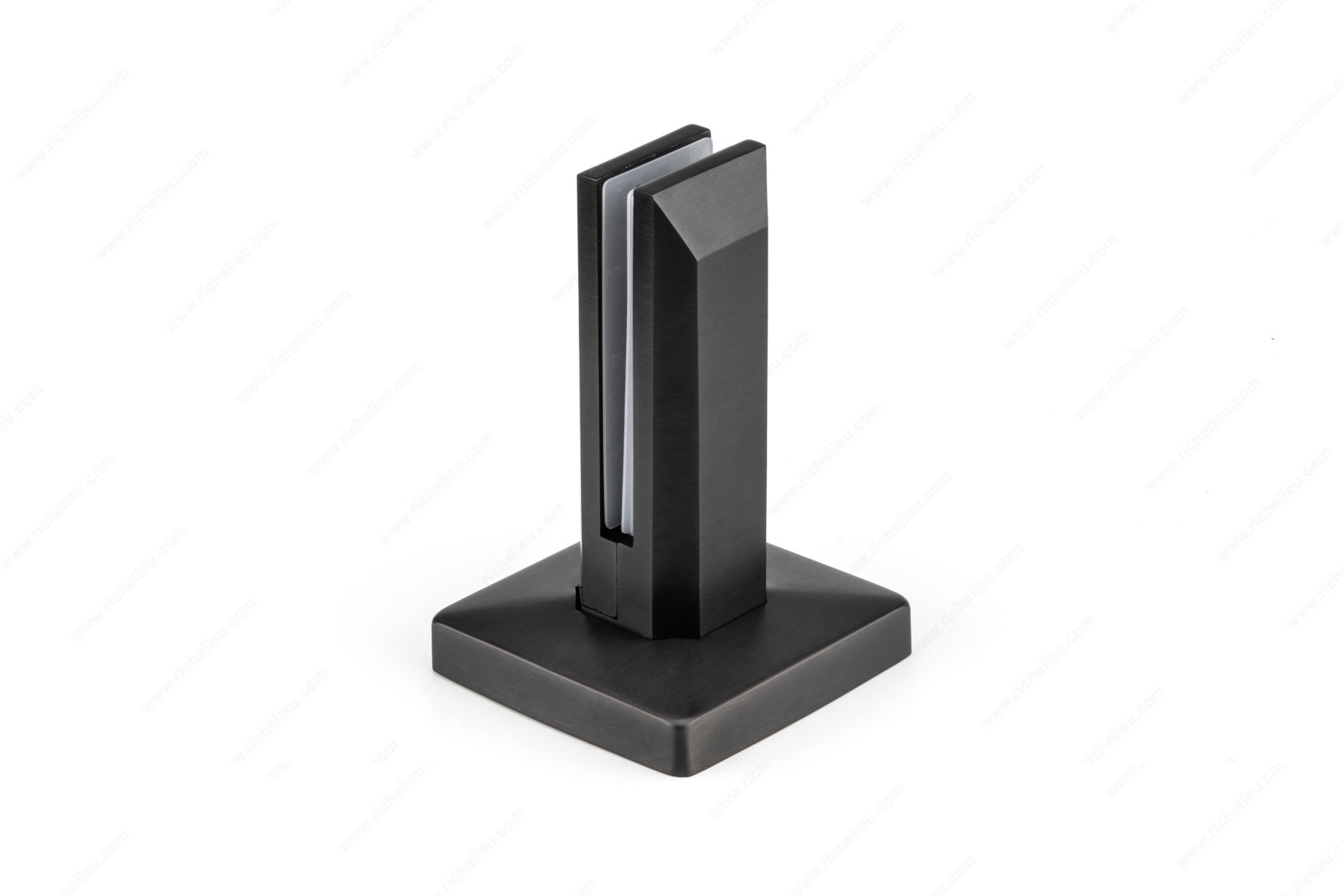

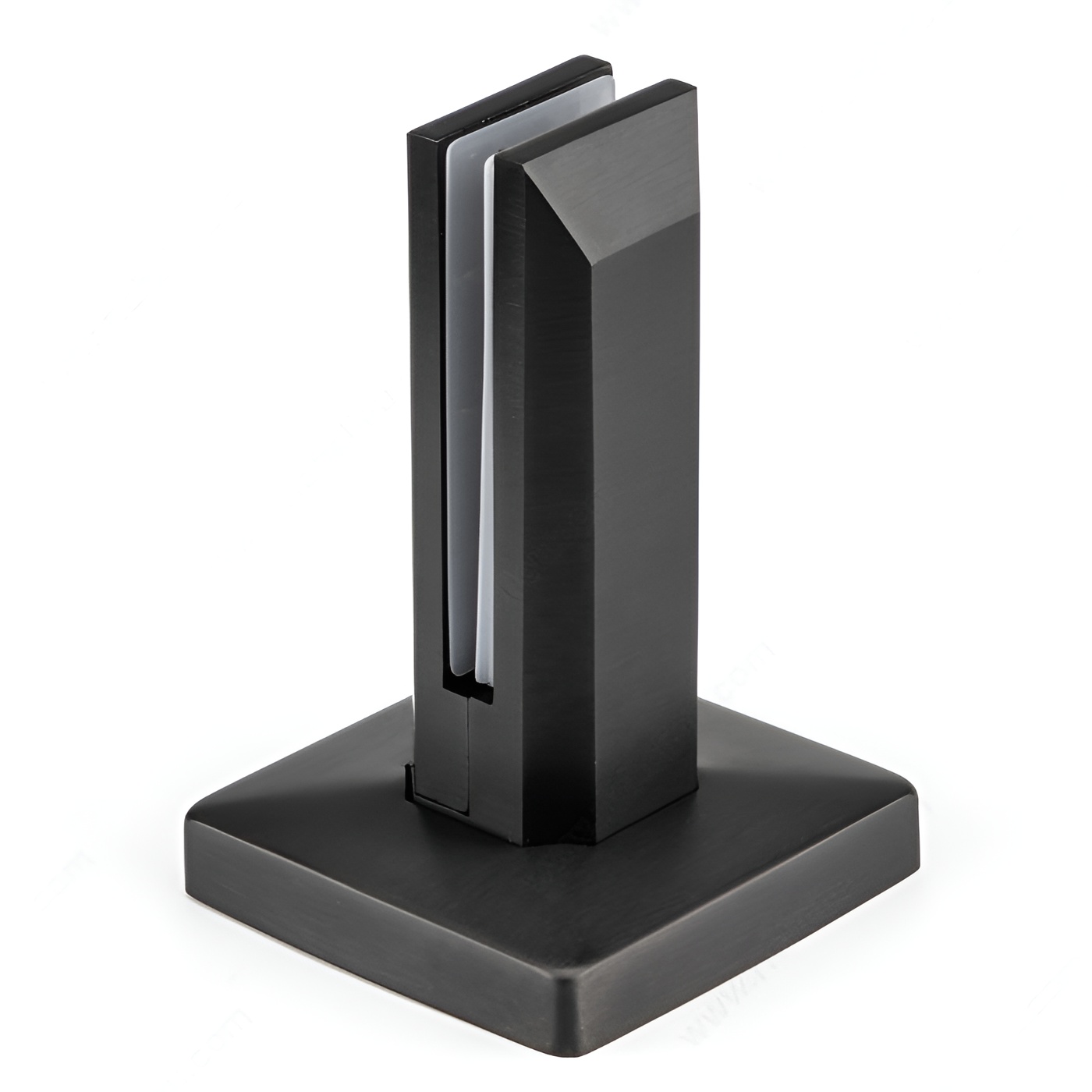

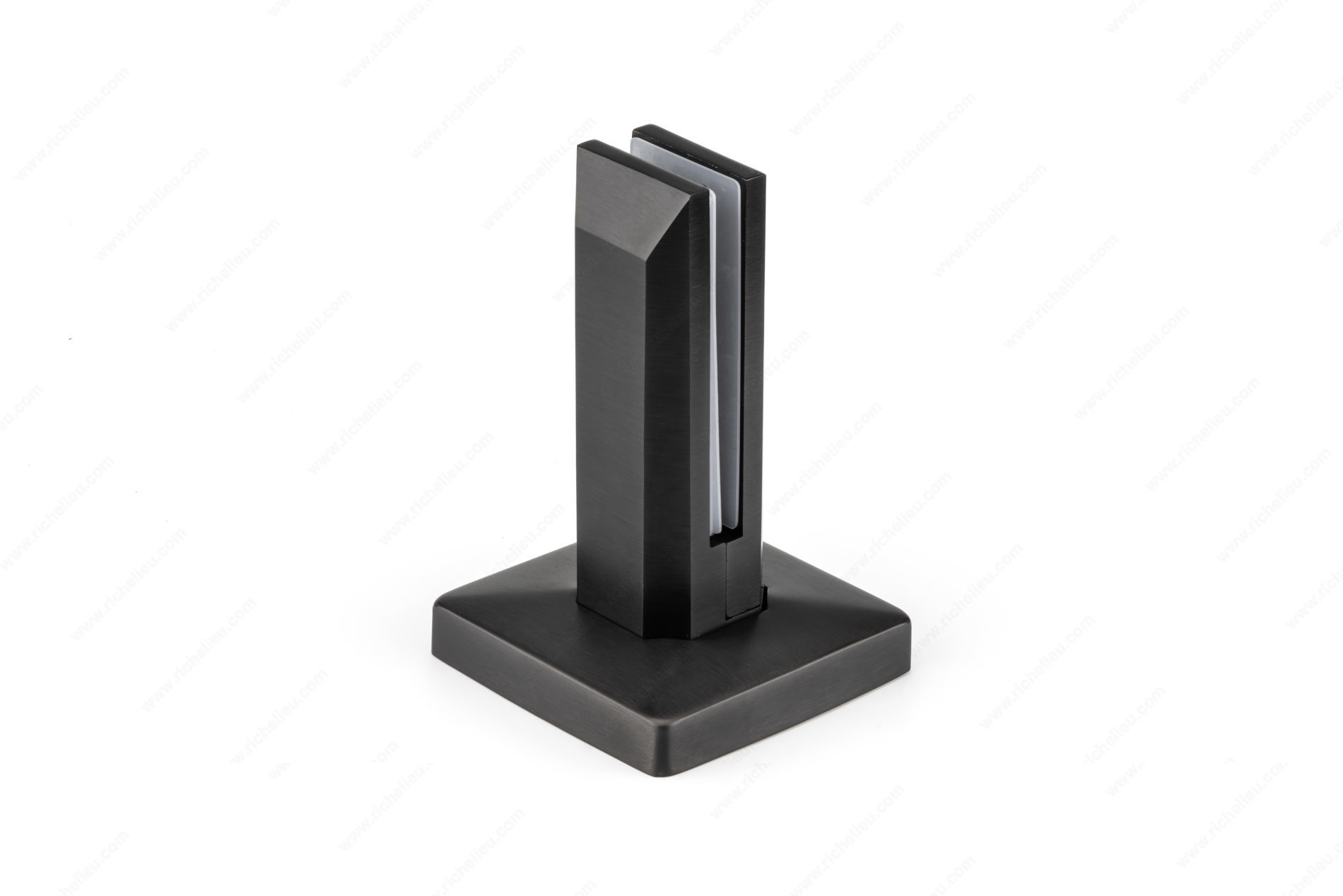

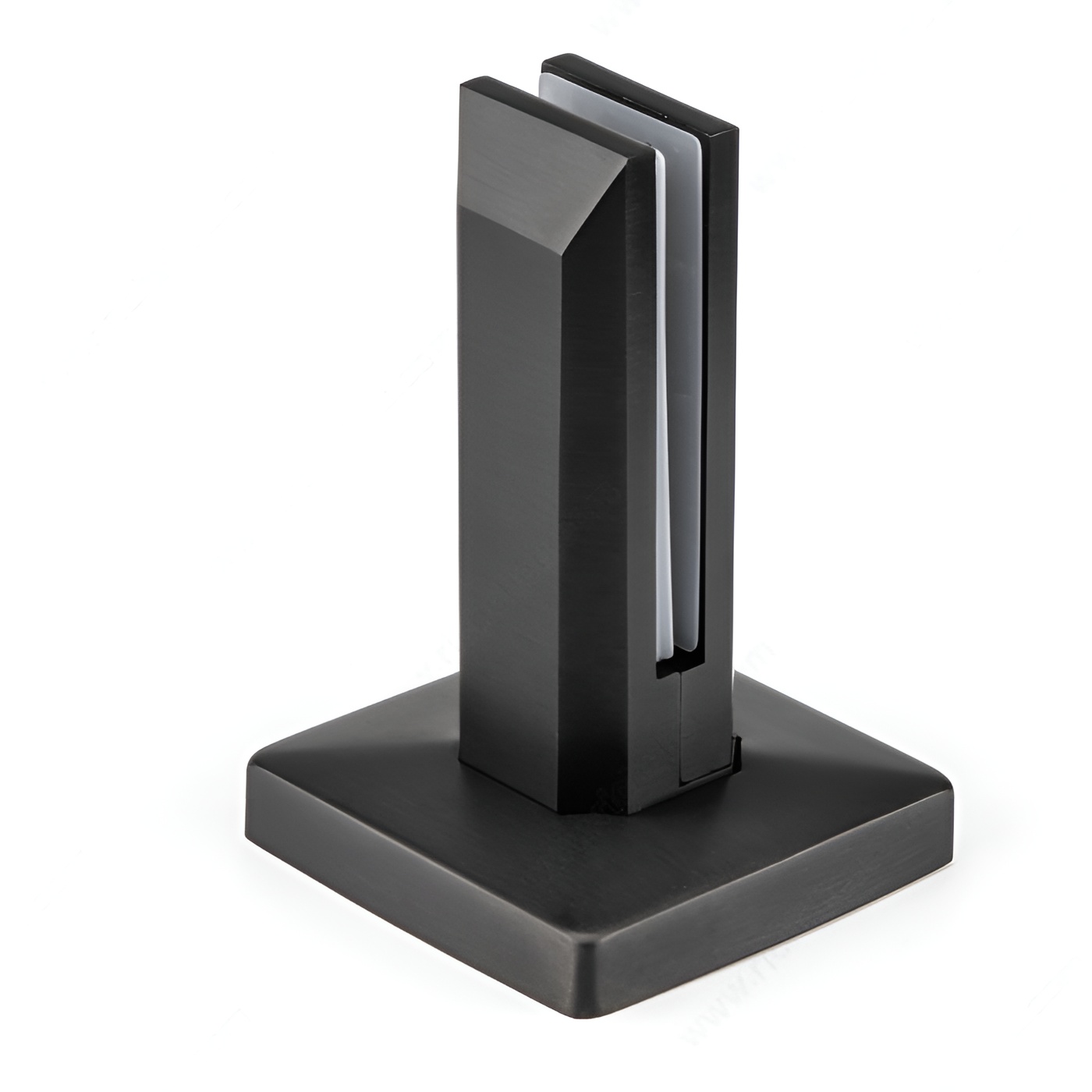

Richelieu 706SP077169 Square Spigot with Glass Drilling is expertly engineered to enhance the safety and stability of balustrades featuring laminated glass installations. Unlike traditional compression methods, this bracket includes a robust design that requires drilling, ensuring that your glass panels remain securely in place even in challenging conditions. With an adjustable base equipped with four screws and a stainless steel plate, this spigot allows for precise leveling and alignment of multiple panels, accommodating slightly uneven surfaces with ease. Its versatility makes it suitable for both interior and exterior applications, such as around decks and pools, providing a sleek and modern aesthetic. Constructed from durable Stainless Steel 316, the spigot boasts a striking black finish that not only enhances its visual appeal but also ensures longevity and resistance to corrosion. It is designed for safety glass thicknesses ranging from 15/32 to 19/32 inches, supporting maximum panel heights of 47 1/4 inches and widths of 60 inches. The dimensions of the spigot are 6 13/32 inches in height and 3 15/16 inches in both width and length. The floor mount design facilitates straightforward installation, making it an ideal choice for professionals seeking reliable and stylish glazing solutions.
Square Spigot with Glass Drilling
Category: Spigots
Color/ Finish: Black Stainless Steel
Finish: Black Stainless Steel
Glass Drilling: Required
Handrail Type: Not applicable
Height: 163 mm
Length: 100 mm
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Panel Height: Max. 47 1/4 in*
Panel Width: Max. 60 in*
Panel height: Max. 1 200 mm
Panel width: Max. 1 524 mm
Product #: 706SP077169
Product number: 706SP077169
Product №: 706SP077169
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 12 to 15 mm
Type of Mounting: Floor Mount
Unit: Set
Unit 1: case - 6
Unit 2: case - 6
Width: 100 mm
