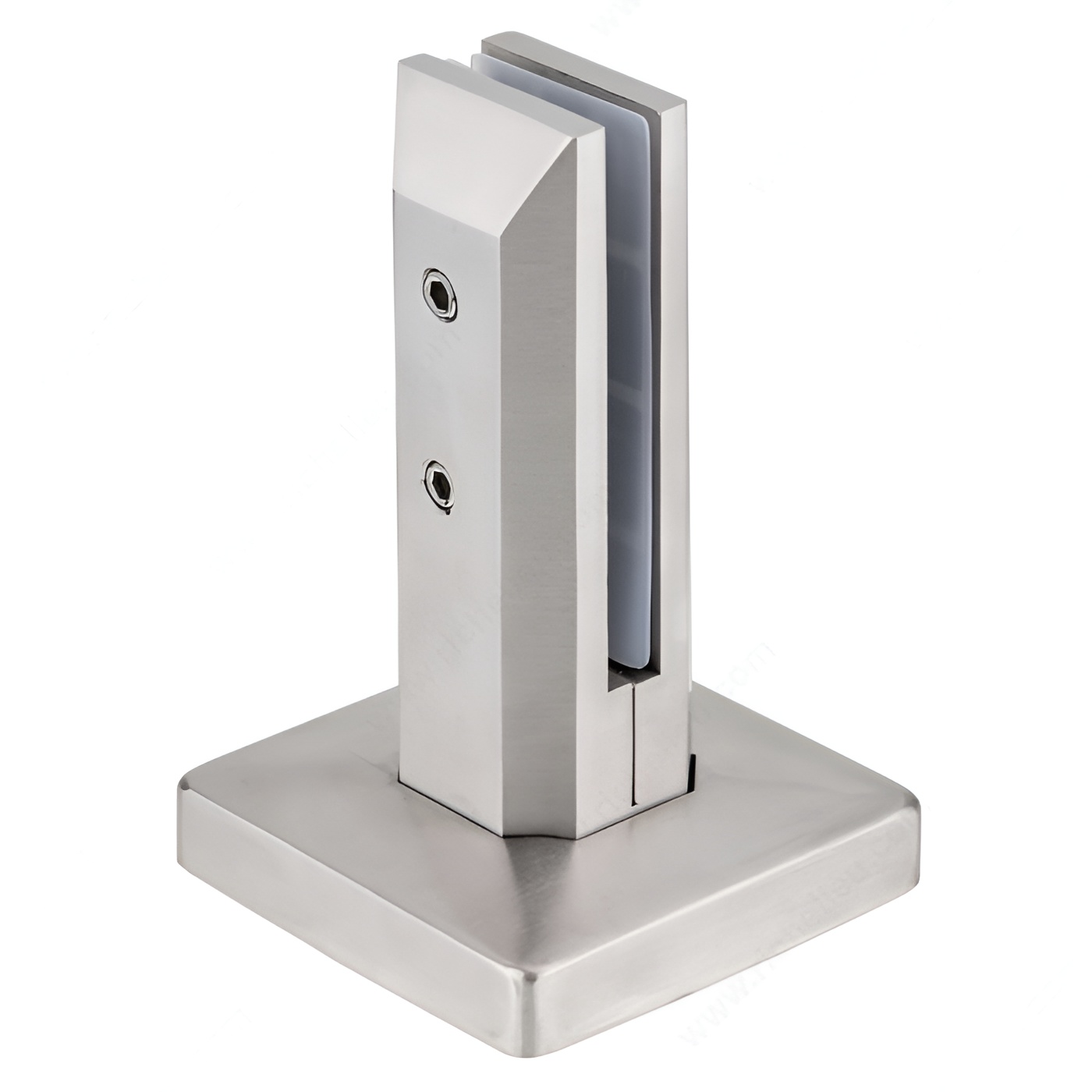

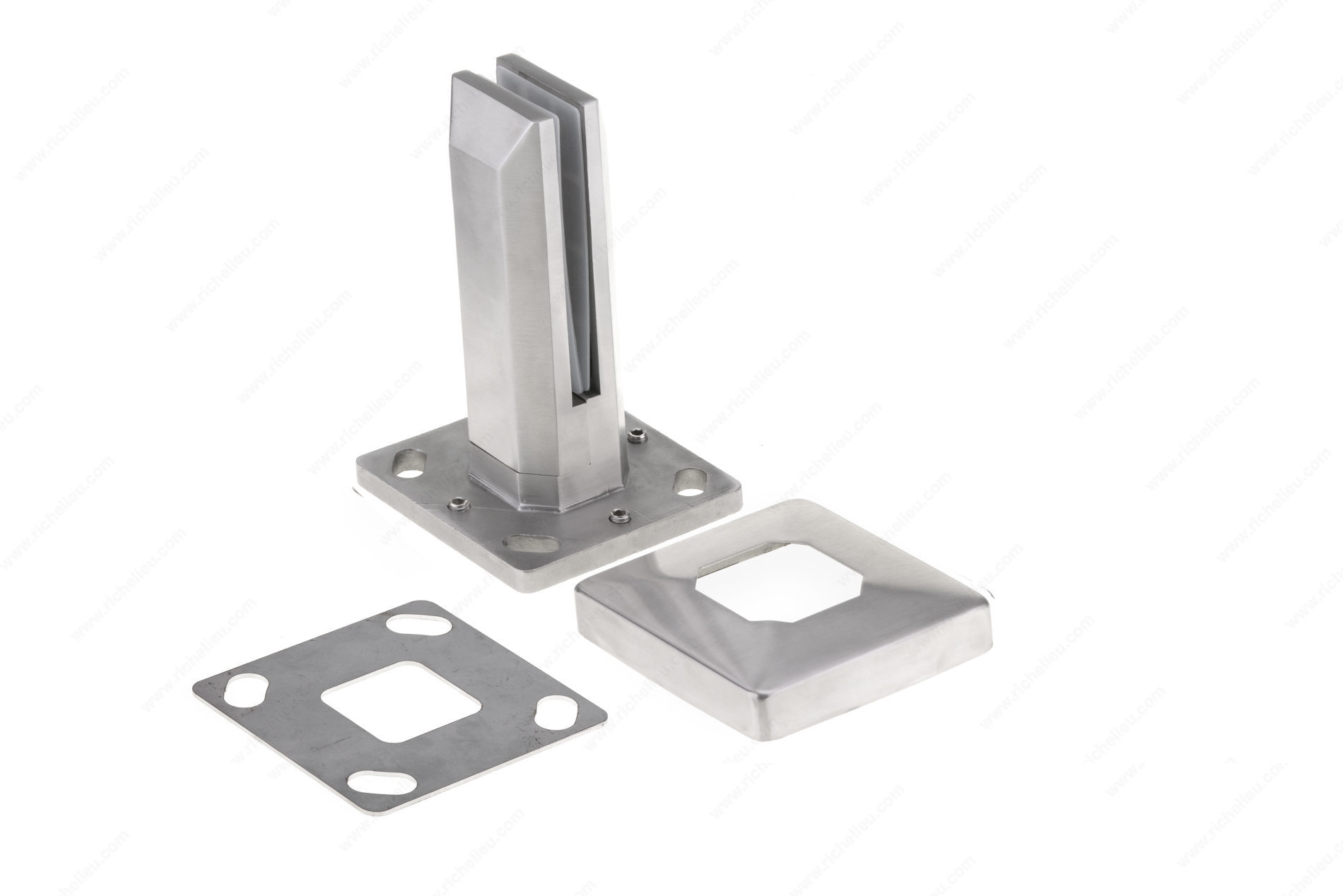

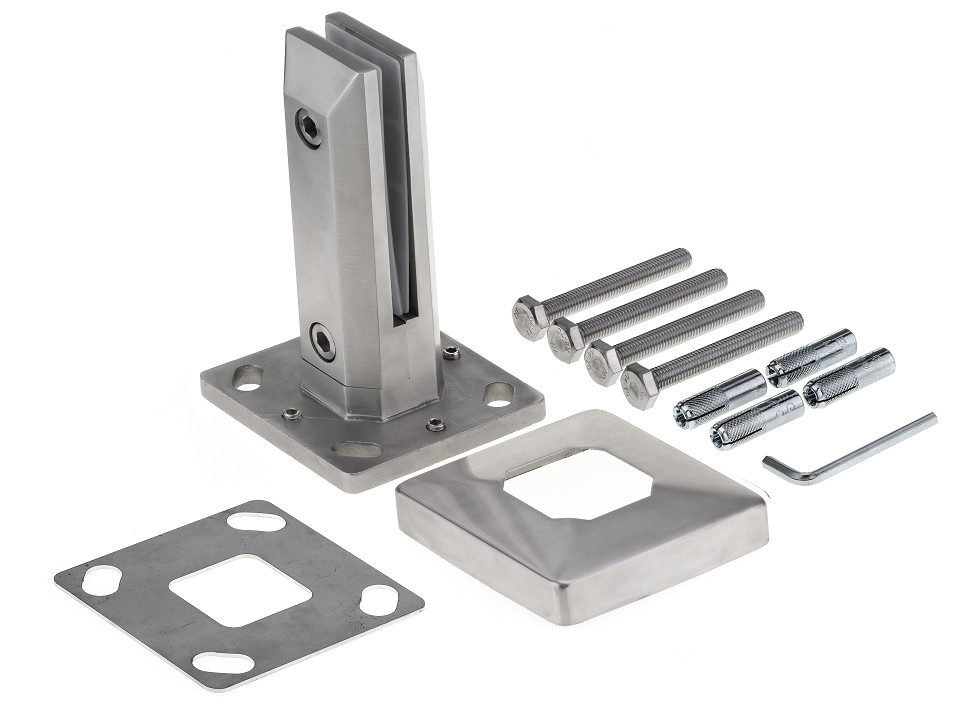

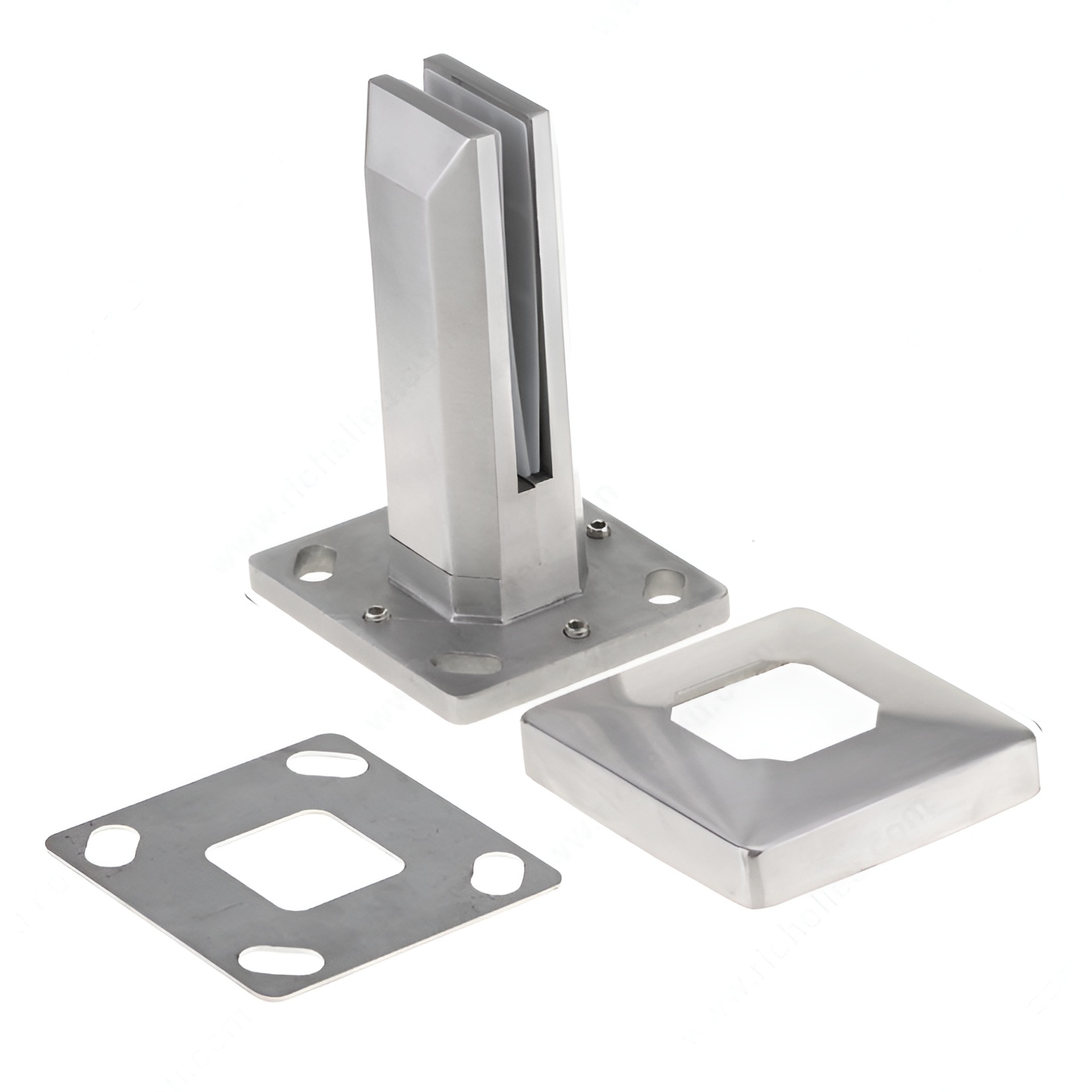

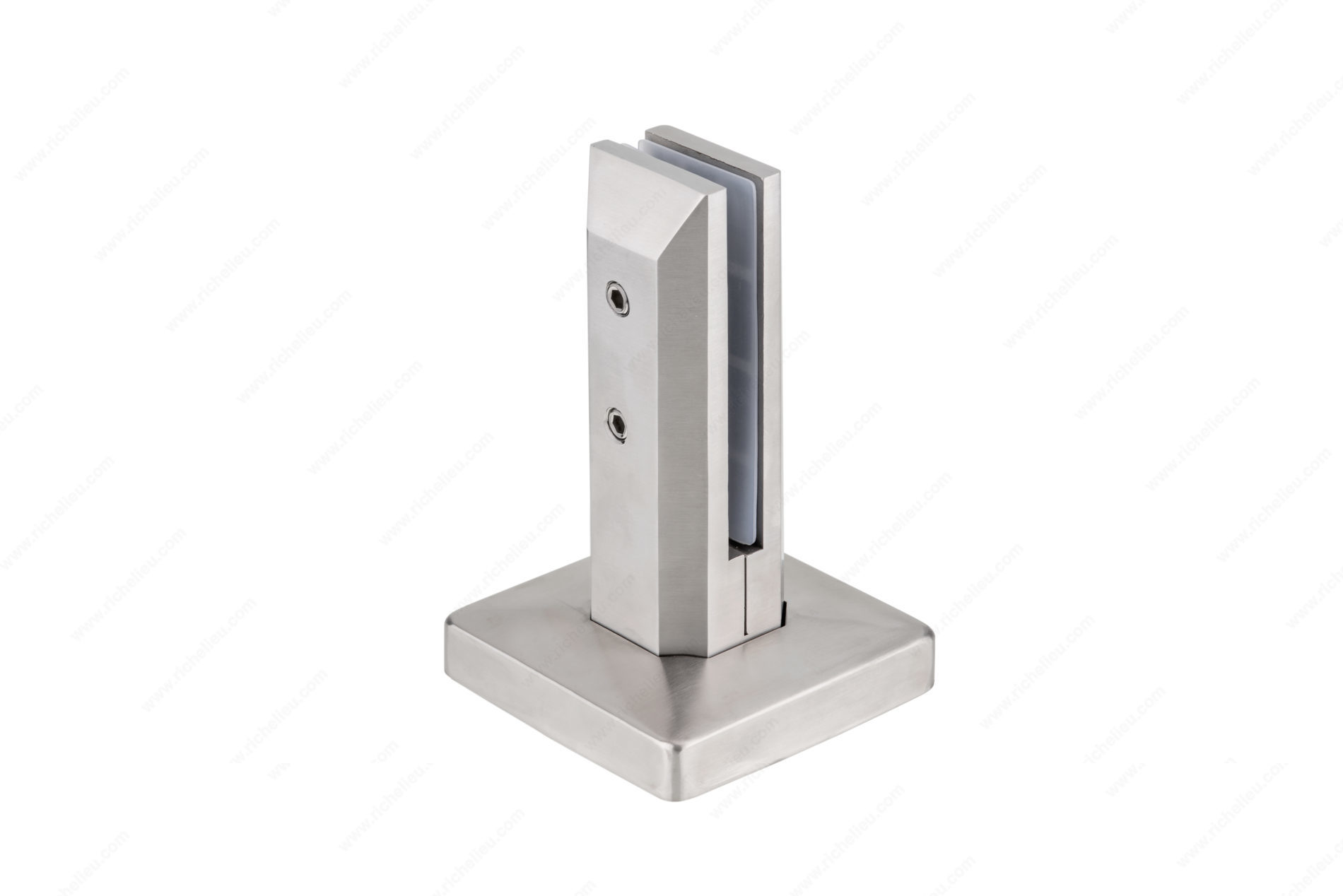

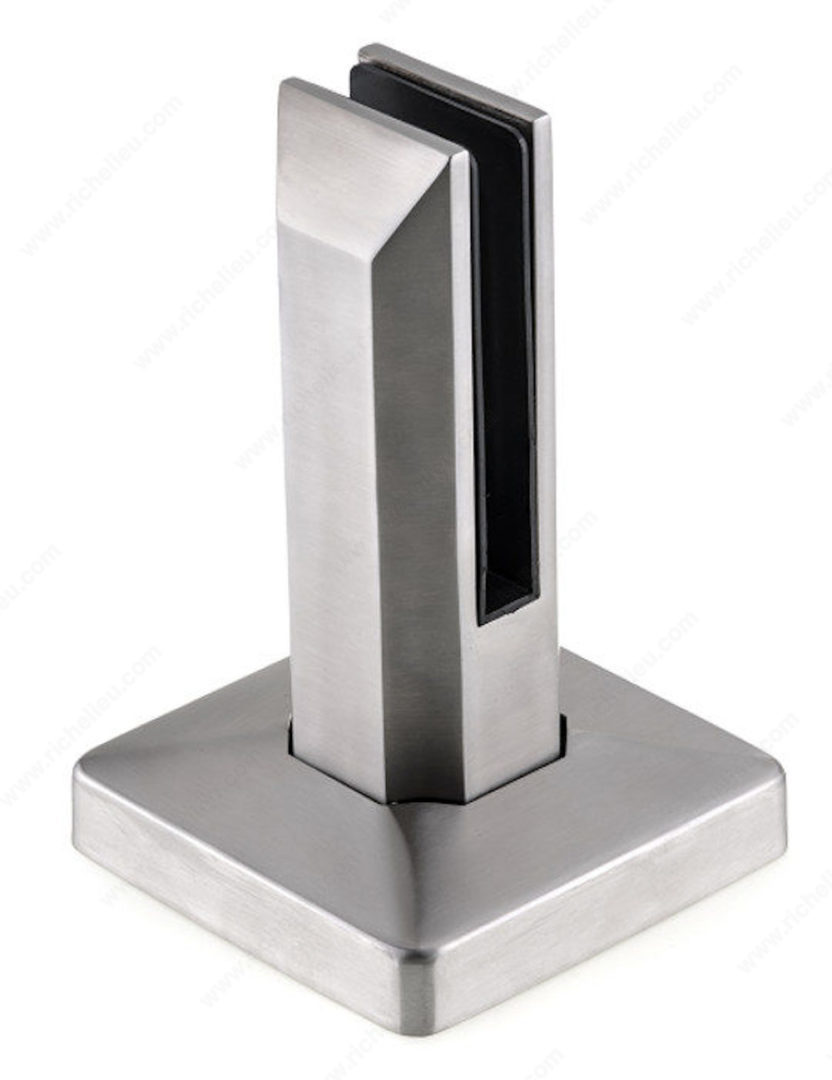

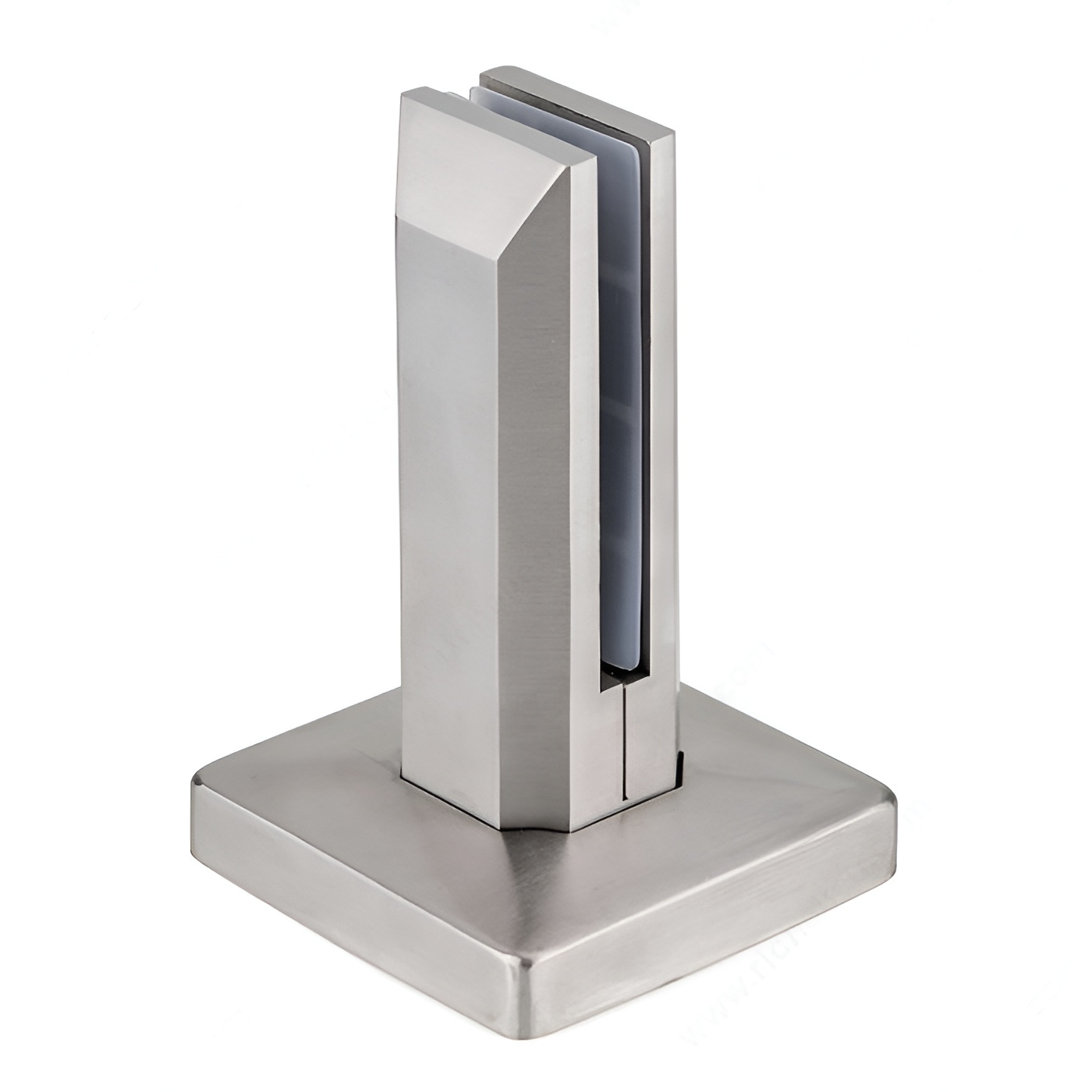

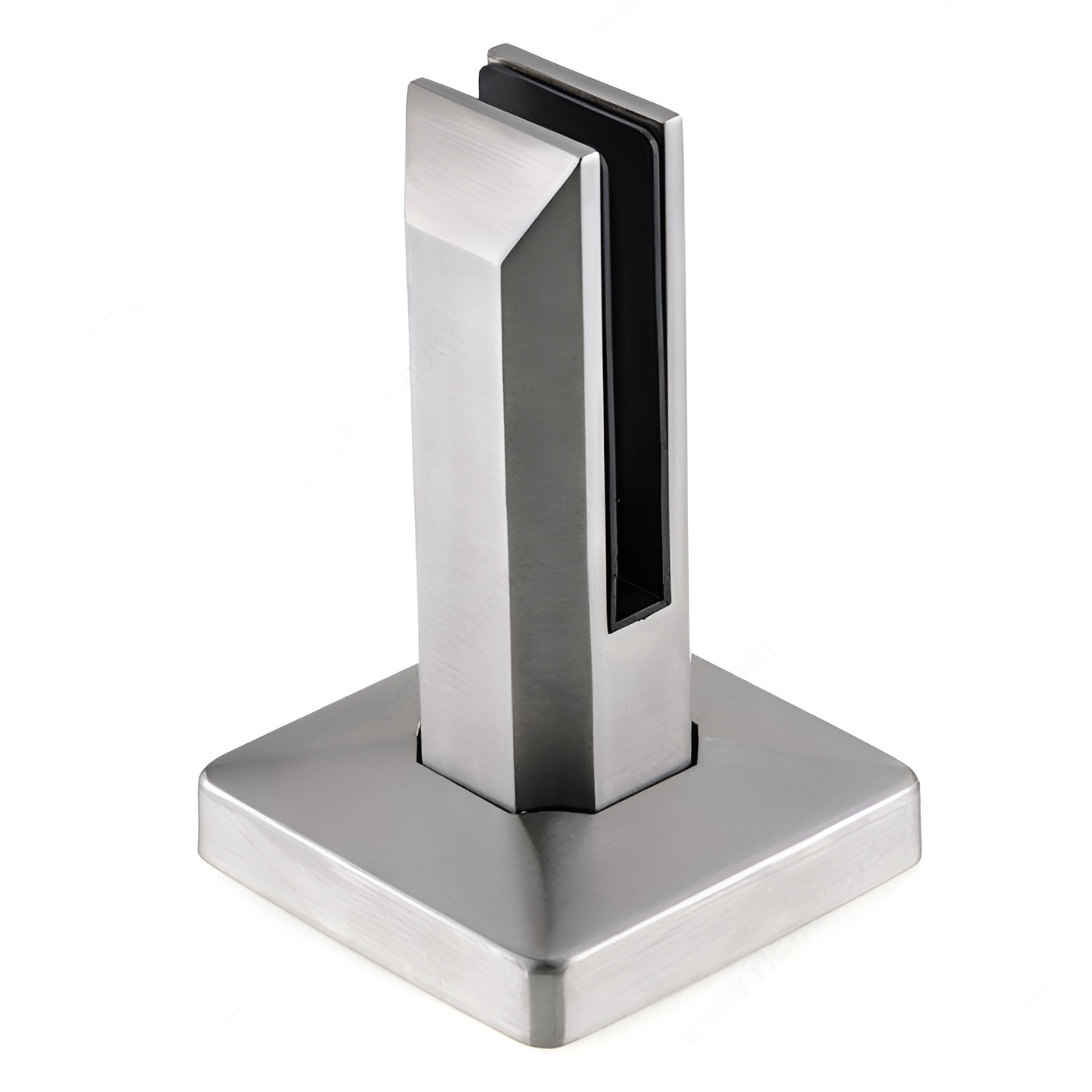

Richelieu 706SP077170 Square Spigot with Glass Drilling is a robust solution designed to enhance safety when installing balustrades with laminated glass. This spigot is essential where compression alone cannot adequately secure the glass in place, providing peace of mind for both residential and commercial applications. The innovative design includes four adjustable screws at the base, allowing for precise leveling and alignment of panels, particularly on slightly uneven surfaces. Crafted from high-quality Stainless Steel 316, this spigot is not only durable but also resistant to corrosion, making it suitable for both interior and exterior uses, such as around decks and pools. The installation requires glass drilling, ensuring a secure fit for safety glass panels with thicknesses ranging from 15/32 to 19/32 inches. It accommodates a maximum panel height of 47 1/4 inches and a width of 60 inches, providing versatility for various projects. With dimensions of 6 13/32 inches in height and 3 15/16 inches in width, this floor-mounted spigot combines functionality with an elegant finish. Elevate your architectural designs with the reliability and style of the Richelieu 706SP077170 Square Spigot, perfect for creating safe and attractive glass barriers.
Square Spigot with Glass Drilling
Category: Spigots
Color/ Finish: Stainless Steel
Finish: Stainless Steel
Glass Drilling: Required
Handrail Type: Not applicable
Height: 163 mm
Length: 100 mm
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Panel Height: Max. 47 1/4 in*
Panel Width: Max. 60 in*
Panel height: Max. 1 200 mm
Panel width: Max. 1 524 mm
Product #: 706SP077170
Product number: 706SP077170
Product №: 706SP077170
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 12 to 15 mm
Type of Mounting: Floor Mount
Unit: Set
Unit 1: case - 6
Unit 2: case - 6
Width: 100 mm
