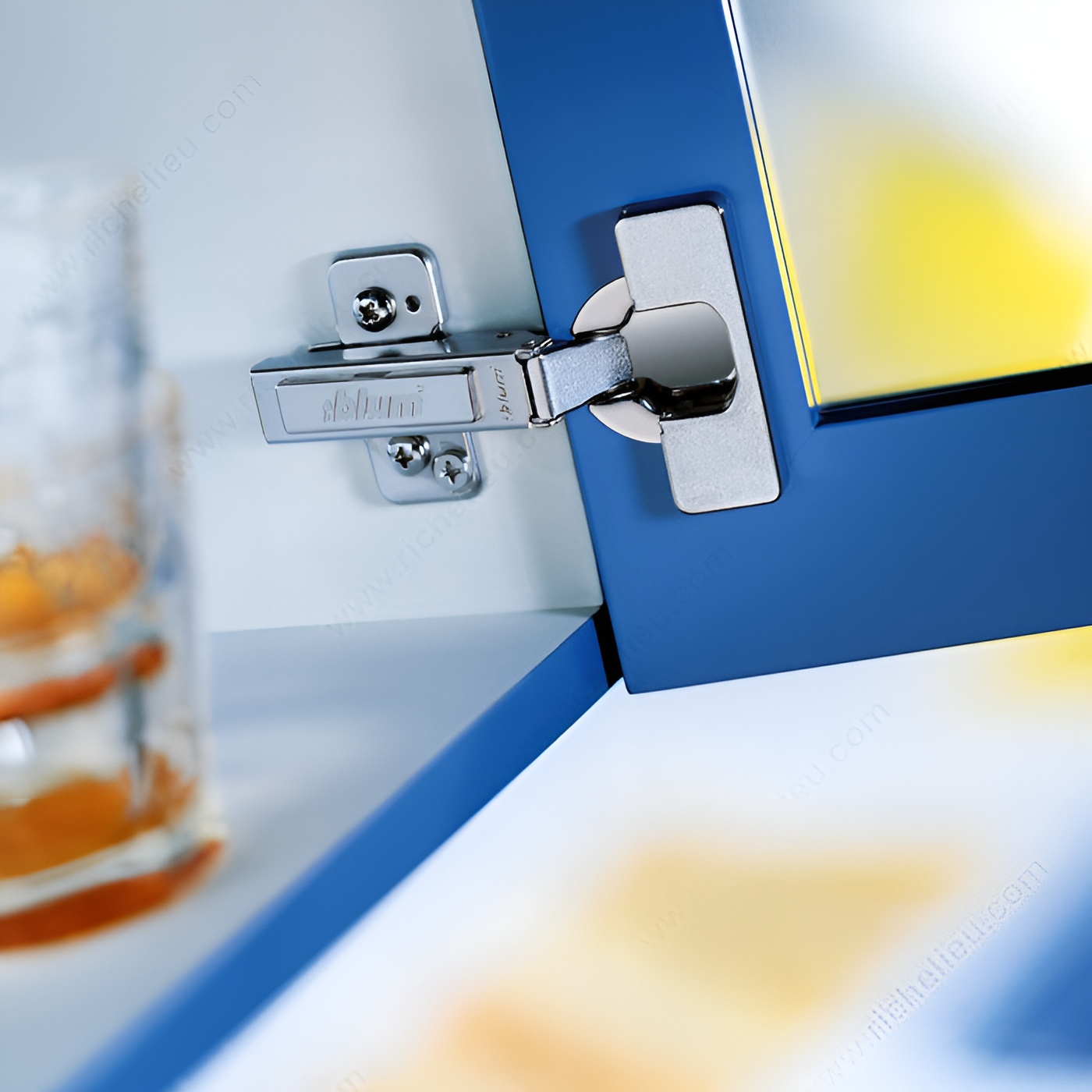

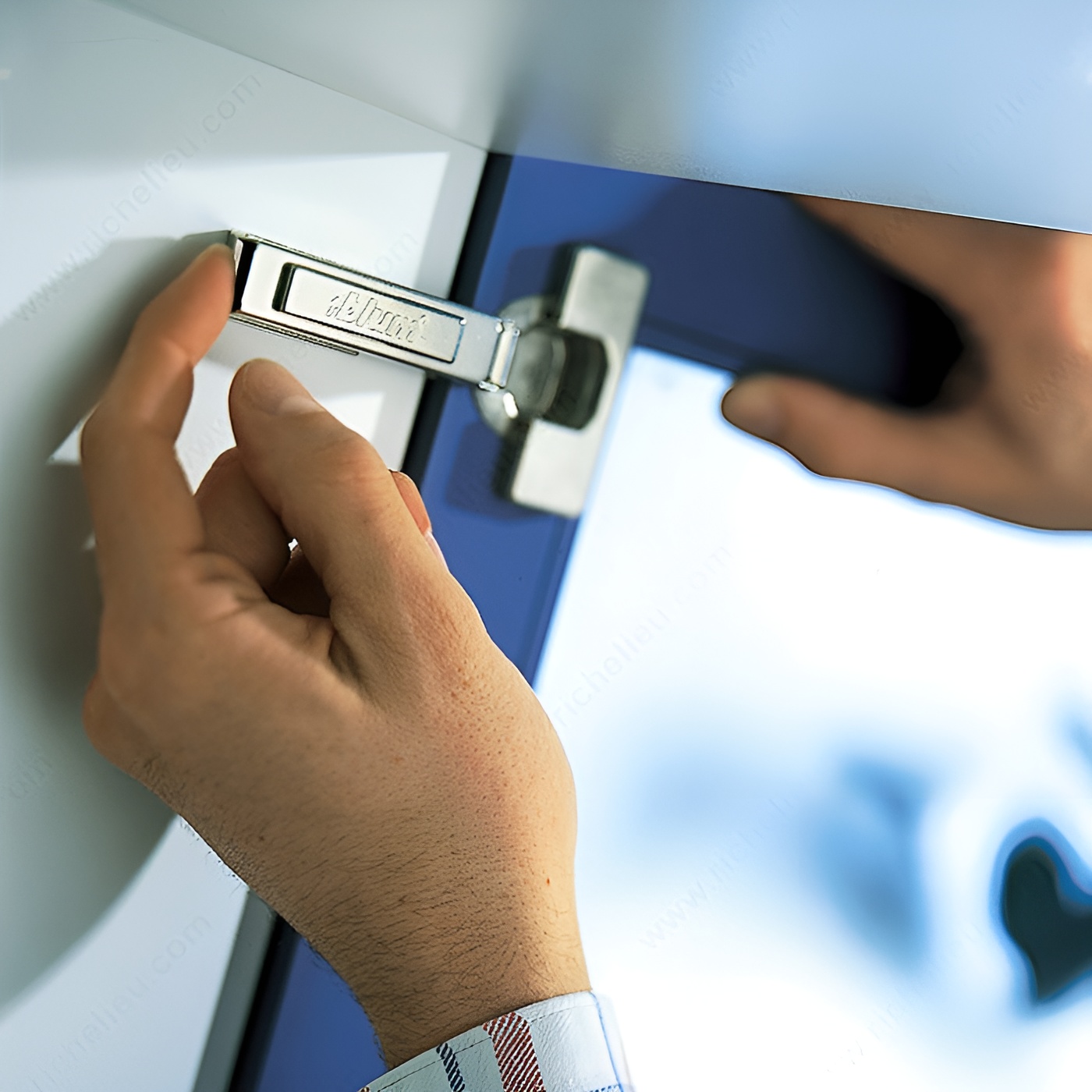

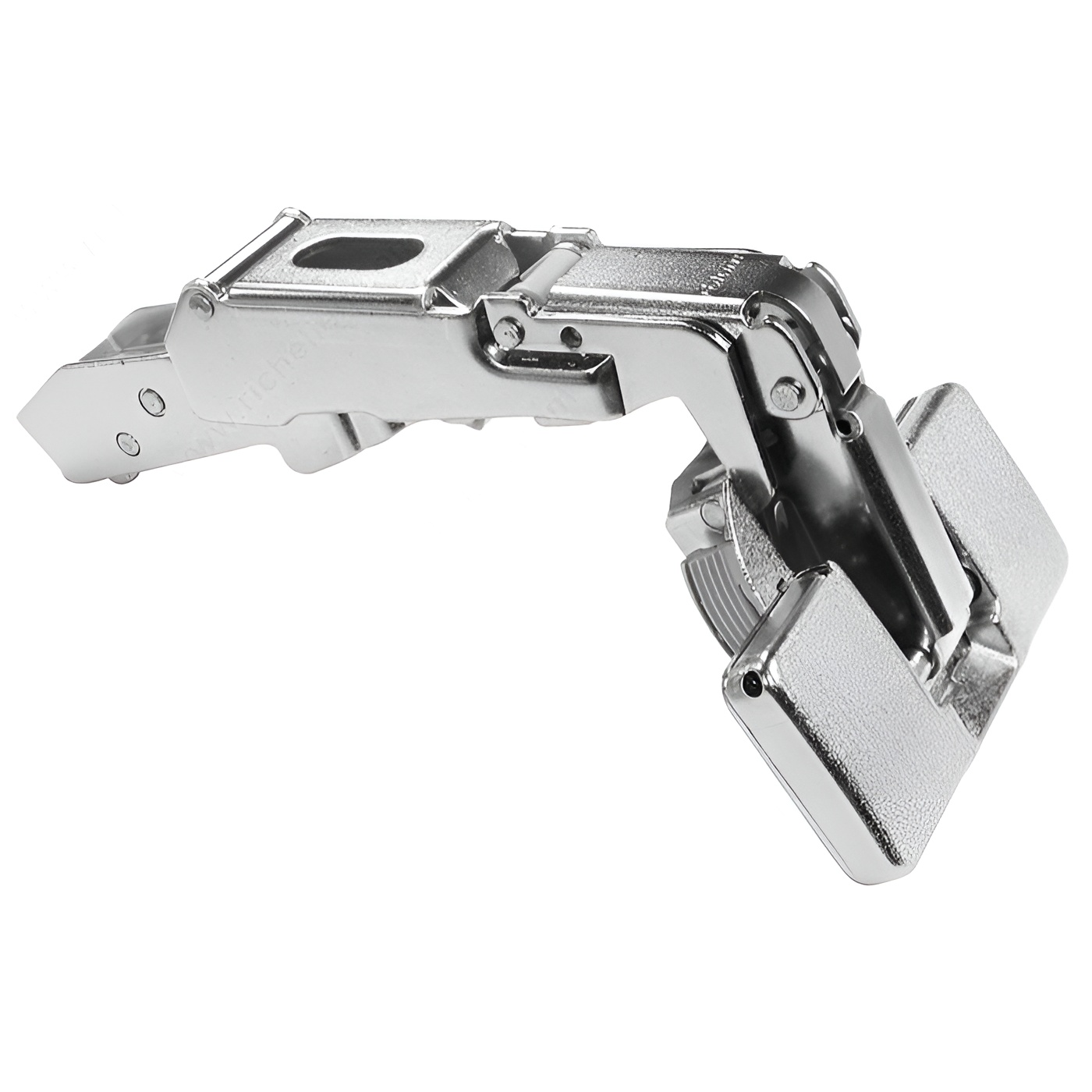

Richelieu 70T654180 CLIP top Hinge 170 offers a sophisticated solution for concealed cabinet door applications. Designed to remain invisible when the door is closed, these hinges are perfect for maintaining a sleek and modern aesthetic in both frameless and face frame cabinets. The hinge accommodates a minimum cabinet and door thickness of 5/8 inch, ensuring compatibility with various setups. With a remarkable opening angle of +170°, this hinge allows for easy access and functionality, making it an ideal choice for bi-fold door systems. The versatile Inserta fixing type simplifies installation, while the milling specifications of 13/32 inch depth and 1 3/8 inch diameter provide precise fitting for optimal performance. Crafted from durable steel and Zamac, the Richelieu CLIP top hinge boasts a free swing mechanism that enhances usability. For added convenience, it can be upgraded with the soft-closing BLUMOTION feature, providing a gentle and quiet closure that is both flexible and reliable. Whether you are a building professional or a discerning homeowner, the Richelieu 70T654180 CLIP top Hinge 170 is designed to meet your high standards for quality and functionality, ensuring your cabinets operate smoothly for years to come.
CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Free Swing

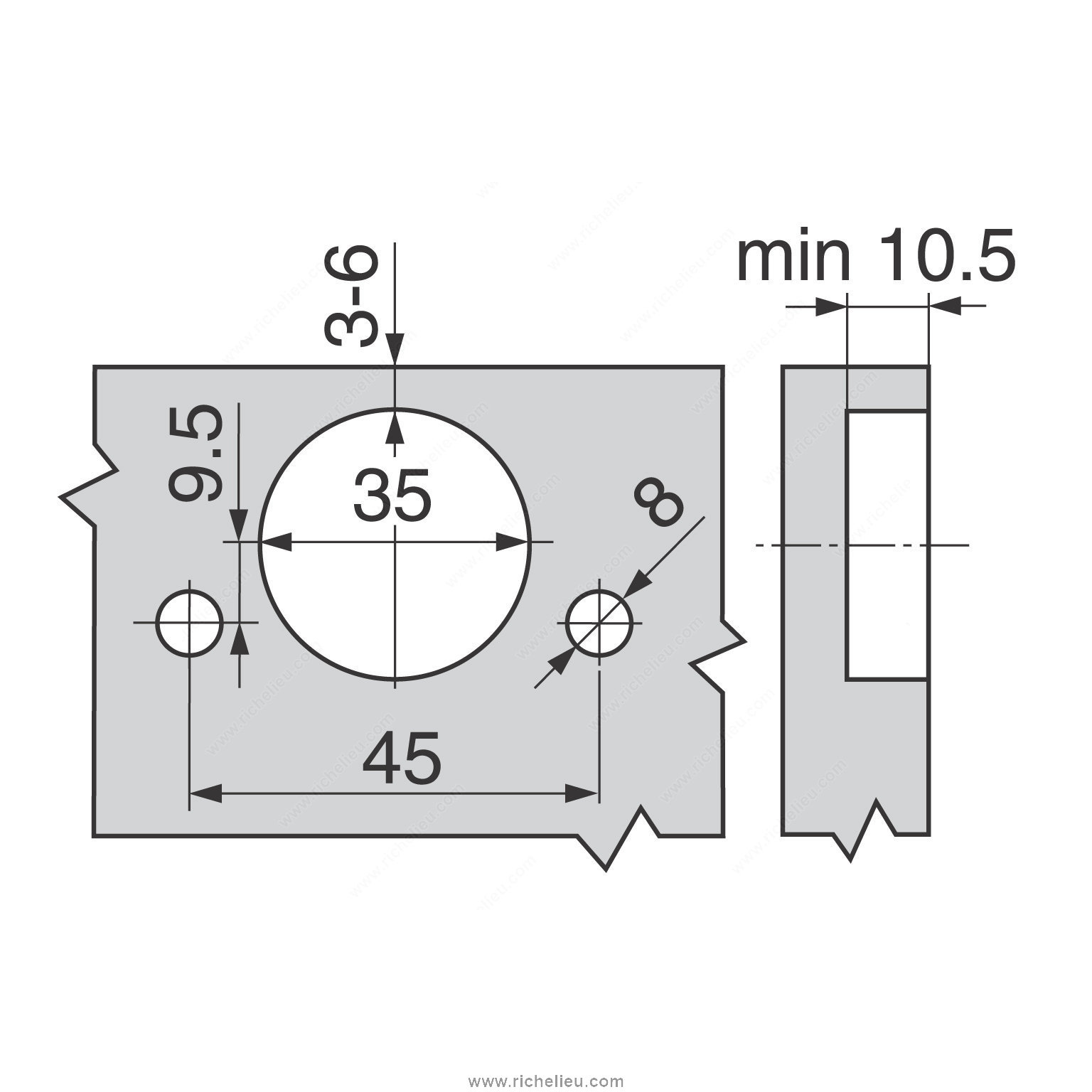

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 70T654180
Product number: 70T654180
Unit 1: carton - 25
Unit 2: case - 125
Use Type: Bi-Fold Door
