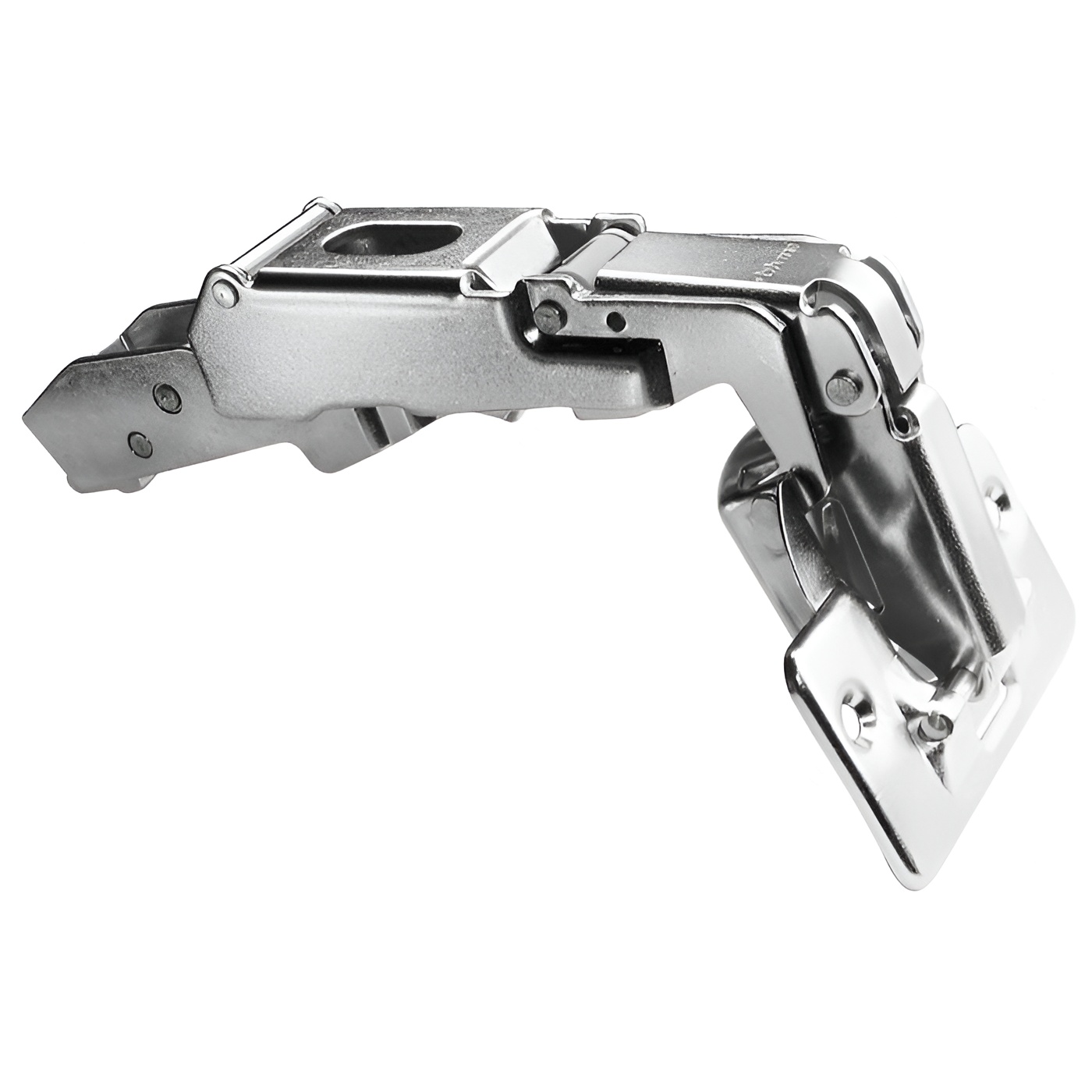

Richelieu 70T655180 CLIP top Hinge 170 offers a seamless solution for cabinet door installations with its concealed design, ensuring an unobtrusive aesthetic when the doors are closed. This hinge is versatile and compatible with both frameless and face frame cabinets, making it an ideal choice for a wide range of applications. Designed for ease of use, the CLIP top hinge features a +170° opening angle, allowing for full access to cabinet interiors. Constructed from durable steel and Zamac, it promises longevity and reliability in everyday use. The hinge accommodates door and cabinet thicknesses starting at 5/8 inches, ensuring a secure fit in various installations. Installation is straightforward with a screw-on fixing type, and the option to upgrade to soft closing BLUMOTION enhances the user experience, promoting quiet, gentle closure. The milling depth is set at 13/32 inches with a milling diameter of 1 3/8 inches, allowing for precise fitting. Packaged individually for convenience, the Richelieu 70T655180 CLIP top Hinge 170 is a smart choice for professionals and discerning homeowners looking for reliable, high-quality hardware that combines functionality with modern design.
CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Free Swing

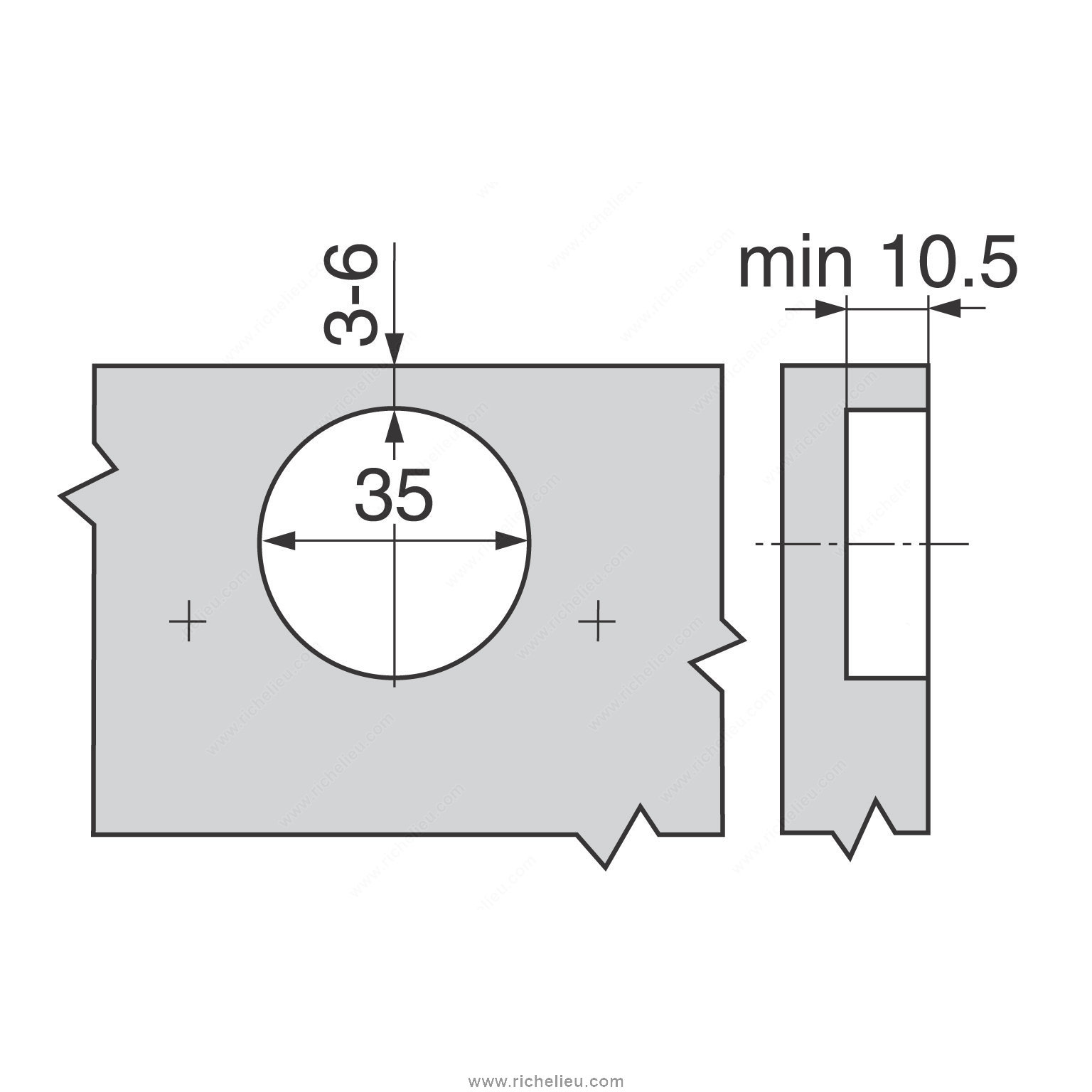

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 70T655180
Product number: 70T655180
Unit 1: carton - 25
Unit 2: case - 125
Use Type: Bi-Fold Door
