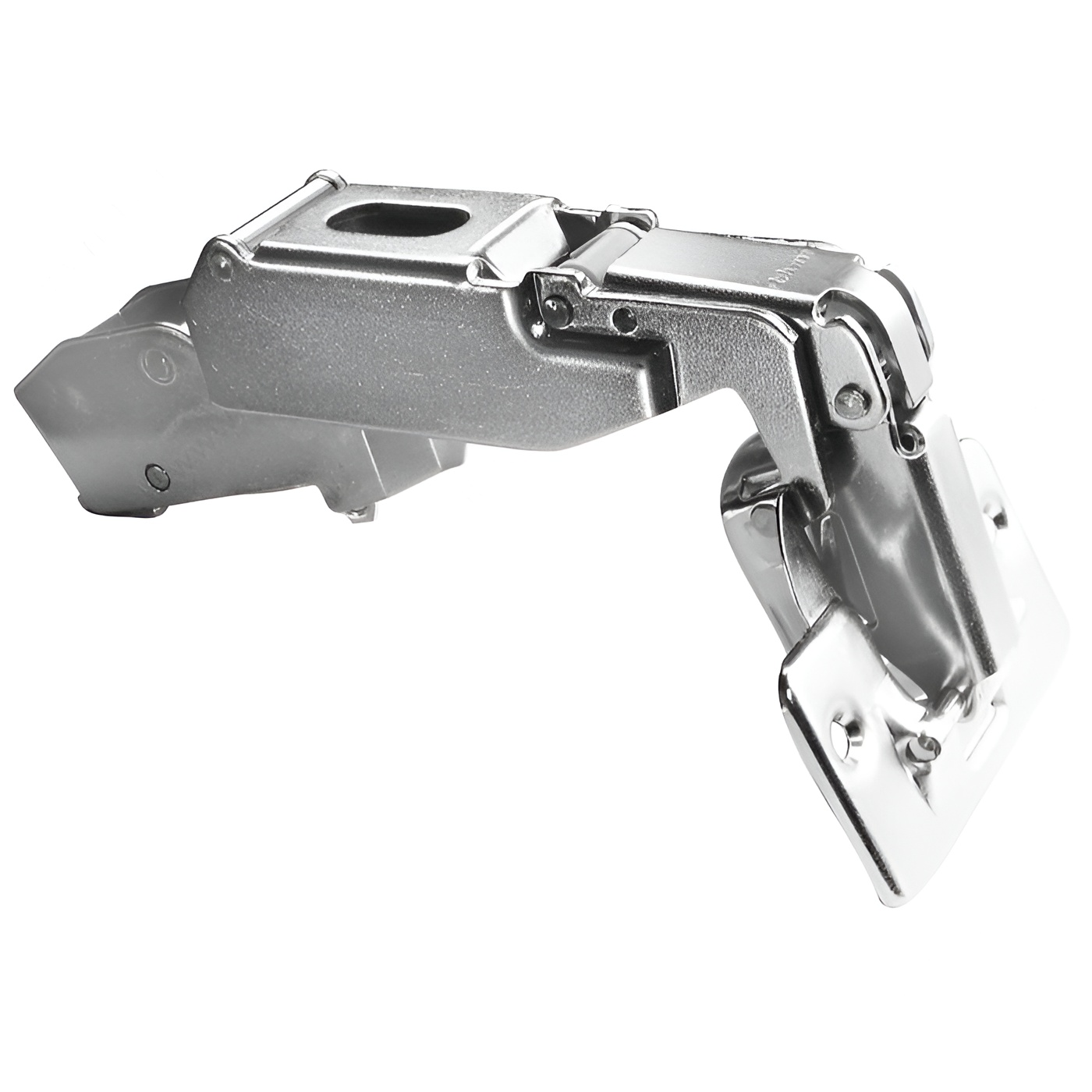

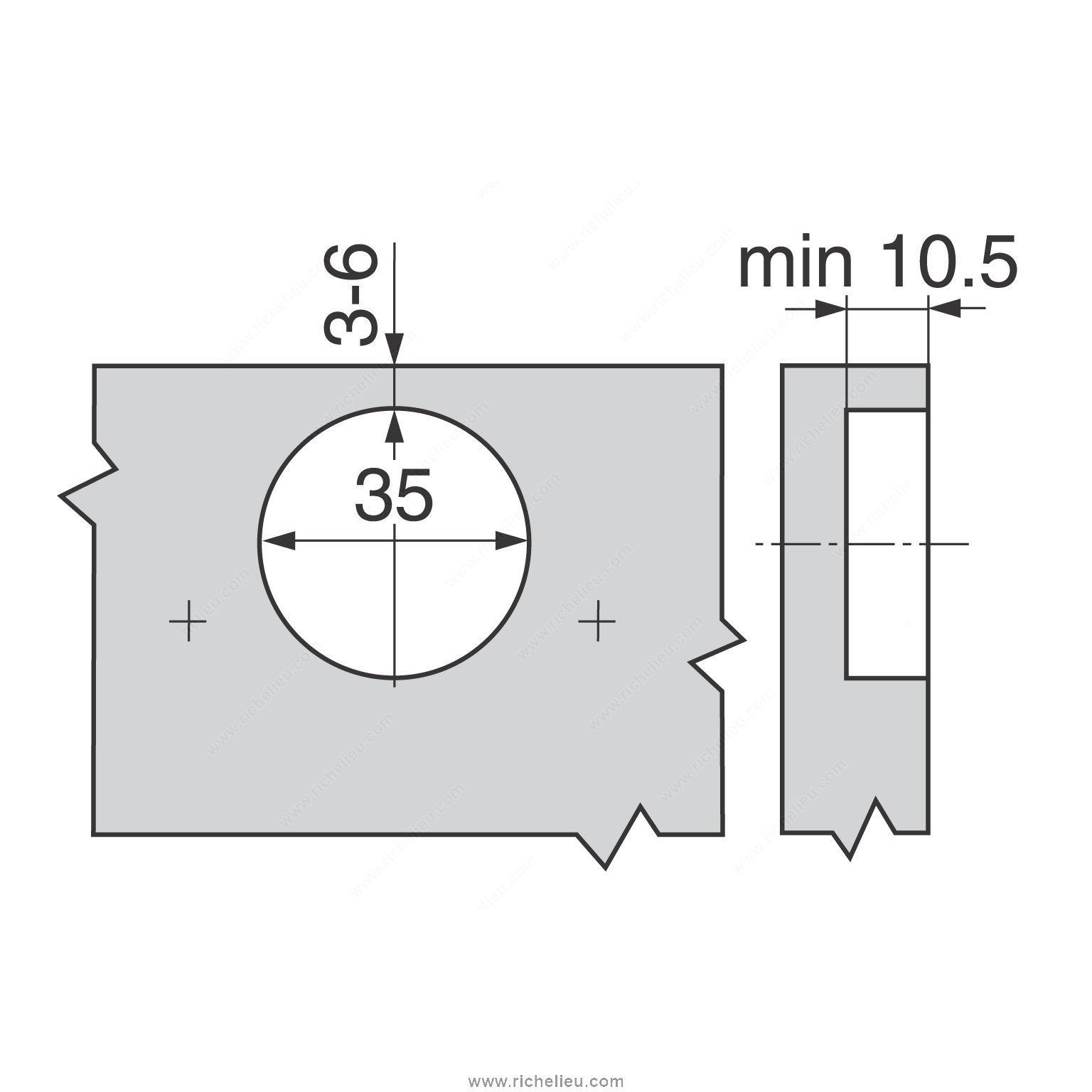

Richelieu 70T665180 CLIP top Hinge 170 offers a seamless solution for cabinet door installations, featuring a concealed design that remains hidden when doors are closed. This Euro-style hinge is versatile enough to be used in both frameless and face frame cabinets, making it an ideal choice for various projects. With a hinge opening angle of +170°, it allows for easy access while maintaining a sleek aesthetic. Engineered from durable steel and Zamac, the CLIP top hinge is designed for longevity and reliable performance. Its screw-on fixing type simplifies installation, while the milling requirements-13/32 in depth and 1 3/8 in diameter-ensure a precise fit. Supporting cabinet and door thicknesses as low as 5/8 in, this hinge accommodates a range of door styles. For added convenience, the CLIP top hinge can be upgraded with the soft-closing BLUMOTION feature, enhancing user experience by providing a gentle, noise-free closure. Each hinge is packaged individually, making it easy to purchase the exact quantity needed for your project. Whether you are a building professional or a knowledgeable homeowner, the Richelieu 70T665180 hinge delivers flexibility and reliability for any cabinetry application.
CLIP top Hinge 170
Brand: Blum
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Half Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +170°
Hinge Type: CLIP top
Material: Steel, Zamac
Mechanism: Free Swing
Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging format: Per unit
Product #: 70T665180
Product number: 70T665180
Unit 1: carton - 25
Unit 2: case - 125
Use Type: Bi-Fold Door
