Richelieu 70T958180 CLIP top Hinge - 95 for Thick Doors offers a robust solution for frameless cabinet applications, designed specifically for thick doors ranging from 5/8 inch to 1 1/4 inch in thickness. This innovative hinge features a full overlay door position, ensuring a seamless fit while maximizing the aesthetic appeal of your cabinetry. The hinge allows for a generous opening angle of +95°, providing easy access and enhancing usability in tight spaces. Its free swing mechanism promotes smooth operation, making it ideal for high-traffic areas. Installation is made simple with a dowel fixing type, while the required milling depth of 15/32 inch and diameter of 1 3/8 inches ensure compatibility with standard cabinet designs. Designed for durability and reliability, the Richelieu 70T958180 is suitable for professional-grade applications, making it a go-to choice for builders and remodelers alike. Its ability to ship via UPS adds convenience to your procurement process, ensuring you can get these essential components delivered right to your job site. Upgrade your cabinetry with the Richelieu CLIP top hinge and enjoy the perfect blend of form and function.

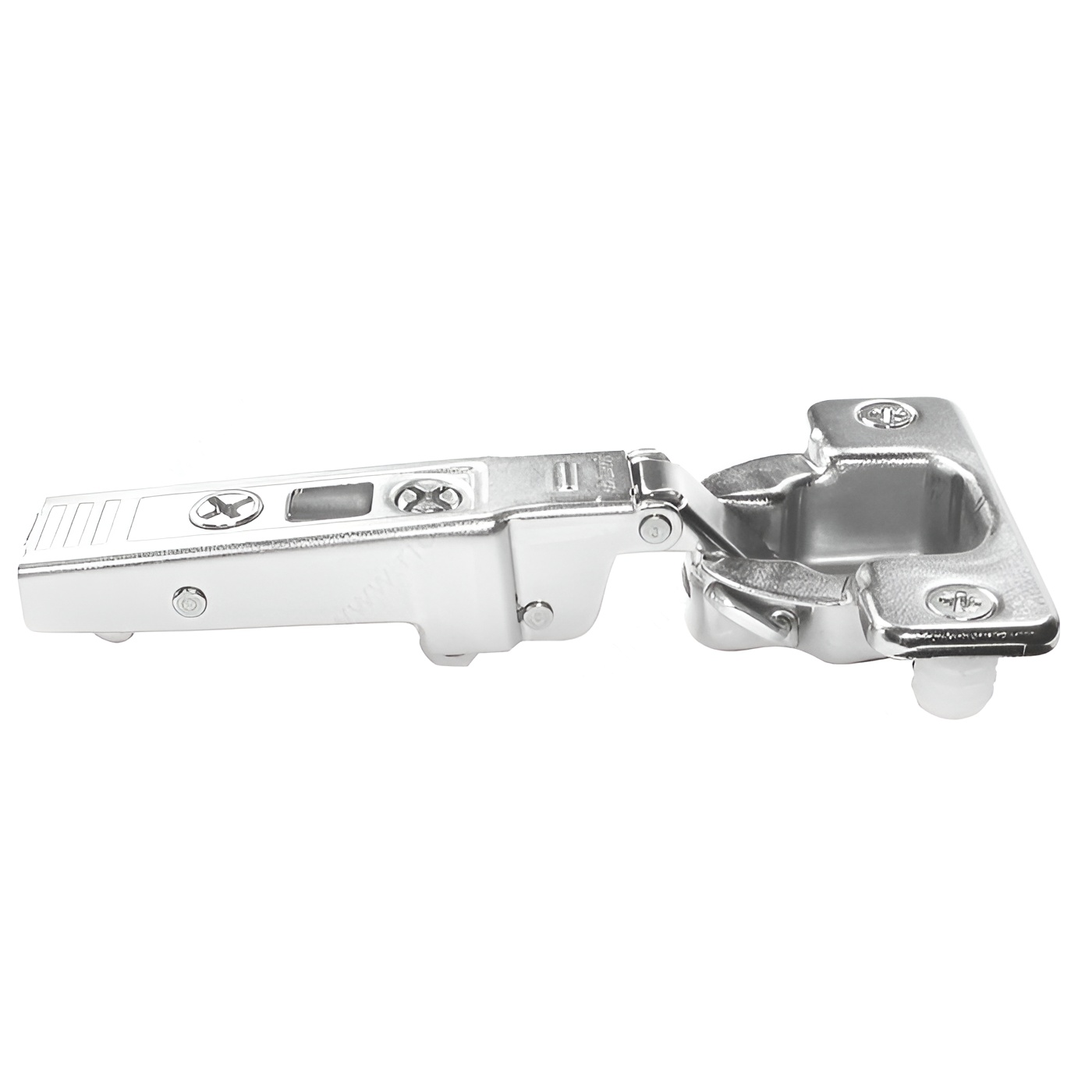

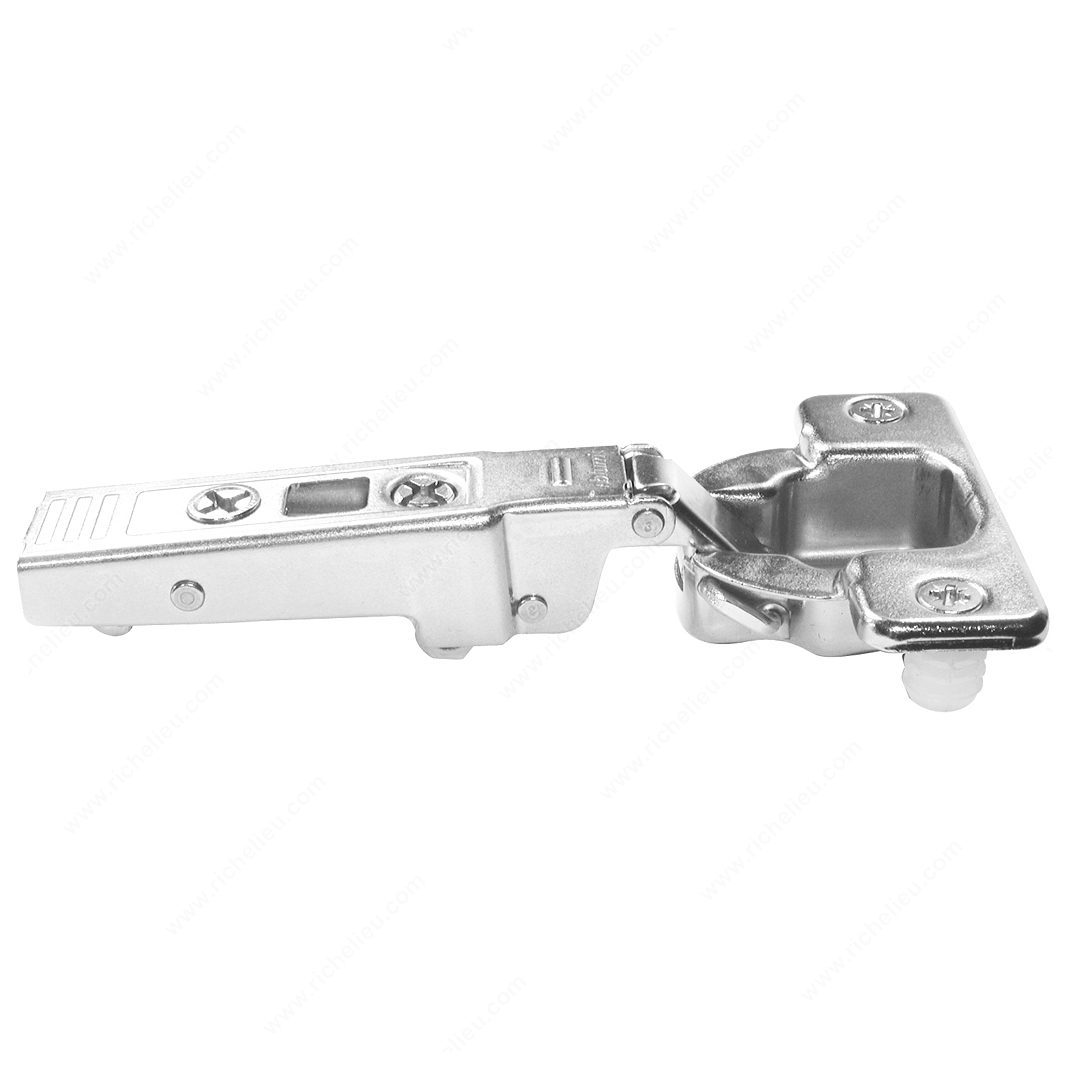

CLIP top Hinge - 95 for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Full Overlay
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +95°
Hinge Type: CLIP top
Mechanism: Free Swing

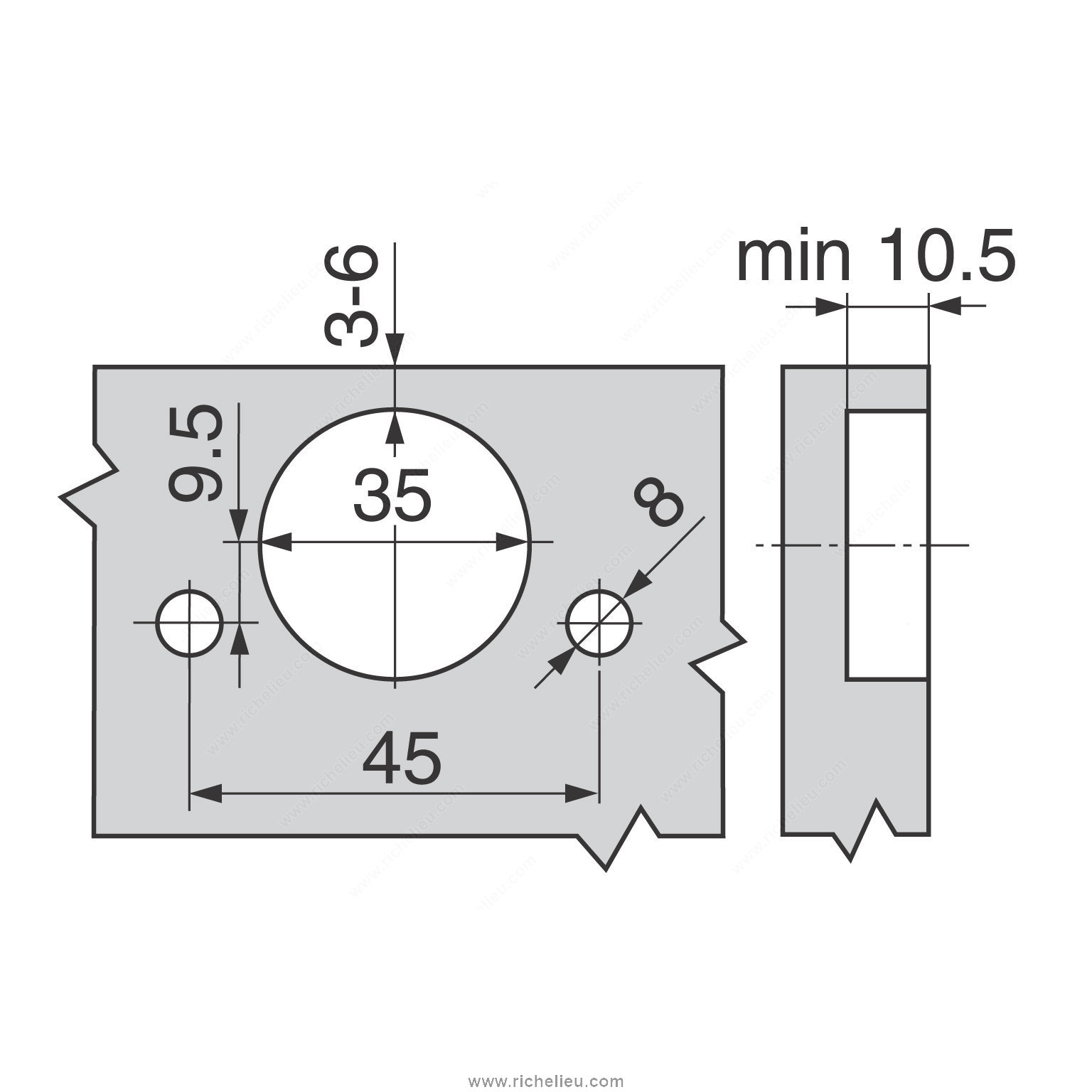

Milling Depth: 12.3 mm
Milling Diameter: 35 mm
Product #: 70T958180
Product number: 70T958180
Use Type: Thick Door
