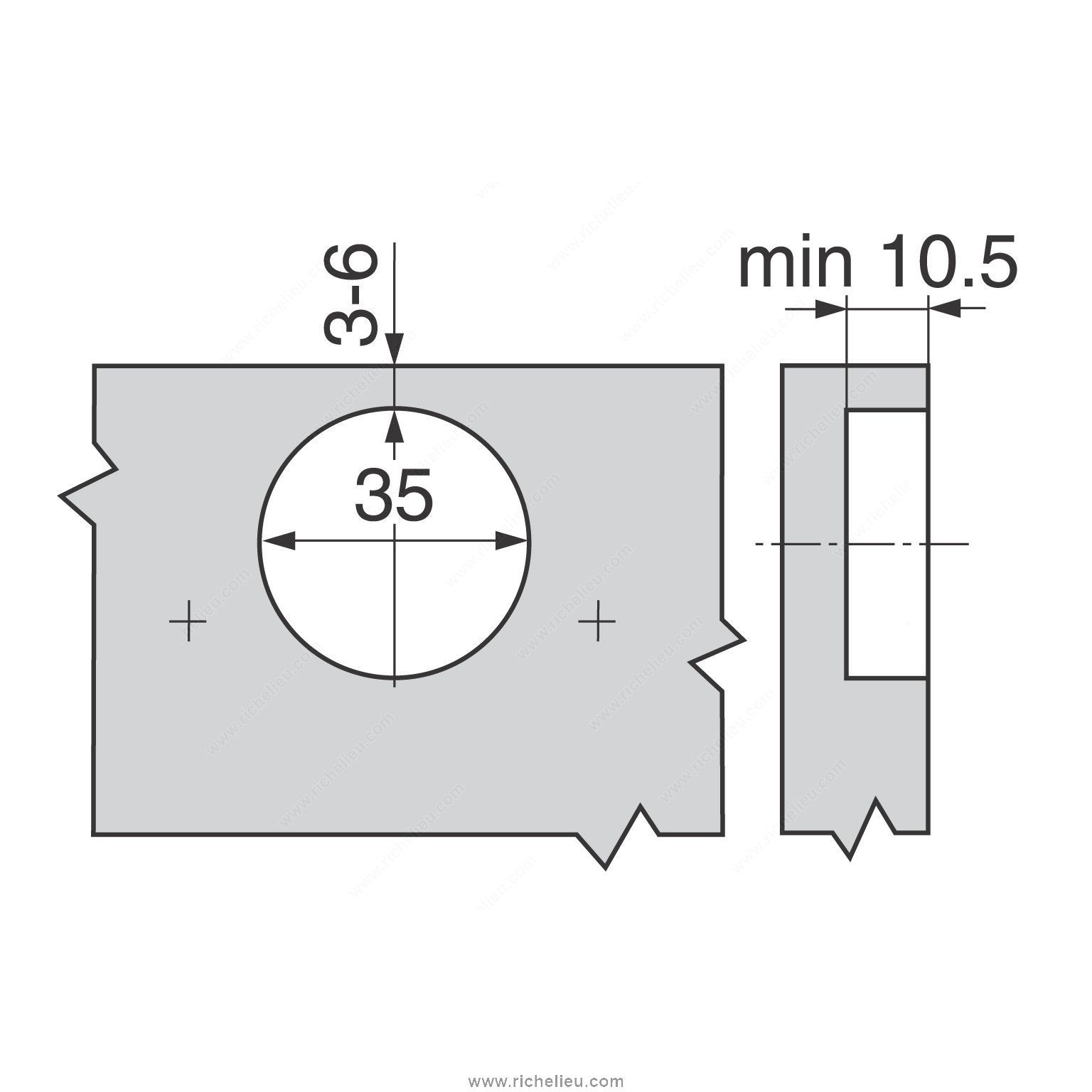

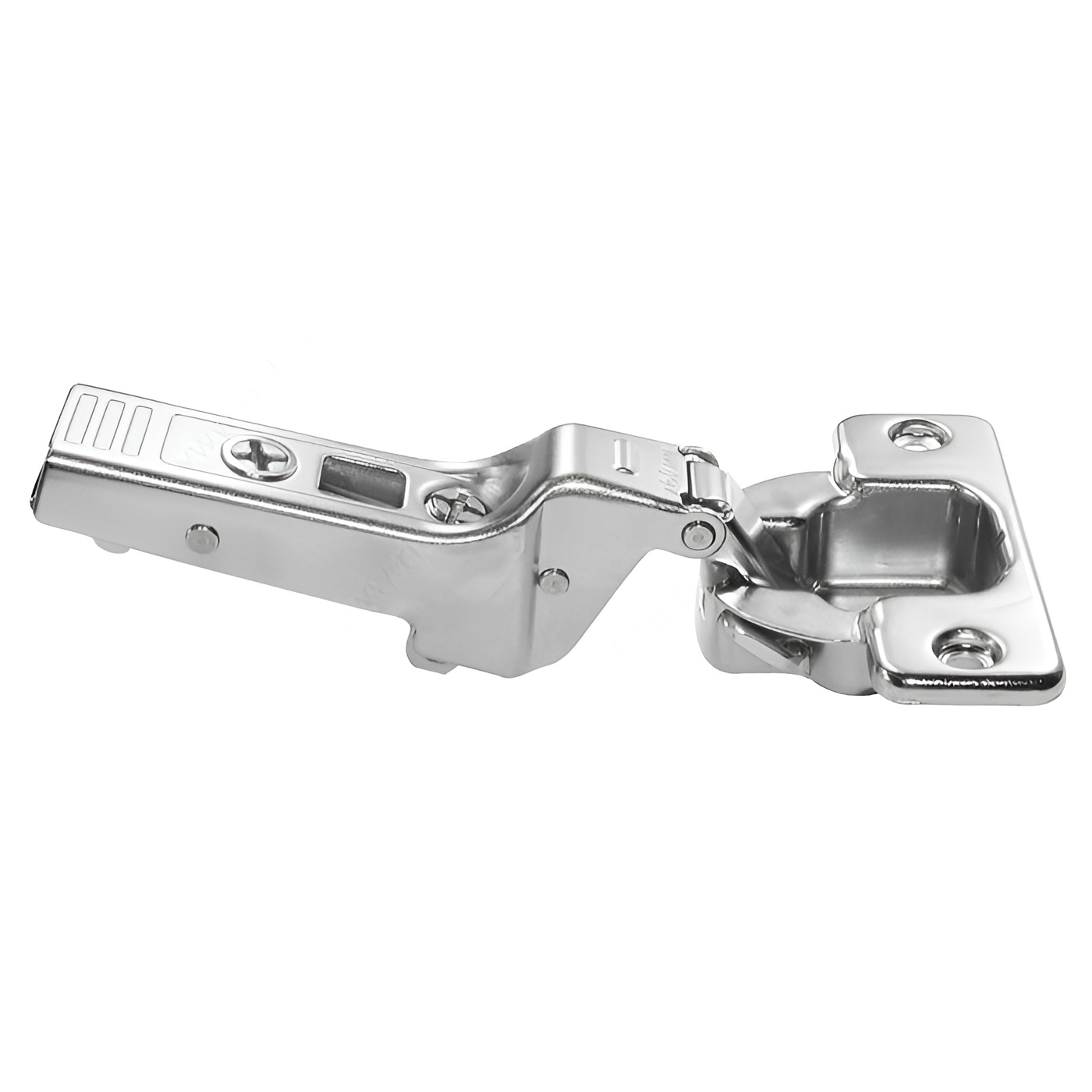

Richelieu 70T965180 CLIP top Hinge - 95 for Thick Doors offers a reliable solution for frameless cabinetry, ensuring seamless functionality and aesthetic appeal. Designed specifically for thick doors, this hinge accommodates door thicknesses ranging from 5/8 to 1 1/4 inches, making it ideal for robust applications. With a minimum cabinet thickness of 5/8 inches, it guarantees a secure fit and stability. The hinge features a half overlay door position and boasts an impressive opening angle of +95°, providing ample access to the cabinet interior. The free-swing mechanism allows for smooth operation, ensuring that doors close effortlessly. For installation, the screw-on fixing type simplifies the setup process, making it user-friendly for professionals and DIY enthusiasts alike. Milling requirements include a depth of 15/32 inches and a diameter of 1 3/8 inches, facilitating precise installation. The Richelieu 70T965180 is not only functional but also designed to enhance the overall presentation of your cabinetry. With its robust construction and thoughtful engineering, this hinge is a valuable addition to any kitchen or storage project that demands quality and durability.
CLIP top Hinge - 95 for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Half Overlay
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +95°
Hinge Type: CLIP top
Mechanism: Free Swing
Milling Depth: 12.3 mm
Milling Diameter: 35 mm
Product #: 70T965180
Product number: 70T965180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Thick Door
