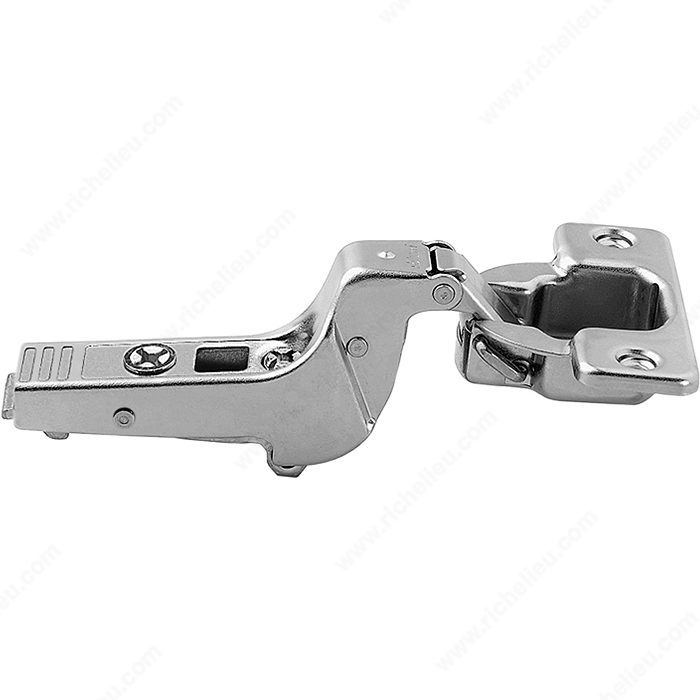

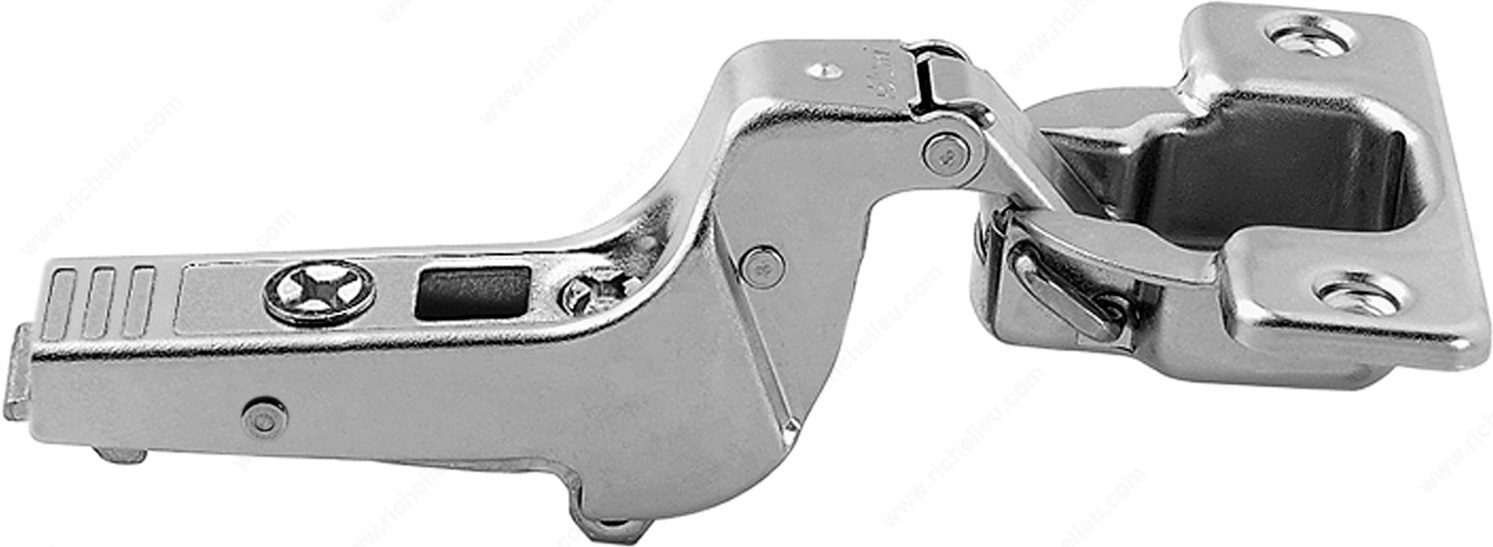

Richelieu 70T975180 CLIP top Hinge - 95 for Thick Doors is designed specifically for frameless cabinets, providing a seamless and elegant solution for inset doors. This hinge accommodates door thicknesses ranging from 5/8 to 1 1/4 inches, making it ideal for thicker applications. With a minimum cabinet thickness requirement of 5/8 inches, this hinge ensures a secure and sturdy attachment, enhancing the overall durability of your cabinetry. One of the standout features of this hinge is its impressive opening angle of +95°, which allows for easy access and optimal functionality. The free swing mechanism facilitates smooth operation, providing a user-friendly experience. Installation is straightforward with a screw-on fixing type, ensuring reliable performance over time. Additionally, the milling depth of 15/32 inches and milling diameter of 1 3/8 inches support precise fitting, making it easier to achieve a polished finish. Richelieu's commitment to quality is evident in this product, which is suitable for professional-grade applications. Whether you're a building professional or a knowledgeable homeowner, the Richelieu 70T975180 hinge is a fantastic choice for enhancing both the aesthetics and functionality of your kitchen cabinetry.
CLIP top Hinge - 95 for Thick Doors
Cabinet Thickness: Min. 16 mm
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Door Position: Inset
Door Thickness: 16 to 32 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +95°
Hinge Type: CLIP top
Mechanism: Free Swing
Milling Depth: 12.3 mm
Milling Diameter: 35 mm
Product #: 70T975180
Product number: 70T975180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Thick Door
